Overview

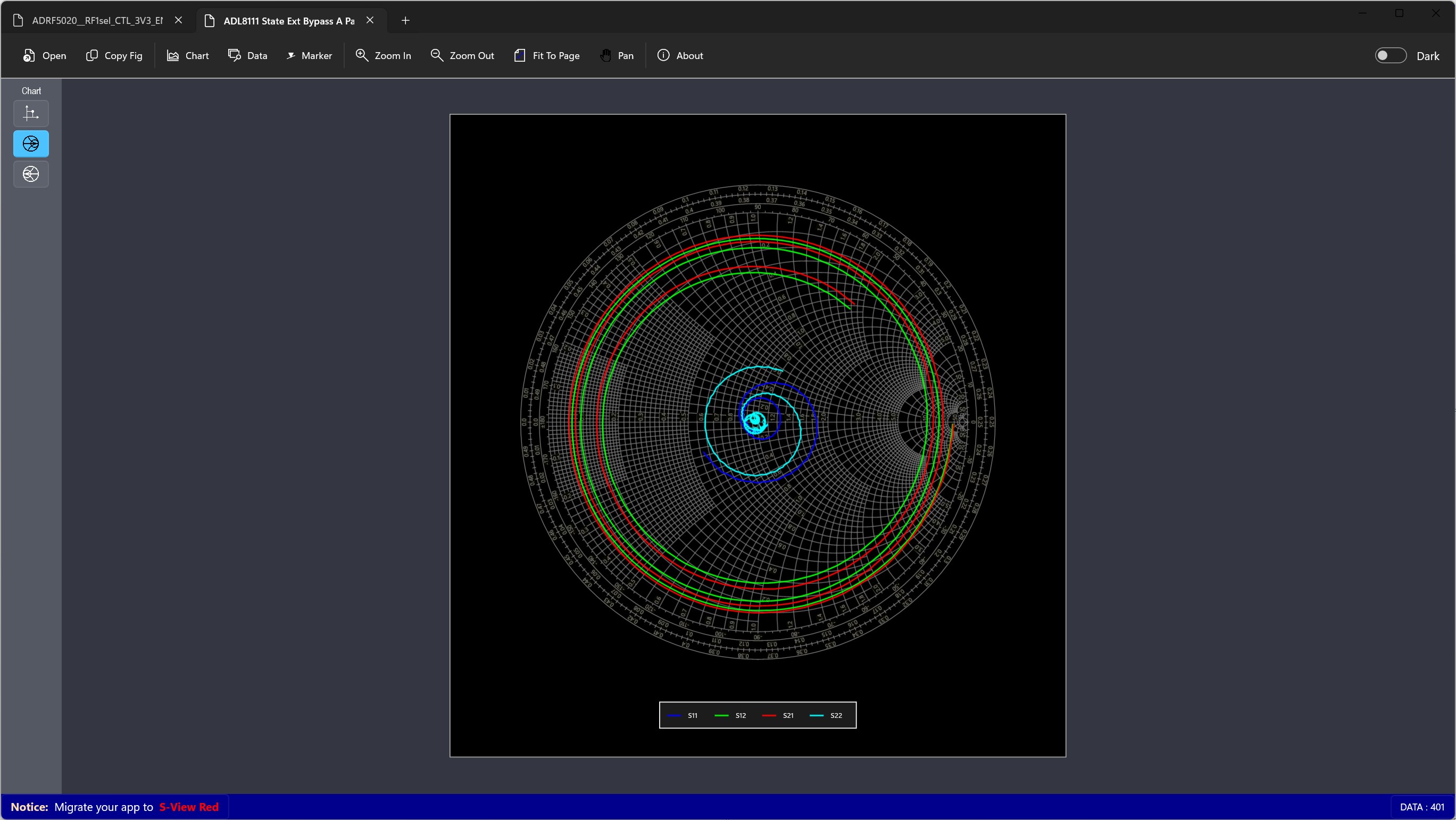

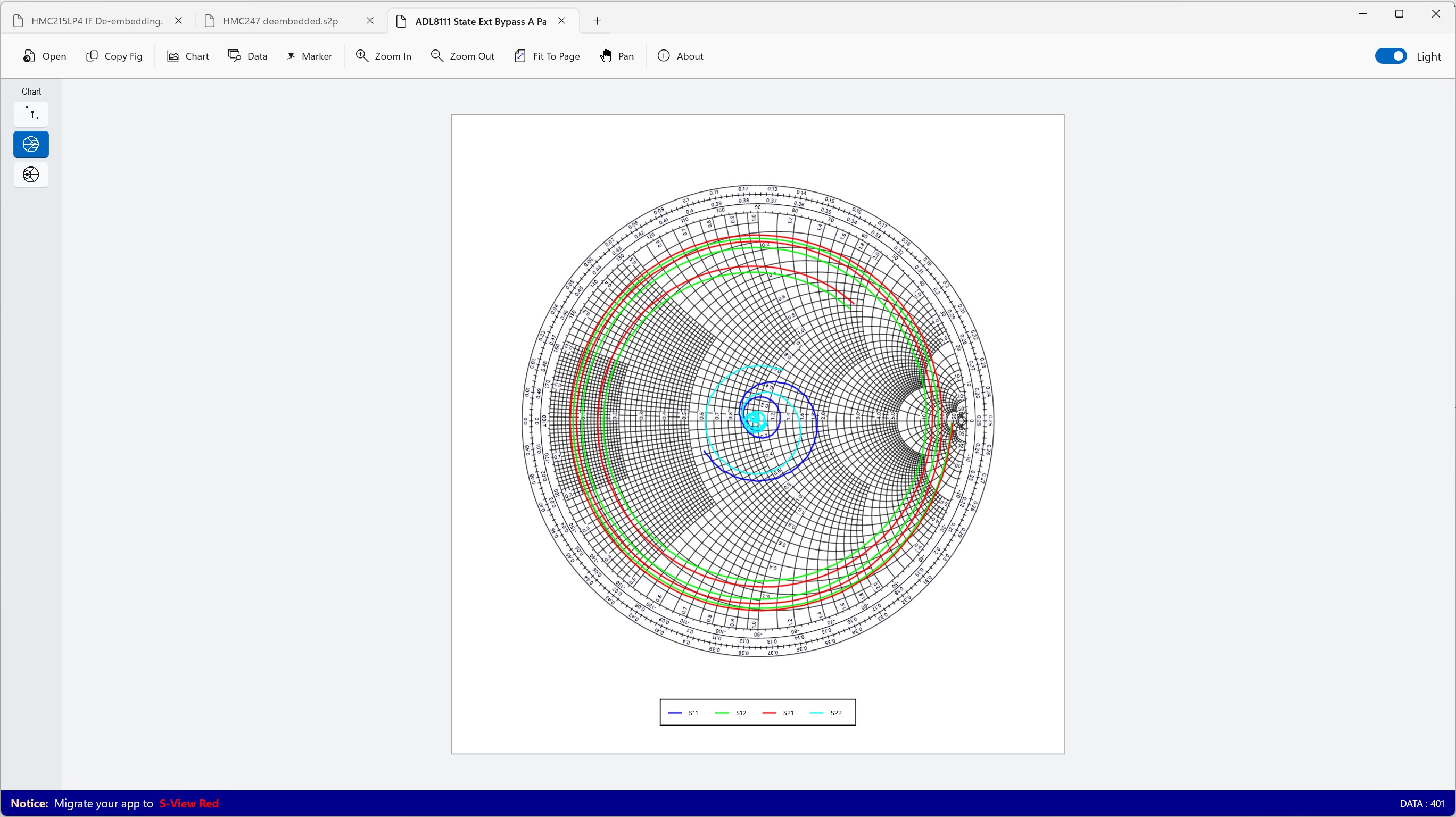

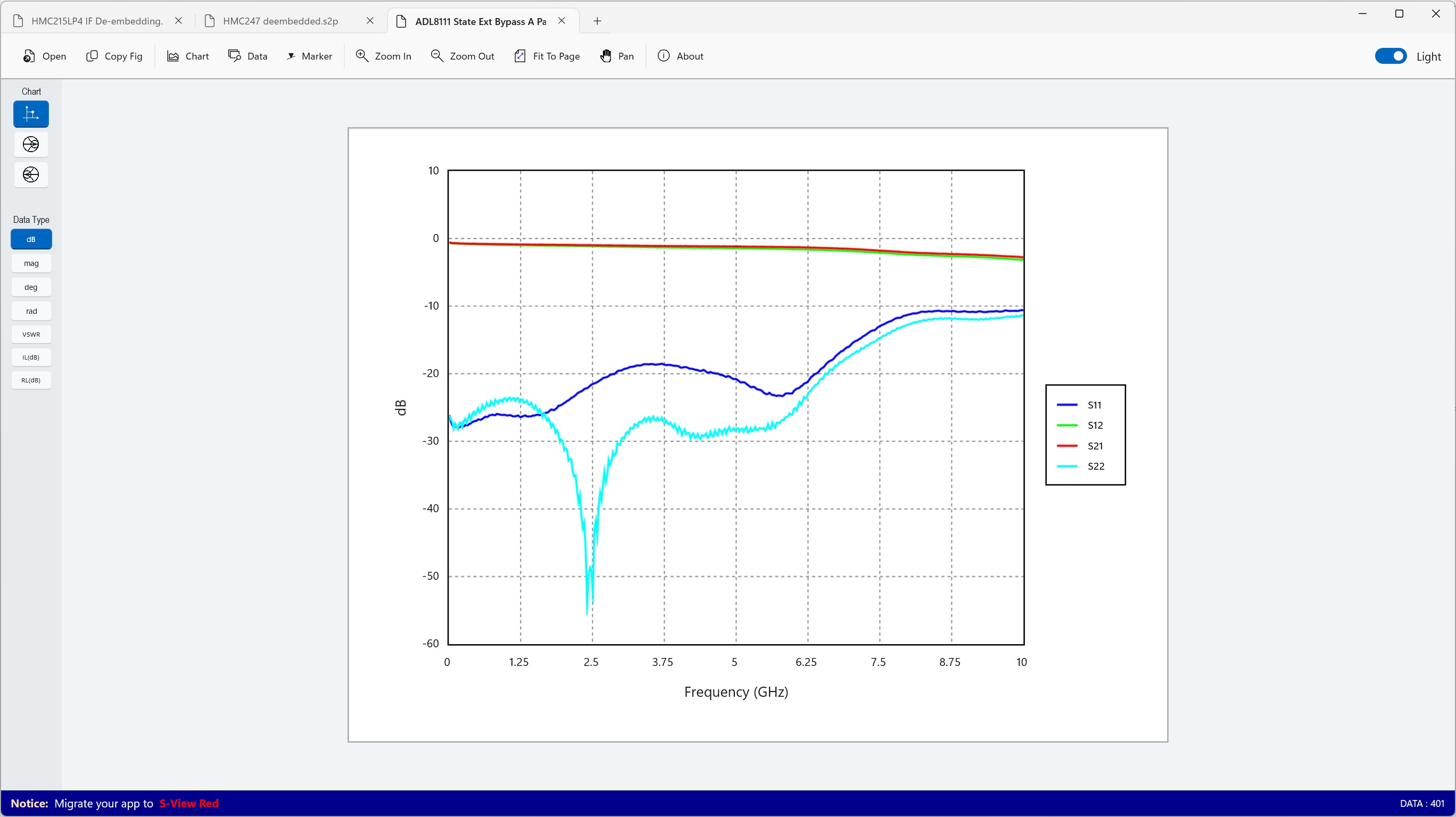

S-View is a free S-parameter viewer; It allows you to view the data of the s-parameter or the scattering parameter which is used to characterize RF/Microwave components and systems. The S-View supports the touchstone format which has file extensions such as .s1p, .s2p, .s3p, .s4p, etc. You can plot the chart on the Cartesian coordinate or Smith chart.
Use the S-View app to read s-parameters for the commercial RF/Microwave components or systems such as antenna, filters, and amplifiers. Or design your own system, measure data using the network analyzer, and verify the result using S-View.
Launch the app then open files. Or just click the associated file on file explorer.
Features
Provide S-parameter Viewer (Touchstone Viewer)Rectangular Coordinate and Smith ChartSupport magnitude, dB, angle (degree), angle (radian), VSWR, Return loss, Insertion lossProvide a marker function : peak search etc.Provide a user-editable chartProvide multiple charts tabsSupport the log scale axis
Additional Information
- Developed by PPappui
- Version 2024.10.08
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 17763.0 or higher
Keyboard: Not specified
Mouse: Not specified
Memory: 4 GB
- Published 2020-12-30
- Size 201.98 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9mt55kncwhml
Advertisement
How to download and install S-View from the Microsoft
Method 1: Download and Install via the Microsoft Store
This is the most straightforward and secure way to get S-View.Step 1: Open the Microsoft Store
Step 2: Search for S-View
Step 3: Download and Install
Step 4: Access the App
Method 2: Download from the Official Microsoft Website
If you prefer downloading directly from the web, you can use the official Microsoft website.Step 1: Visit the S-View Page
Step 2: Download the App
Step 3: Install S-View
Step 4: Use S-View
Tips for a Smooth Installation
Conclusion:
Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install S-View.S-View FAQs
