Overview

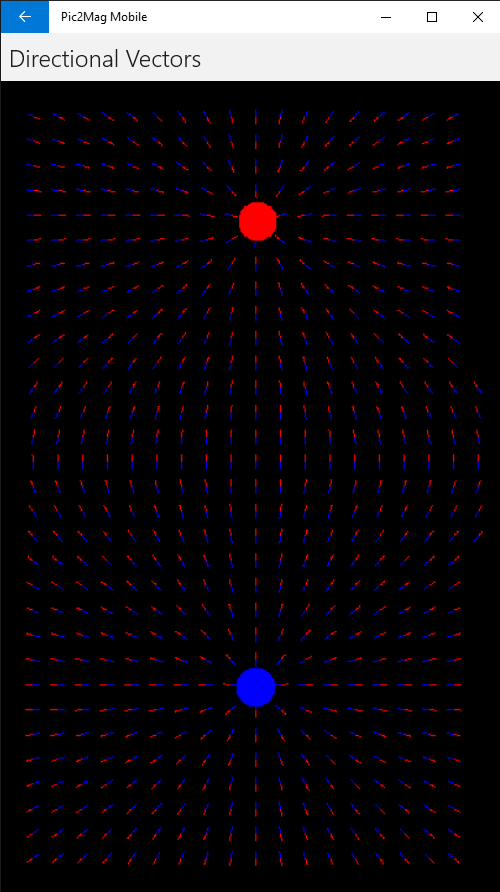

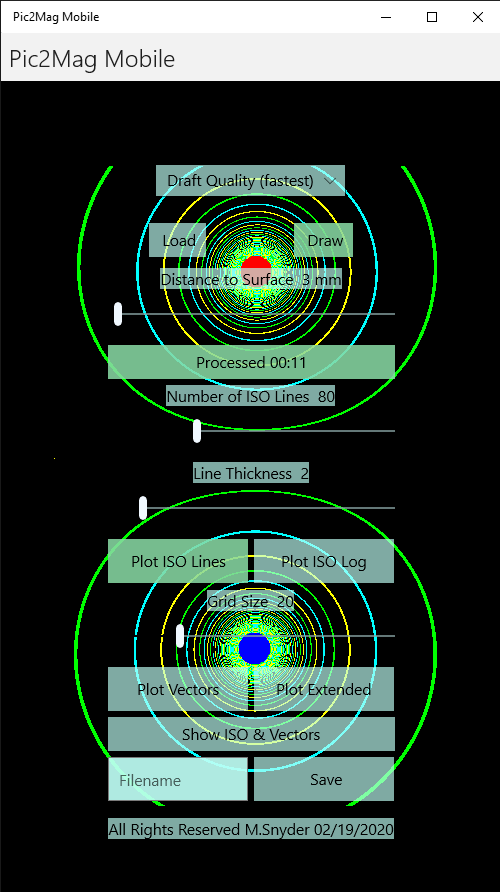

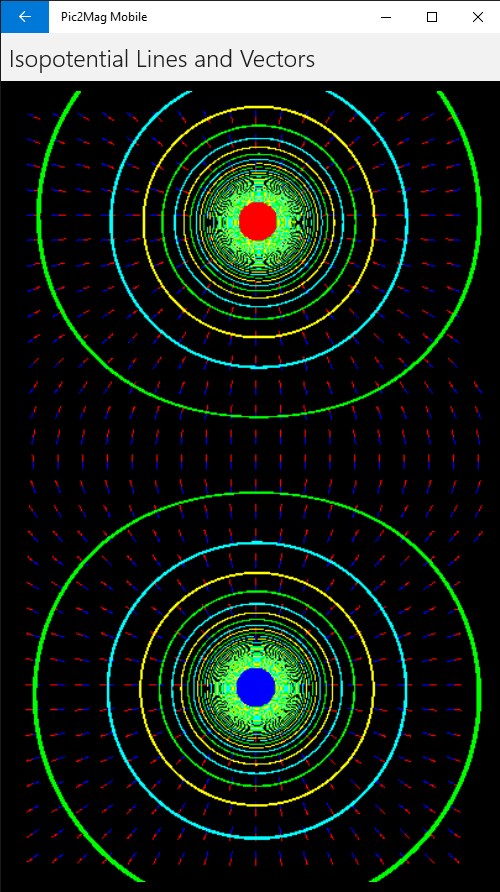

The user draws the magnets and the Pic2Mag program draws the magnetic fields. The Field Calculator program now has both Magnetostatic and Electrostatic modes to plot either magnetic fields or electric fields. The program designed to help students learn about Magnetic fields and Electric fields. You can draw magnets and look at the magnetic fields, or you can draw electric charges and look at the electric fields.
The app can process most images in just a few minutes, but more complex images can take up to a half hour to process the first time. The Field Calculator caches it's results so the more that you use it, the faster the program processes images.

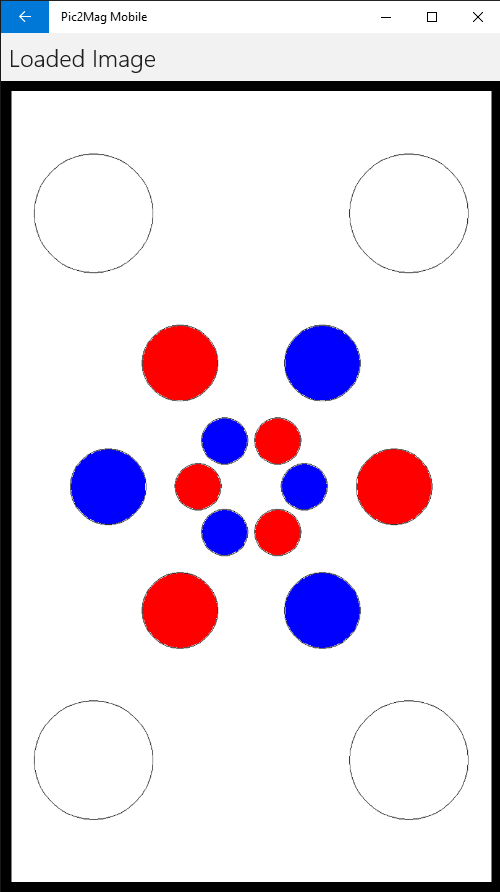

Red pixels represent magnets with a North pole surface facing the observer, and Blue pixels represent magnets with a South pole surface facing the observer. Pink pixels represent positive electric charges, and Dark Purple pixels represent negative electric charges

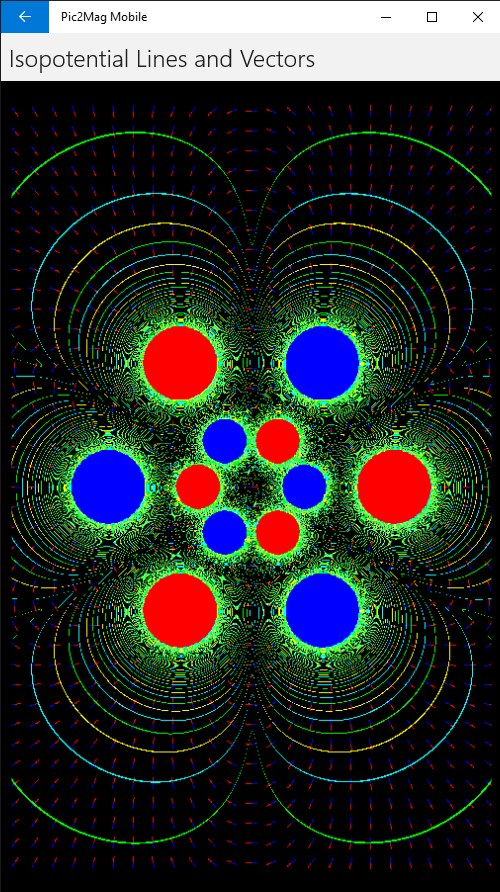

If you have ever placed magnets on a table and wondered what their combined magnetic field looked like, then Pic2Mag's Field Calculator is the right app for you. If you have ever wondered about the electric field around a battery or a capacitor , Pic2Mag's Field Calculator can plot it.
Features
MultithreadingMagnetostaticElectrostatic
What's new
Version 1.05 can process Magnetostatic drawings of magnets, or Electrostatic drawings of electric charges. This app version is about twenty percent faster at making internal library files, and now can recover and keep running if the program is shutdown while writing internal files. Better file handling.
Additional Information
- Developed by Michael Snyder
- Version 2022.03.13
-
Requires
Available on: Xbox console, PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 16299.0 or higher
Memory: Not specified
- Published 2020-03-04
- Size 52.01 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Use your pictures library
Use data stored on an external storage device
- Microsoft Store ID 9mx7092smvm1
