Overview
What it does, well almost everything.
- Resolve complex Boolean expressions.

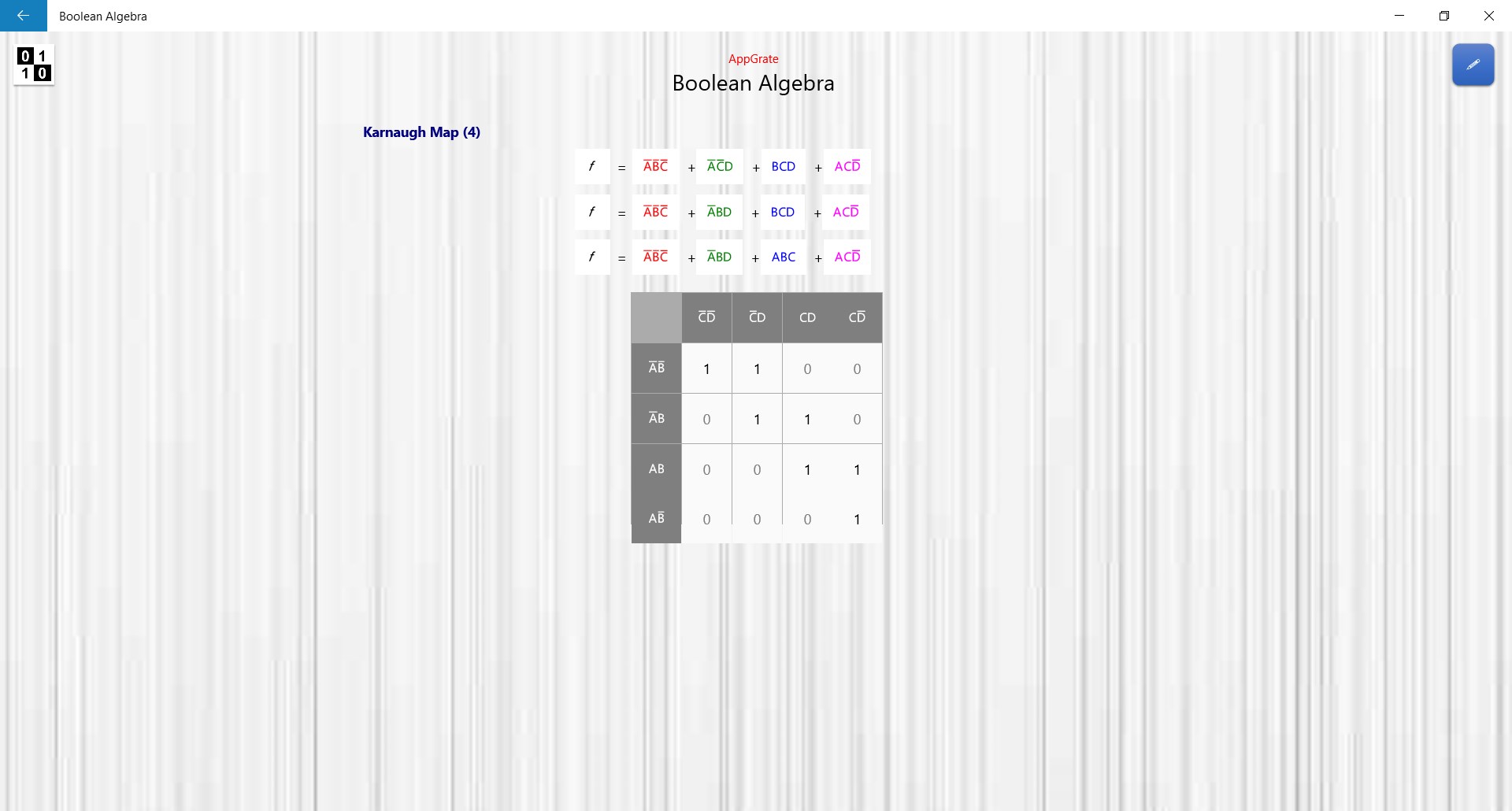

- Directly update K-Map and derive minimized solutions (all possible minimal solutions, not just one).
- Update Truth table and generate minimized K-Map values, corresponding circuit, and lot more.

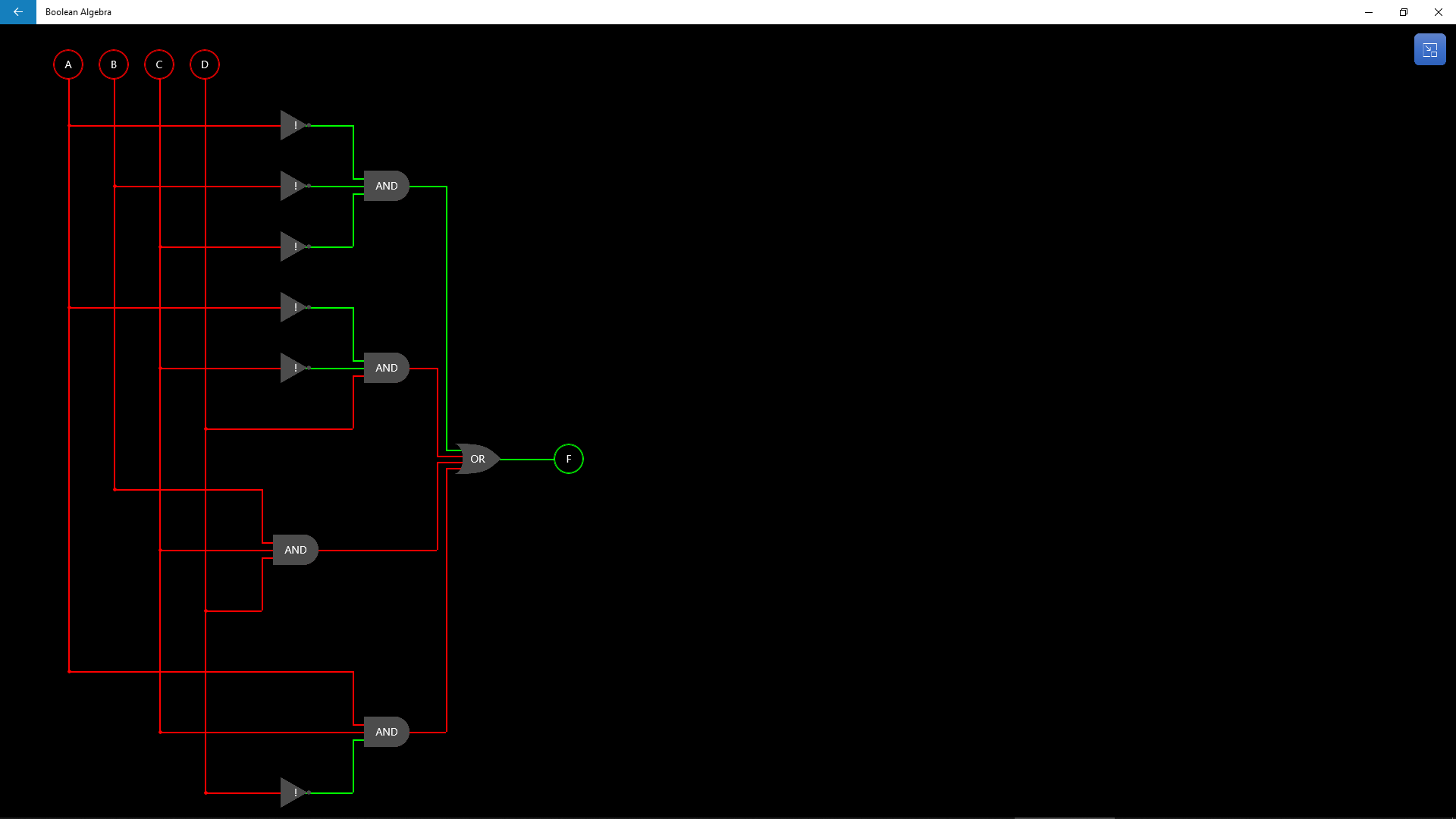

- View and interact with minimized circuit. You can also switch between all the minimal solutions available.
- Tapping on the variable name in the circuit will toggle its value, zero or one, and update the circuit accordingly.
- You also have an option to view Sum of Products, Product of Sums, Min terms and Max terms.
- Interactive section(s) to learn more about all the gates (AND, OR, NOT, XOR, XNOR, NAND and NOR)
- Rewritten circuits for higher performance, no overlapping lines and a full screen button
- Better representation of K-Map solutions
What is next?
- Quick search for minimized solution.
- Easy to verify answers with explanation (why it is wrong)
- Option to generate circuits using universal gates
- Adding "do not care" option
- Support for more than four variables
- Zoom in/out in circuit
- Dark mode
Features

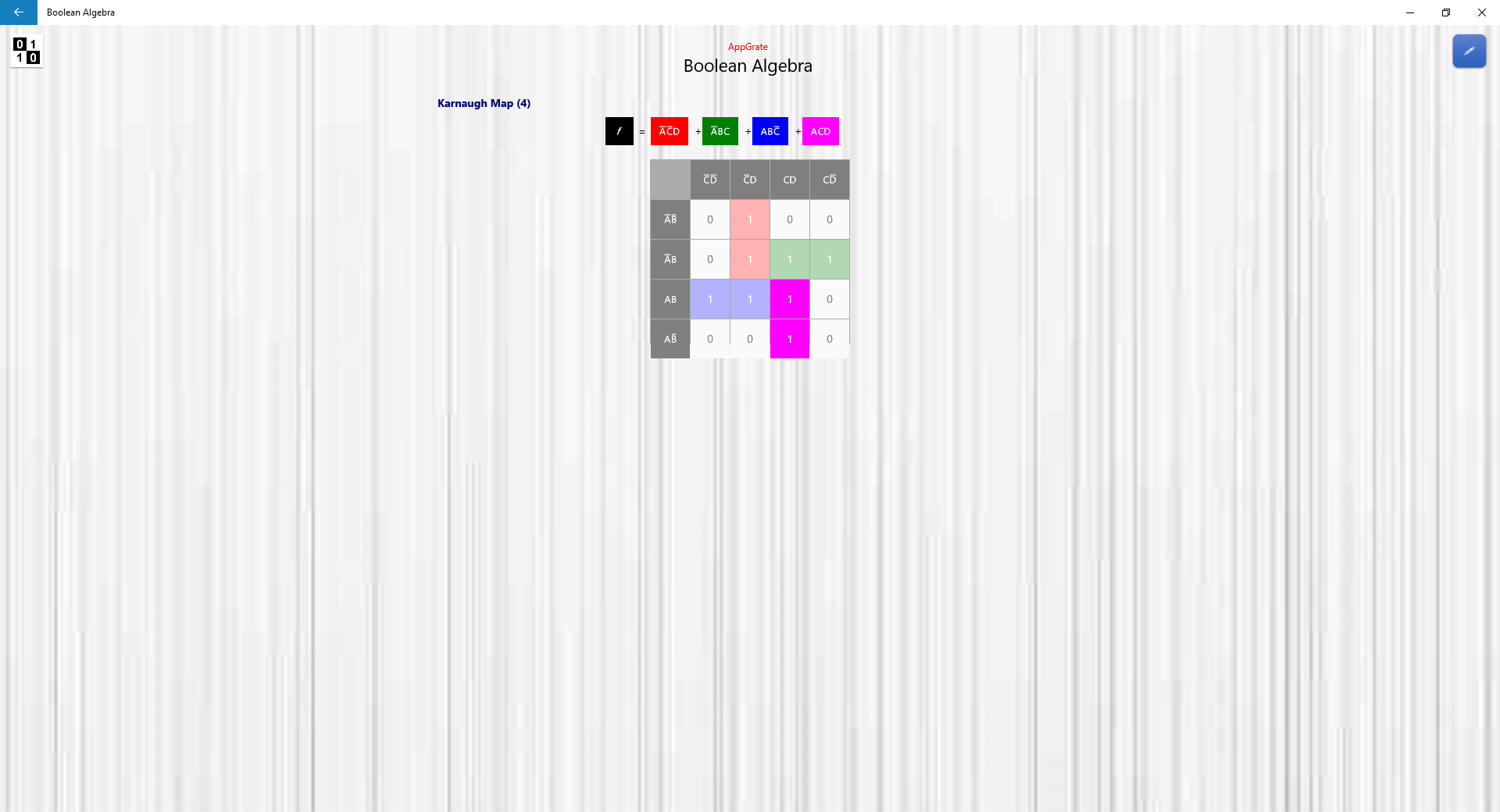

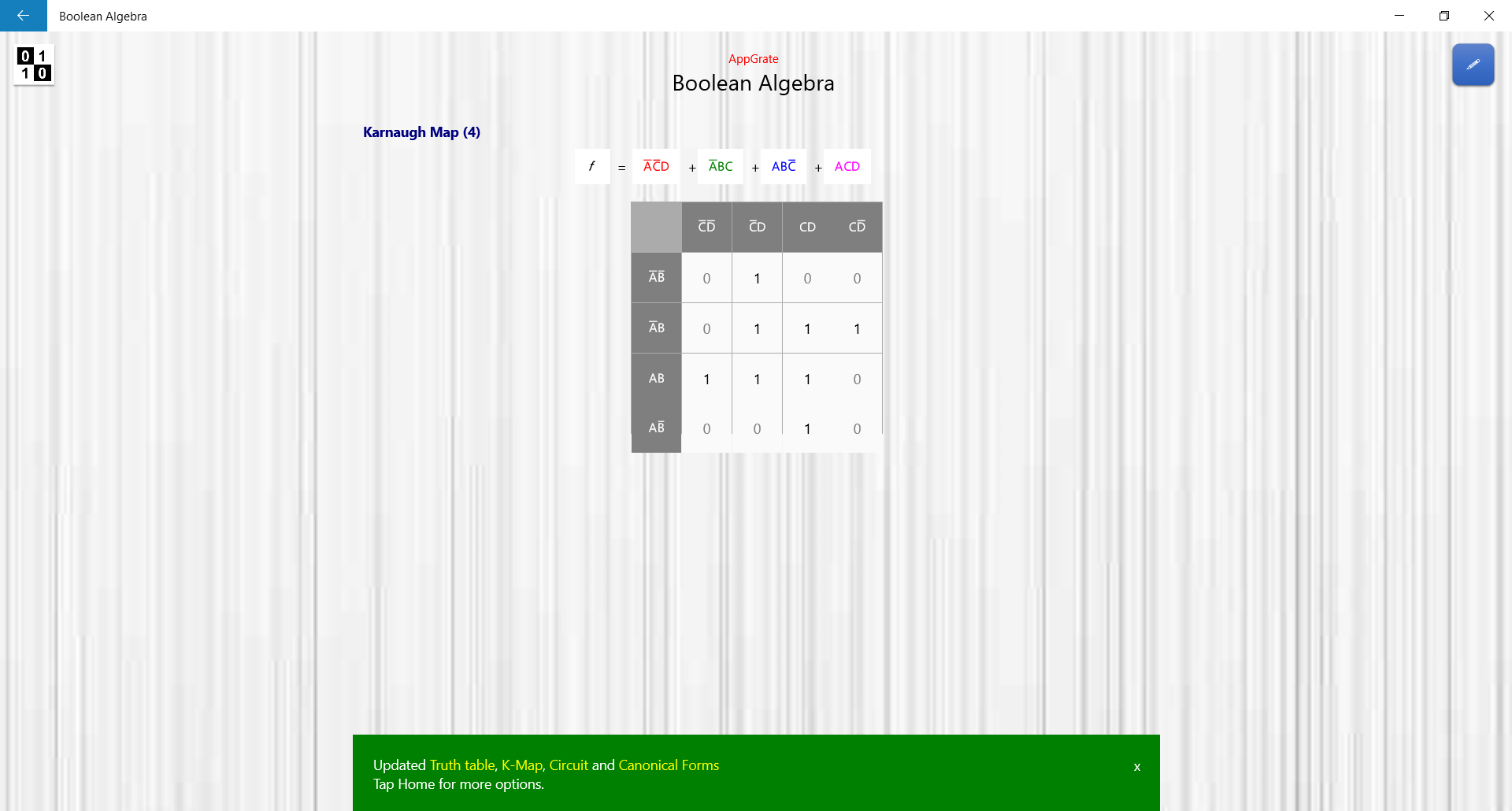

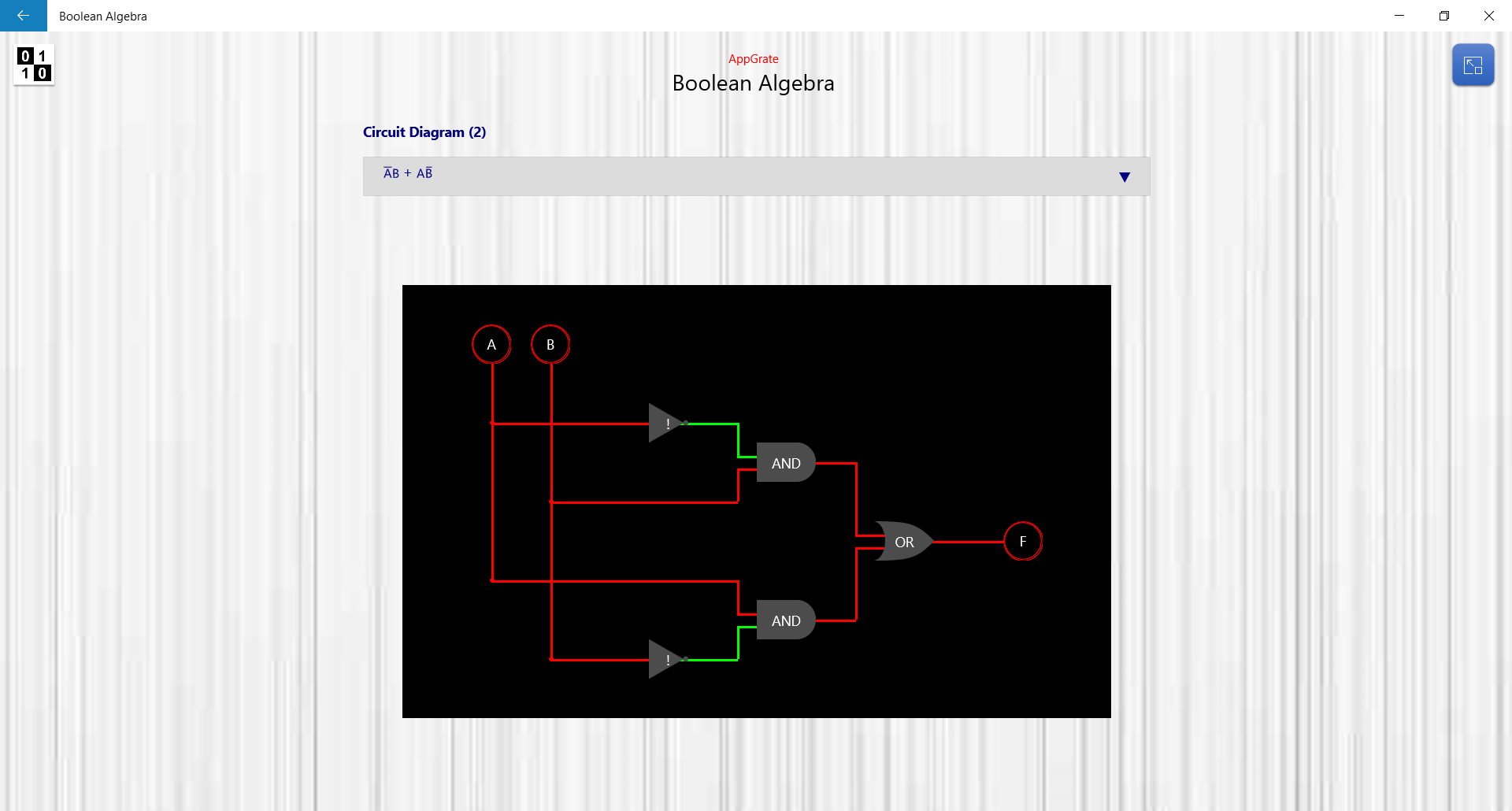

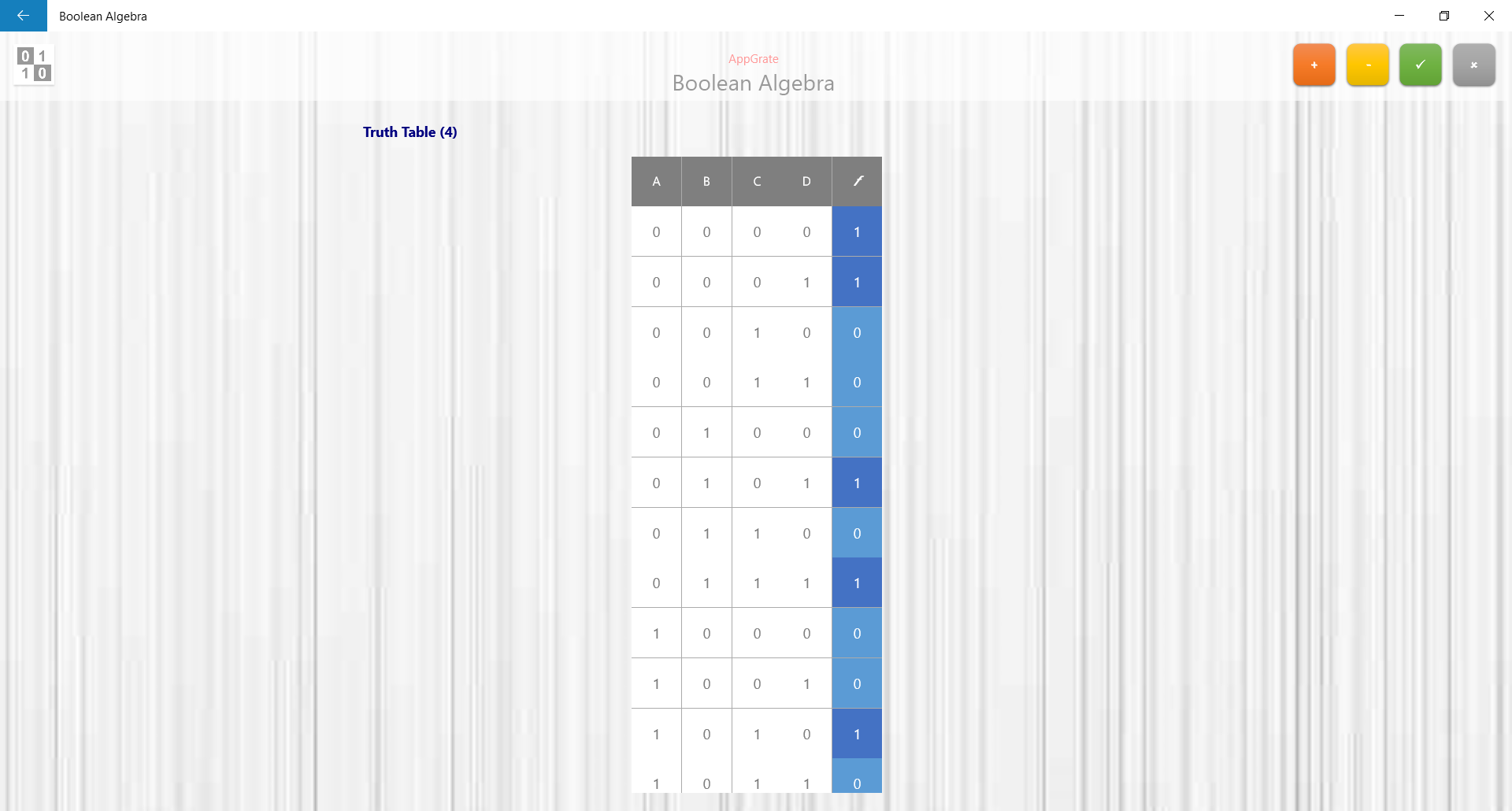

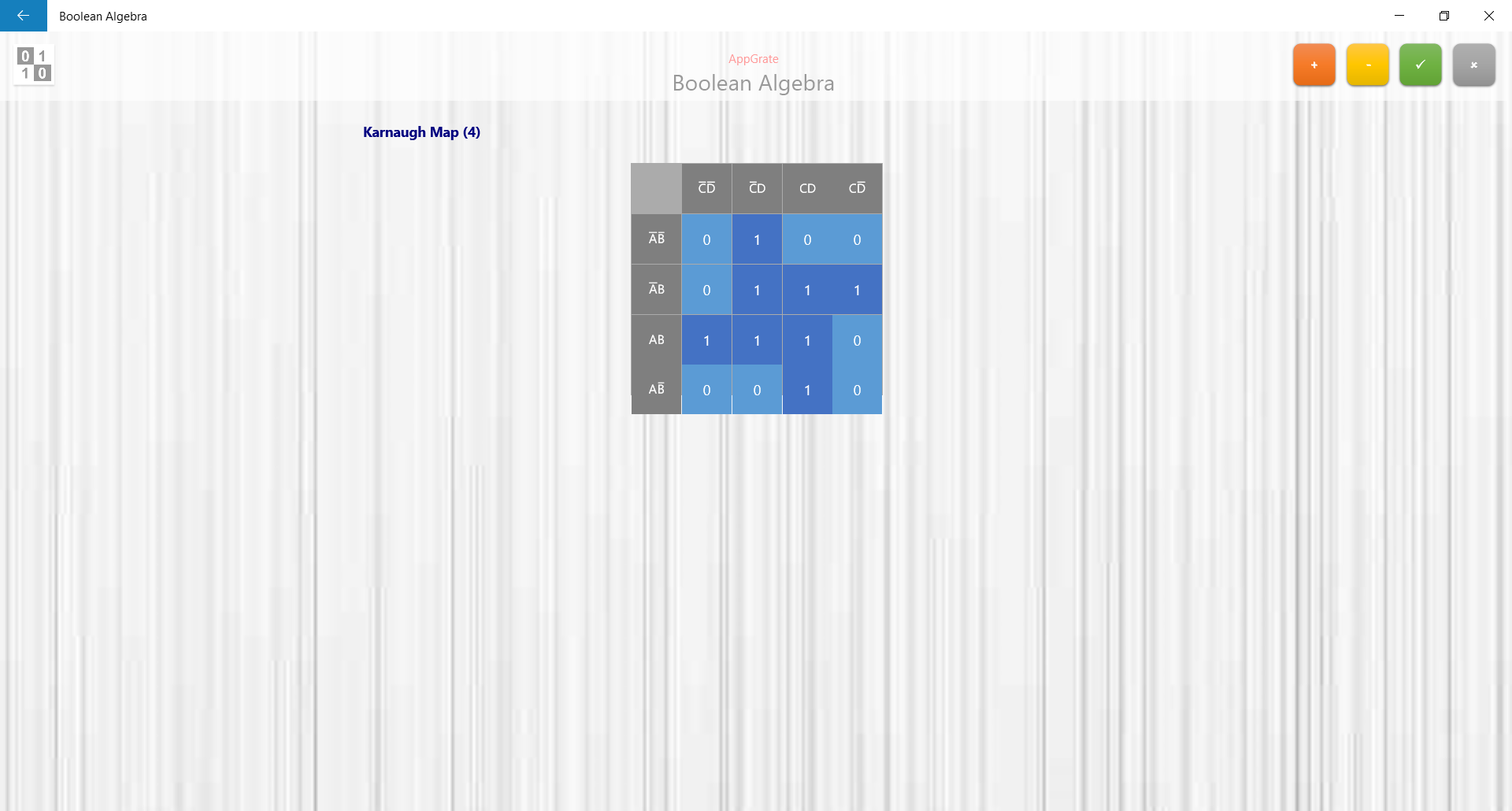

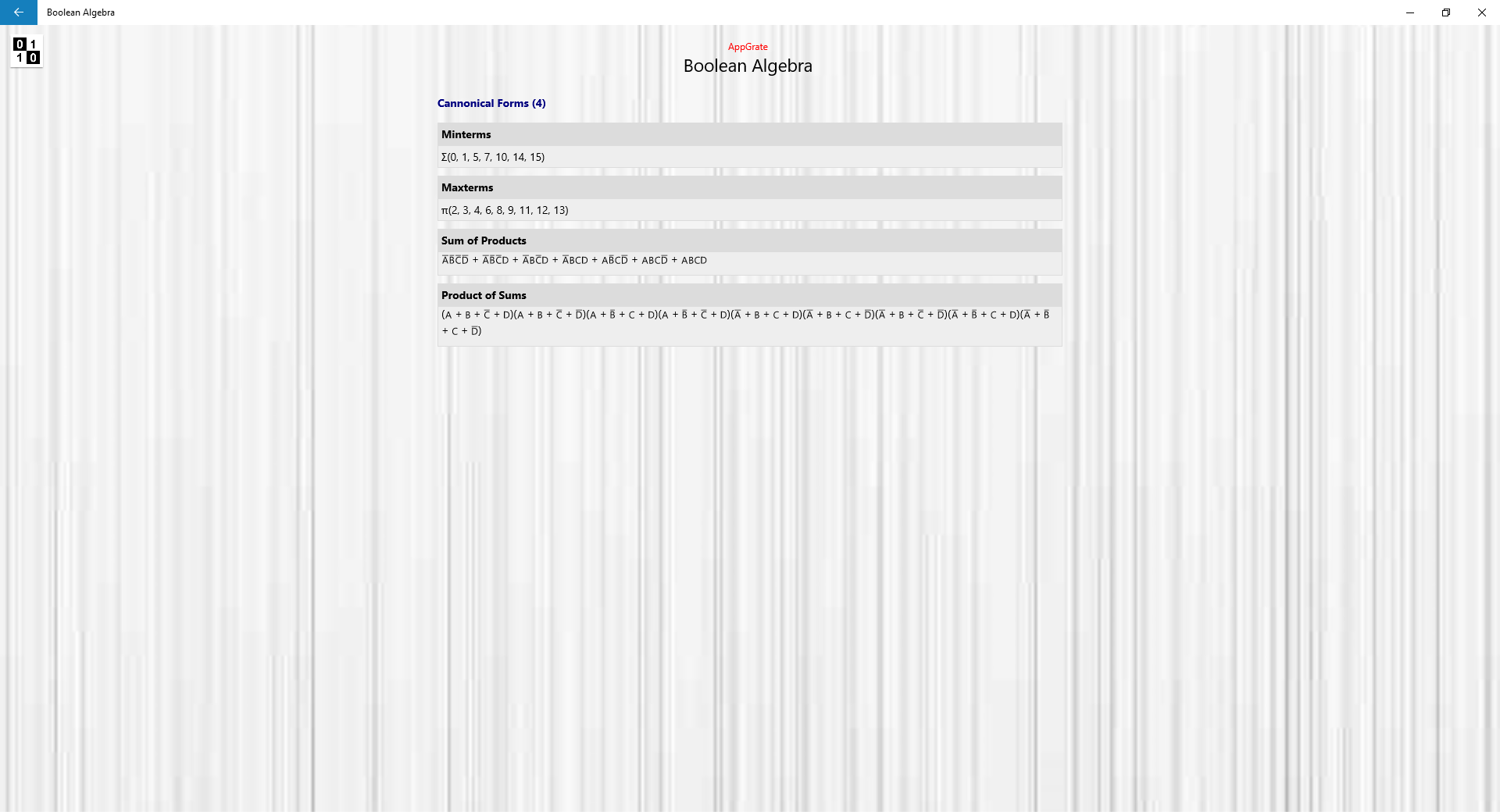

Add any complex expression to resolve including brackets, various negate signs.Truth Table can be directly edited to provide custom input.K-Map as usual are the celebrities of this app. And now more powerful then earlier versions. Edit them to provide custom input, tap on the colored result(s) to view amazing animation of corresponding Circuit diagram is the new show stopper of this app. It automatically generates circuit for the resolved expression.Moreover input Connectors of the circuit can be tapped to change the input from High(Green) to Low(Red) and vis a vis.Again as usual Normal forms provides Minterms, Maxterms, Sum of Products and Product of Sums info.
What's new
A complete redesign.
- Fixed crashes due to too many results to show.
- Fixed weird text showing in app.
- Weird behavior on pressing back button while viewing circuit in full screen fixed
- Default expression changed to 4 variable example.
- Added rate us, contact us and social media section under help.
Additional Information
- Developed by AppGrate
- Version 2022.03.12
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 16299.0 or higher
Notes: Will work on any Windows 10 supported device
- Published 2012-09-16
- Size 26.58 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Access your Internet connection
- Microsoft Store ID 9nblggh0mzbv
