Overview

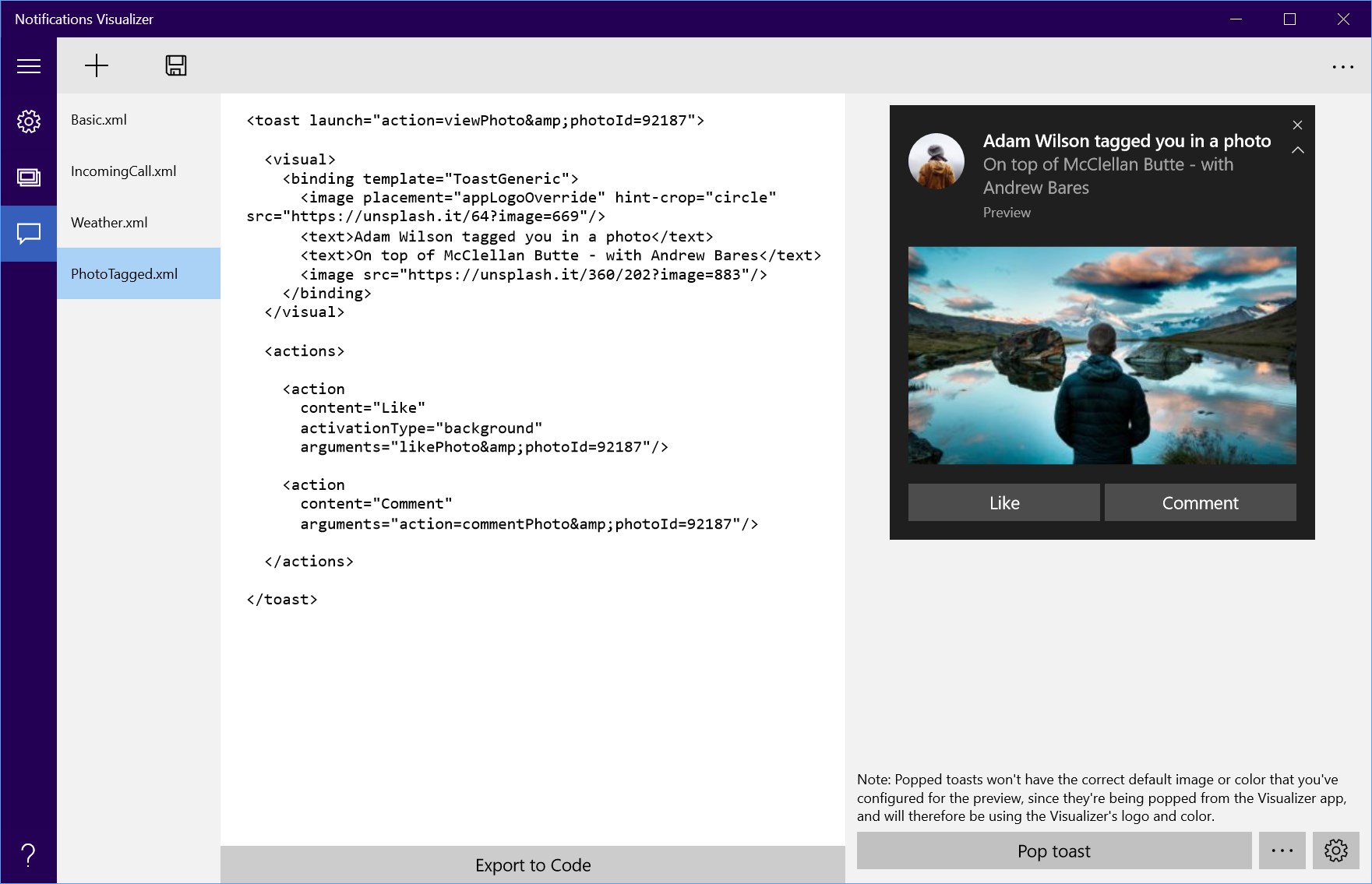

Use this app to help design adaptive live tiles and interactive toasts for Windows 10.

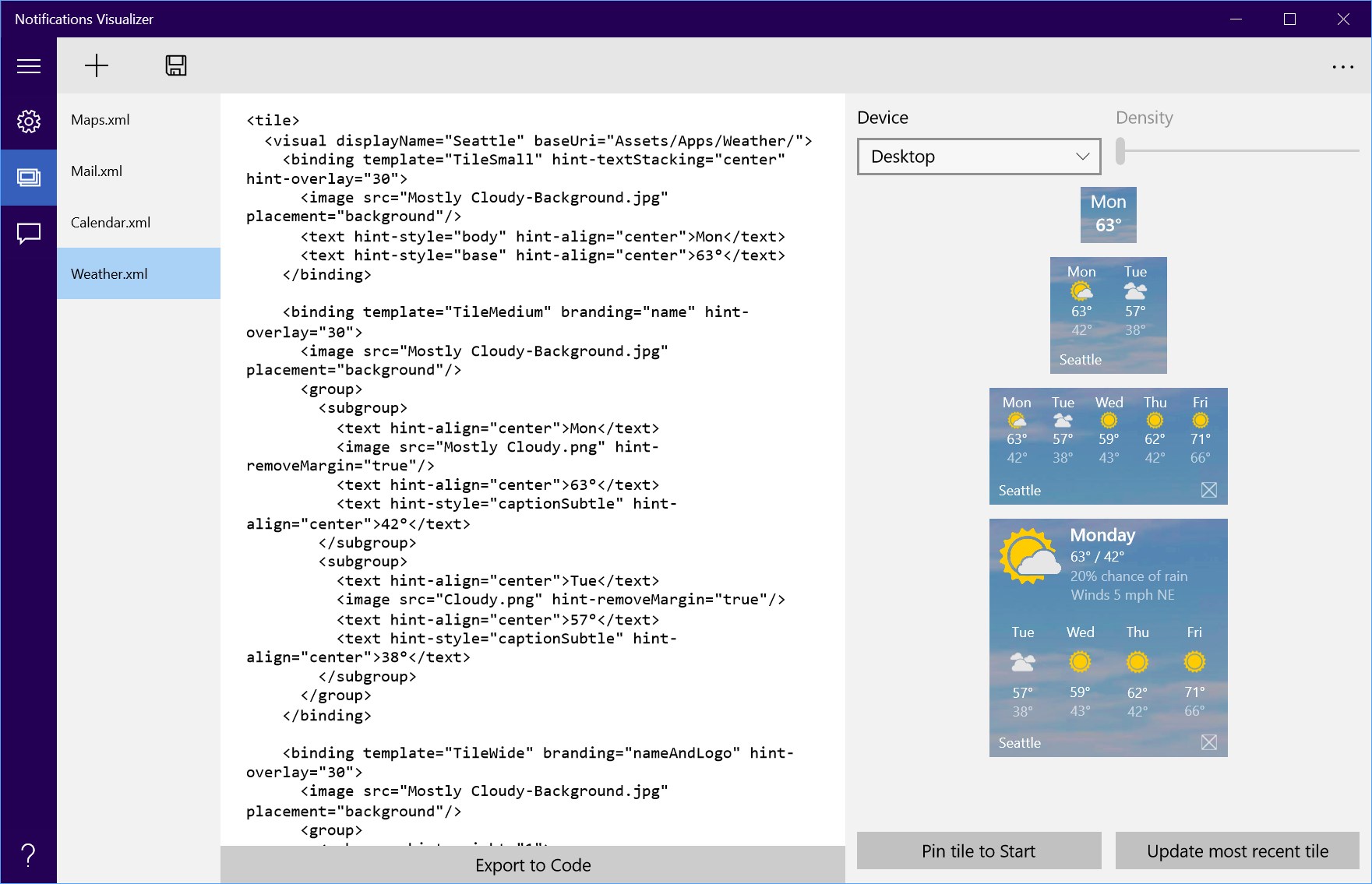

The app provides instant visual previews of your tile or toast while editing, similar to Visual Studio's XAML editor/design view. Your payload is also checked for errors, ensuring you create a valid payload.
Developers will find Notifications Visualizer useful when they are looking at adding live tiles to their app. The Visualizer provides an easy way to create and test adaptive tile payloads, without having to edit and deploy your own app. Once you've created a payload with the perfect visual results, you can then integrate that payload into your own app (for generating notification payloads from code, check out NotificationsExtensions).
Notifications Visualizer comes pre-loaded with a number of sample payloads to showcase what's possible with adaptive.
With the Visualizer, you can experiment with all the different text options, groups/subgroups, background images, etc. And you can even see how the tile "adapts" to different devices, like tablets or phones, where more content can be displayed. After you've made changes, you can save your updated payload to a file for future use.
Plus, you can even flip between builds 10240 and 10586 to instantly see how your tile behaves on the two different versions!
Note: The Visualizer is a replication of Start, and is not 100% accurate (and also does not support some payload properties like baseUri). Pin the tile to Start to verify your tile looks as expected.

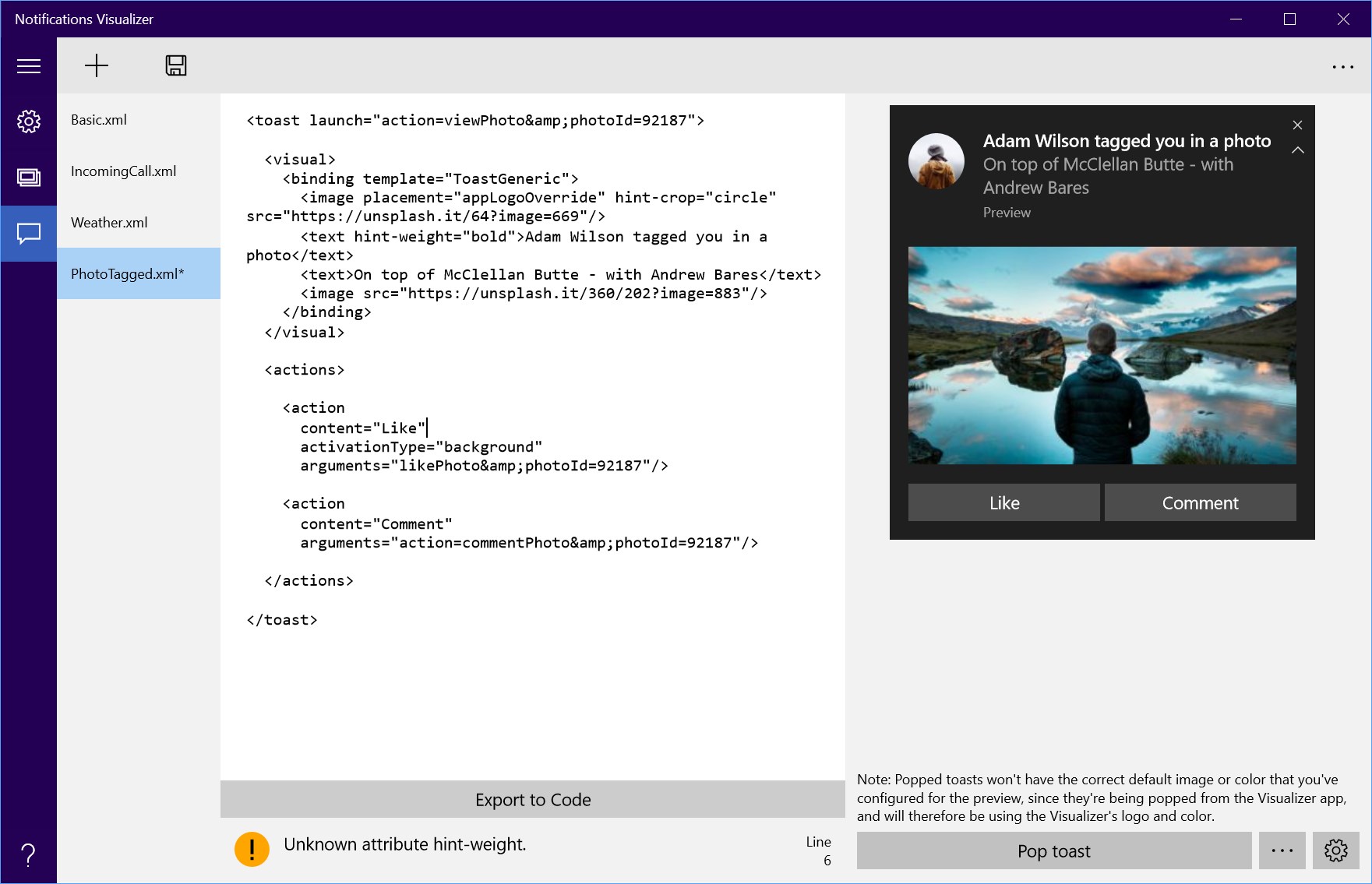

The editor also provides real-time errors and warnings. For example, your payload must be less than 5 KB in size (a platform limitation). The Visualizer will warn you if your payload exceeds that. It will also give you warnings about incorrect attribute names or values, helping you debug why your tile isn't appearing correctly.
You can also control base tile properties like display name, color, logos, and ShowName properties. And you can set a badge value too. All of these options help you instantly understand how your tile properties and tile notification payloads interact, and the results they produce.
Features
Design adaptive tiles and interactive toasts for Windows 10Instant visual previews of payloadsChecks payloads for validityPin the tile to actual Start, pop an actual toastSee how the tile looks on Desktop, Tablet, and Mobile
What's new
Update 5.0.0.0
- UI refresh! Multiple tabs, toast accuracy improvements
Update 4.4.8.0
- Fix crashing on older 1507 and 1511 versions of Windows
Update 4.4.7.0
- Creators Update features!
- Xbox toast previews
- Export to code feature
Update 4.3.23.0
- Updated Toast rendering for one-button scenario
Update 4.3.20.0
- Toast improvements so it more closely matches actual toasts
Update 4.3.17.0
- Toast app logo override image is now 48x48
- Tile layout is now 99.9% identical to Start!
- Fixed crashing issue on complex tile payload
Update 4.3.14.0
- Clicking a popped toast gives you back the activation info
- Fixed hamburger foreground color on Mobile
Update 4.3.9.0
- Added beta support for new RS1-style toast notifications
Update 4.3.3.0
- Slight corrections on spacing between text elements
Update 4.3.1.0
- Fixed memory leak
Update 4.3.0.0
- Implemented copy/save menu on preview tiles
Update 4.1.0.0
- Updated for TH2
Update 2.0.0.0
- Added toasts!
Update 1.2.1.0
- Added baseUri attribute support
Update 1.2.0.0
- Added line numbers to errors/warnings
Update 1.1.3.0
- Fixed install error 0x80073B0C
Update 1.1.2.0
- When Mobile is selected, branding correctly reverts to "name"
Additional Information
- Developed by Windows Notifications
- Version 2022.03.12
-
Requires
Available on: PC, Mobile, Xbox console, Surface Hub, HoloLens
OS: Windows 10 version 10240.0 or higher
- Published 2015-09-22
- Size 24.23 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Access your Internet connection
- Microsoft Store ID 9nblggh5xsl1
