Overview
SCADA-Style BLE Device Monitoring & Control
Key Features:

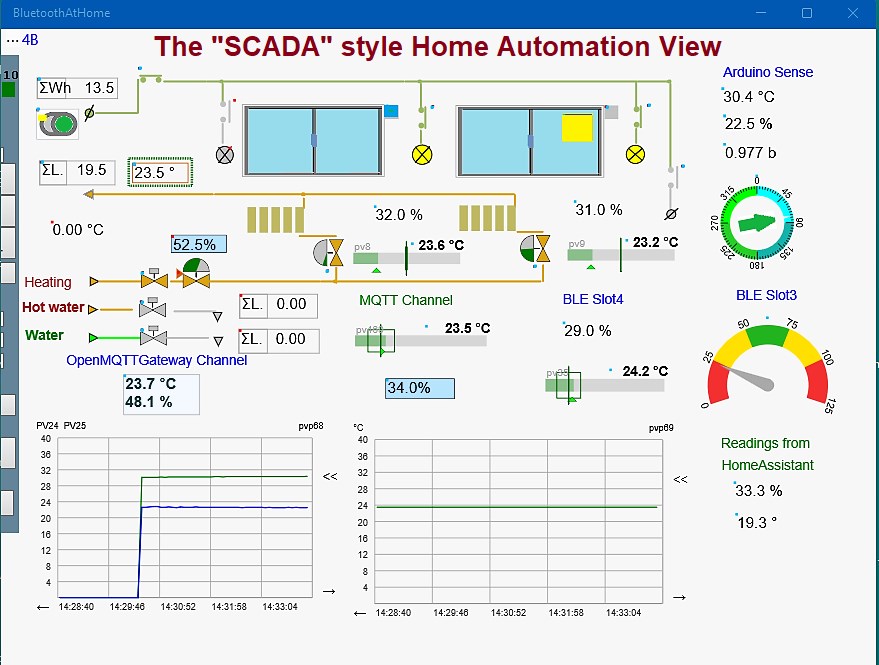

- SCADA-Style Visualization : Create industrial-grade dashboards to display real-time data from BLE and MQTT devices using intuitive drag-and-drop symbols.
- Offline Functionality : Operate fully without Wi-Fi—perfect for remote or local setups.

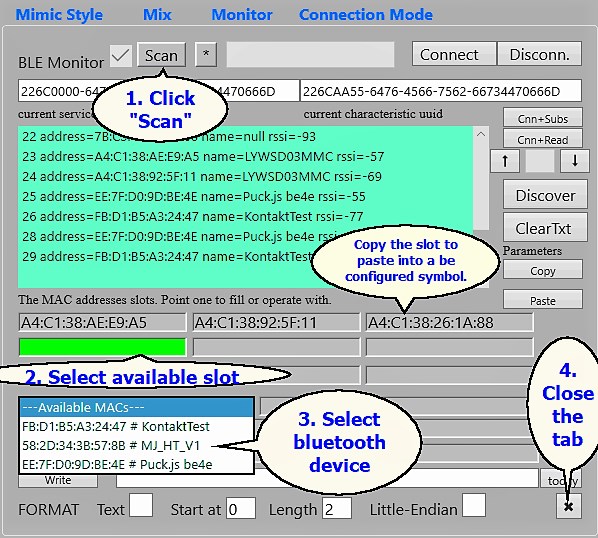

- BLE Device Management : Scan, discover, and test nearby Bluetooth devices with the built-in BLE Monitor Tab .

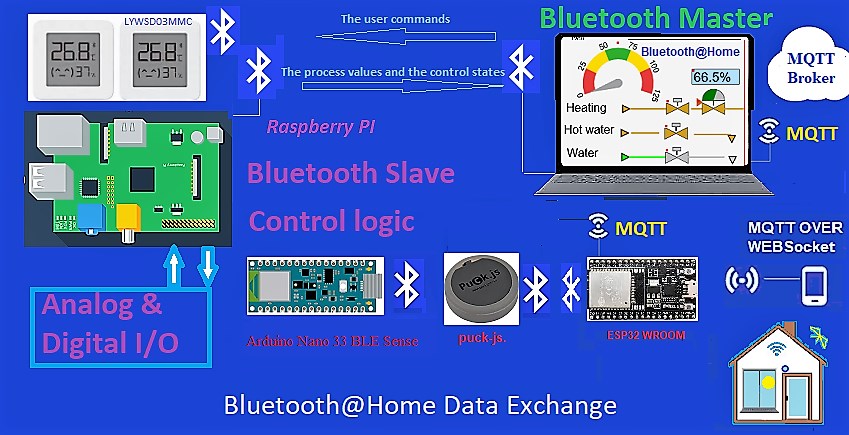

- Multi-Channel Data Integration : Aggregate readings via popular platforms like OpenMQTTGateway , ESP32-BLEMQTT , MQTT PLCs, or custom Arduino/ESP32 code.
- Flexible MQTT Configuration : Connect to multiple brokers simultaneously with secure MQTT over WSS support.
- Embedded SQLite Database : Optionally store historical readings locally for analysis and audits.
- More features, including Zigbee Support, are supplied by "Zigbee@Home" application.
Build Your Dashboard in Minutes:

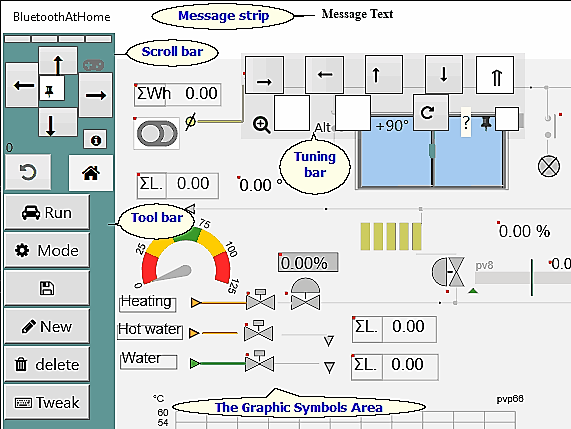

1. Drag, Drop, Link : Open the Draw surface, place pre-designed symbols from the menu, and link each to your BLE sensors via GATT services/characteristics.

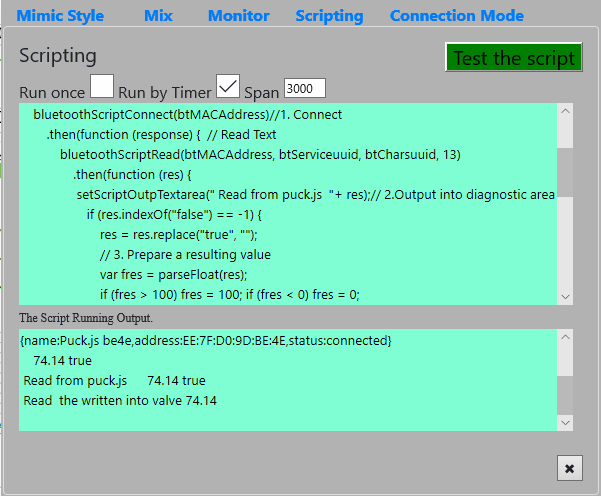

2. Custom Control Scenarios : Automate actions with simple, user-defined logic for smart responses to sensor data.
Why Bluetooth@Home?
- Pro-Level Customization : Tailor dashboards to your needs with a library of SCADA-inspired symbols.
- Versatile Connectivity : Supports BLE, MQTT, and ESP32/Arduino ecosystems for maximum compatibility.
- Local Data Control : Keep data offline or sync securely via MQTT—your choice.
Bluetooth@Home turns complex data into actionable insights.
Features
"Bluetooth@Home" is displaying on a screen mimic diagram the readings from the various home Bluetooth BLE devices. The included BLE monitor tab is used for scanning, discovering and testing of the Bluetooth devices nearby.It is possible to run the simple control scenarios from the program (more complex control could be invoked from "MQTTws@Home").
What's new

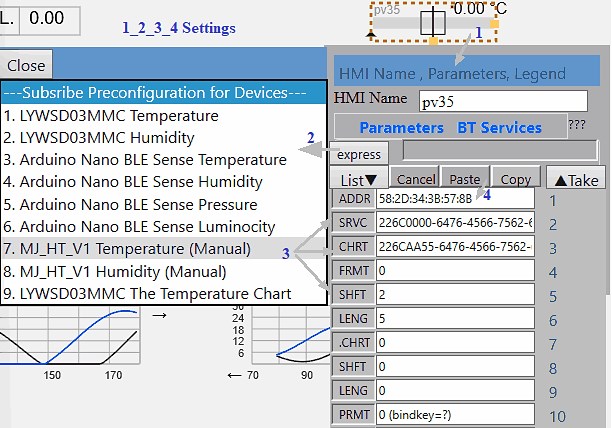

The simplified configuration of some known devices is added.
The examples of the usage of Arduino "Nano 33 BLE Sense" for the "Weather Box" and configuration of temperature sensor "LYWSD03MM" are presented: one small device can send by radio to PC or tablet the plenty of the analog and digital parameters about the home environment and the locks and switches states.
An option of MQTT over WebSocket with SSL gateway can be enabled.
An each analog screen symbol can be configured for the different MQTT brokers.
The readings could be storing in "SQLite" database and then watching in the tables and the charts form.
Additional Information
- Developed by Yury Shetov
- Version 2025.02.16
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 10240.0 or higher
Touch: Integrated Touch
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
- Published 2020-12-19
- Size 9.41 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Access your Internet connection
Access your home or work networks
Access your Internet connection and act as a server.
Bluetooth smart device
- Microsoft Store ID 9ngpflfgt8zz
