Overview
RTA (Real-Time Analyzer), FFT (amplitude display driven by Fast Fourier Transform), calibration, signal generators...
Everything is included, bundled in a friendly interface with many on-screen controls and smooth real-time display.
Friendly user interface, easy to use both with mouse and touchscreen.
Features

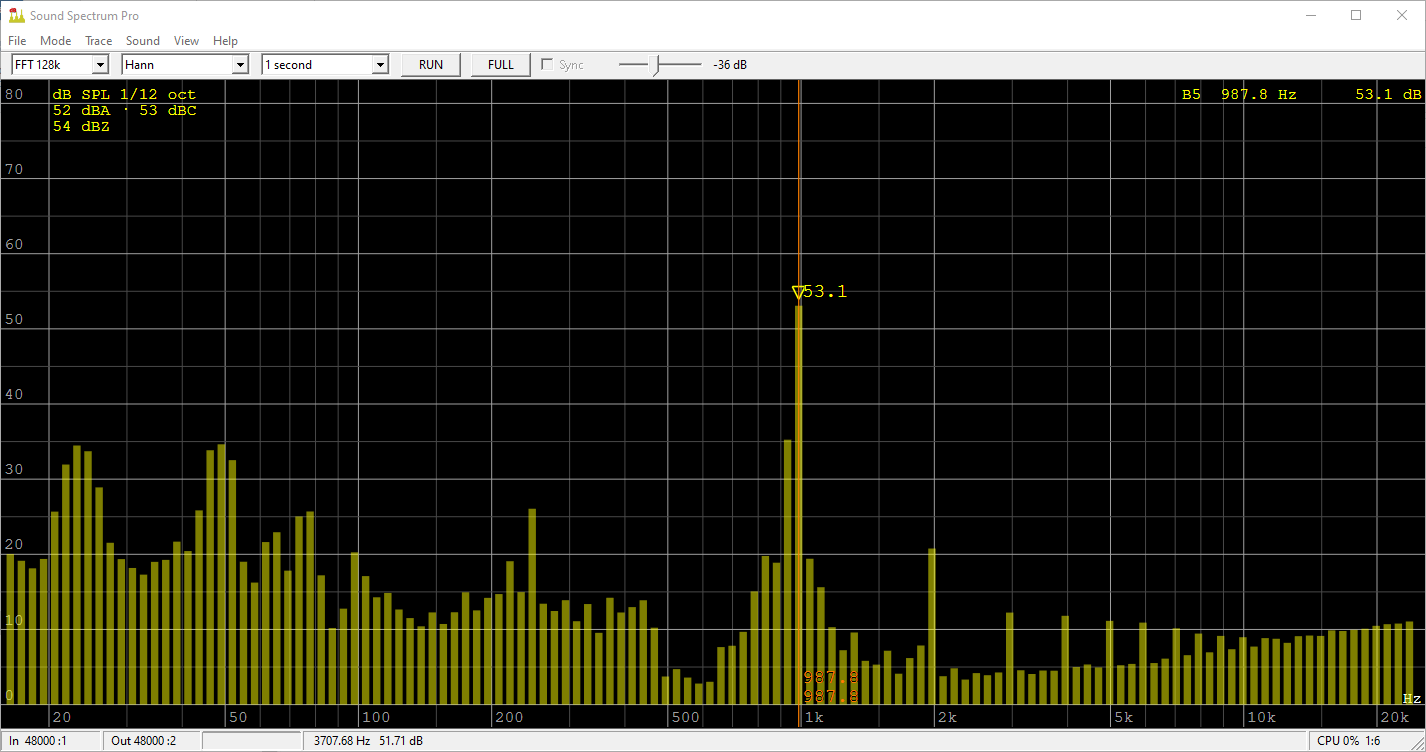

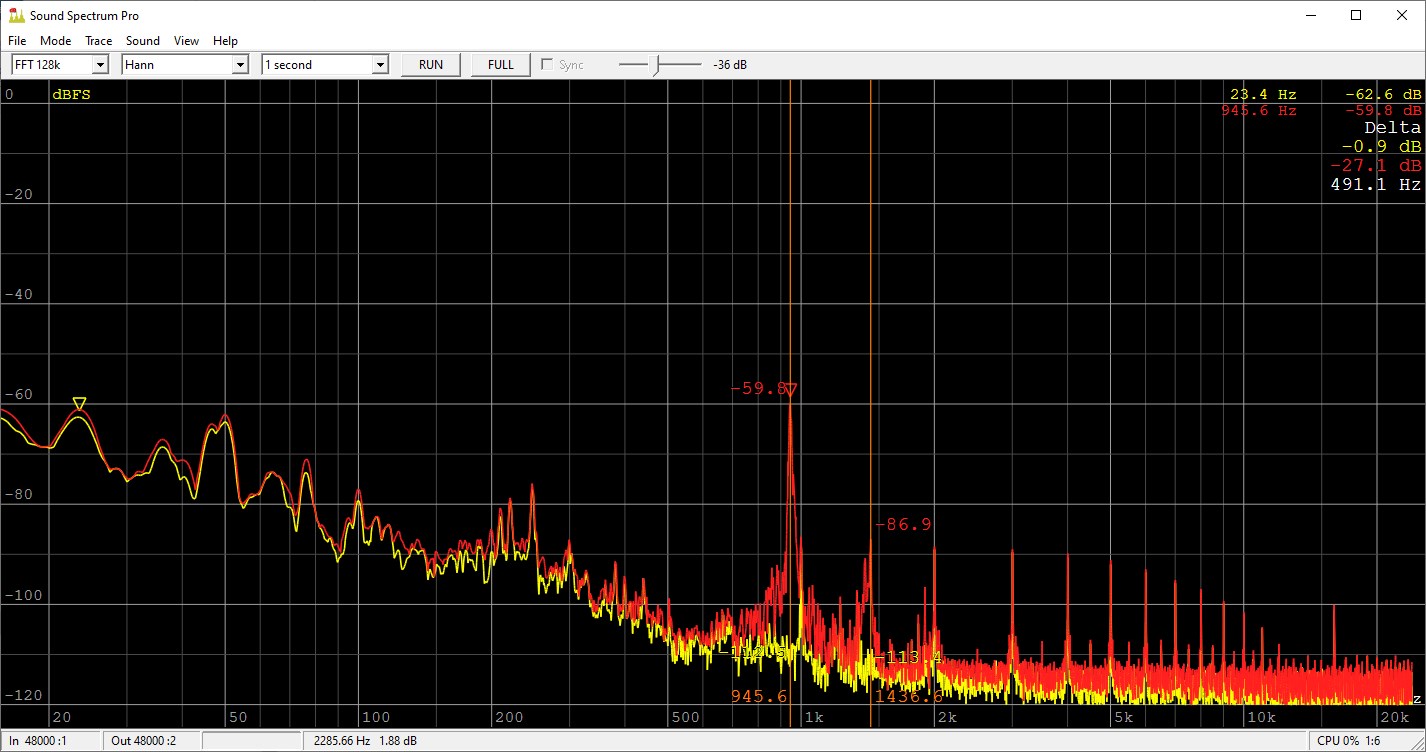

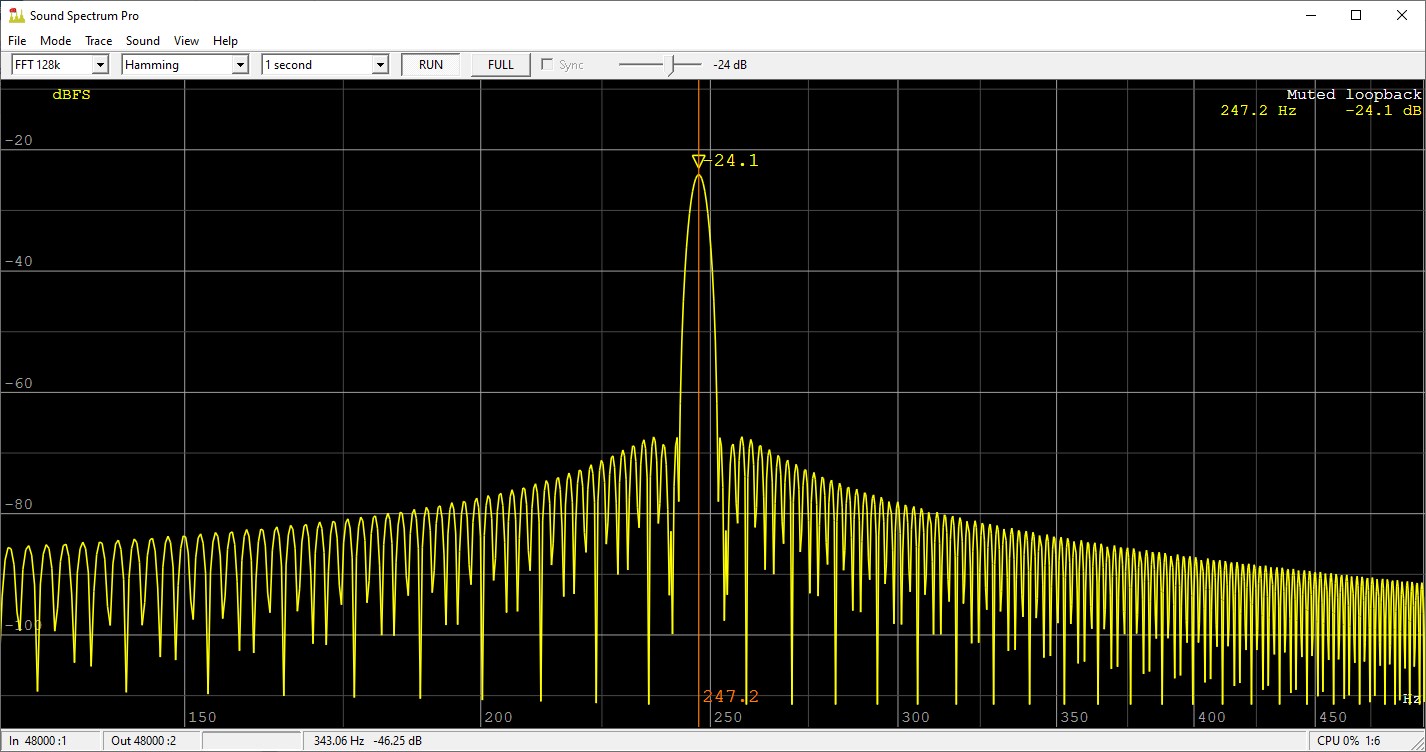

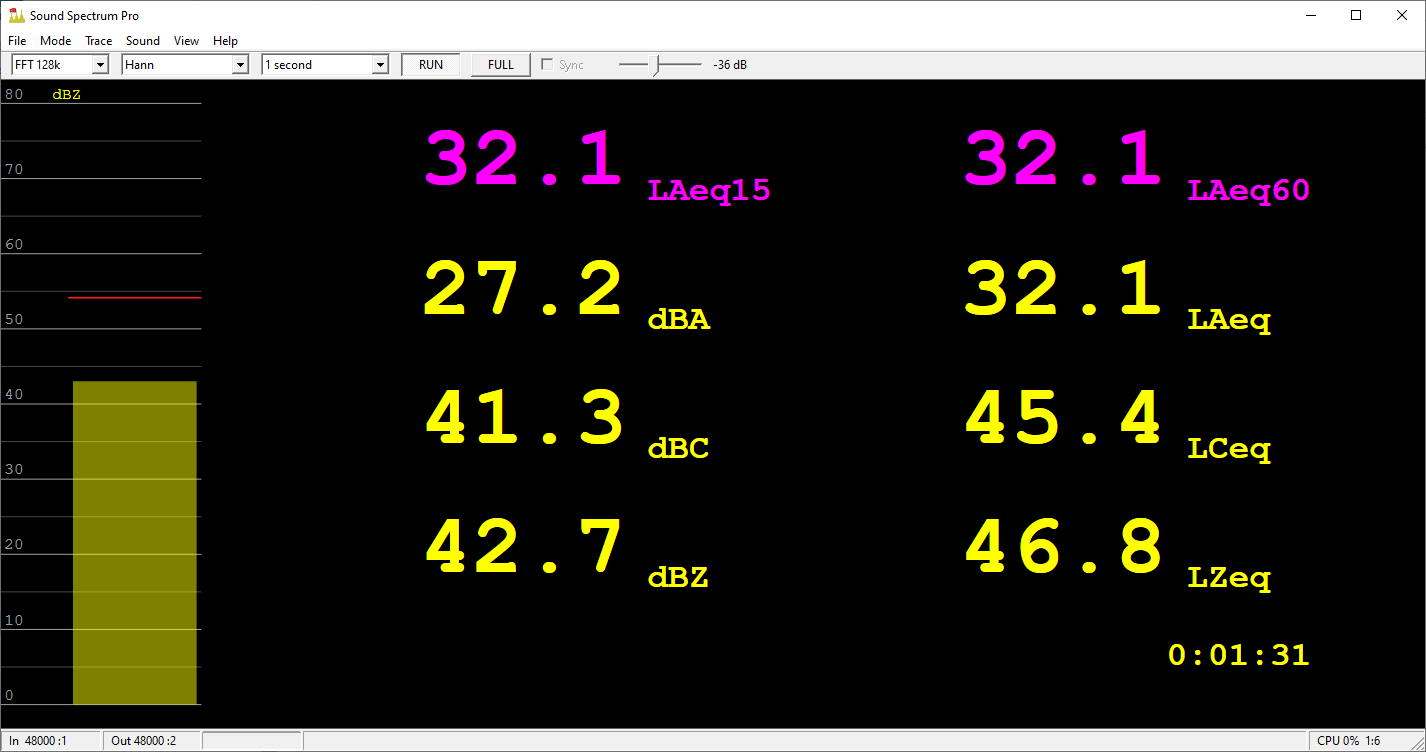

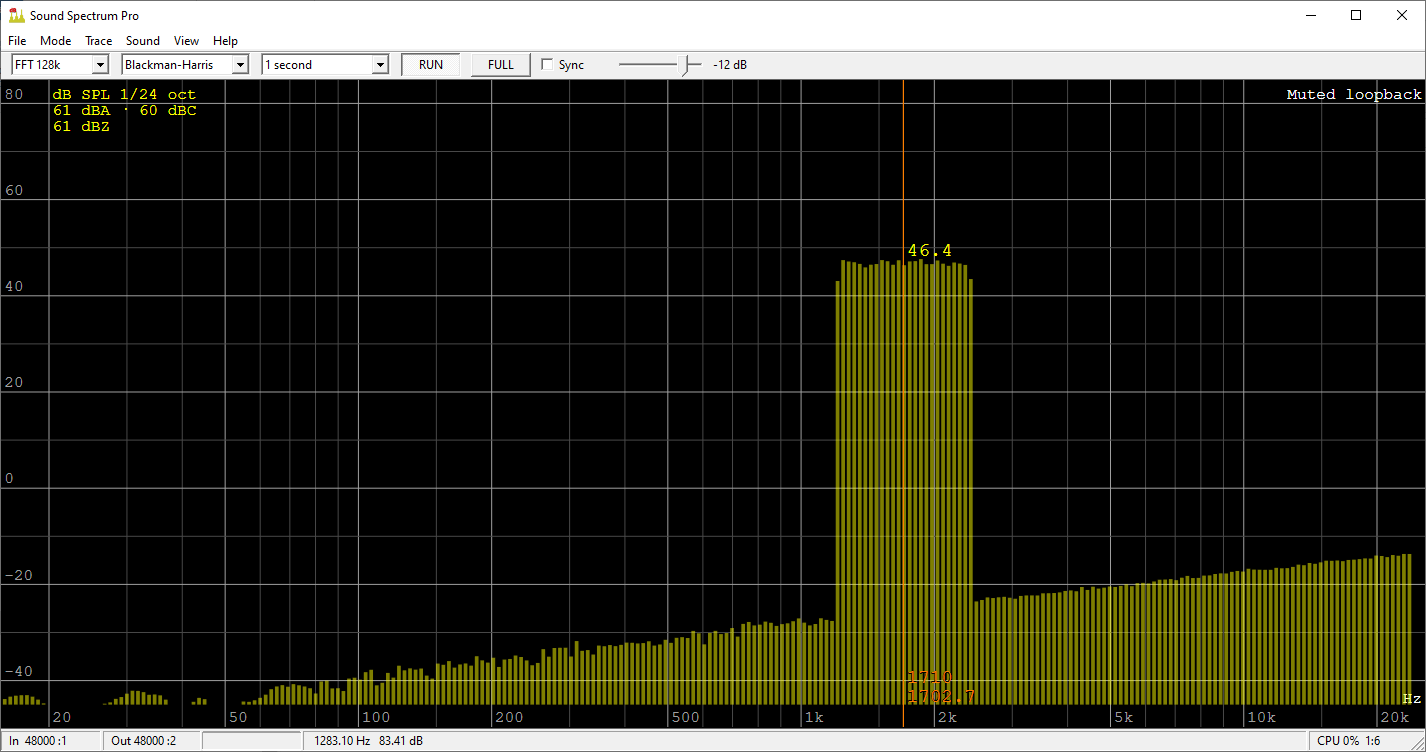

FFT (amplitude) and RTA (octave, 1/3 octave, ... down to 1/24 octave).Sound pressure level dBA, dBC, and dBZ.Noise Criterion and Noise Rating in octave RTA.Equivalent continuous sound level LAeq, LCeq, LZeq, LAeq15, LAeq60.Impulse response and RT60 measurement.Large font SPL + LEQ meter.THD+N Total Harmonic Distortion plus Noise.Lightning-fast FFT with size from 16k to 1M, providing frequency resolution of 0.05Hz directly and 0.01 Hz with downsampling.Many window functions to choose from.Logarithmic or linear frequency axis.Peak and valley hold with adjustable decay.Highest peak display.Adjustable exponential smoothing.Measurement cursors, also used for setting frequency of signal generators.File load/save and full calibration capability, for accurate SPL readings.Signal generators: tone, white noise, white sweep, pink noise, pink sweep, pink octave, pink 1/3 octave.Synchronous measurement mode (including frequency sweep) for clean and fast spectrum analysis.Loopback mode to try out signal generators and window functions.
What's new
Minor fixes and improvements.
Additional Information
- Developed by Lindentree Software
- Version 2024.02.26
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 17763.0 or higher
Touch: Integrated Touch
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
- Published 2022-02-07
- Size 614.32 KB
- File Type appx/msix
-
