Overview

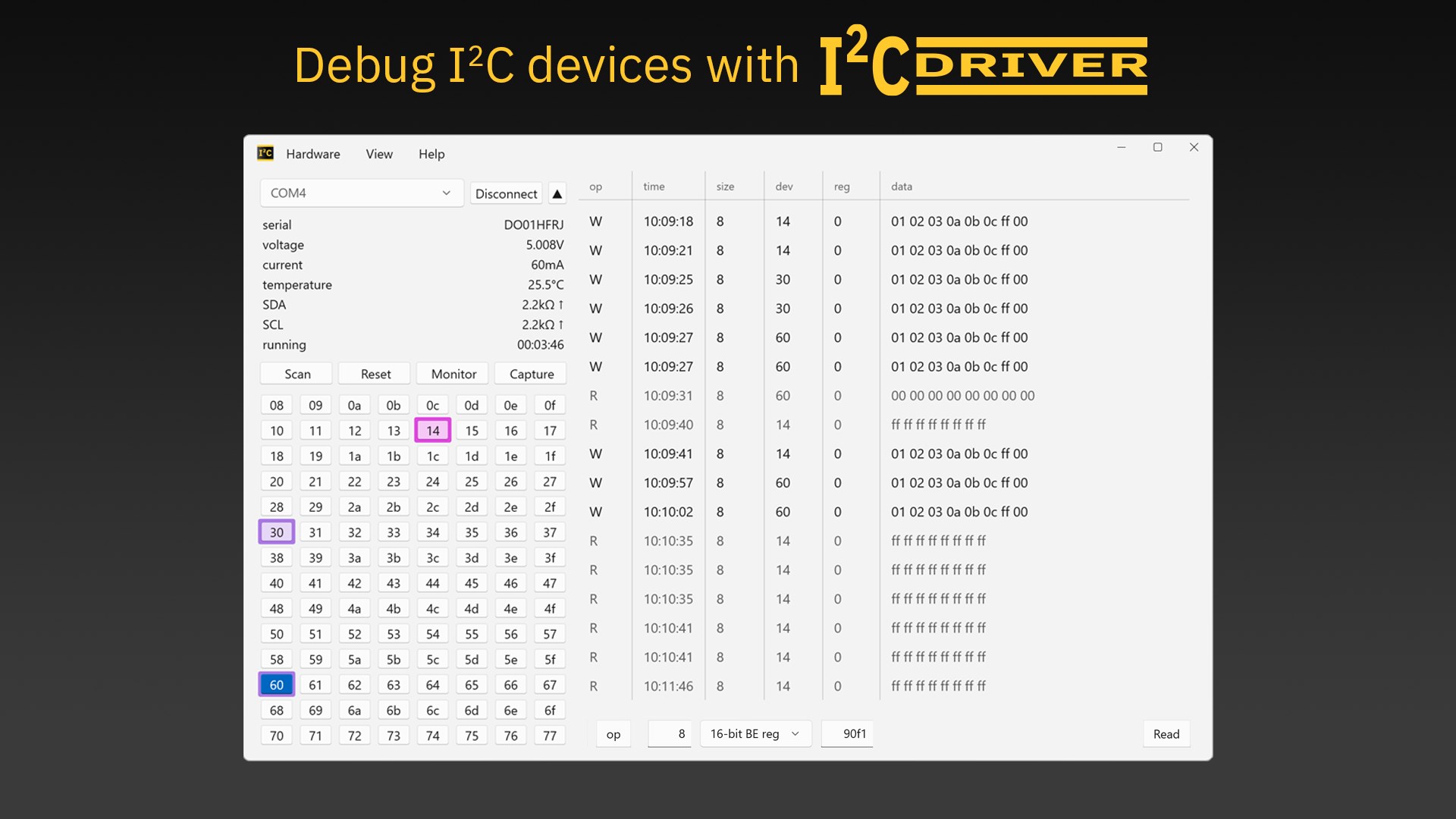

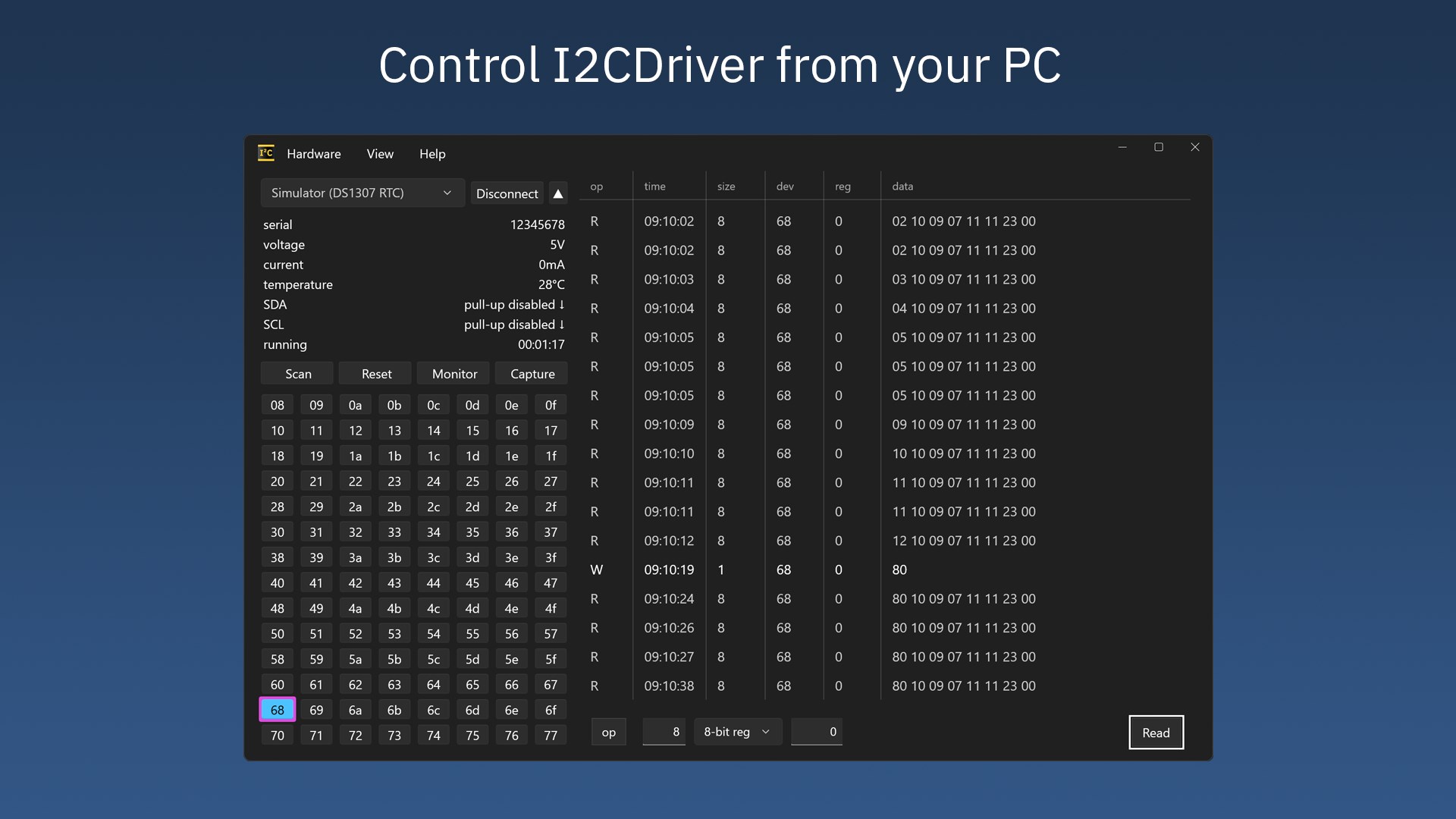

Control the I2CDriver hardware tool from your Windows PC! The I2CDriver app provides a graphical interface to the popular Excamera Labs I2CDriver electronics test & development hardware. New users without I2CDriver hardware can familiarize themselves with the app by placing it in simulator mode. The I2CDriver board is an easy-to-use, open source tool for controlling I²C devices over USB. While other I²C tools might offer a couple of LEDs, I2CDriver has a clear logic-analyzer display of the signal lines plus a graphical decoding of the I²C traffic. In addition, it continuously displays an address map of all attached I²C devices, so as you connect a device, it lights up on the map. I2CDriver has a separate 3.3V supply for your devices, a high-side current meter, and programmable pullup resistors for both I²C lines. The included color-coded wires make hookup a cinch. No pinout diagram is required.

Features

Graphical interface for I2CDriver and I2CDriver Mini hardware devicesNo special drivers requiredSimulator mode for learning the app interface without I2CDriver hardware

What's new

Four register address modes: 1. 8-bit registers 2. 16-bit big-endian registers 3. 16-bit little-endian registers 4. off (no register address) Register addressing can be set separately for each I2C device.

Additional Information

  • Developed by Excamera Labs, Inc.
  • Version 2024.07.15
  • Requires

    Available on: PC, Mobile, Surface Hub, HoloLens

    OS: Windows 10 version 17763.0 or higher

    Keyboard: Integrated Keyboard

    Mouse: Integrated Mouse

  • Published 2023-11-24
  • Size 50.11 MB
  • File Type appx/msix
  • Language
    English (United States)
  • Permissions

    Uses all system resources

  • Microsoft Store ID 9njv19pn1bxt

How to download and install I2CDriver from the Microsoft

To download and install I2CDriver for PC from Microsoft, here are two methods you can follow. You can access the app directly on the Microsoft Store.

Method 1: Download and Install via the Microsoft Store

This is the most straightforward and secure way to get I2CDriver.

Step 1: Open the Microsoft Store

  • Click the Start Menu (Windows logo) at the bottom-left corner of your screen.
  • Search for Microsoft Store in the search bar and open it.
  • Step 2: Search for I2CDriver

  • In the Microsoft Store, type I2CDriver into the search bar at the top and press Enter.
  • Select the app from the search results to open its detail page.
  • Step 3: Download and Install

  • Click the Get button (if the app is free) or Install to begin the download.
  • The app will automatically install after the download is complete.
  • Step 4: Access the App

  • Once installed, you can find I2CDriver in your Start Menu or Apps List.
  • Open the app and follow the on-screen instructions to use.
  • Method 2: Download from the Official Microsoft Website

    If you prefer downloading directly from the web, you can use the official Microsoft website.

    Step 1: Visit the I2CDriver Page

  • Open your browser and go to the I2CDriver page
  • Step 2: Download the App

  • Click the Get in Store app button on the webpage.
  • This will redirect you to the Microsoft Store app on your PC.
  • Step 3: Install I2CDriver

  • Follow the same steps as in Method 1 to download and install I2CDriver.
  • Step 4: Use I2CDriver

  • Launch I2CDriver from your Start Menu or Apps List.
  • Tips for a Smooth Installation

  • Ensure your PC is connected to the internet.
  • Keep your Windows operating system updated for the best performance.
  • Conclusion:

    Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install I2CDriver.
