Overview

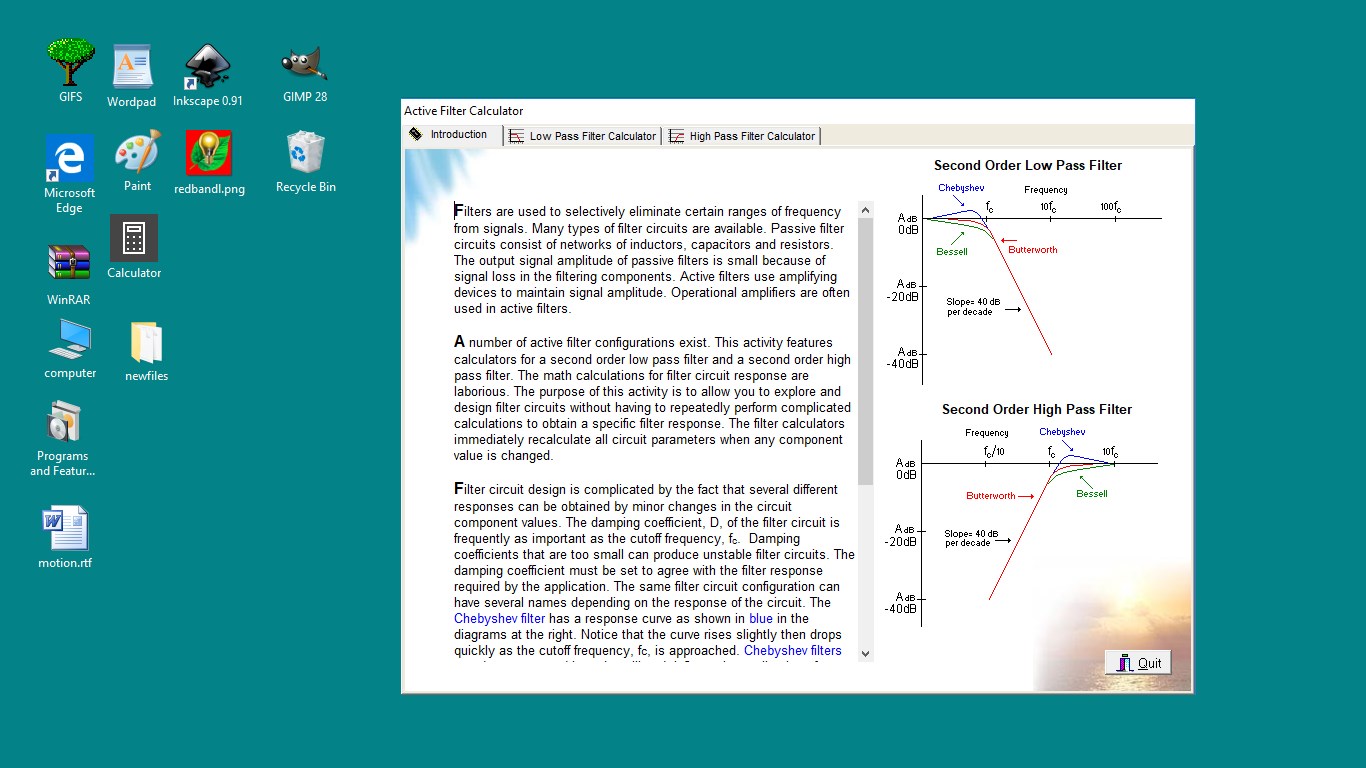

Operational Amplifiers, Op Amps, are a very common linear integrated circuit. The properties of Op Amps make for easy circuit design and troubleshooting. The activities in this program produce realistic interactive experiences that allow “learning by doing”. Student efforts are immediately scored. New parameters are randomly selected each time an activity is used. This allows students to practice many times without simply memorizing solutions. Correct responses are given when errors are made.
This program is designed for training in Electronics Technology, Electrical Technology, Automotive Technology, Medical Technology, Robotics, HVAC and other occupations that require understanding linear integrated circuits.
Can you identify common Op Amp applications? Can you design common Op Amp circuits to specification? Can you determine the faulty electrical part in a linear circuit by making measurements and applying theory? This program can give you practical practice in developing troubleshooting skill.
Some of the activities can challenge even experienced electronics technicians!
Additional Information
- Developed by ETCAI Products
- Version 2024.04.15
-
Requires
Available on: PC
OS: Windows 10 version 14393.0 or higher
Keyboard: Not specified
Mouse: Not specified
Memory: 2 GB
Processor: any
Graphics Processor: any
- Published 2018-11-06
- Size 1.09 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9nppfgt6rmj1
