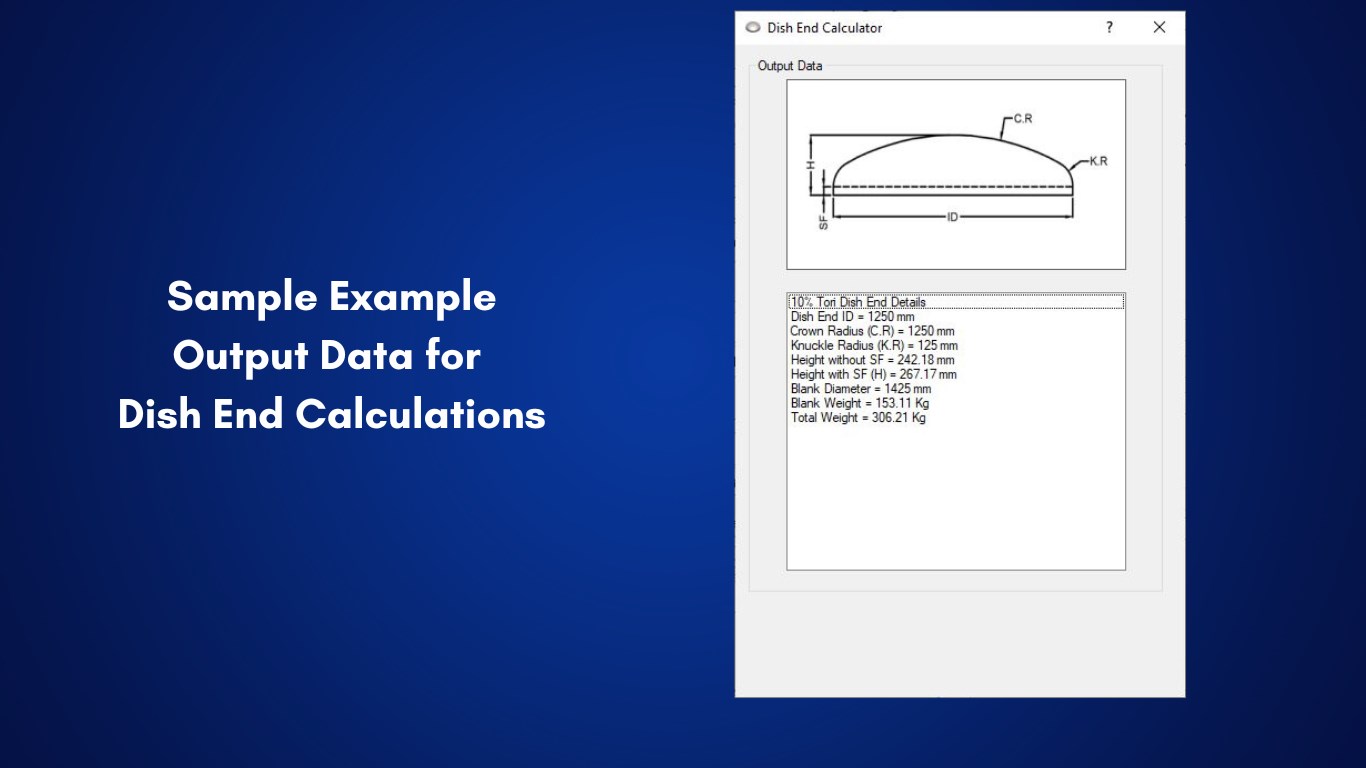

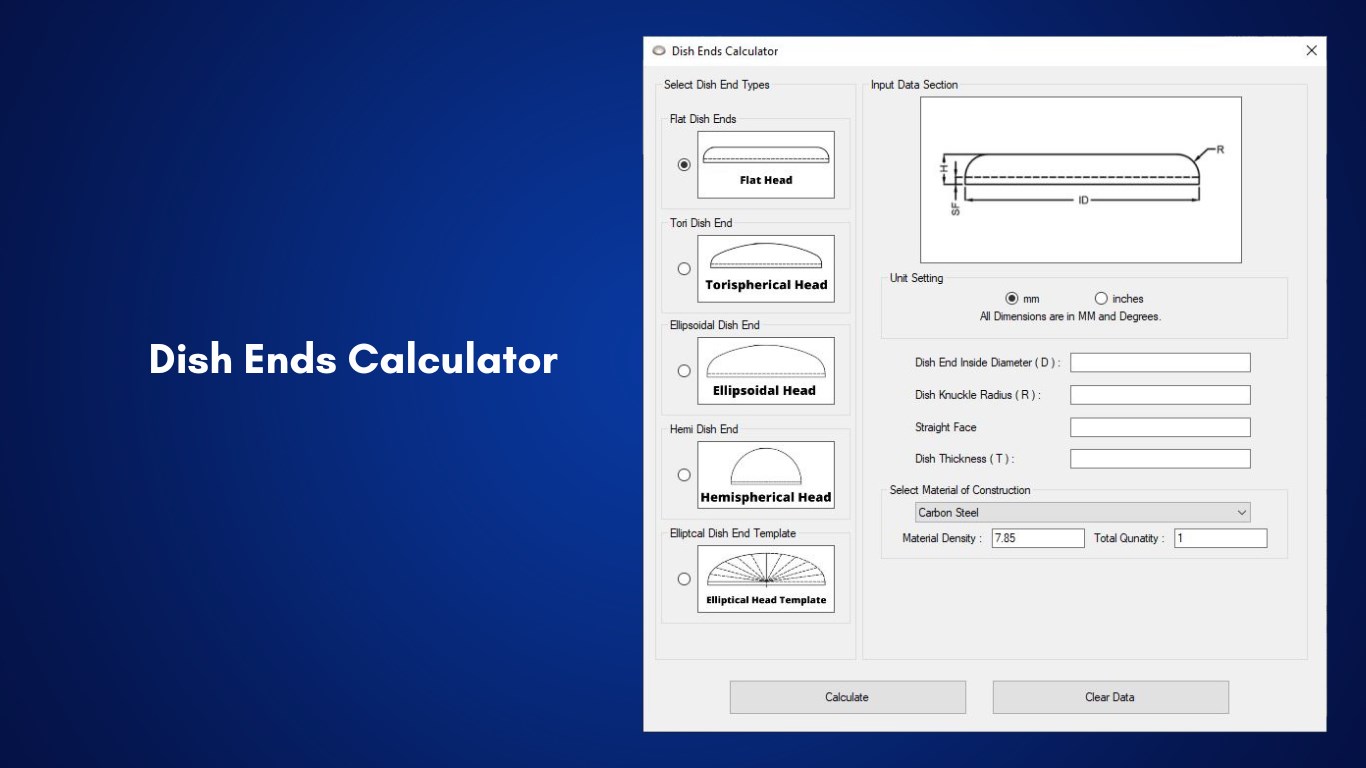

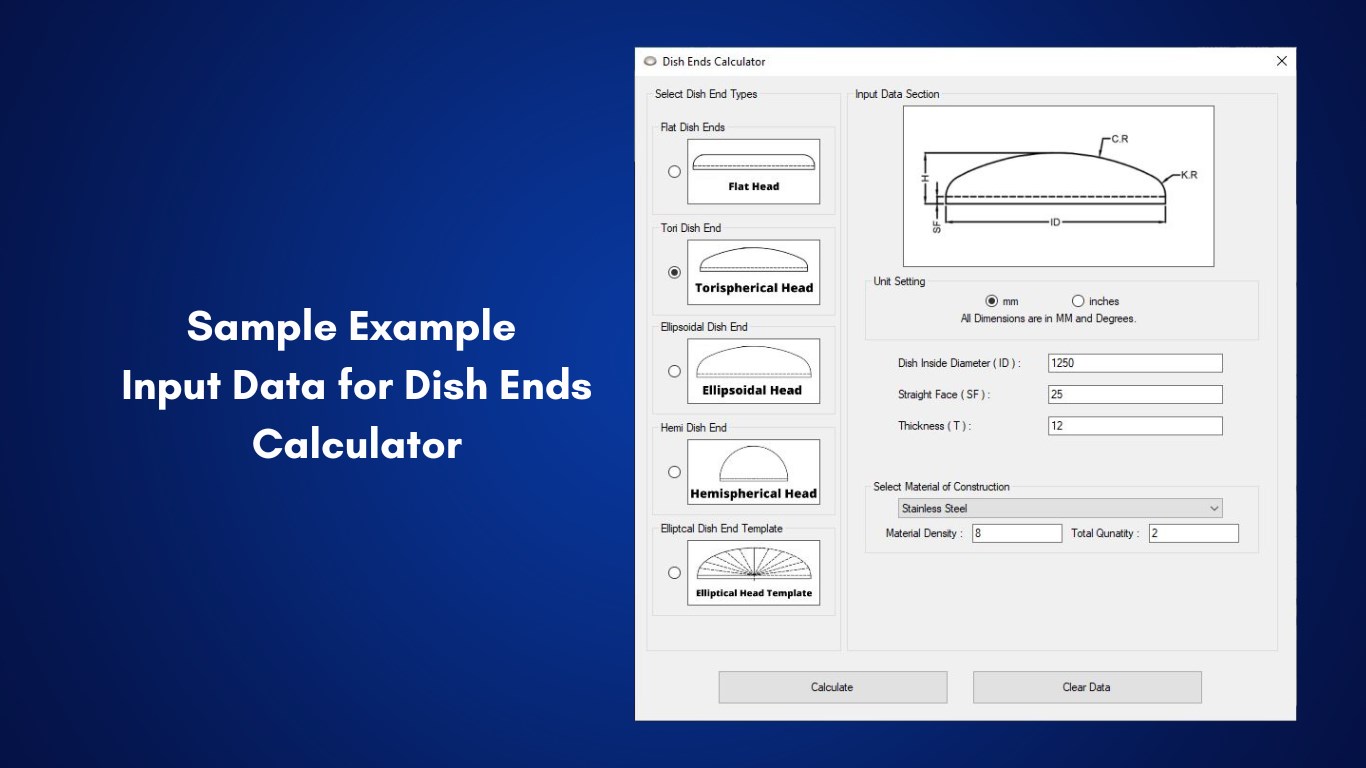

Pressure Vessels Heads Calculator for Flat Heads, Torispherical Heads, Hemispherical Heads, Ellipsoidal Heads and ellipsoidal template layout calculations.
This app is very helpful for Calculation of Blank Diameter, Crown Radius, Knuckle Radius,Height and other Related Terms of Various Types of Vessel heads such as Flat Head, Torispherical Head, ellipsoidal head and Hemispherical Head.
This app is designed for following Heads.
1. Flat Heads
2. 10% Torispherical head or dish Ends.
3. 2: 1 Ellipsoidal head or Dish Ends.
4. Hemispherical heads.
5. 2:1 Ellipsoidal Dish End Template Layout Marking
This App also Calculate Crown Radius, Knuckle Radius, Height without SF, Height with SF etc.
in this app 2:1 ellipsoidal Head Template Layout Marking is Calculate with options of lay-outing in 12 Parts, 24 Parts, 36 Parts, 48 Parts, 72 Parts or you can Put any No of Parts in development lines. its Generate X and Y Coordinates for Layout.
all dimensional input Should be required in MM or Metric System.
Blank Diameter calculated by This Tool is for Estimation and costing purpose, so while Cutting Blank size of the above Dish End please consult with your head manufacture for desired Accuracy.
this tool is helful for those who are working in fabrication of Process Equipments.
This app is useful for working professional in the field of pressure vessels, process equipments, heavy equipments, pipings, heat exchangers, process tanks, storage tanks and other fabrication industries. it helps daily working activity of engineers, fabricators, fitters, designers, draftmans and other related professionals.
Features

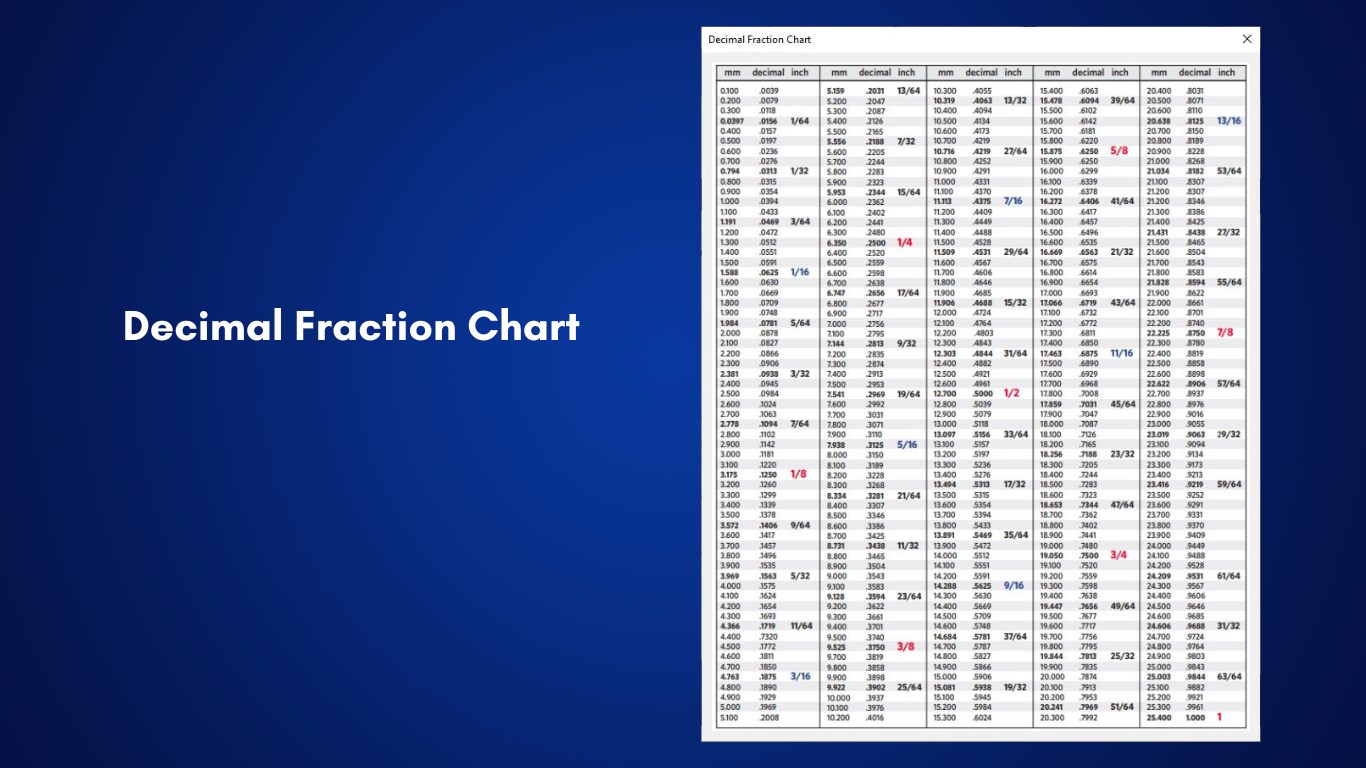

Faster Calculations of all types of dish endsAll Dish end terms calculations availableunit setting options available for mm and inchesTime and Cost savings of fabricationsHigher Accuracy of CalculationsTested and Verified By Working Professionals.
Additional Information
- Developed by Imran Pinjara
- Version 2025.02.20
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 17134.0 or higher
Keyboard: Not specified
Mouse: Not specified
- Published 2025-02-12
- Size 1.17 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
- Microsoft Store ID 9nrrf61nc659
