Overview
A Signal Acquisition, Visualization & Analysis software package
* Signals, as in analog sensor data
* Acquisition, as in data sampling/capturing/recording
* Visualization, as in plotting raw/processed data
* Analysis, as in live/post data processing
The software is thought as a general purpose, easy to use, data processing/visualization tool. However with a machinery dynamics focus in the build in analysis types.
Capabilities:
The software has build in support for National Instruments Daq equipment or it can load external source scripts, for customizable data sources.
Recordings happens via a custom/open Hdf5 file format, but multiple formats can be imported / exported.

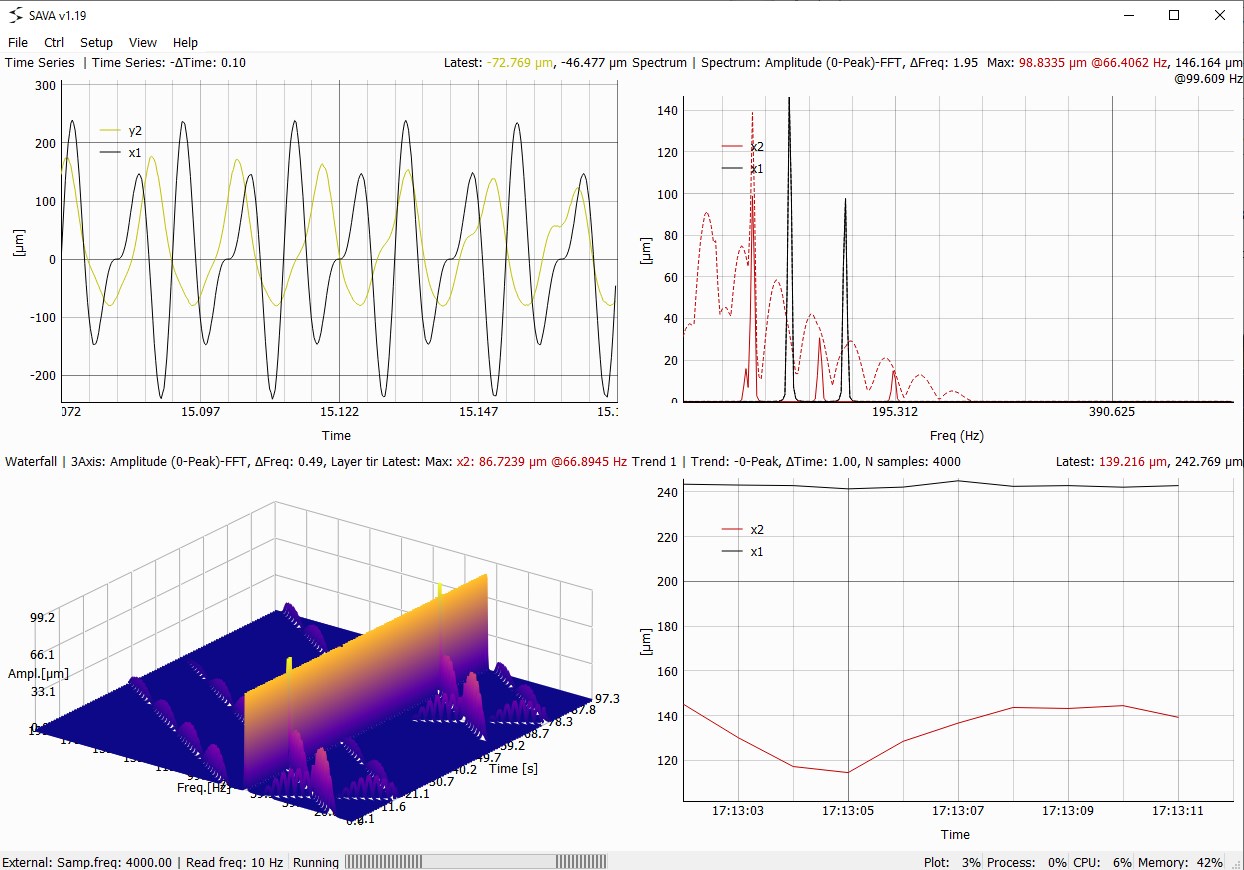

Raw and analyzed data can be visualized and inspected in real-time or via playback.
Most traditional signal processing methods are available, such as trending (Mean, Peak, Min/Max, RMS, Variance, Kurtosis, Skew, MAD) and frequency domain analysis (FFT, FRF).

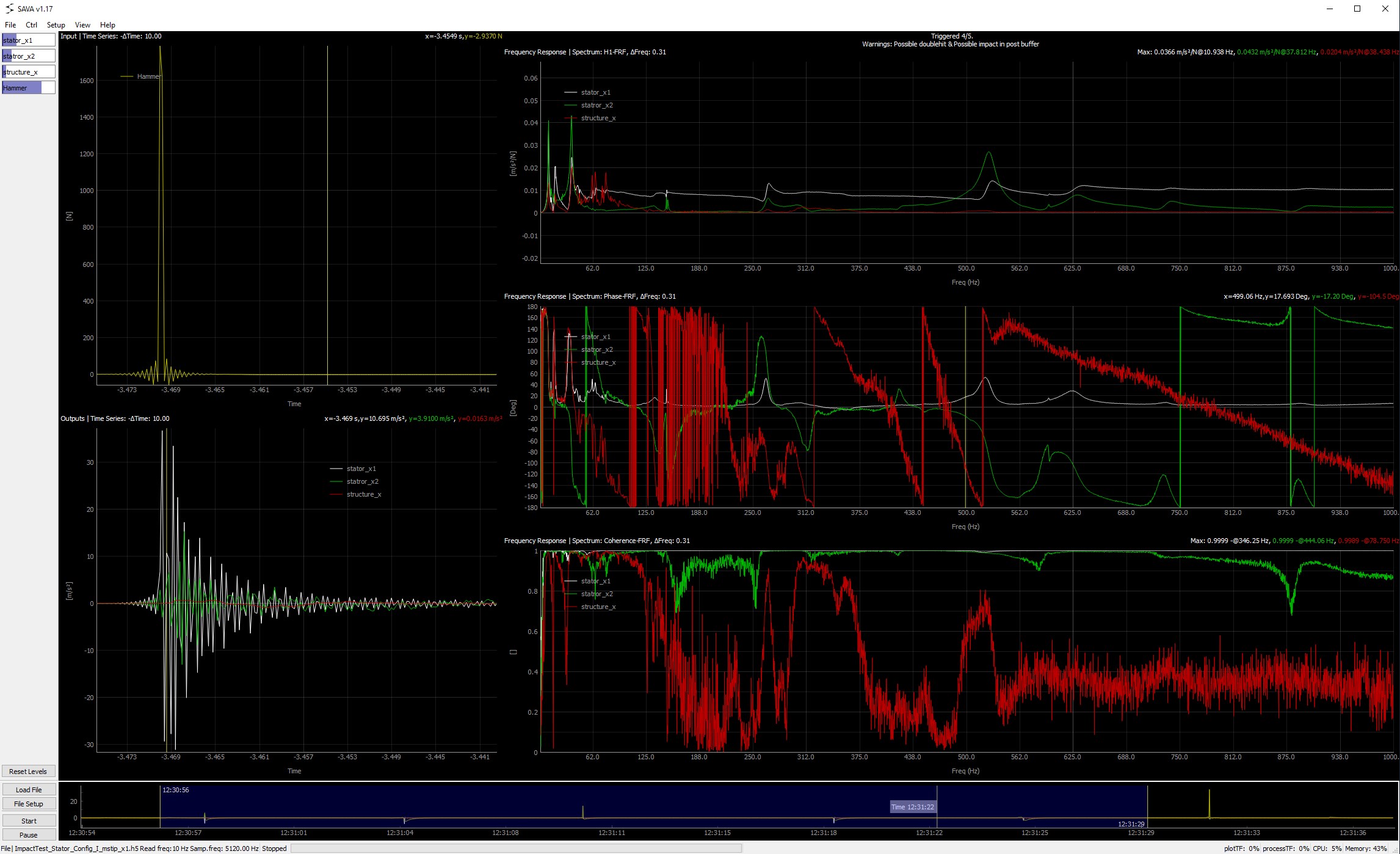

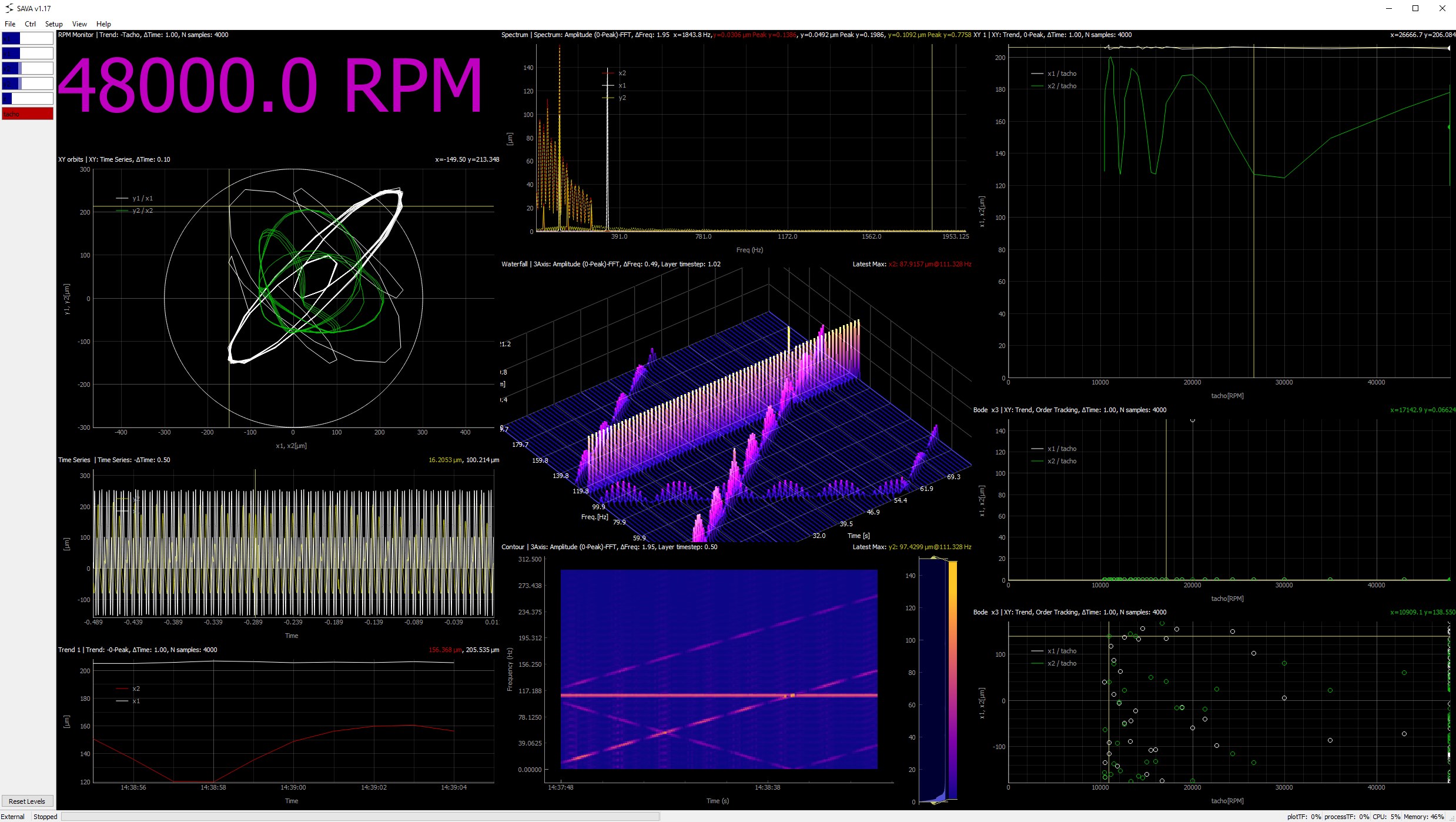

For machinery/rotor dynamics impact testing, tacho, order tracking, waterfall plots, orbit plots and bode plots are supported.
Features
Sensor signal/data acquisition/samplingRecording and playback: Importing/exporting of data (H5, CSV, Matlab, txt)Signal/Data visualization/plottingSignal/Data Analysis and postprocessingPlot types: Raw/Time Series, Trend (Mean, Peak, Min/Max, RMS, Variance, Kurtosis, Skew, MAD), Spectrum, FFT, FRF, Impact test, Orbits, Bode, Waterfall
Additional Information
- Developed by C. S. Jakobsen
- Version 2024.05.17
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
Memory: 2 GB
- Published 2024-05-01
- Size 124.22 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your home or work networks
Use data stored on an external storage device
Access your USB connected devices
Scan and connect to WiFi networks
- Microsoft Store ID 9nv7n6bwx7h1
