Overview
This App is Design to make handy Calculation of Screw Flight development. This app gives Flat pattern Size for Cutting Blank plate for development or fabrication of Screw flight. This app is very useful for those who are working in the field of Screw Conveyor or Ribbon Blender fabrication.

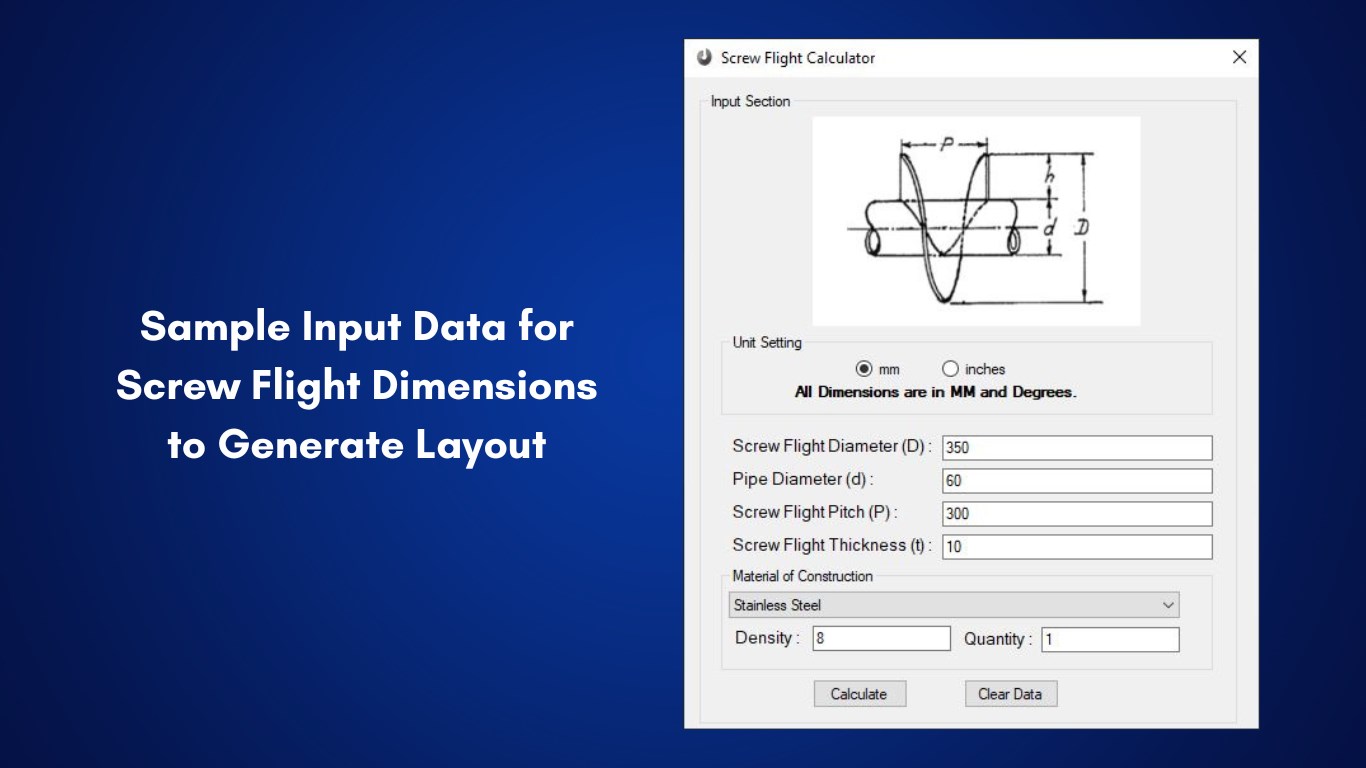

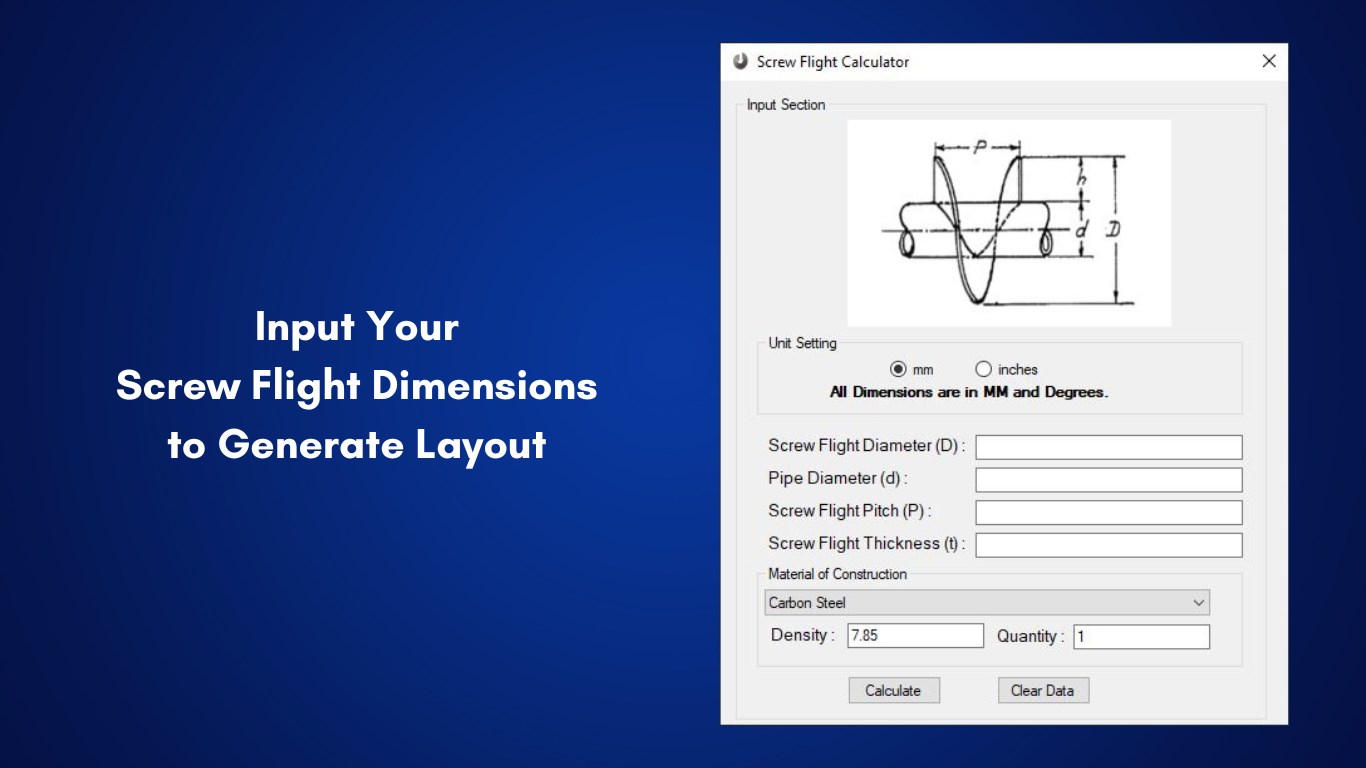

In this App Input is Required Outside & Inside Diameter of Screw, pitch of flight, material thickness & specific gravity of material of Construction such as carbon steel, Stainless steel,Copper, Brass or Bronze material.

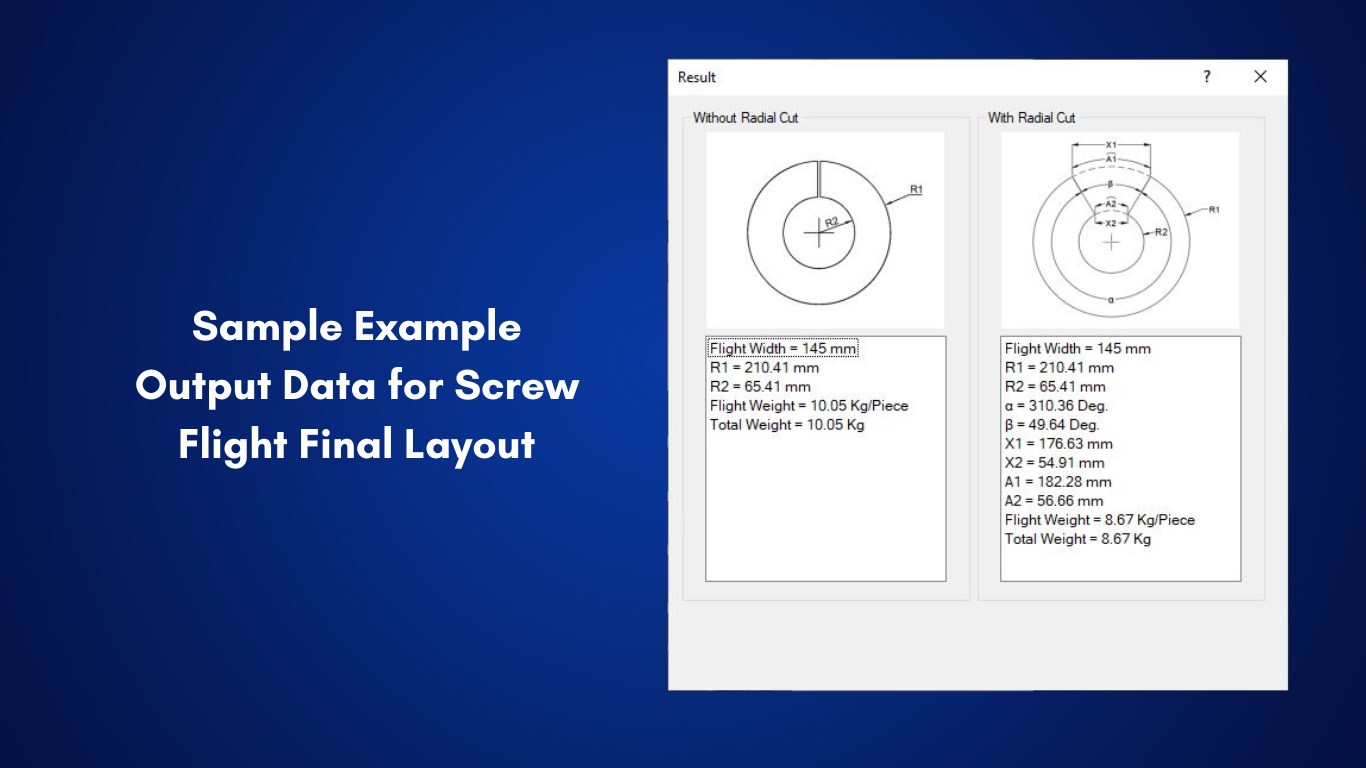

This app Gives Output as Development Outside Diameter of raw Plate Circle & Inside Diameter of Circle so that it will be perfectly fit with shaft or pipe on which it will be going to weld after twisting of raw plate.
All Dimension are used in mm and inches.
You can select Specific gravity from drop down List to Calculate Weight of Flight.
It is used in Screw Conveyor Fabrication.
Screw Flight is very Crucial element in Screw Conveyor.
Screw Flight Layout is very helpful while Screw Conveyor Manufacturing industry.
Capacity of screw conveyor is depends upon screw flight. This app is calculate raw cutting Plate size.
It app includes addition Element of Radial Cut Required for flight development, but it is advisable to use full circle for Cutting.
This app is also for those who are working in the field of fabrication of Conveying equipment such as screw conveyor, process equipment, ribbon blender, Pressure vessel, Heat ex-changer, Storage Tank, Agitator & Mixer and any other process equipment.
Features
Faster Screw Flight CalculationsScrew Calculations with Radial Cut and Without Radial Cut Options.Unit setting options for MM and Inches Useful for Screw Flight of Screw Conveyor and Ribbon BlenderTime Saving Calculations
Additional Information
- Developed by Imran Pinjara
- Version 2025.02.20
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Not specified
Mouse: Not specified
- Published 2025-02-05
- Size 1.2 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
- Microsoft Store ID 9nx2gr19g3zj
