The indispensable audio analyzer program for audio technology, with special measurements for DSP applications. Try it now!

Overview

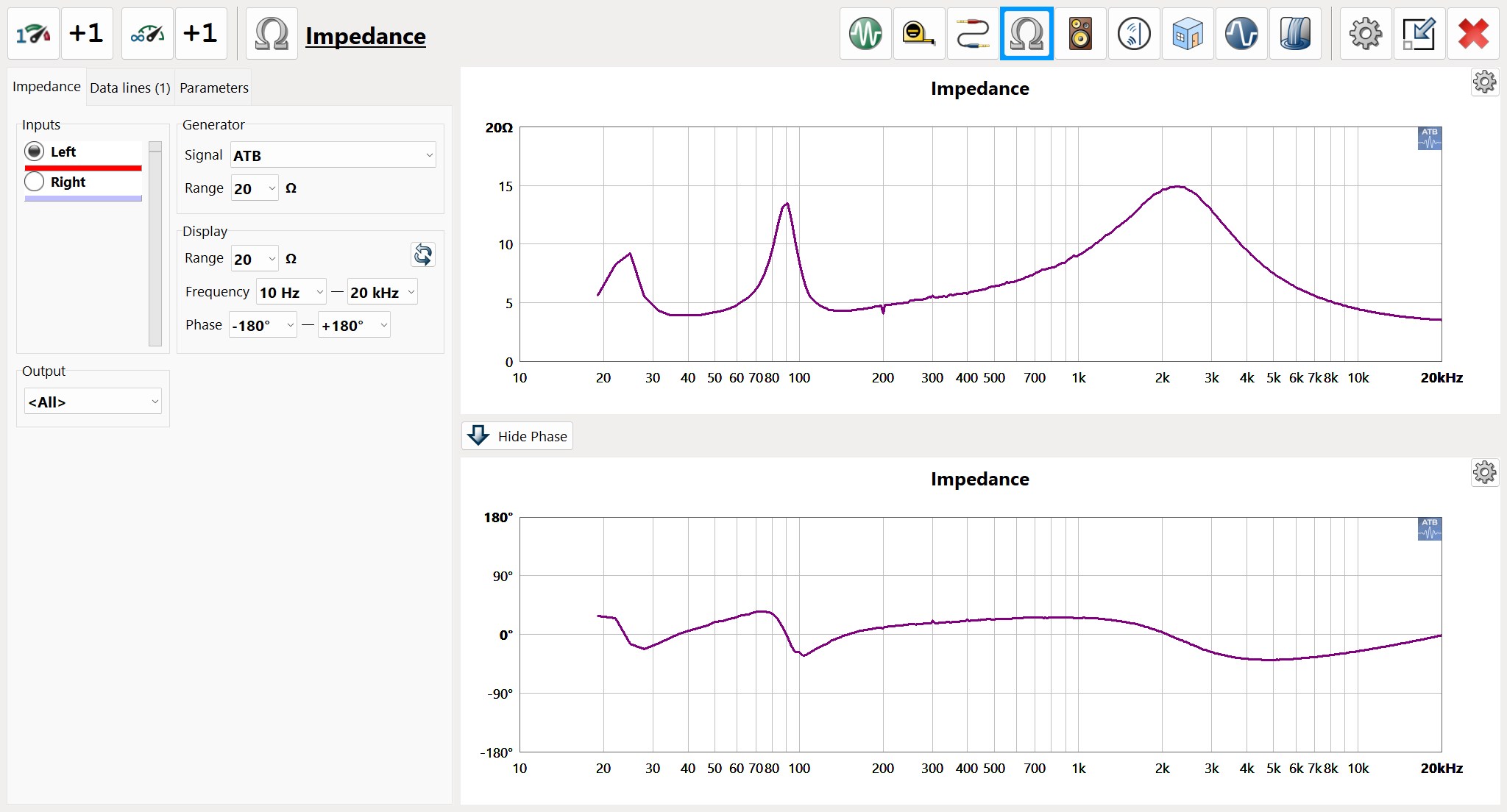

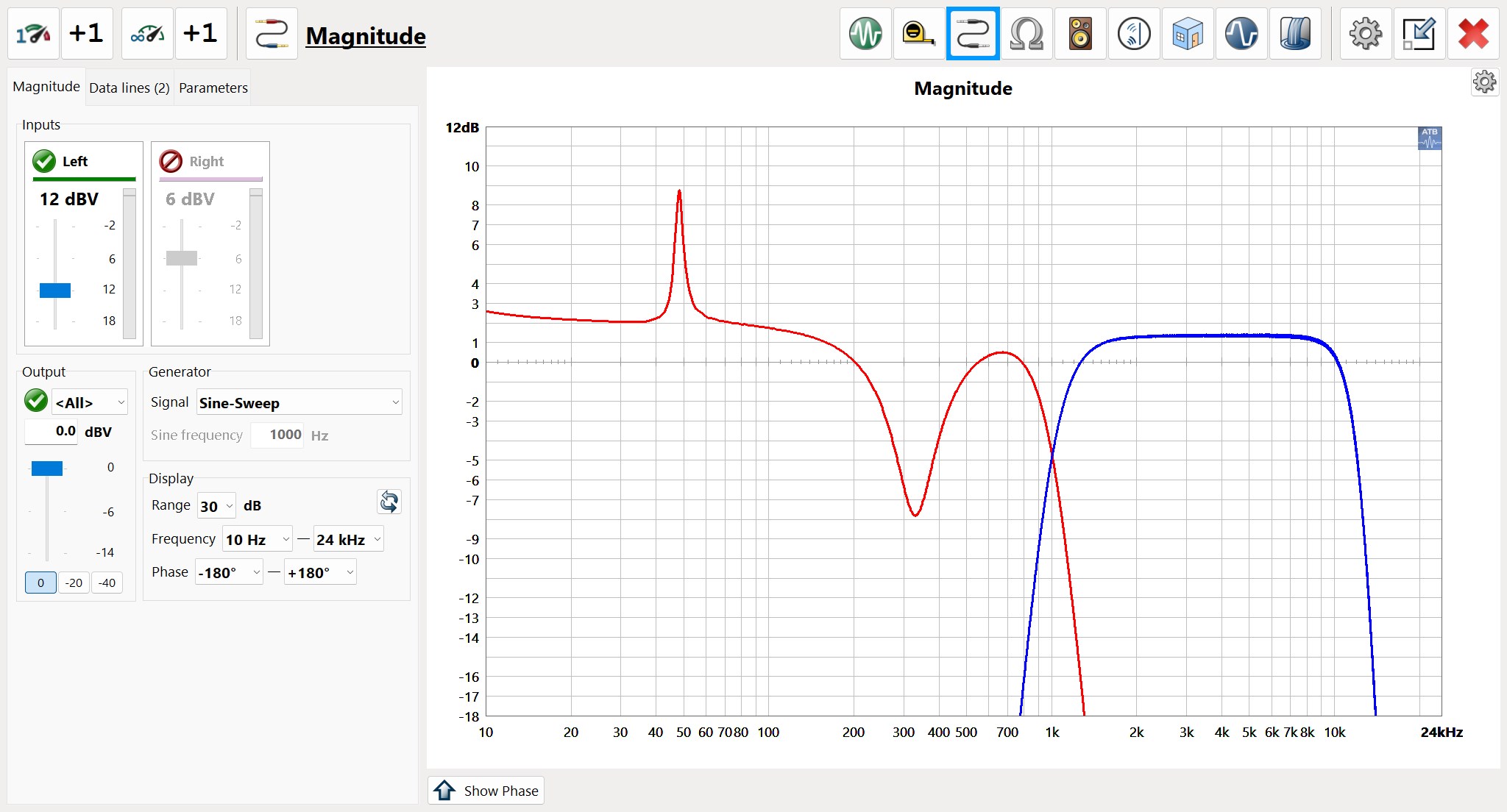

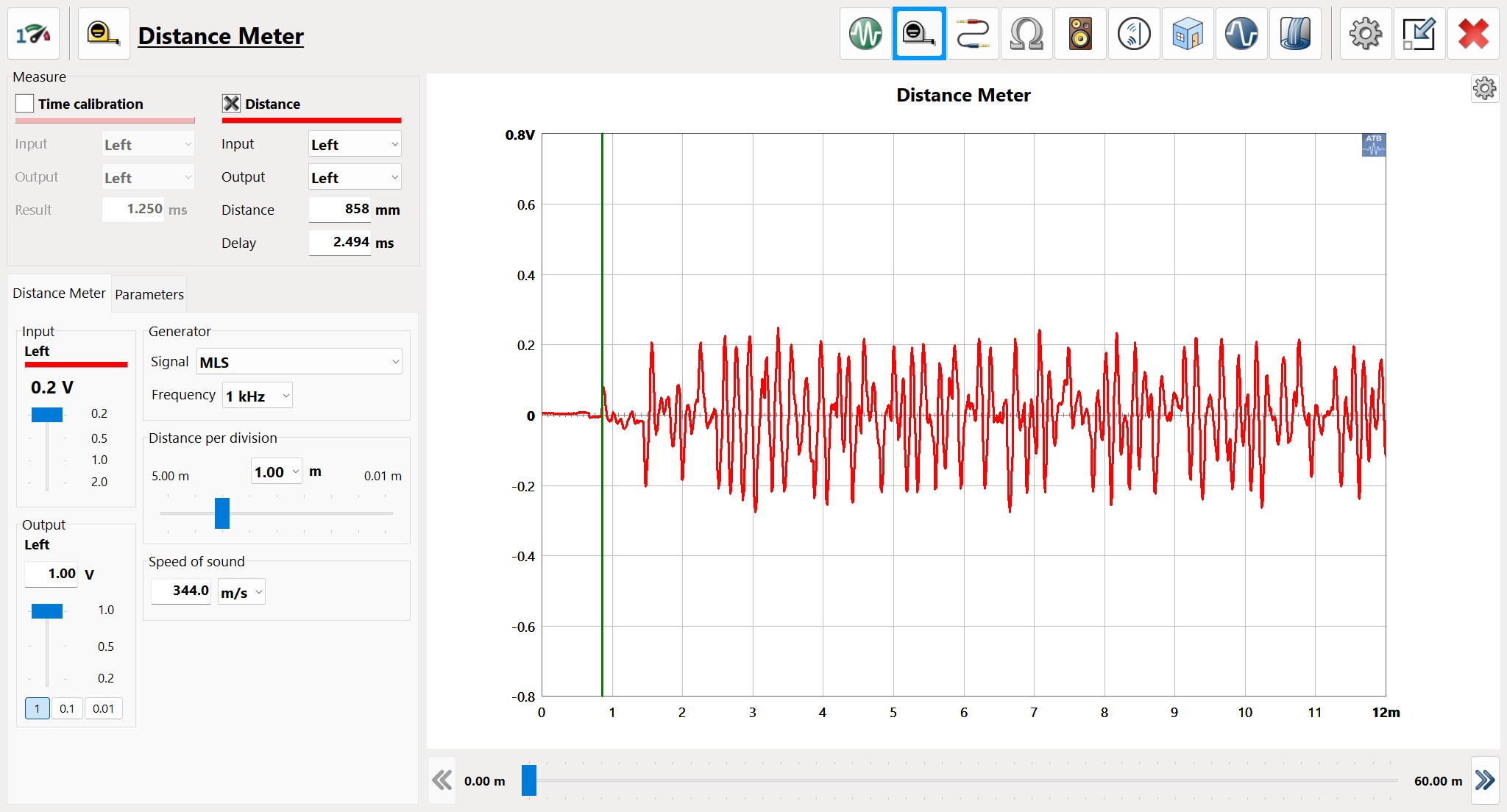

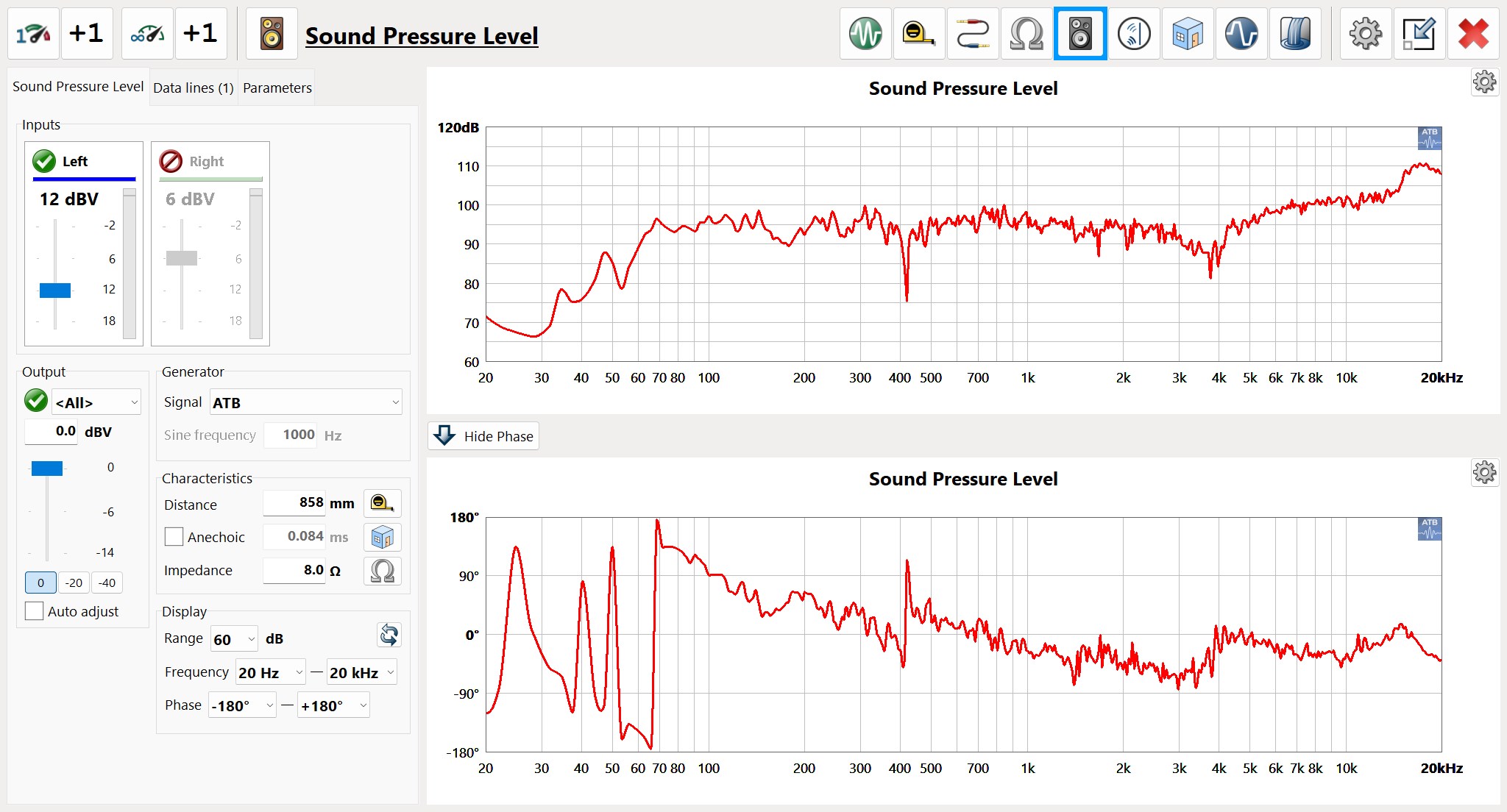

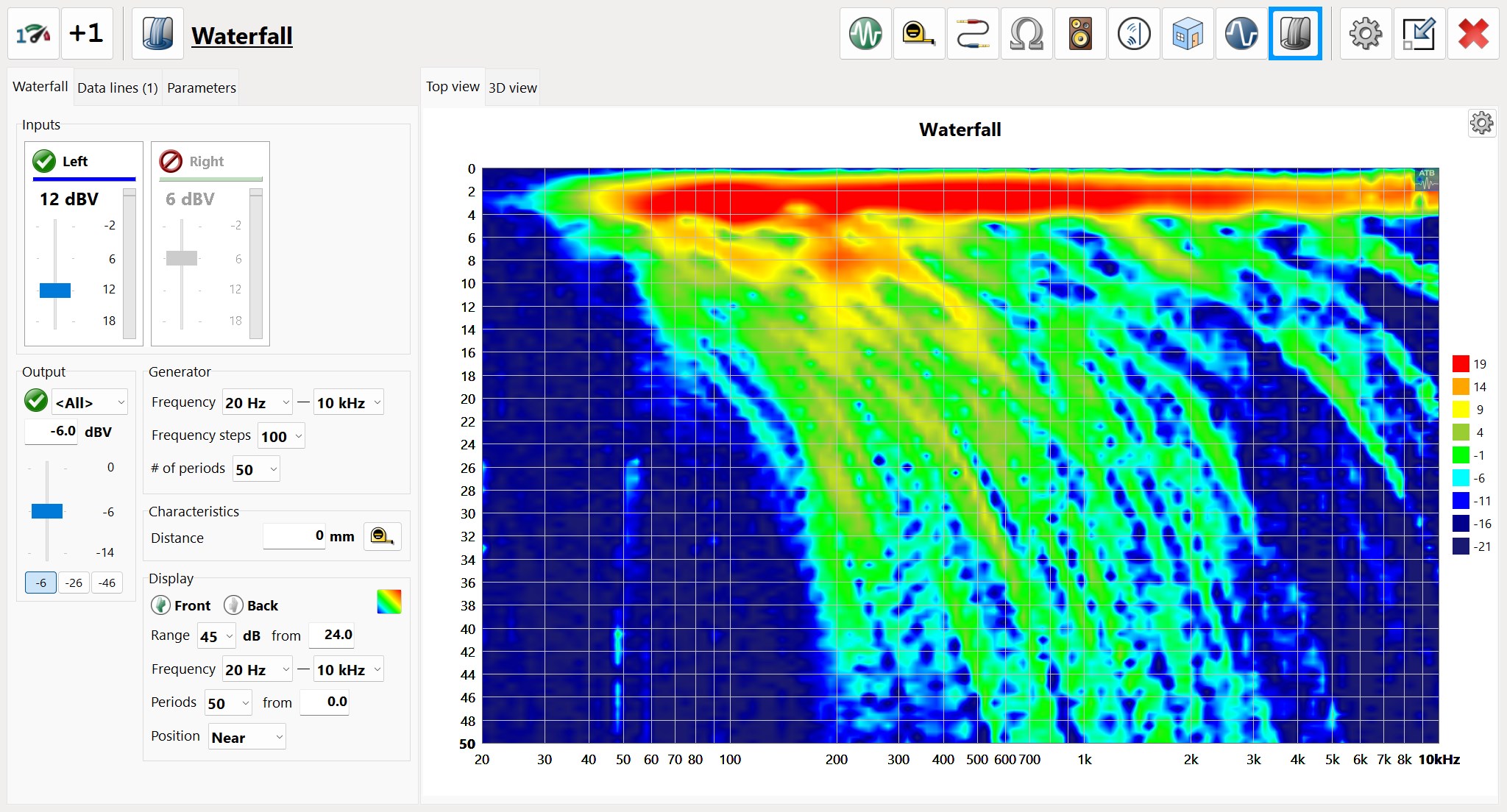

The time accurate multichannel analyzer program for audio measurement technology, with special measurements for time correct crossovers, loudspeaker development, DSP application and acoustic room tuning. The "ATB Audio Analyzer" has the high precision measurements RTA, SPL, impedance, electrical frequency response, phase measurement and distortion. The program is characterized by the display of precise temporal processes. Distances and delays can be measured automatically calibrated very accurately. This accuracy is necessary to develop crossovers and loudspeakers with the correct time or to adjust the delays in the DSP perfectly. This is the only way to achieve an optimal adjustment of the individual frequency bands or the subwoofer. When programming the DSP crossover, the "ATB Audio Analyzer" phase measurement reliably shows the filter characteristics and the correct polarity of the speakers. With the simultaneous measurement of volume and distortion, the DSP is controlled to avoid digital and analog clipping, the basis for distortion-free sound. When correcting the room with the DSP, the waterfall diagram shows the correct setting and optimization. By the cosine burst measurement resonances, modes, and reflections are shown distinguishable. This is important to be able to design and decide acoustic tuning measures correctly by distinguishing resonance and reflection. The application runs under Windows XP, 7, 8, 10 and 11. The program has a modern interface that is easy to use and allows flexible use and simple practical handling even for mobile touch screens. The special time correct and precise features of the "ATB Audio Analyzer" program are: • Automatic time-correct calibration via the computer, its hardware and operating system, and the sound card. • By the automatic correction with the time correlation and the measurement signals ATB periodic noise and Longchirp sinus, frequency and especially phase responses are measured precisely and repeatable for the developer reliably. • The acoustic, electrical and impedance measurements have their own specialized menus. • High-resolution frequency analyzer as well as real-time analyzer with third-octave display (RTA = Real Time Analyser) • Distortion measurement with display of THD or the 2nd, 3rd, 4th, 5th order harmonics. • Memory oscilloscope with sophisticated trigger function as well as synchronization with the generator • Generator for sine, square and cosine burst as continuous signal or as burst with selectable period length as well as pulse for dynamic measurement analysis • Output of the surround channels, configurable depending on the sound card. • Waterfall diagram with cosine burst measurement signal for displaying transient response as well as resonances and reflections distinguishable • Waterfall with wavelet analysis The "ATB Audio Analyzer" measurement program is the successor of the "ATB PC Pro", which has proven itself thousands of times. With the ATB periodic noise measurement signal and special time windows the most accurate loudspeaker measurements are achieved. Only with the time-correct development that the "ATB Audio Analyzer" enables, perfect sounding results are achieved.

Features

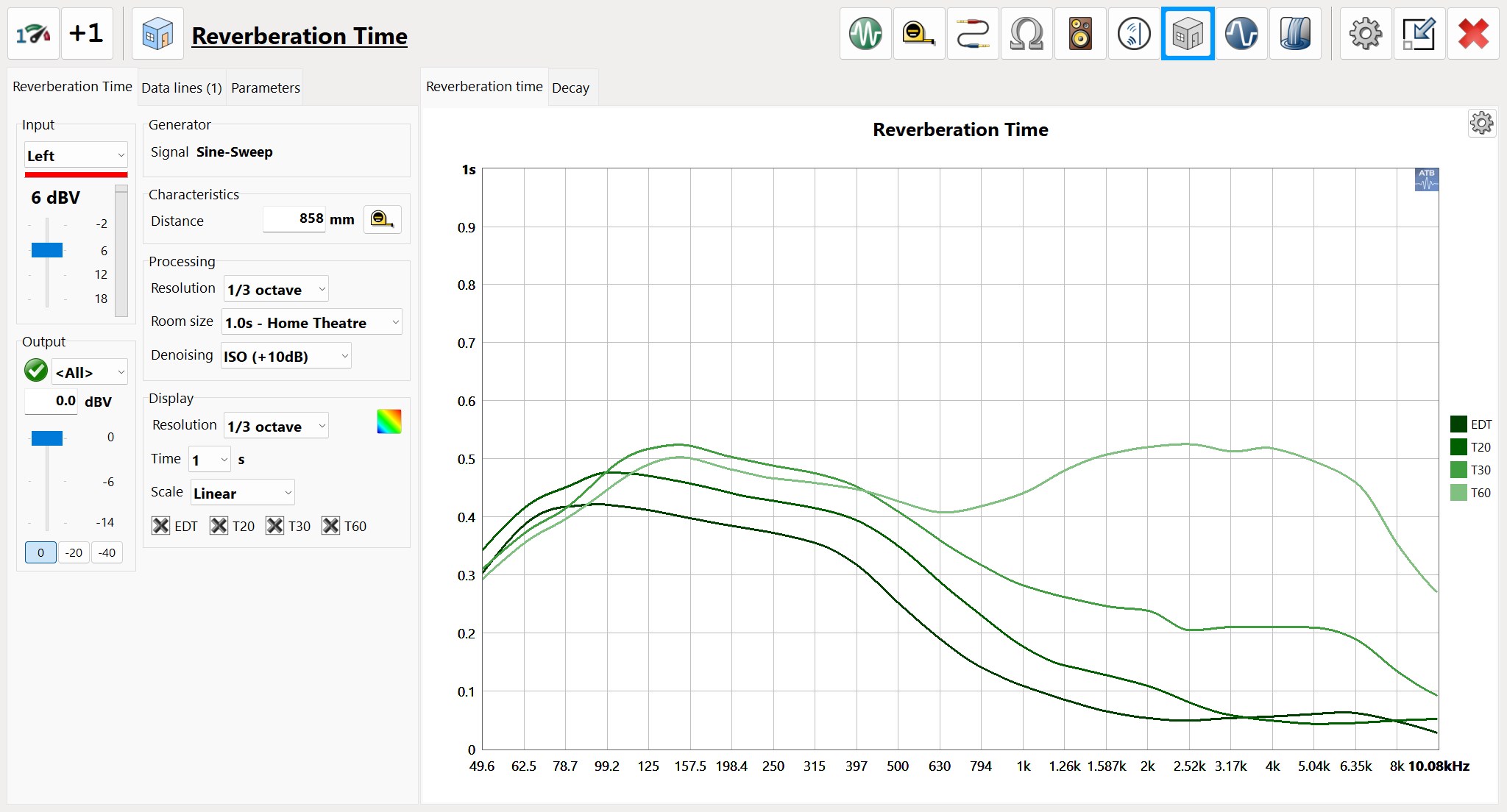

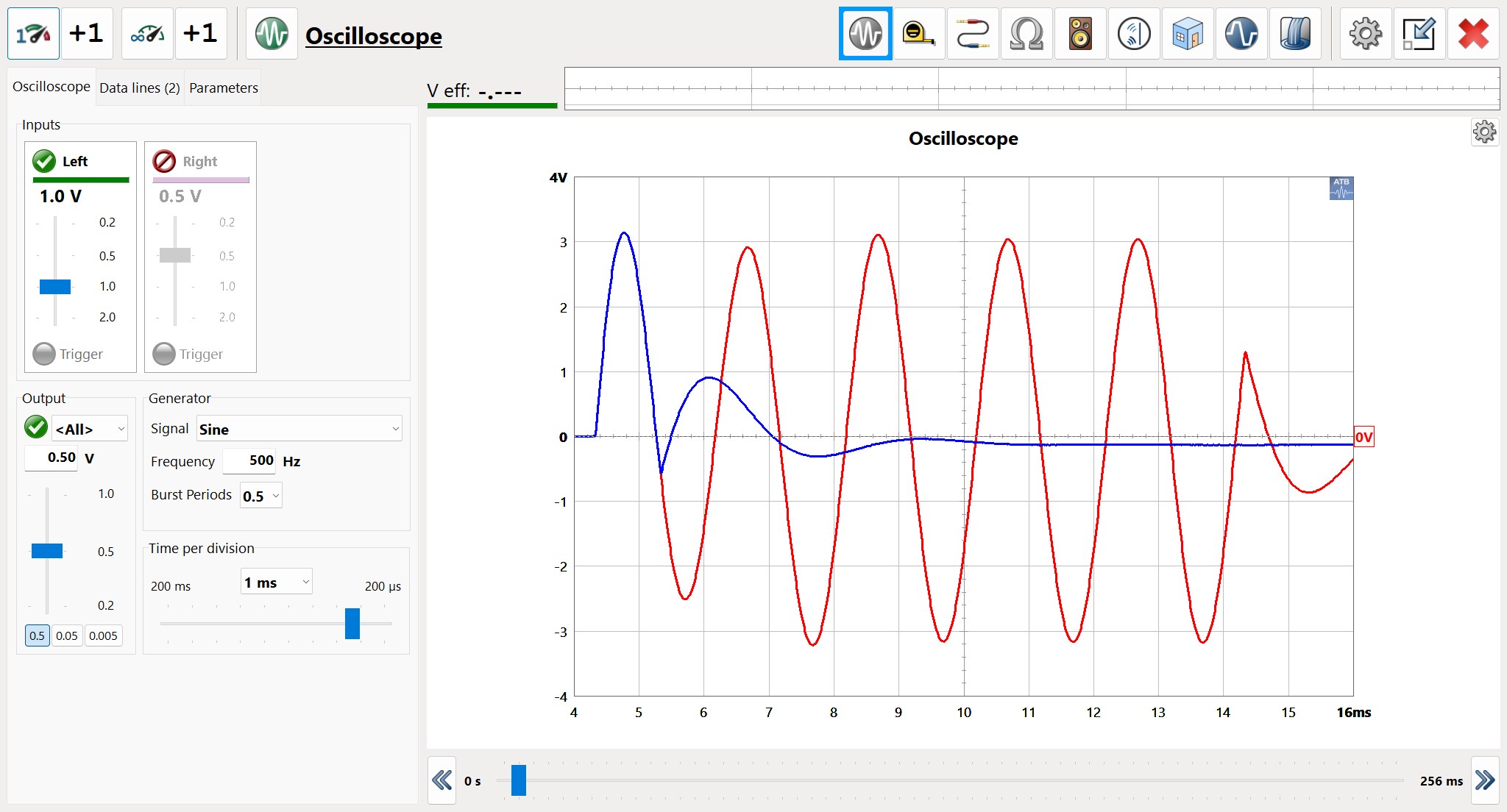

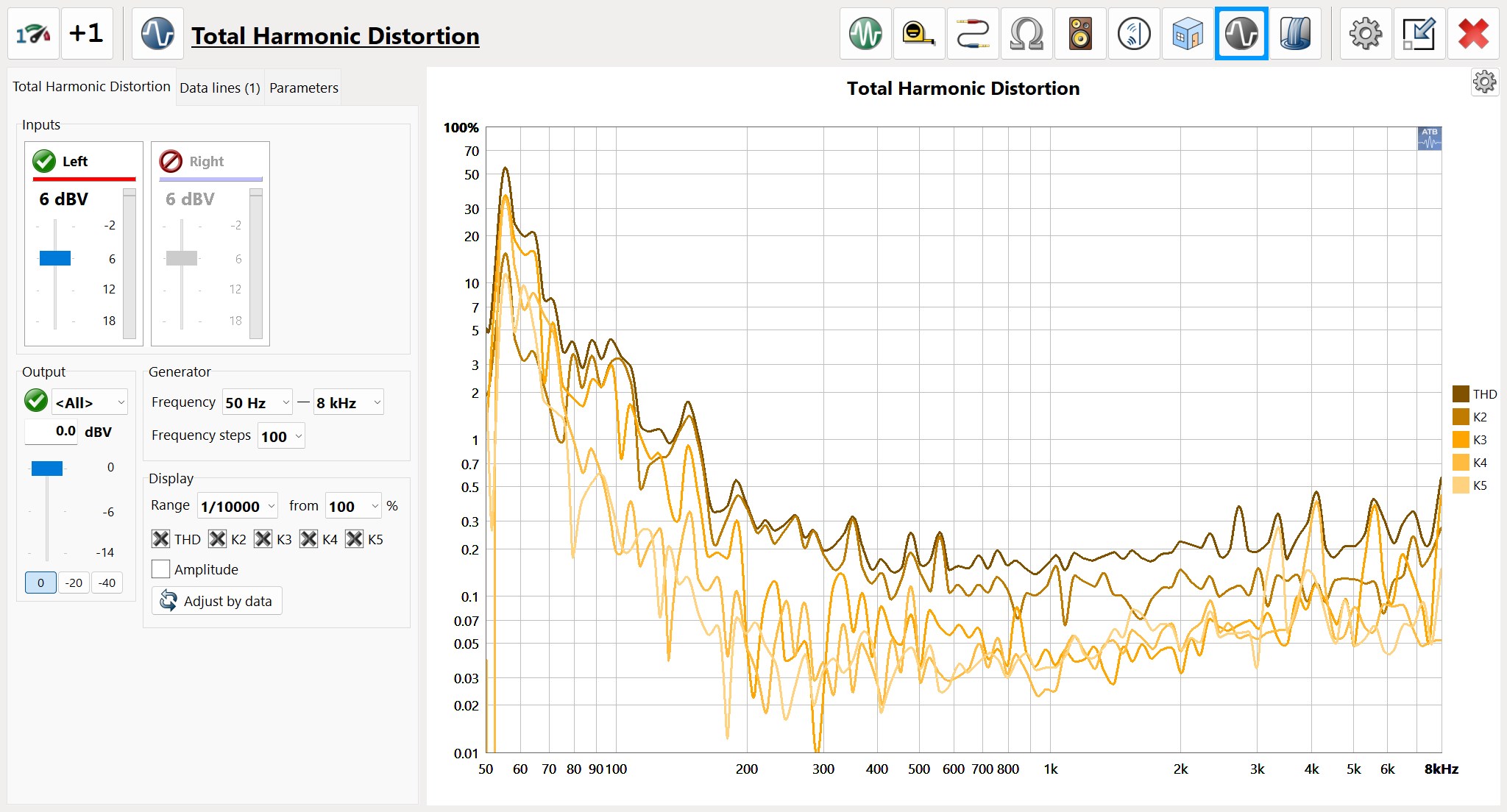

Self calibration of the soundcard with time calibration functionCorrelations response analysis using ATB periodic noise or logarithmic chirp stimulus for frequency and phase response measurementNarrow-band FFT analyzer, Real-Time fraction-of-octave analyzer (RTA)Distortion measurement with 2nd, 3nd, 4nd, 5nd and THD harmonic responseStorage oscilloscope with powerful triggering function and synchronization with the generator for distance and delay measurementGenerator for sine, rectangle, cosine-burst, burst with periodic settingWaterfall with cosine-burst stimulus to shows resonances and reflections differentlyWaterfall with Wavelet analysisReverberation time measurement

What's new

• implemented more precise calculation of total harmonic distortion measurement and added a separate graph for monitoring of ongoing amplitude • enhanced the input scale sensitivity on the oscilloscope to show signals starting from 1 millivolt • fixed choosing of output volume on sound level meter tool in auto-adjusting mode

Additional Information

  • Developed by [mn]medianet
  • Version 2023.07.25
  • Requires

    Available on: PC

    OS: Windows 10 version 17763.0 or higher

    Touch: Integrated Touch

    Keyboard: Integrated Keyboard

    Mouse: Integrated Mouse

  • Published 2022-06-01
  • Size 6.79 MB
  • File Type appx/msix
  • Language
    Arabic
    Chinese (Simplified)
    English (United States)
    French
    German
    Russian
    Spanish (Spain)
    Ukrainian
  • Permissions

    Uses all system resources

  • Microsoft Store ID 9p2d7j6dsh8r

How to download and install ATB Audio Analyzer from the Microsoft

To download and install ATB Audio Analyzer for PC from Microsoft, here are two methods you can follow. The indispensable audio analyzer program for audio technology, with special measurements for DSP applications. Try it now!. You can access the app directly on the Microsoft Store.

Method 1: Download and Install via the Microsoft Store

This is the most straightforward and secure way to get ATB Audio Analyzer.

Step 1: Open the Microsoft Store

  • Click the Start Menu (Windows logo) at the bottom-left corner of your screen.
  • Search for Microsoft Store in the search bar and open it.
  • Step 2: Search for ATB Audio Analyzer

  • In the Microsoft Store, type ATB Audio Analyzer into the search bar at the top and press Enter.
  • Select the app from the search results to open its detail page.
  • Step 3: Download and Install

  • Click the Get button (if the app is free) or Install to begin the download.
  • The app will automatically install after the download is complete.
  • Step 4: Access the App

  • Once installed, you can find ATB Audio Analyzer in your Start Menu or Apps List.
  • Open the app and follow the on-screen instructions to use.
  • Method 2: Download from the Official Microsoft Website

    If you prefer downloading directly from the web, you can use the official Microsoft website.

    Step 1: Visit the ATB Audio Analyzer Page

  • Open your browser and go to the ATB Audio Analyzer page
  • Step 2: Download the App

  • Click the Get in Store app button on the webpage.
  • This will redirect you to the Microsoft Store app on your PC.
  • Step 3: Install ATB Audio Analyzer

  • Follow the same steps as in Method 1 to download and install ATB Audio Analyzer.
  • Step 4: Use ATB Audio Analyzer

  • Launch ATB Audio Analyzer from your Start Menu or Apps List.
  • Tips for a Smooth Installation

  • Ensure your PC is connected to the internet.
  • Keep your Windows operating system updated for the best performance.
  • Conclusion:

    Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install ATB Audio Analyzer.
