Overview
Design segmented vessels with shapes spanning from bowls to vases that are made out of wood and turned on a lathe.
Features

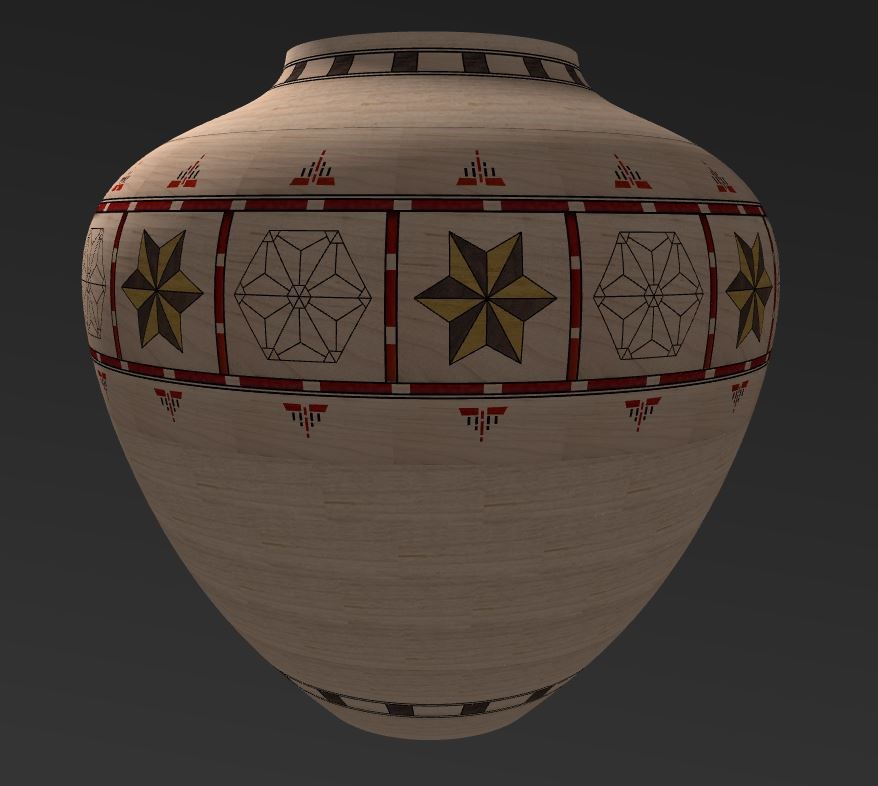

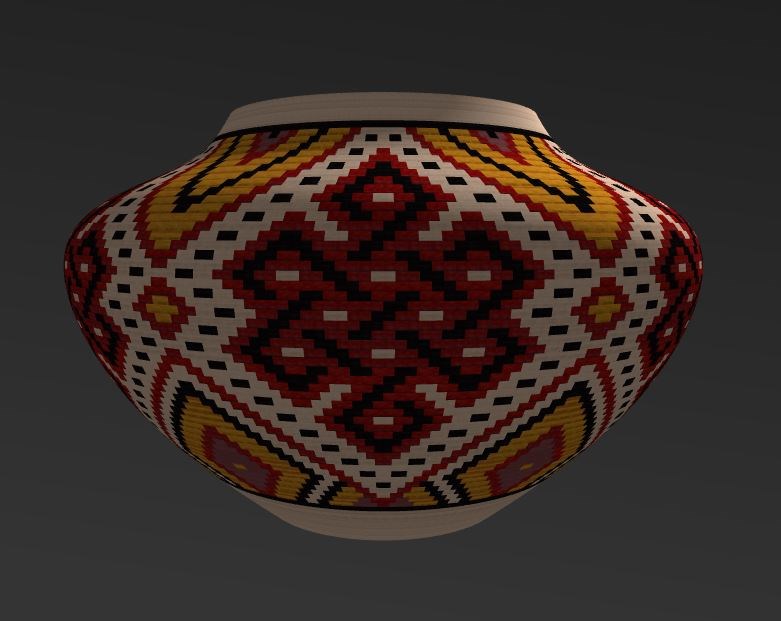

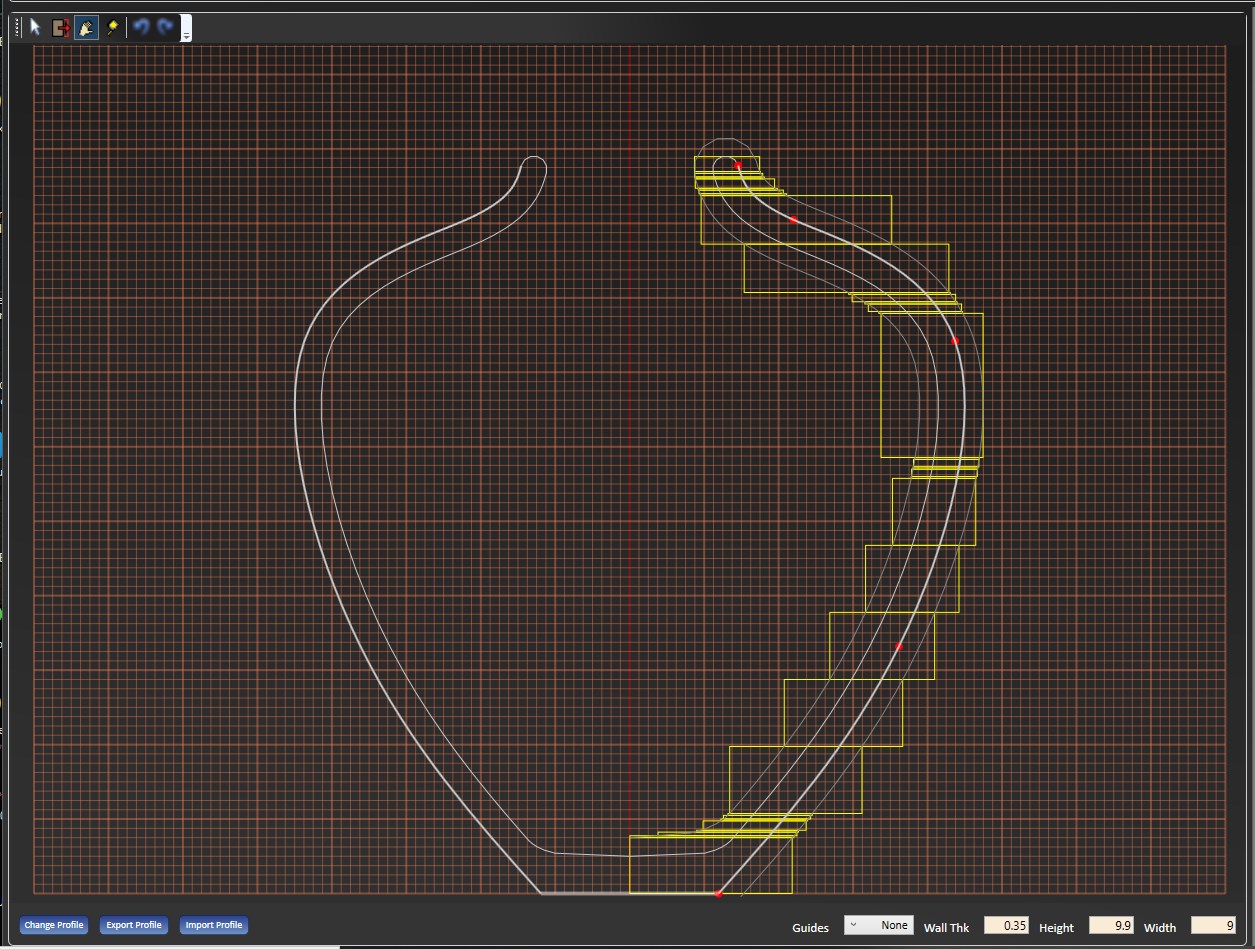

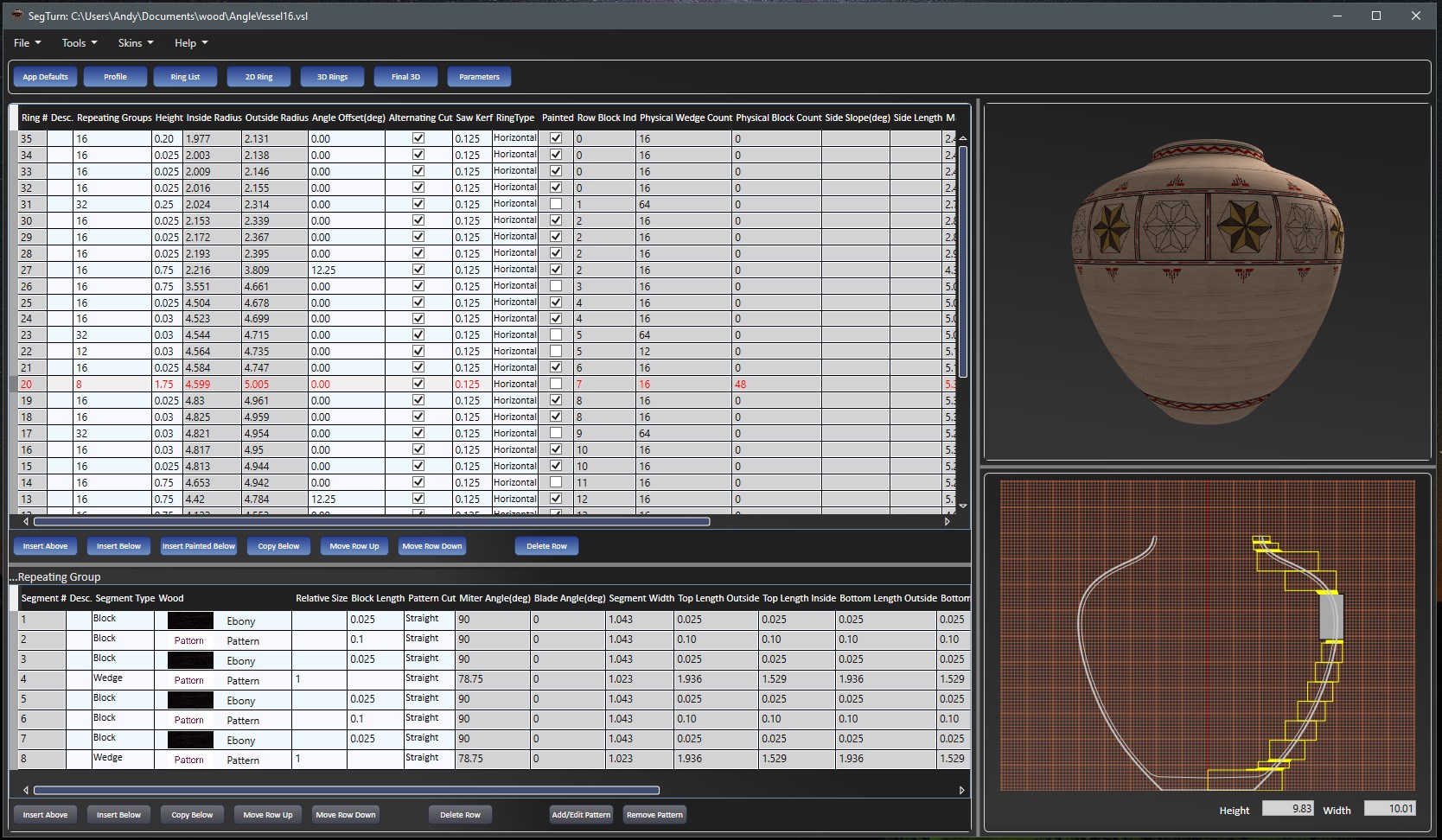

Design segmented vessels from bowls to vasesDesigns start with a default vessel or a painted vesselRings can have closed segments or open gaps between segmentsDesigns can have any combination of featuresA realistic 3D display of the finished turned projectA 3D display of the stacked ringsAny number of stacked rings where each ring can be horizontally or vertically orientedEach rings is made up of a repeating group of segmentsSegments can be wedge or block shapedInitial profile is easy to modify by changing points on a Bezier curveRings and segments are modified in a grid viewSegments can be a single wood or have a multi-wood patternA large number of woods to select fromSegment patterns are defined graphically in a pattern editor windowPainted patterns are defined graphically in a painted pattern editor windowProject output can be saved to a file for later accessProject detailed plans can be output to a text or csv file
What's new
A new option to scale the height of the vessel by proportionally changing ring heights while also specifying rings to remain unchanged.

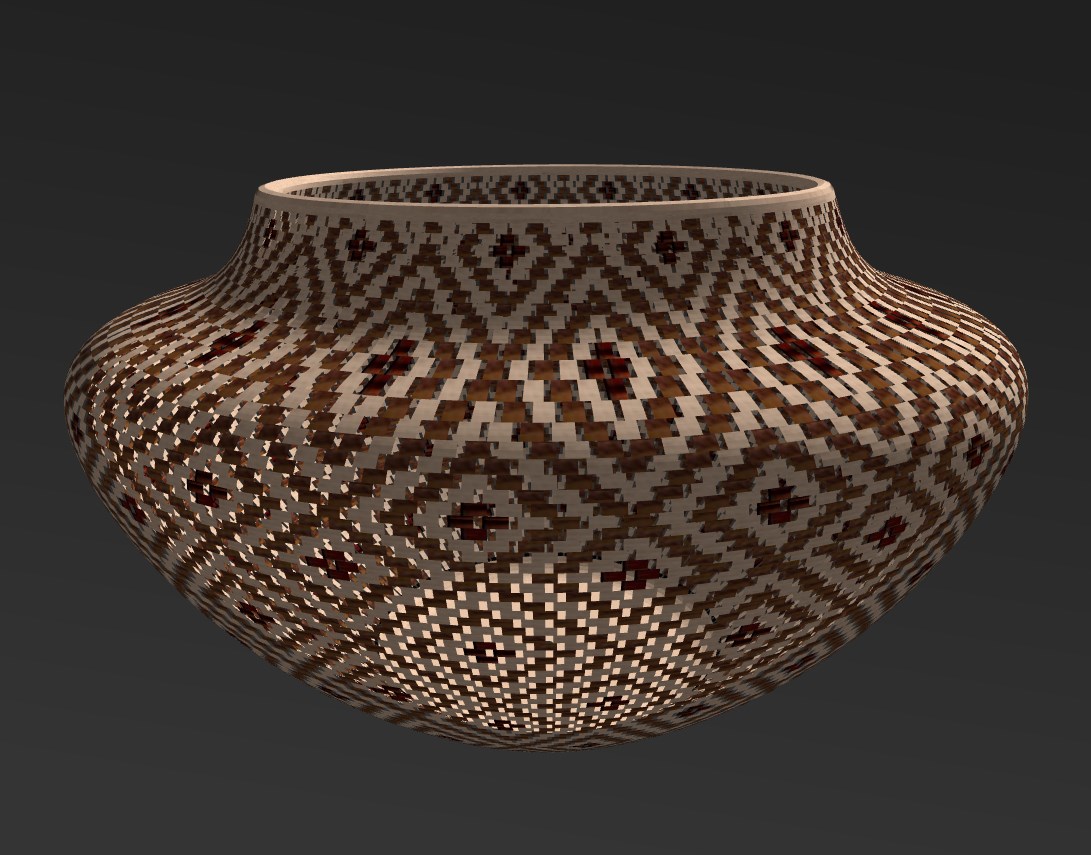

The 3D view of open segmented vessels now have the visible portions of the vessel thickness displayed. End grain is displayed with a solid color otherwise the normal wood image is used.
Fixed an issue with the 3D display of patterns on vertical rings (staves).
Eliminated the radial pattern cut for vertical rings (staves).
For vertical rings (staves) a pattern modified length field has been added to the segments and used when specifying a pattern to account for the side slope,
Additional Information
- Developed by AW Deley
- Version 2024.09.06
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Not specified
Mouse: Not specified
DirectX: Not specified
Memory: Not specified
- Published 2019-03-19
- Size 127.11 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
