Overview

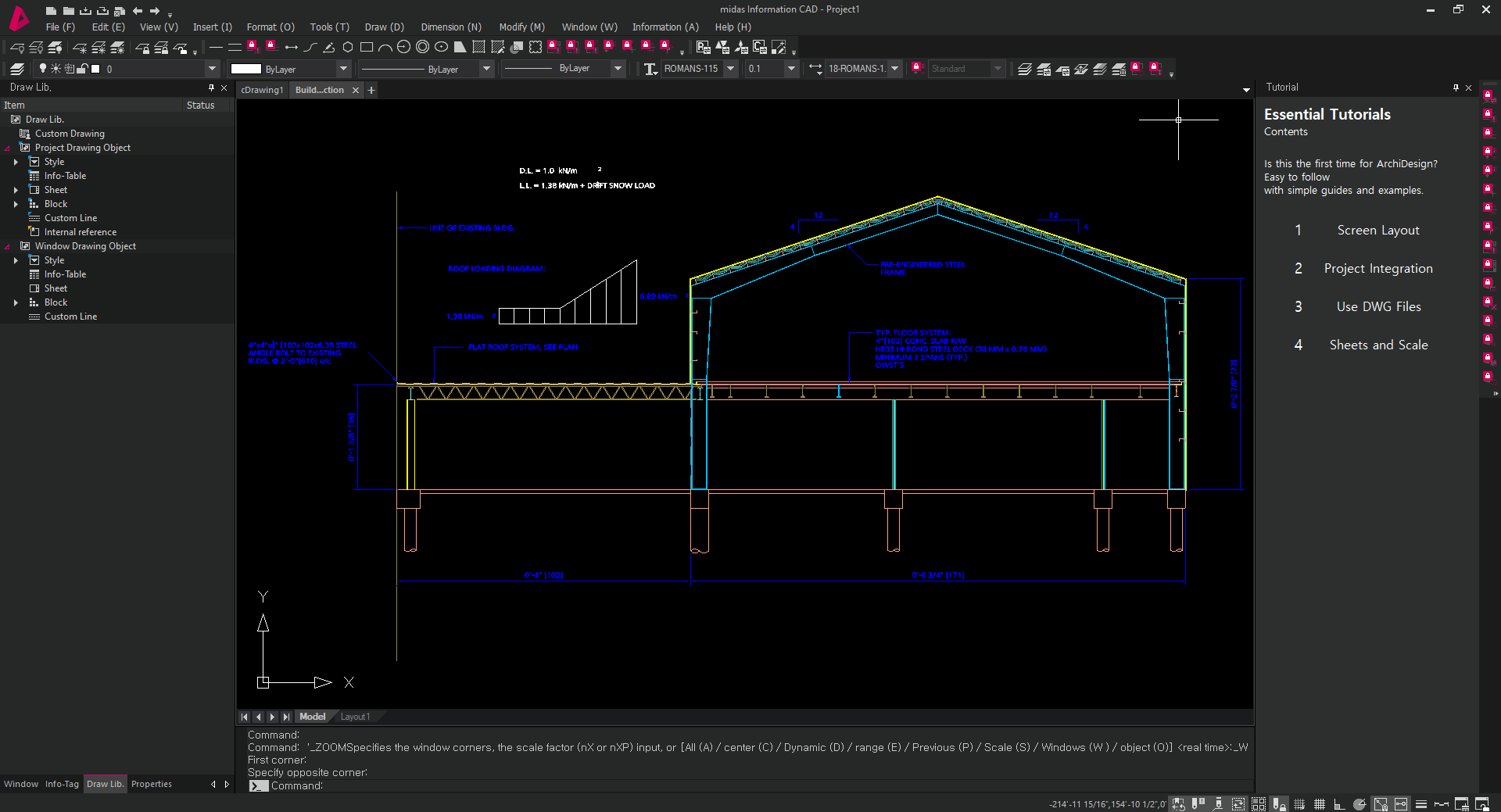

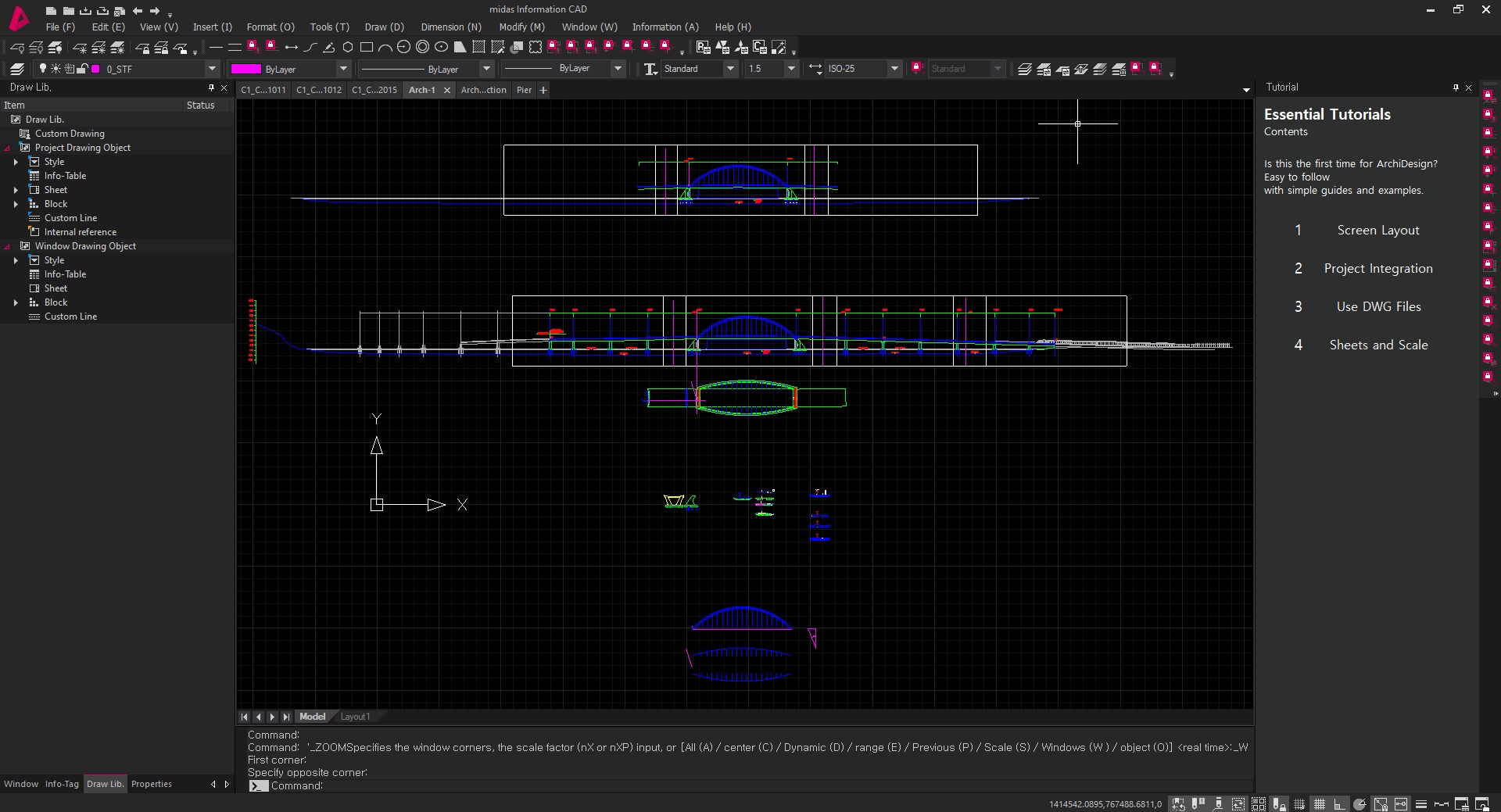

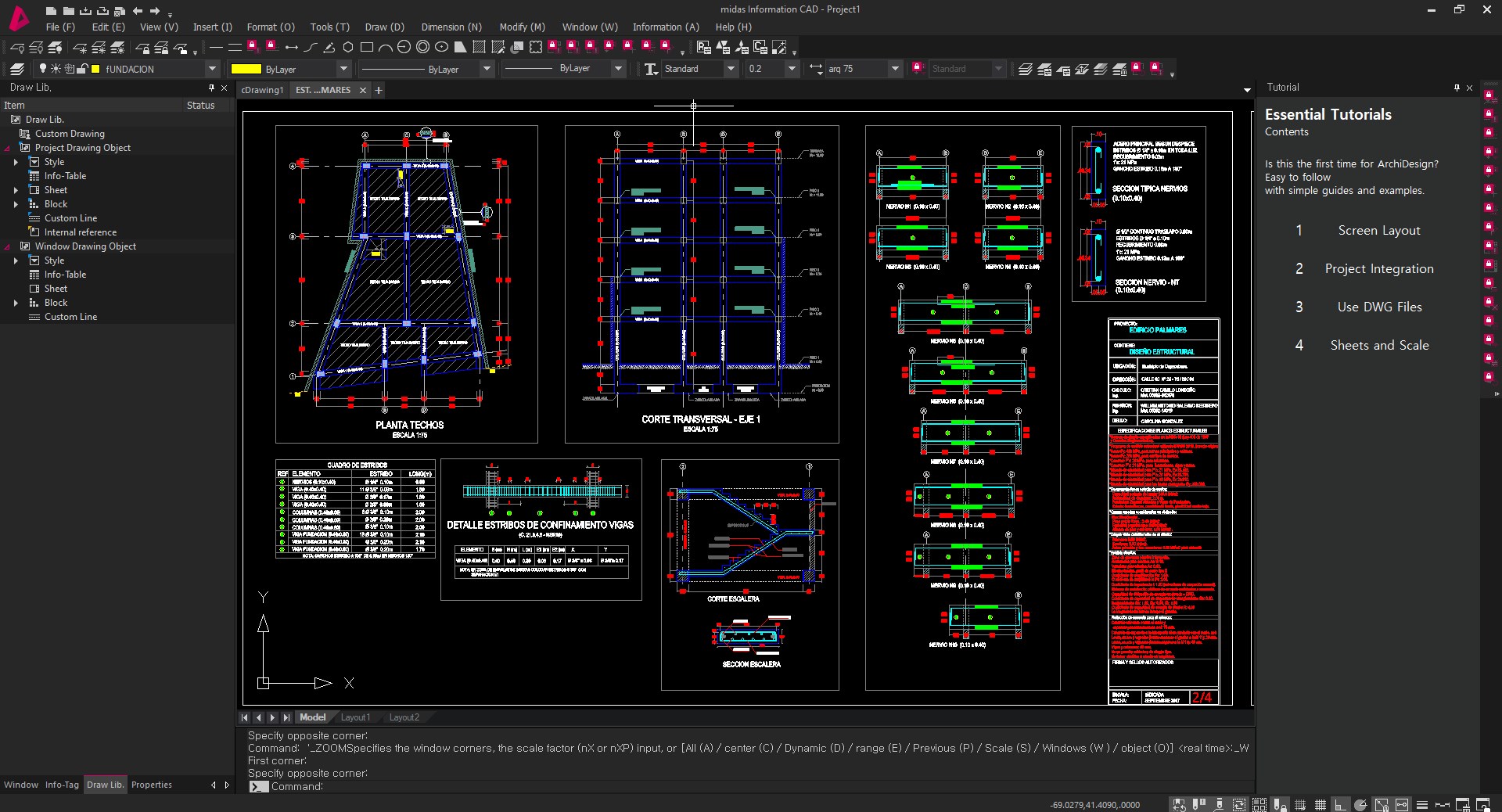

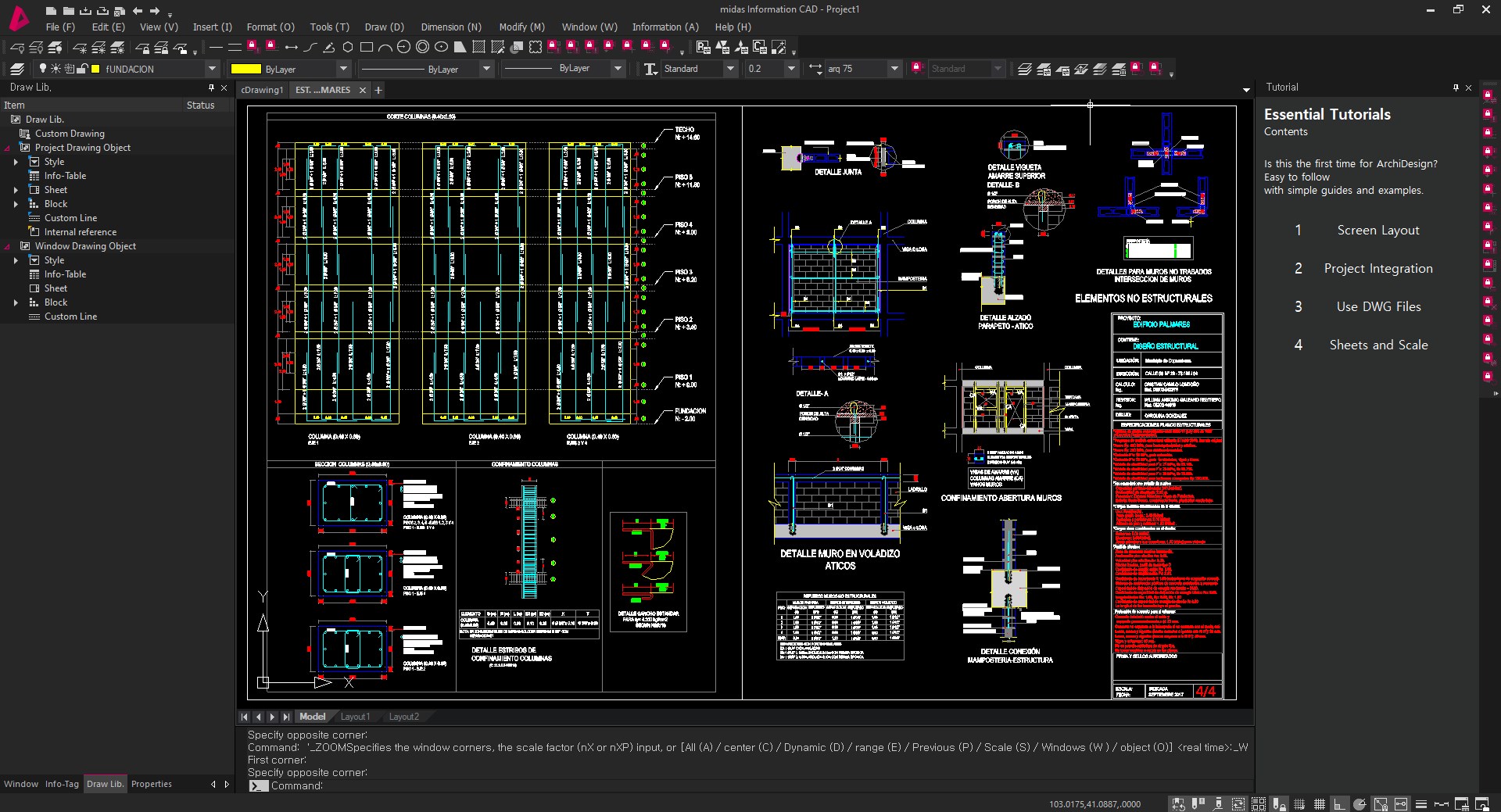

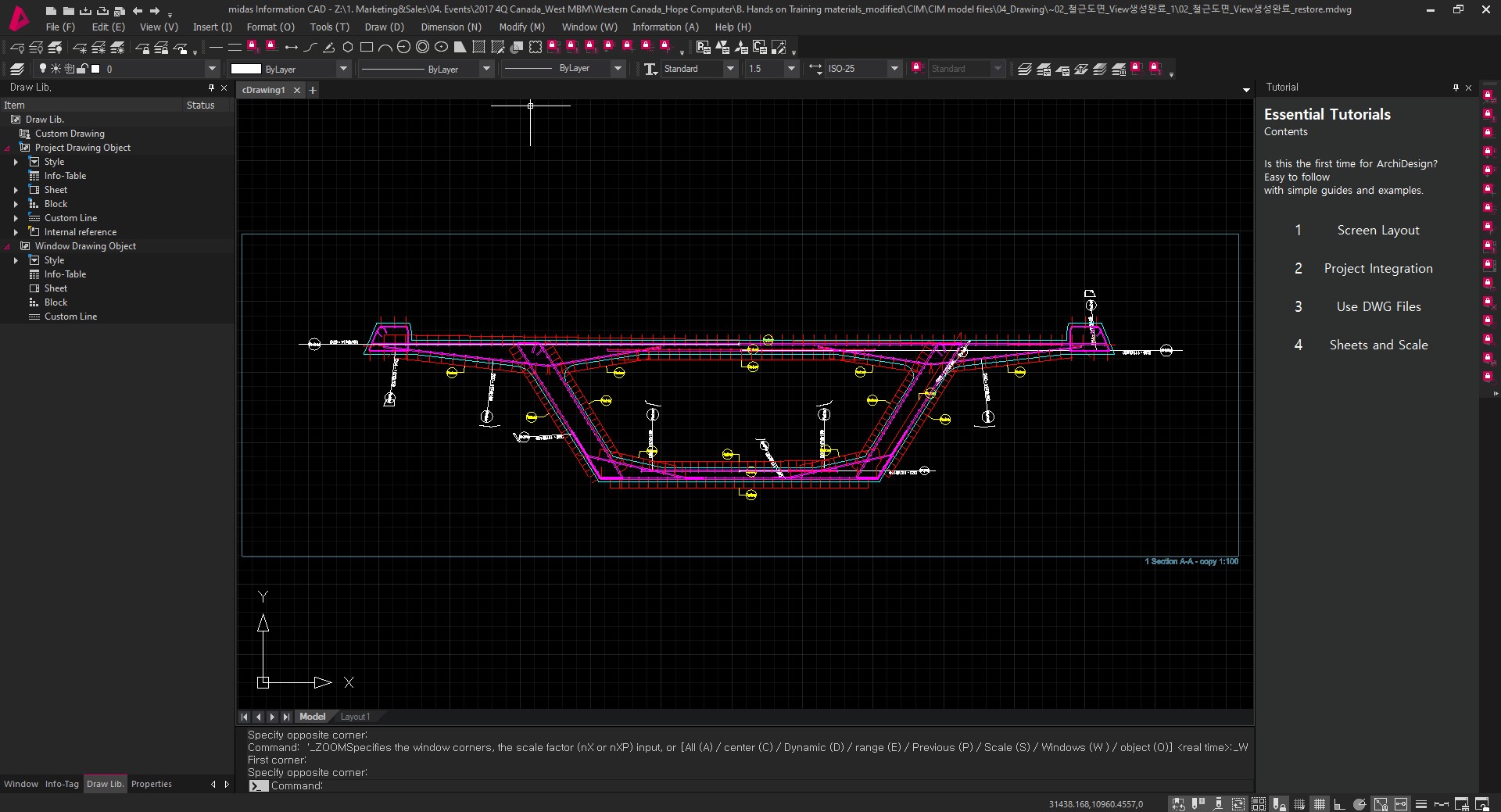

midasCAD is a free 2D drafting application with the classic CAD tools to its own unique productive tools. midasCAD assists you to express your creativity freely and to finish the drafting with speed. Whether you’re designing a tree house, engineering an espresso machine, or landscaping a French garden, the productivity matters. Seamless connection of objects reduces hassles of countless design changes. Discover a new way of 2D drafting and innovate your everyday work with midasCAD. For you, it is FREE.
Directions to activating your license.
1) Run midas Cad program --> Register Protection License dialog box will appear.
2) Select --> Web Authentication
3) Create User ID and Password --> https://account.midasuser.com/user_en/join.asp
4) Enter User ID and Password --> User ID & Password in dialog box.
5) Enter PK --> CADRAFTINGDESIGN (*make sure there are no spaces)
6) Click --> OK
Features
Auto-Scale: copying from original drawing with scale automatically to drawing scale and maintain dimension.Multi Plotting & Export: automatic plots for all or selected sheets with one click to PDF, DWG format.Match Draw: holding Shift with drawing allows certain layers, colors, shapes, styles without matching properties or copy function.Info-Table: shapes and drawing information customizable with own templates.MS Excel Sync: MS Excel data can be inserted or embedded into CAD drawing files. Also create Excel formula table within drawing file itself.User Line: frequently used line types can be saved in workbench. Drag pattern lines from list and draw directly.Quick Reference: QREF allow more efficient management of REF drawings. Define REF drawing and save onto workbench.CAD Interface: classic CAD menu and same settings, commands, drawing features to eliminate learning curve.
Additional Information
- Developed by MIDAS Information Technology Co., Ltd.
- Version 2022.03.11
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
DirectX: Version 10
Memory: 8 GB
Processor: Intel i5 3.4Hz CPU or more
Graphics Processor: External Graphics Card: NVIDIA GeForce, AMD Radeon
- Published 2020-07-02
- Size 562.85 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
Access your home or work networks
- Microsoft Store ID 9p4qlntsvcxs
Advertisement
How to download and install midasCAD from the Microsoft
Method 1: Download and Install via the Microsoft Store
This is the most straightforward and secure way to get midasCAD.Step 1: Open the Microsoft Store
Step 2: Search for midasCAD
Step 3: Download and Install
Step 4: Access the App
Method 2: Download from the Official Microsoft Website
If you prefer downloading directly from the web, you can use the official Microsoft website.Step 1: Visit the midasCAD Page
Step 2: Download the App
Step 3: Install midasCAD
Step 4: Use midasCAD
Tips for a Smooth Installation
Conclusion:
Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install midasCAD.midasCAD FAQs
