ShapeBook for PC Windows

ShapeBook for Windows

Productivity For all ages For all ages
1 $49.99
A structural steel shape reference tool with dimensions, design properties, 3-key search, material takeoff with pricing. ShapeBook is a versatile productivity tool for commercial and industrial steel design, engineering, estimating, detailing, fabrication, and erection.

Overview

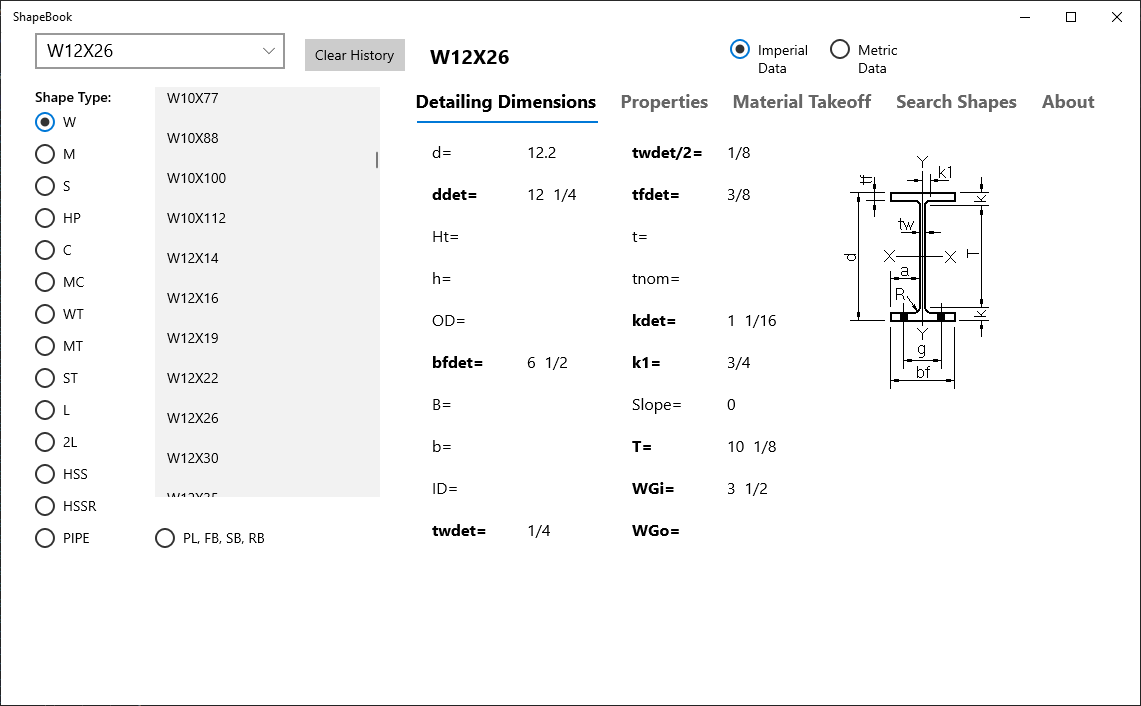

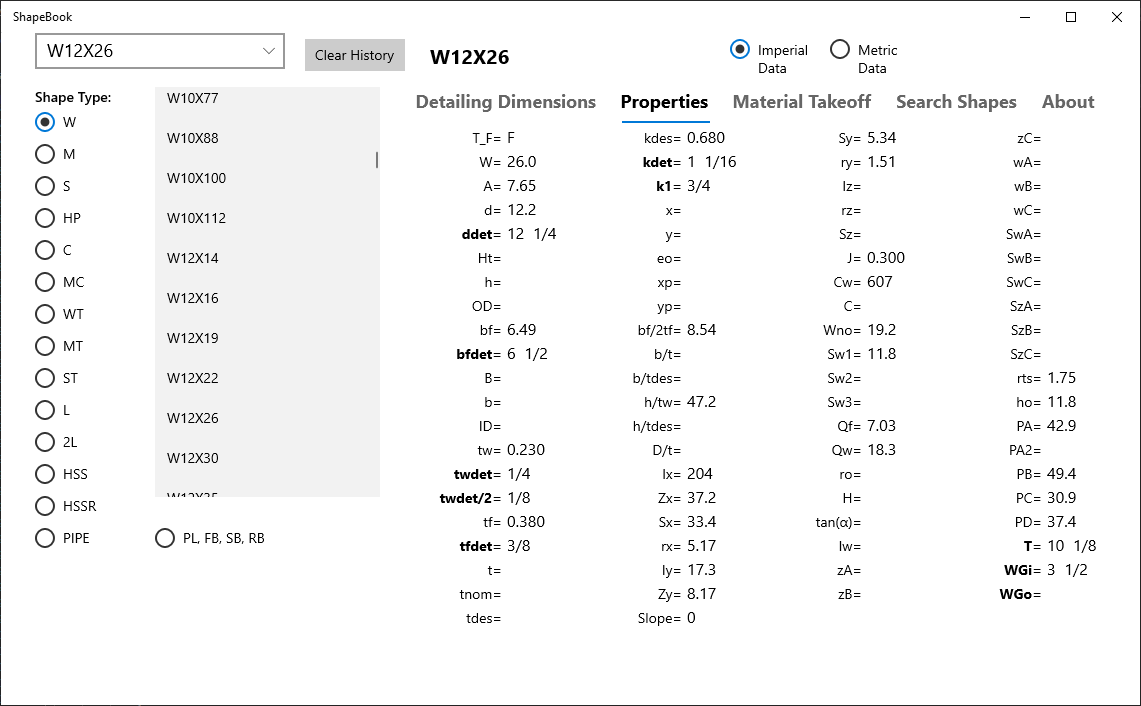

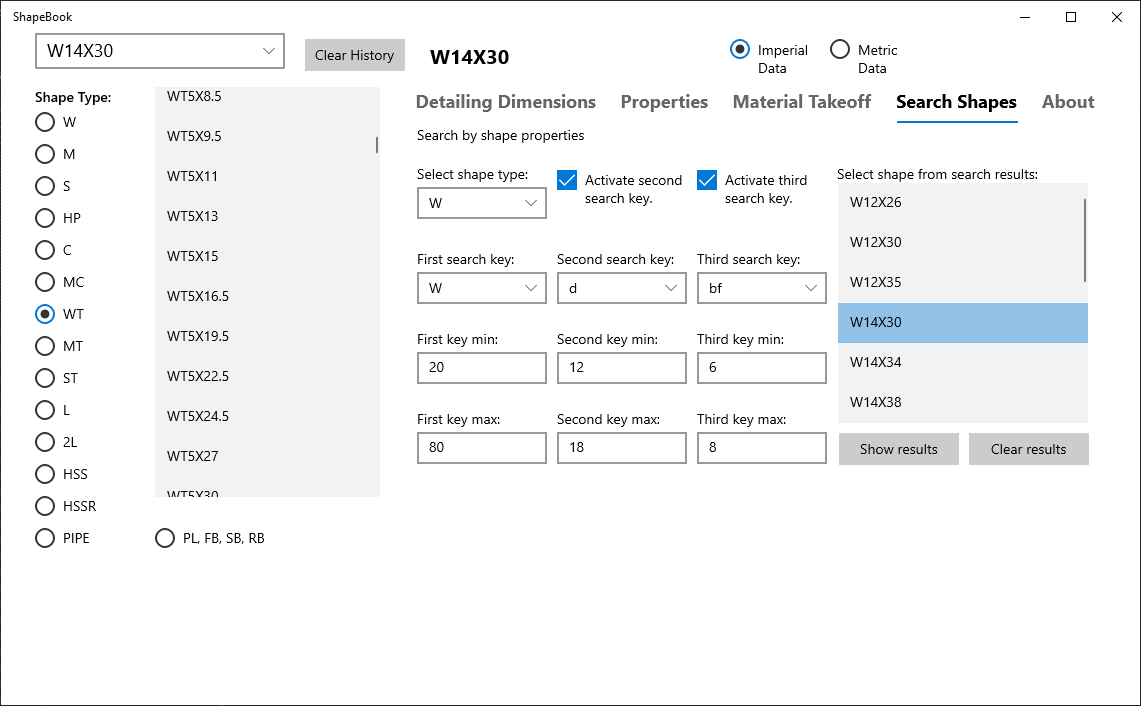

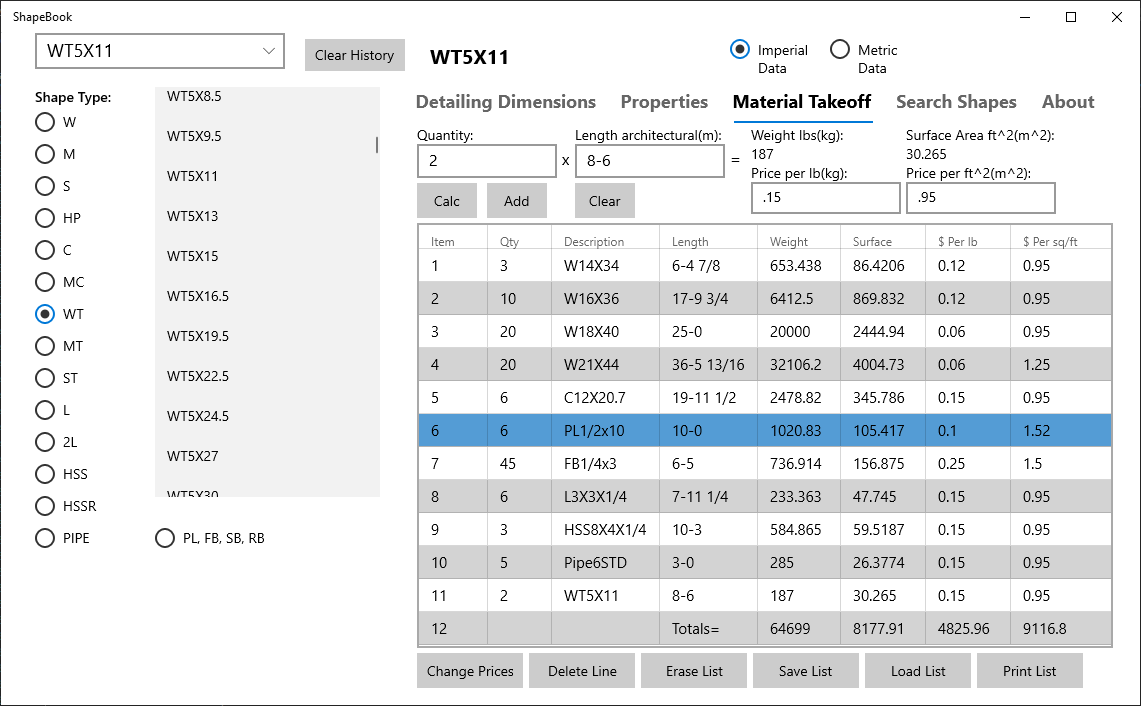

ShapeBook is a reference and estimating tool for professionals and students who work with structural and miscellaneous steel. With ShapeBook you can work with shape dimensions and properties, produce material take-off lists with price extensions for weight and surface area, search for shape sizes with up to 3 property keys providing the minimum and maximum values you need. The dimensions are shown in fractional format matching the AISC Manual of Steel Construction and the properties include handy descriptions available by hovering your mouse cursor over a property name. ShapeBook saves your work automatically and opens with your work ready to continue where you left off. The shape data in this version of ShapeBook is based on the AISC Shapes Database version 15.0 and is available in US imperial and metric units consistent with the American Institute of Steel Construction Manual, 15th Edition. Included is the ability to enter plate, flat bar, round bar, and square bar with weight, surface area, and price extensions. The take-off material lists include a dated title, page numbers, line numbers, and column and row outlines. The material lists can be saved to files and loaded back into ShapeBook or imported into spreadsheet or database software. You can use ShapeBook for estimating based on price per pound and price per square foot. A method commonly used by fabricators, detailers, and coating professionals. This new Windows 10 release of ShapeBook provides a handy touch interface for Windows devices, provides access to version 15.0 of the AISC data, and continues the 20 year legacy of the ShapeBook software.

Features

Based on AISC Steel Construction Manual 15th Edition database (v15.0).Support for plate, flat bar, round bar, and square bar.Takeoff tab for estimating the cost of steel, and coatings.Search for shapes using up to 3 property keys to create a selection list. Detailing dimensions in fractional format just like the steel manual.Material length entry in feet and inches format.Extensive user input error checking to help avoid data entry errors. Includes large pipe sizes and small bar-sized channel, angle, and HSS sizes.

What's new

1. Added the "a" dimension for wide flanges and channels. 2. Added the "r" dimension for wide flanges and angles. 3. Fixed images for dark mode visibility. 4. This build uses Visual Studio 2022 with the newest UI and SQLite upgrades.

Additional Information

  • Developed by Dennis M. Connelly
  • Version 2024.04.17
  • Requires

    Available on: PC, Mobile, Surface Hub, HoloLens

    OS: Windows 10 version 17763.0 or higher

    Keyboard: Integrated Keyboard

    Mouse: Integrated Mouse

    Touch: Integrated Touch

  • Published 2020-09-11
  • Size 28.97 MB
  • File Type appx/msix
  • Language
    English (United States)
  • Permissions

    Access your Internet connection

  • Microsoft Store ID 9p59wcwdf9tw

How to download and install ShapeBook from the Microsoft

To download and install ShapeBook for PC from Microsoft, here are two methods you can follow. A structural steel shape reference tool with dimensions, design properties, 3-key search, material takeoff with pricing. ShapeBook is a versatile productivity tool for commercial and industrial steel design, engineering, estimating, detailing, fabrication, and erection.. You can access the app directly on the Microsoft Store.

Method 1: Download and Install via the Microsoft Store

This is the most straightforward and secure way to get ShapeBook.

Step 1: Open the Microsoft Store

  • Click the Start Menu (Windows logo) at the bottom-left corner of your screen.
  • Search for Microsoft Store in the search bar and open it.
  • Step 2: Search for ShapeBook

  • In the Microsoft Store, type ShapeBook into the search bar at the top and press Enter.
  • Select the app from the search results to open its detail page.
  • Step 3: Download and Install

  • Click the Get button (if the app is free) or Install to begin the download.
  • The app will automatically install after the download is complete.
  • Step 4: Access the App

  • Once installed, you can find ShapeBook in your Start Menu or Apps List.
  • Open the app and follow the on-screen instructions to use.
  • Method 2: Download from the Official Microsoft Website

    If you prefer downloading directly from the web, you can use the official Microsoft website.

    Step 1: Visit the ShapeBook Page

  • Open your browser and go to the ShapeBook page
  • Step 2: Download the App

  • Click the Get in Store app button on the webpage.
  • This will redirect you to the Microsoft Store app on your PC.
  • Step 3: Install ShapeBook

  • Follow the same steps as in Method 1 to download and install ShapeBook.
  • Step 4: Use ShapeBook

  • Launch ShapeBook from your Start Menu or Apps List.
  • Tips for a Smooth Installation

  • Ensure your PC is connected to the internet.
  • Keep your Windows operating system updated for the best performance.
  • Conclusion:

    Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install ShapeBook.
