Overview
LogicWorks is an interactive circuit design tool intended for teaching and learning digital logic. No other software tool makes digital design easier, faster or more interactive than LogicWorks. The package gives you the power, speed and flexibility to create and test an unlimited number of circuit elements on-screen. This means that you can study advanced concepts much more quickly and clearly using on-screen simulation than you can by spending time wiring up expensive and damage-prone parts in a lab.

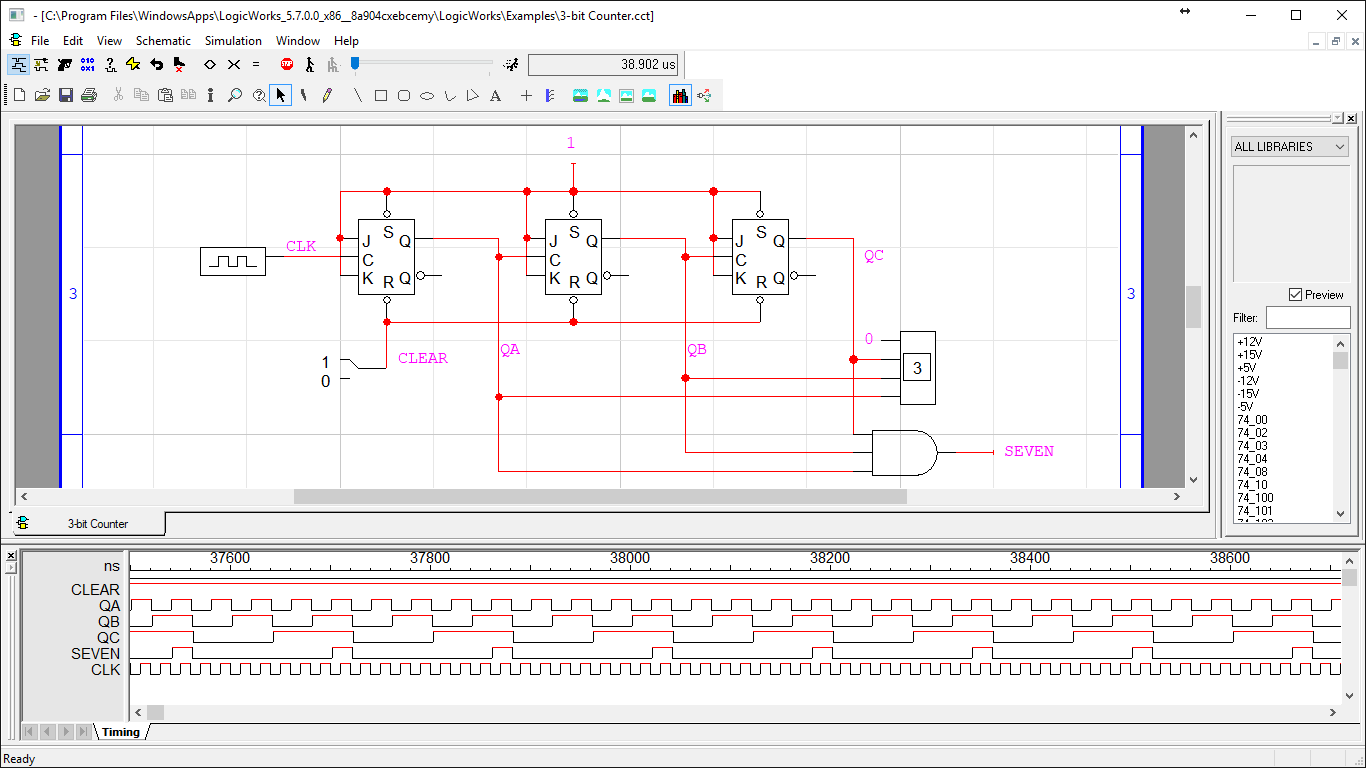

LogicWorks is so easy to use that students will be creating and testing circuits in a matter of minutes, instead of spending precious lab time just getting started. LogicWorks includes a full schematic editor with bussing, multi-level Undo/Redo, interactive connection tracing, and many other powerful features. This is coupled with the unique, interactive digital simulator. Changes made to signal connections or device parameters on the screen are immediately reflected in the timing waveforms and probes placed right on the diagram.
Features
Display any number of signals simulataneously in the timing diagramGroup any collection of signals into a single timing trace with value displayed in hex.Thorough library of built-in primitive simulation elements for all common digital elements.All primitive logic elements are scalable, allowing, for example, 56-input gates or 17-bit counters to be constructed as a single element. Set arbitrary delay values on any device or pin.Built-in support for RAMs, ROMs and PLAs.ents.Sophisticated multi-state simulation supports high and low drive levels, \“don\’t know\” values, three-state and wired-AND logic
What's new
Latest releases supports the new UWP format for desktop applications.
Additional Information
- Developed by DesignWorks Solutions Inc.
- Version 2022.03.12
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Not specified
Mouse: Not specified
Memory: 4 GB
- Published 2017-02-17
- Size 14.71 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9pj11h2j1vg5
