Overview
Miter Bend Calculator is used for calculating fabrication layout marking development of miter bend, fabricated bend, segmented bend and cut bend.
This app is build to Generate Flat Pattern Layout Marking of Miter Bend, Segment Bend, Cut Bend Fabricated Bend used in fabrication, Piping, Ducting and Insulation Field. This app is very useful for all working professionals in the Field of Fabrication of Piping, Ducting and Aluminium Insulation.
In this app all Dimensions are used in MM and Inches to Calculate Marking so please enter your Input Dimensions in MM and Inches to get a correct solution or correct layout of Miter Bend.
This app is designed in three options for 12 Nos, 24 Nos and 36 Nos, 48 Nos, 72 Nos and 96 Nos of equal Divisions of Plate or Pipe.
In this App Miter Angle is Calculated and also Displayed on Result Screen.
Required Cutting Plate Size is also calculated in this app so that you can plan for raw materials accordingly.

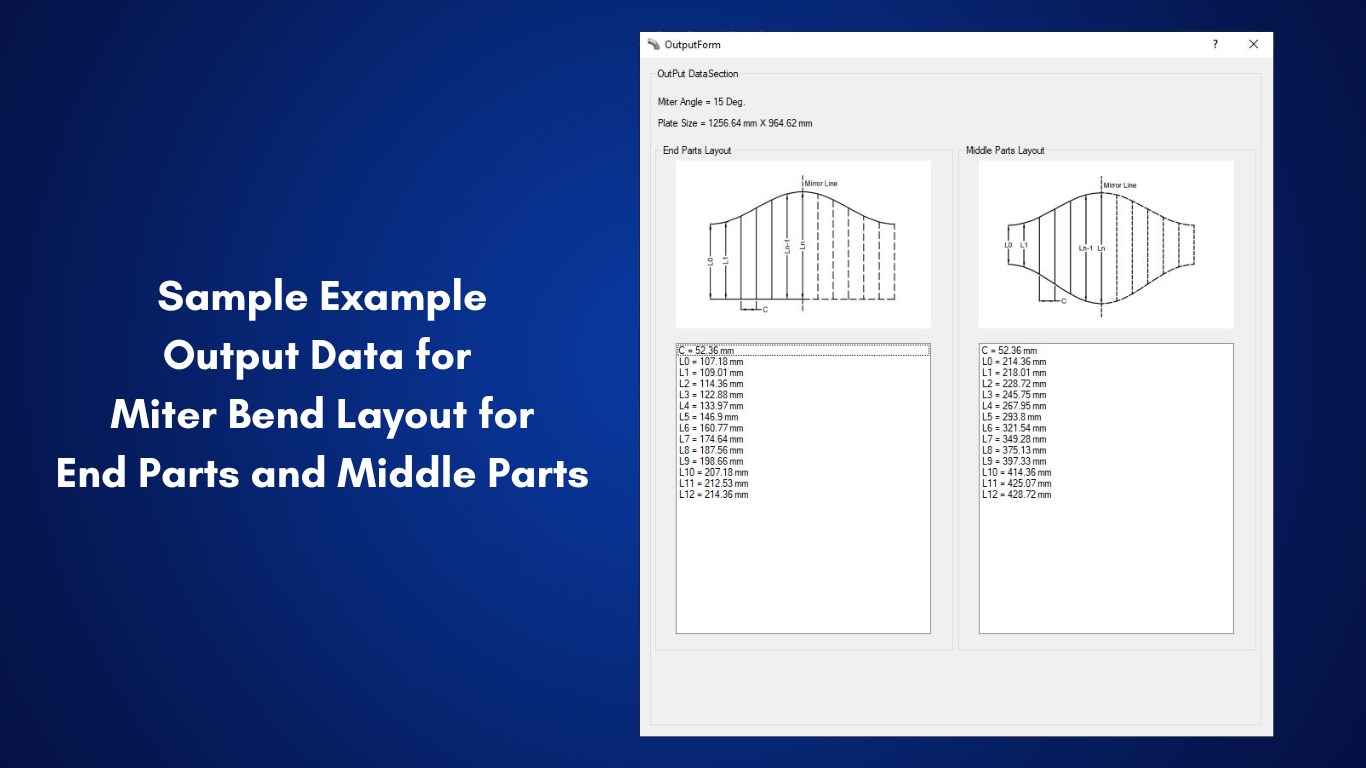

We had Make arrangement for Displaying Layout of Both End parts that is First and Last Part and Middle Part is shown for Better Under Standing and better marking.
This app is very useful for those who are working in fabrication of Pipelines, HVAC Ducting and Aluminium Insulation Industry.

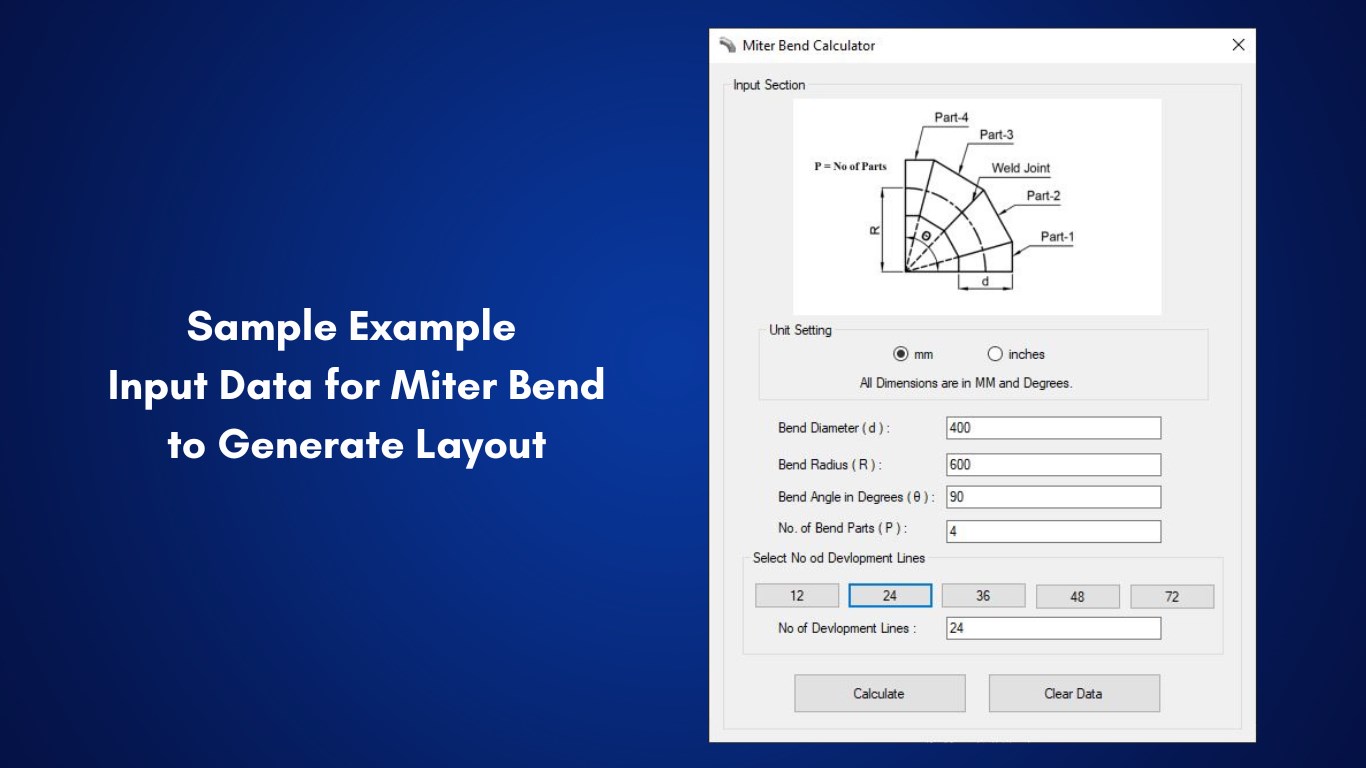

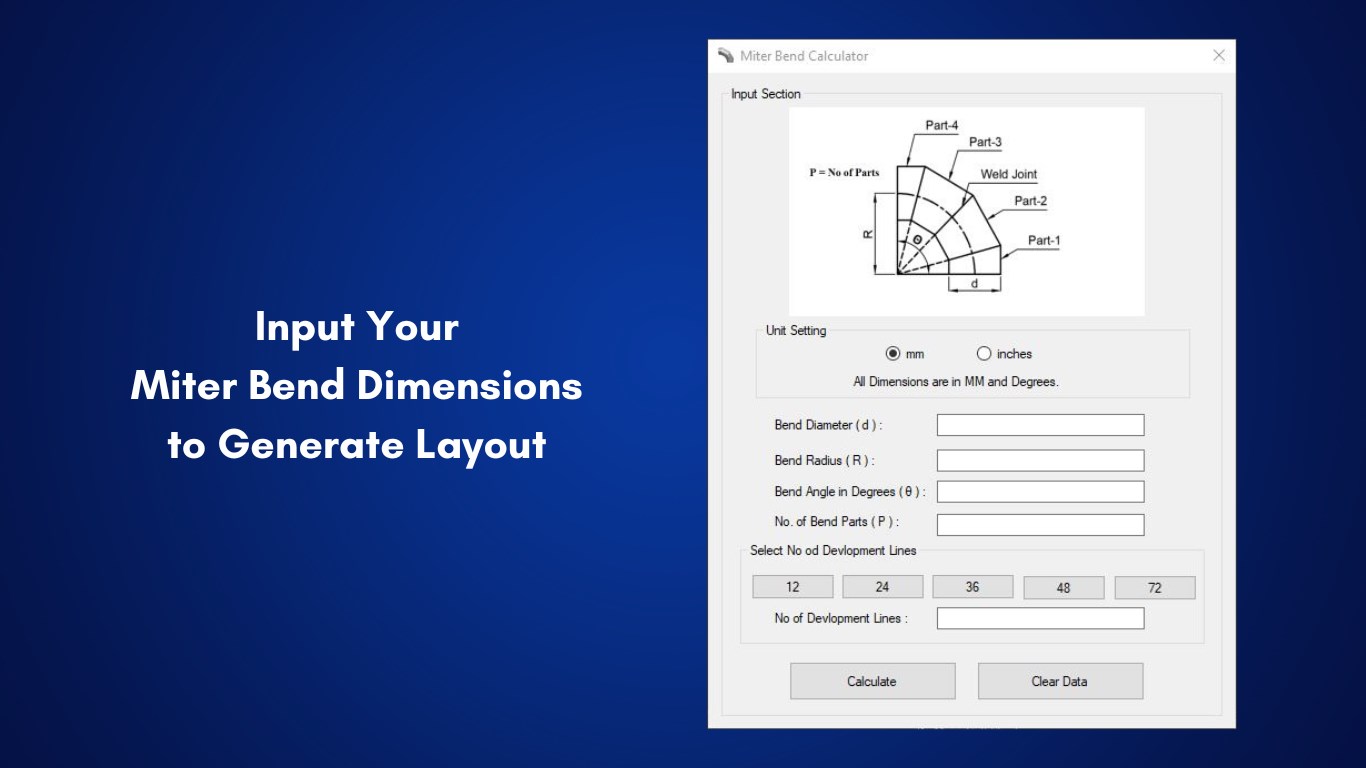

In this App you can generate layout as per your requirement by giving input as Diameter, Bend Radius, Bend Parts, and Angle of Turn. if you want layout marking on Flat Plat then put Input diameter as mean diameter or if you want to layout marking directly Pipe then put input Diameter as Outer Diameter for more Accuracy.
You Can Select Lay-outing Options of 12 Lines, 24 Lines, 36 Lines, 48 Nos, 72 Nos and 96 Nos as per your Required Accuracy.
please note that Cutting allowance are not included in this app so please add your cutting allowance as per your Requirement.
it is best Suitable for Cut Bends, Segment Bends, fabricated Bend, Miter Bend, layout marking, layout Development, raw plate Size for miter bend, fabrication , process equipment etc.
Features
Faster Miter Bend Layout CalculationBoth Ends Parts and Middle Parts Layout GeneratedMiter Angle and Plate Size Auto CalculatedTime Saving for your Miter Bend FabricationHigher Accuracy of Generated LayoutsUser Can select and Customized No of Developments Lines as per their requirementsUnit Seting Option for mm and inches
Additional Information
- Developed by Imran Pinjara
- Version 2025.02.24
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 14393.0 or higher
Keyboard: Not specified
Mouse: Not specified
- Published 2025-02-07
- Size 1.08 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9pp1q93f6rz4
