OBD dash.Pro for PC Windows

OBD dash.Pro for Windows

Utilities & tools For all ages For all ages
3.4 $2.99

Overview

OBDdash.Pro is an OBD II app designed to help diagnose car driveability issues. Supporting both SAE generic and manufacturer specific sensors, the app allows you to monitor vehicle engine performance in real time with gauges and charts, retrieve and clear DTC, read freeze frame data, inspect emissions readiness monitors status, query OBD Mode 06 test results (O2, misfire, EVAP etc), and log sensor data to spreadsheets. Please note that during the 7 day free trial, all features of this app are available. When the trial expires in 7 days without updating to the full license, the app will automatic close upon launch. To use this app, vehicle needs to support OBDII standard, and you also need a ELM 327 Bluetooth or Wi-Fi dongle (not included in package) Due to the variations in implementations of the OBDII standard by vehicle manufacturers, and the large number of ELM 327 compatible dongles available on internet, Please use the 7 day free trial period to find out if the app works on your vehicle. Some vehicles might require to use a correct custom initialization string for connection, please see our product website for more details Please note that the manufacturer specific extended PID database on our website are considered "UNTESTED", proceed with caution.

Features

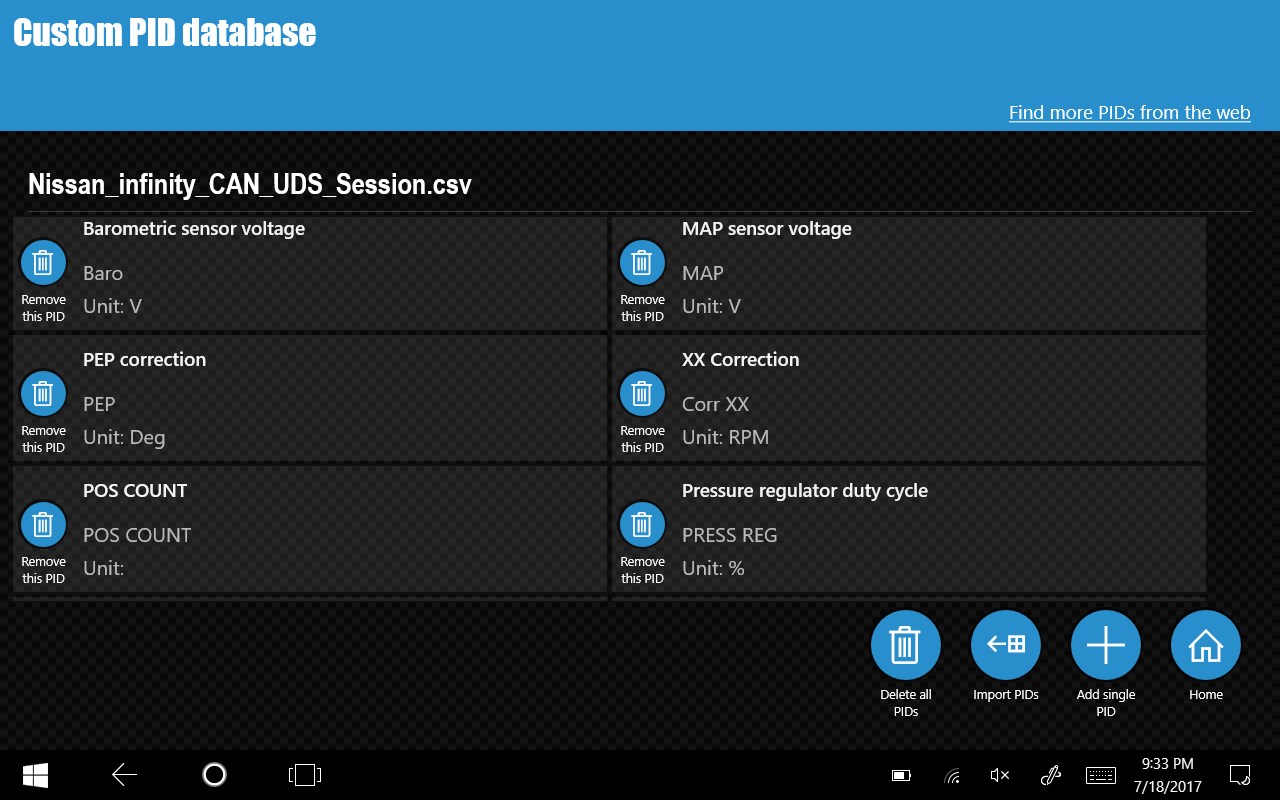

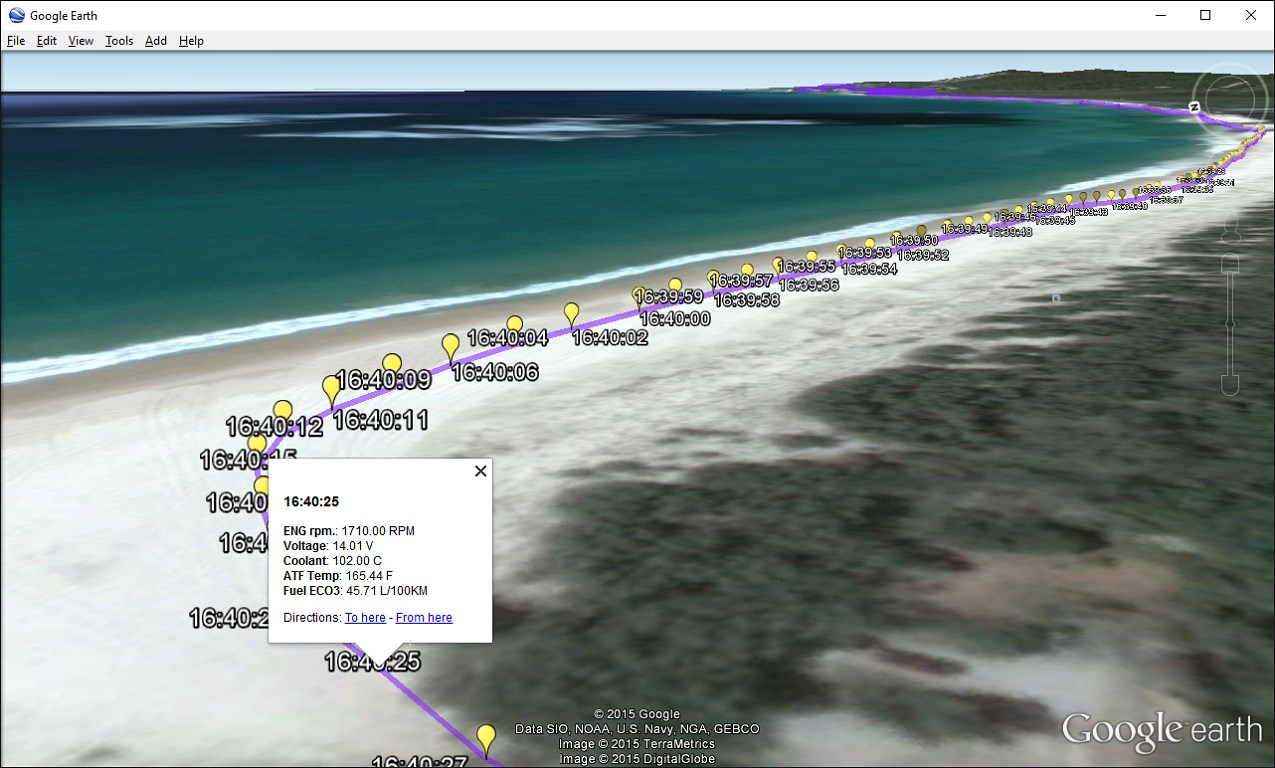

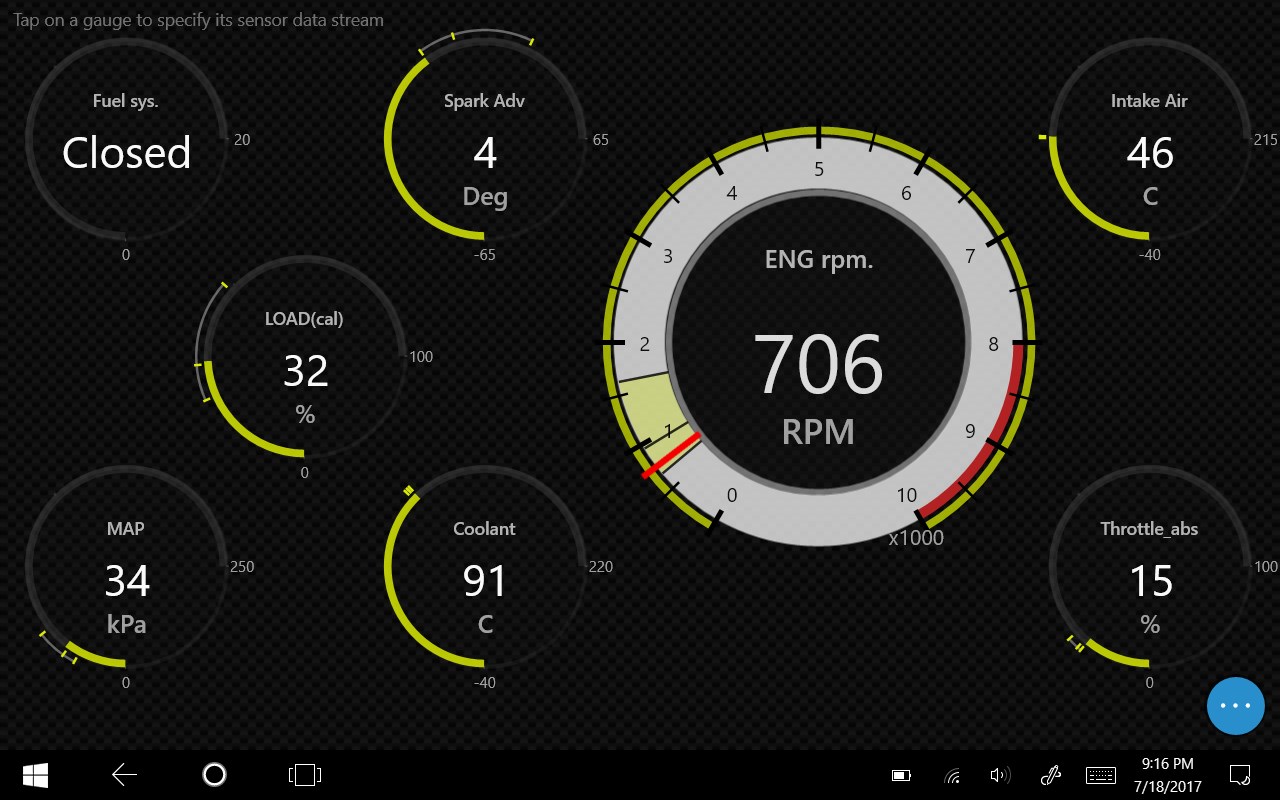

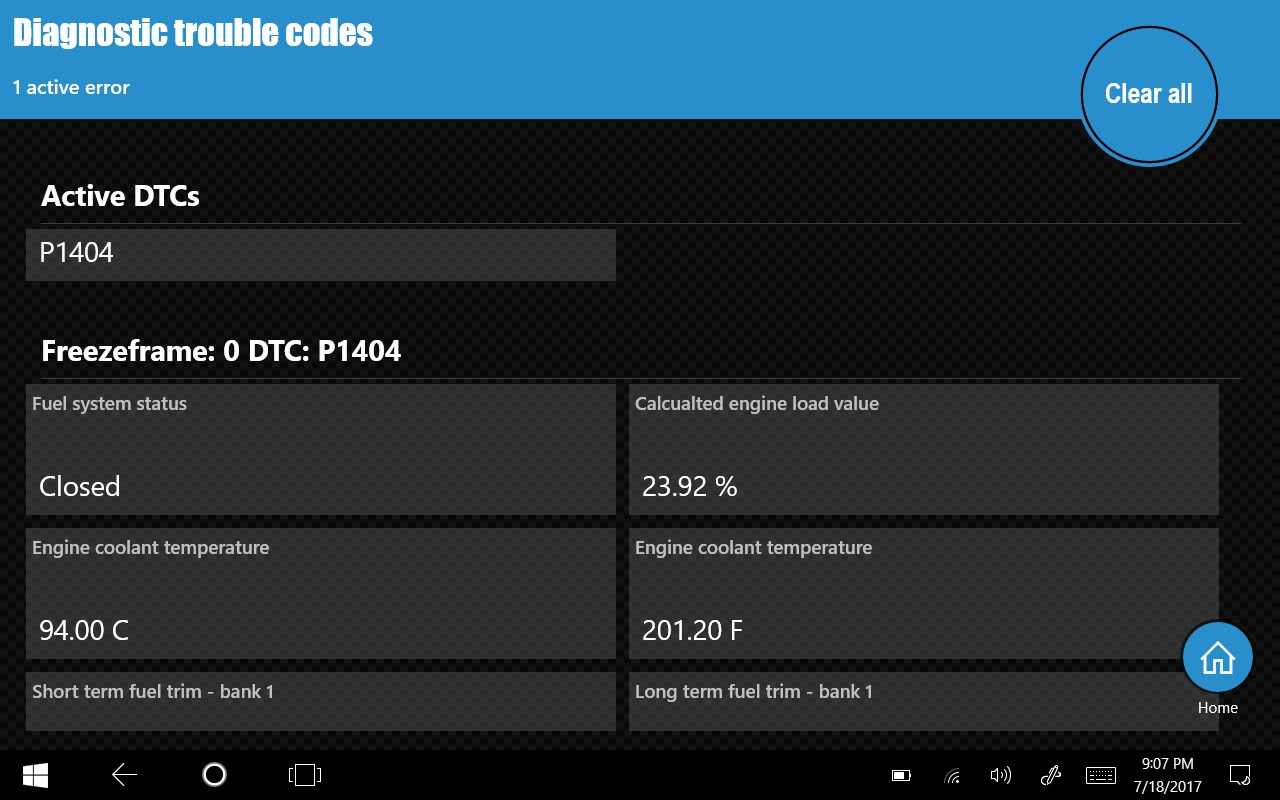

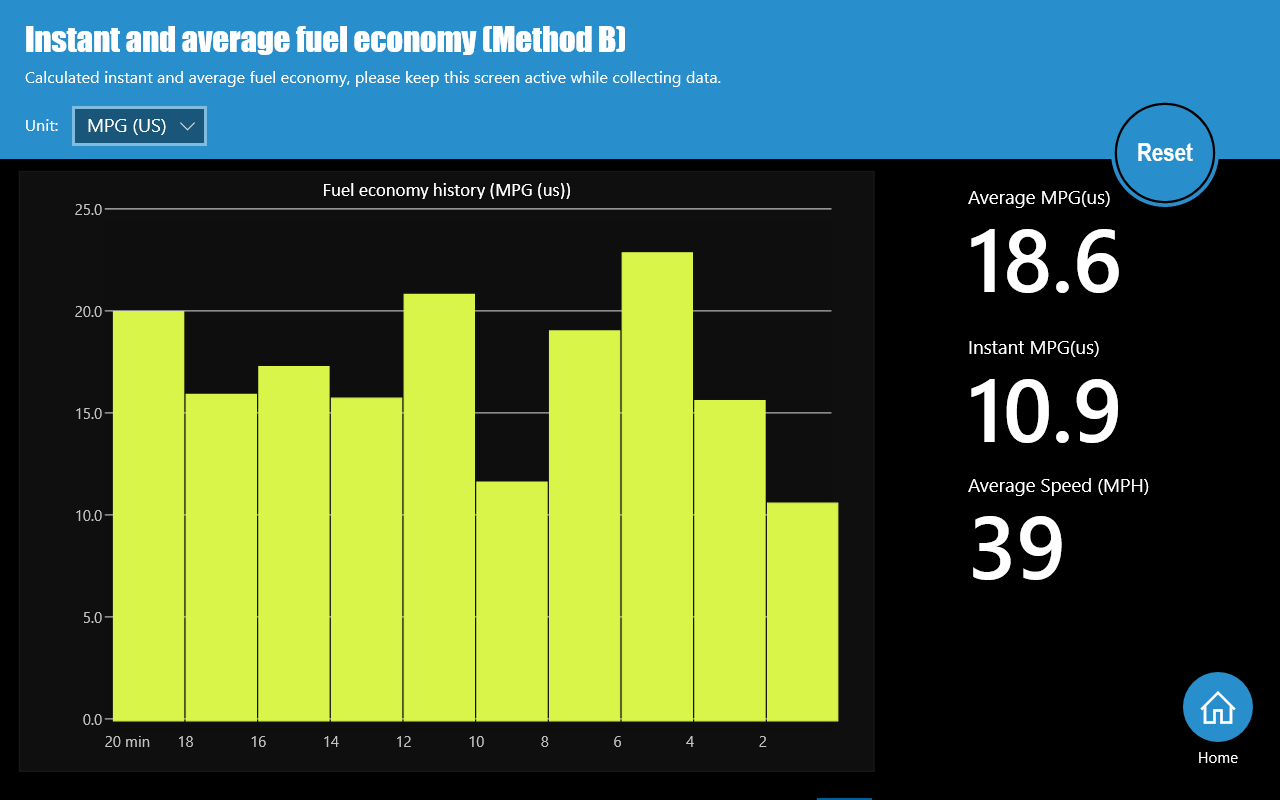

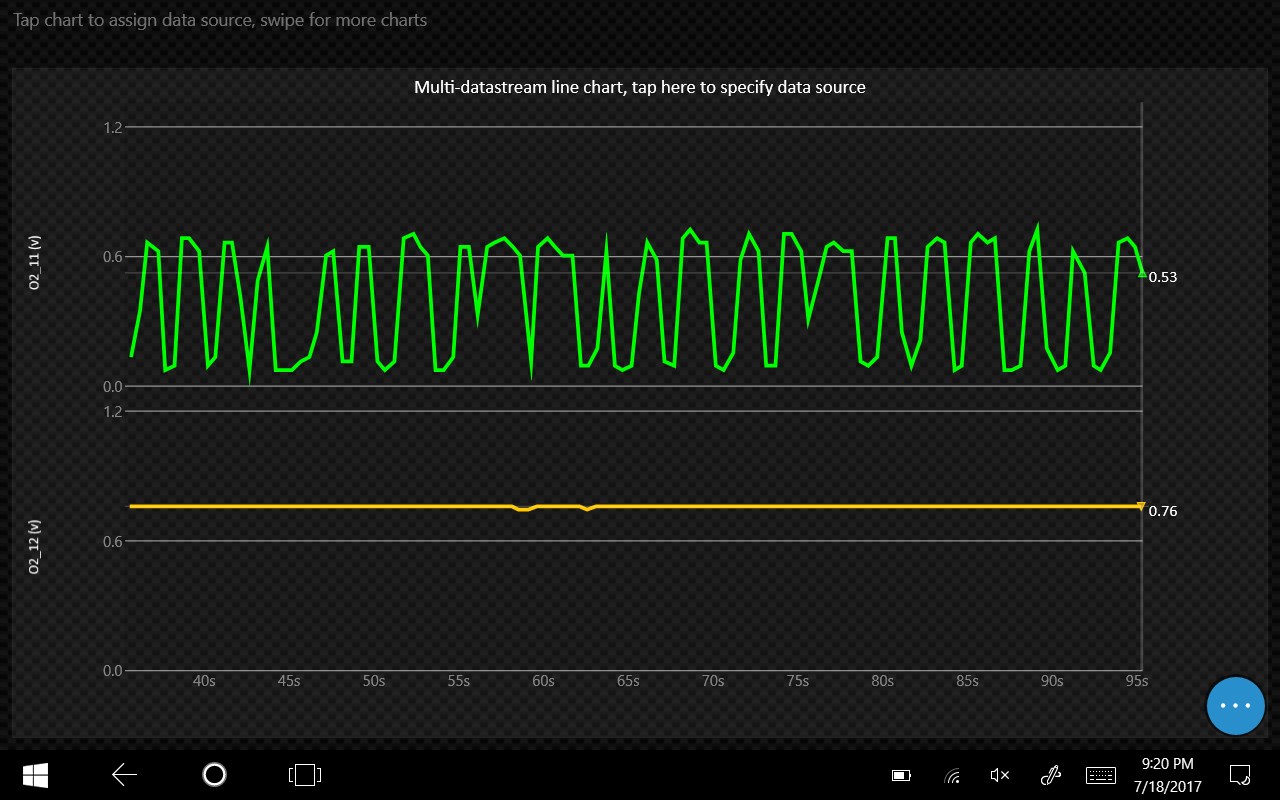

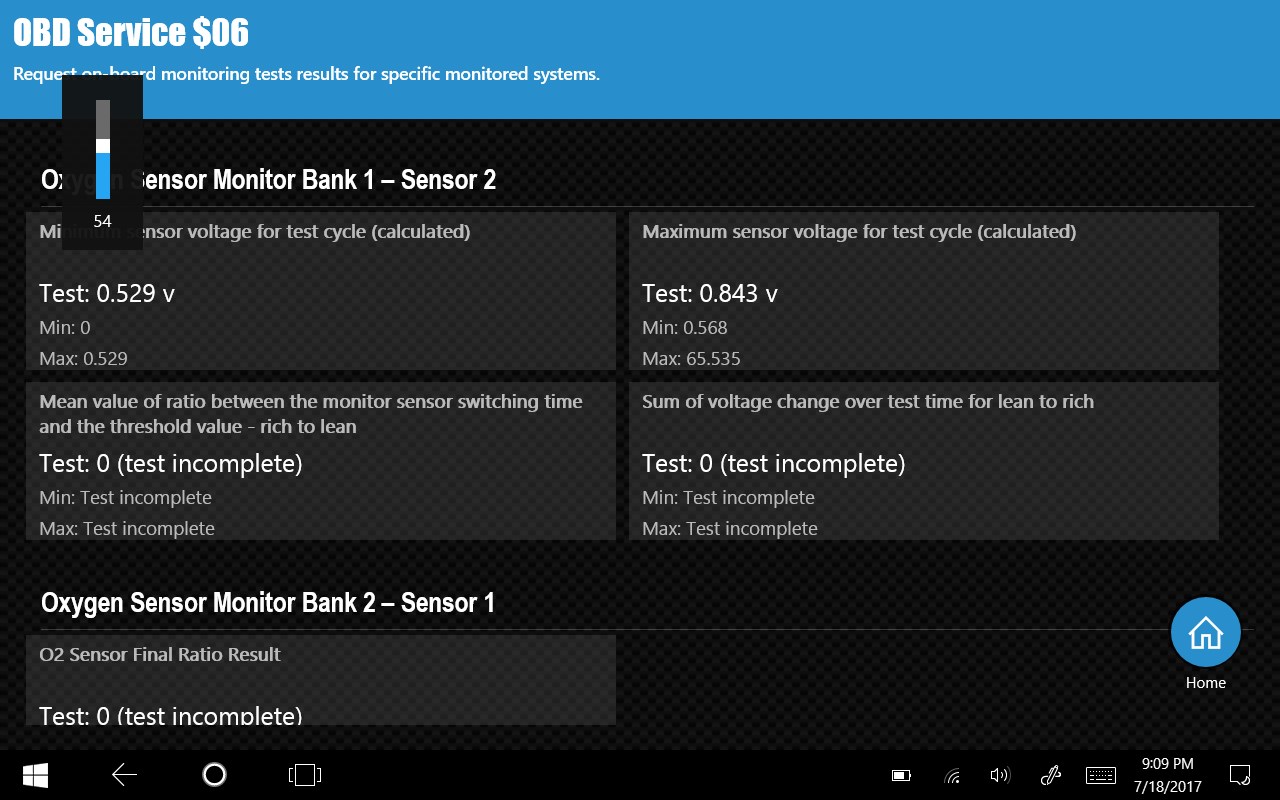

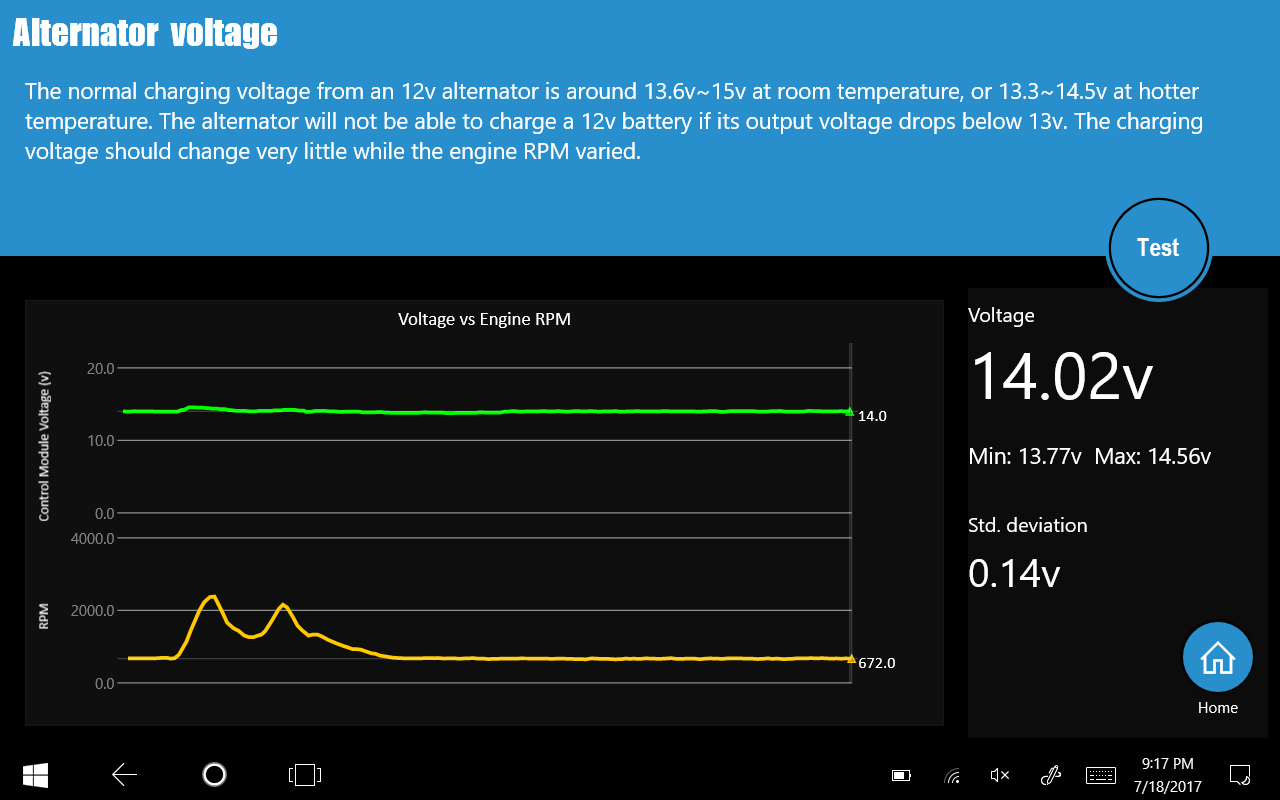

Using gauges and charts to monitor vehicle engine performance in real time via OBDII (supports both SAE J1979 and manufacturer specific sensors)Check and clear engine diagnostic trouble codes (DTC). Retrieve freeze frame data if available. Advance OBD Mode 06 diagnostics (generic and manufacturer specifics tests results for engine misfire, O2 sensors, EGR, catalytic converter, EVAP system)Check status of the onboard emissions readiness monitors for emission inspection.Expand functionality of the app by using user defined data streamsCalculate real time fuel economy (in MPG and L/100K)Calculate real time engine power / torque outputCalculate vacuum / boost for vehicles that equip with MAP or MAF sensorsCalculate vehicle accerlationLog data to excel spreadsheet (csv)KML data export for google earth integrationMirror gauge display for using as HUDEVAP leak test requestDiesel particulate filter regenerationBattery charge level testAlternator output voltage profilingEngine vacuum diagnosticsMass air flow sensor testsCalculate instant CO2 tail pipe emission

What's new

v.3.4.9 - Add capability of saving error code + freeze frame data to a text file v.3.4.8 - Repackage app for new publisher name - Renew dev signing certificate v.3.4.5 - Additional app data validation during startup v.3.4.4 - Cleanup some memory leaks v.3.4.3 - Add connection setting option to disable VIN query for vehicle that does not support OBD VIN - Add engine start up mass air flow reading test to the "OBD tests" - Some other minor UI updates v.3.3.5 - Add summary of recorded data in Fuel consumption test - Add engine cranking vacuum test for diagnose engine start up issues - Minor text color update and alignment fixes in various screens v.3.3.2 - Resolve a PID ID conflicts (coolant temperature F) v.3.3.1 - Update KML export to use extended data table - Add option to allow auto resolve conflicting messages from multiple ECUs - Add new OBD test for comprehensive fuel consumption analysis v.3.2.2 - UI update for PID selection, added description on what the sensors is and how/when data is collected - UI update for freeze frame data - UI/UX update for emission readiness monitor status tests, added description on what the monitor does.

Additional Information

  • Developed by FredsToolbox
  • Version 2024.04.12
  • Requires

    Available on: Xbox console, PC, Mobile, Surface Hub, HoloLens

    OS: Windows 10 version 14393.0 or higher

    Memory: 2 GB

    Touch: Integrated Touch

    Keyboard: Integrated Keyboard

    Mouse: Integrated Mouse

    Video Memory: 1 GB

    Processor: ARM/X86/X64

    Notes: ELM 327 (v.1.3 or above) Bluetooth/Wi-Fi adapter;Vehicle supports OBDII standard (ISO15031-5/SAE J1979)

  • Published 2015-01-31
  • Size 5.2 MB
  • File Type appx/msix
  • Language
    English (United States)
  • Permissions

    Use your location

    Access your Internet connection

    Access your home or work networks

    Communicate with already paired Bluetooth devices

    Bluetooth device

  • Microsoft Store ID 9wzdncrcvhs6

How to download and install OBD dash.Pro from the Microsoft

To download and install OBD dash.Pro for PC from Microsoft, here are two methods you can follow. You can access the app directly on the Microsoft Store.

Method 1: Download and Install via the Microsoft Store

This is the most straightforward and secure way to get OBD dash.Pro.

Step 1: Open the Microsoft Store

  • Click the Start Menu (Windows logo) at the bottom-left corner of your screen.
  • Search for Microsoft Store in the search bar and open it.
  • Step 2: Search for OBD dash.Pro

  • In the Microsoft Store, type OBD dash.Pro into the search bar at the top and press Enter.
  • Select the app from the search results to open its detail page.
  • Step 3: Download and Install

  • Click the Get button (if the app is free) or Install to begin the download.
  • The app will automatically install after the download is complete.
  • Step 4: Access the App

  • Once installed, you can find OBD dash.Pro in your Start Menu or Apps List.
  • Open the app and follow the on-screen instructions to use.
  • Method 2: Download from the Official Microsoft Website

    If you prefer downloading directly from the web, you can use the official Microsoft website.

    Step 1: Visit the OBD dash.Pro Page

  • Open your browser and go to the OBD dash.Pro page
  • Step 2: Download the App

  • Click the Get in Store app button on the webpage.
  • This will redirect you to the Microsoft Store app on your PC.
  • Step 3: Install OBD dash.Pro

  • Follow the same steps as in Method 1 to download and install OBD dash.Pro.
  • Step 4: Use OBD dash.Pro

  • Launch OBD dash.Pro from your Start Menu or Apps List.
  • Tips for a Smooth Installation

  • Ensure your PC is connected to the internet.
  • Keep your Windows operating system updated for the best performance.
  • Conclusion:

    Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install OBD dash.Pro.
