Overview
Design basket illusion patterns and display them in 3D on various turned wood forms such as vases, bowls and platters.
Features

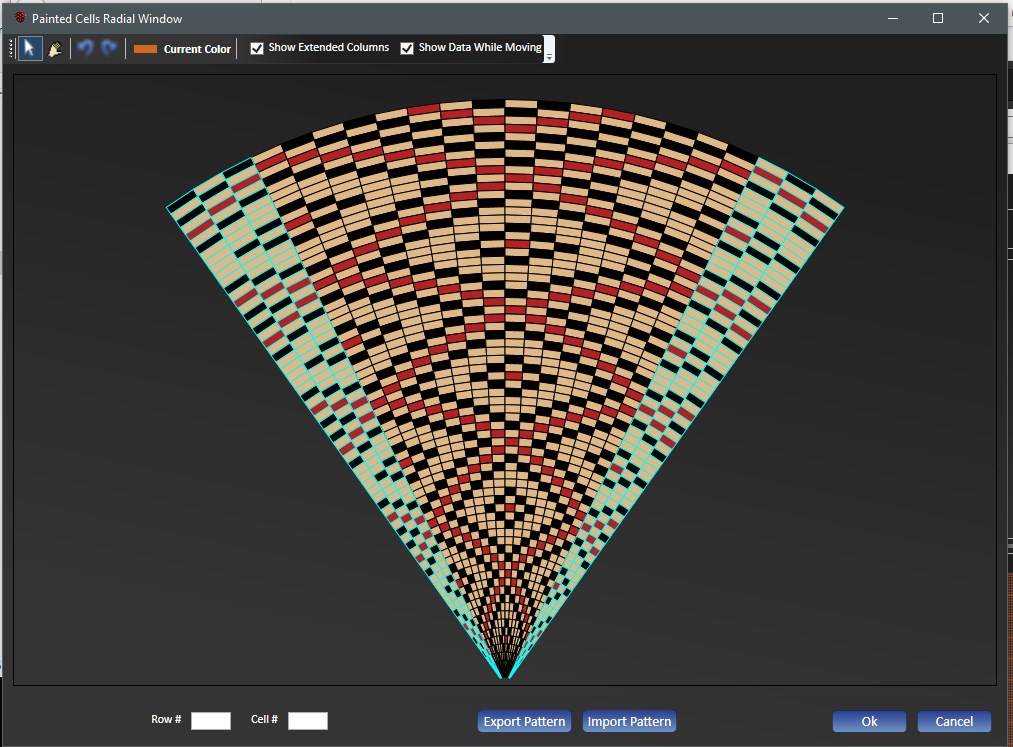

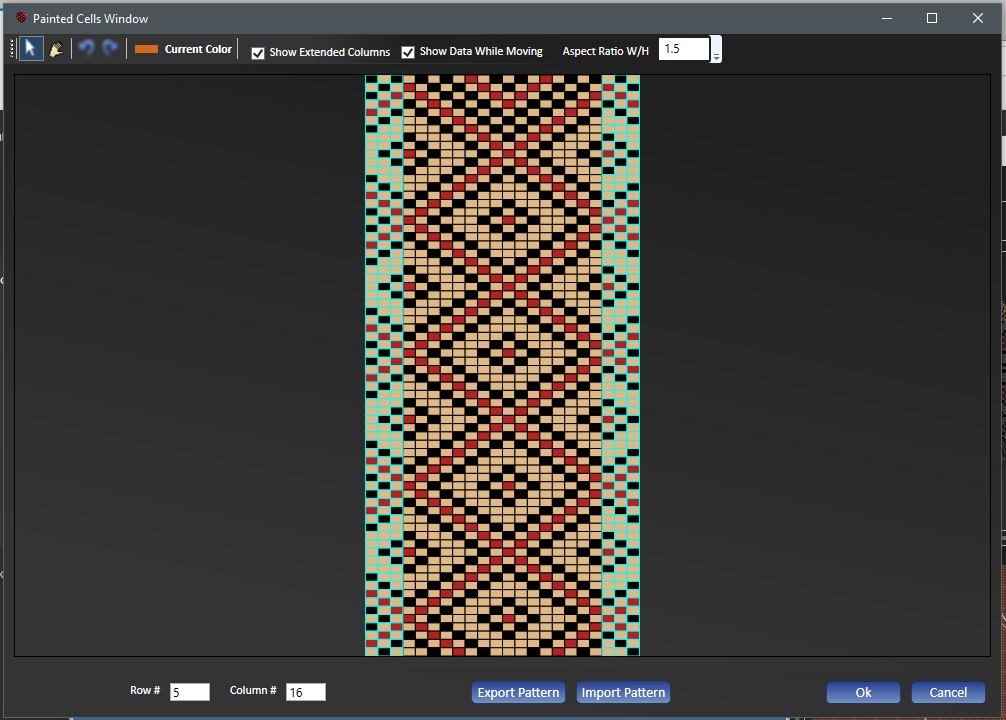

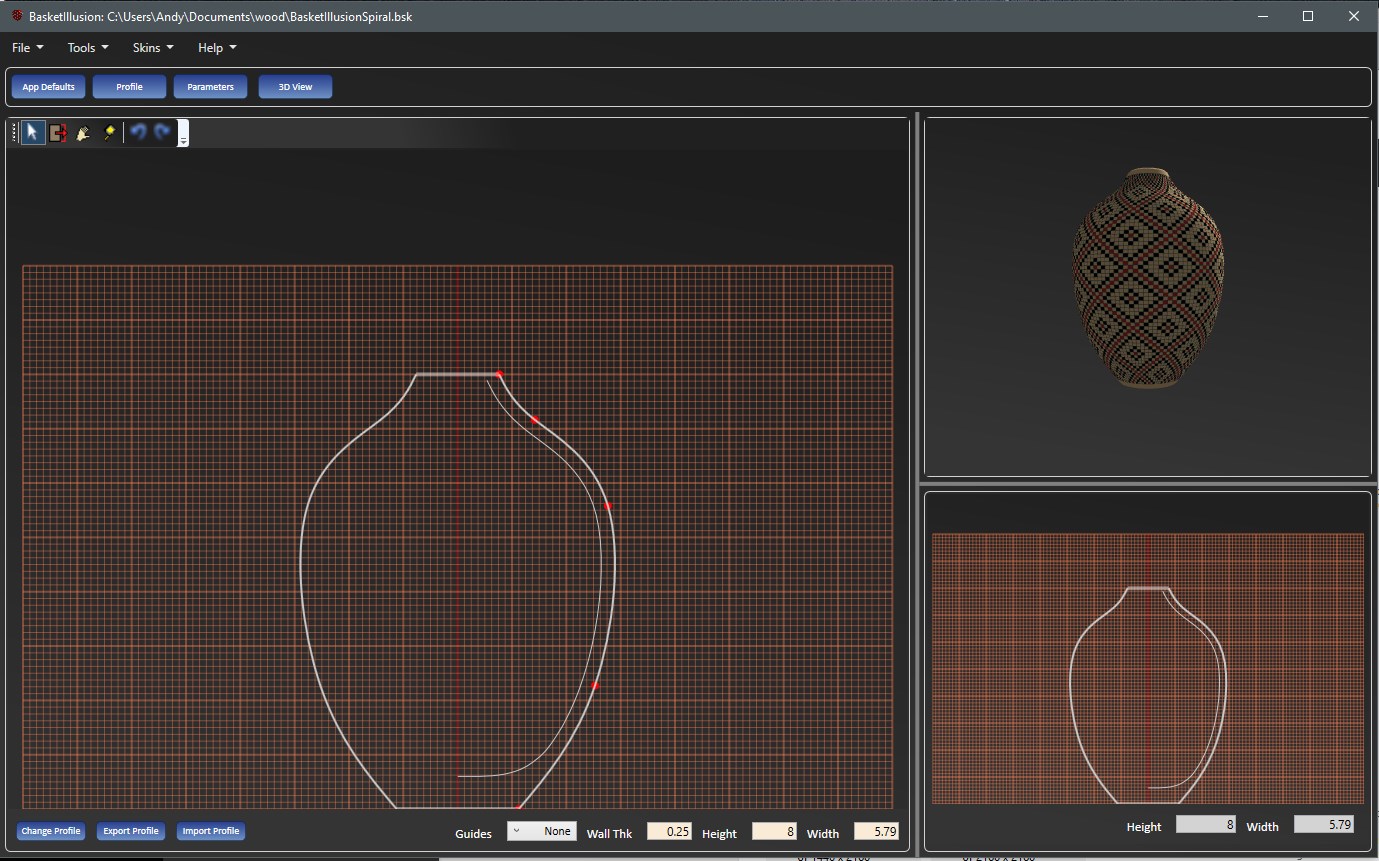

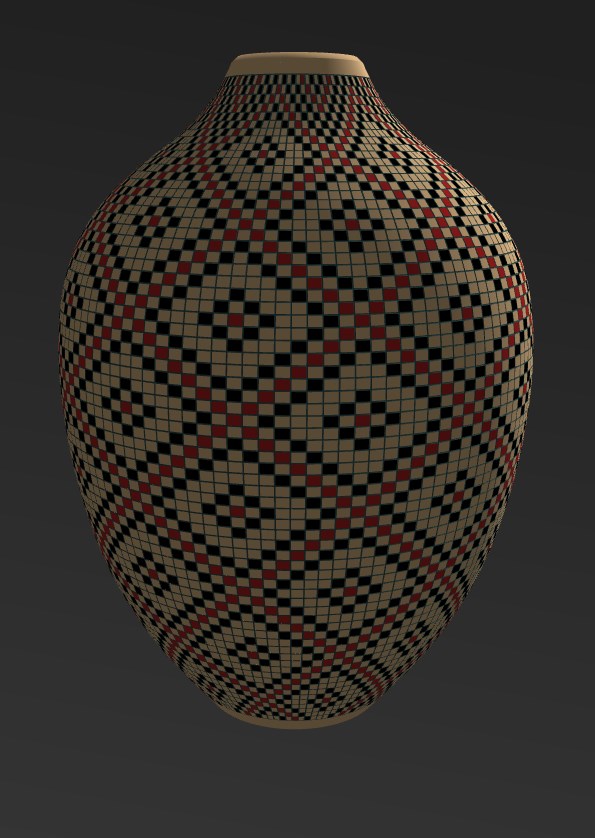

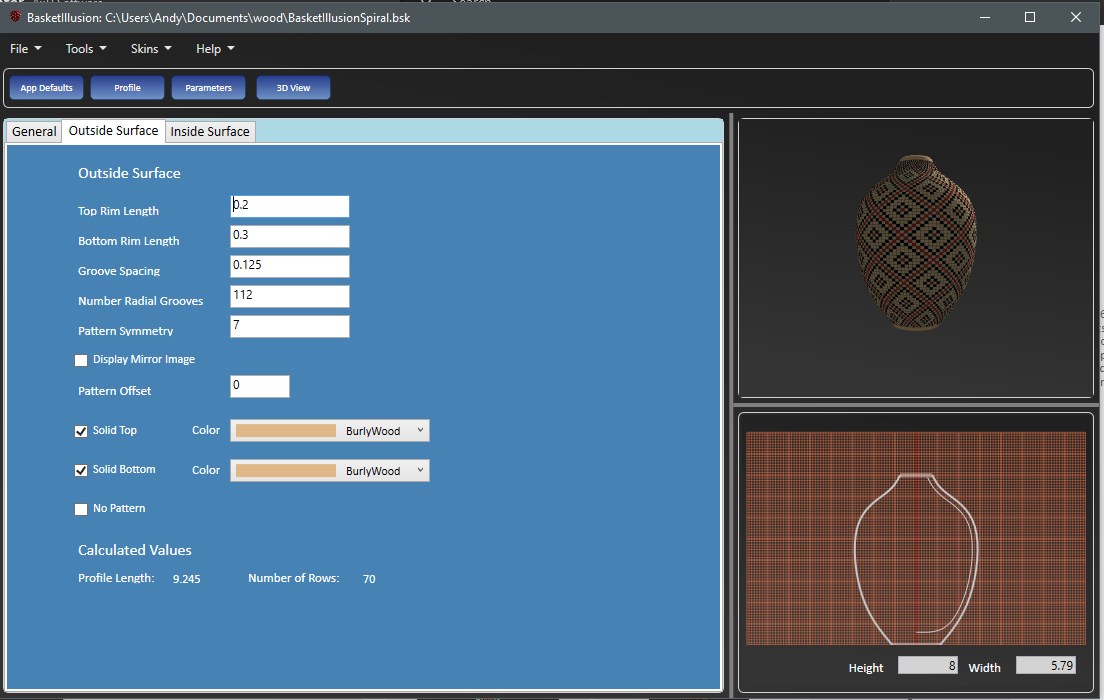

See the overall design as a 3D interactive image as changes are madeSeparate patterns for inside and outside surfacesPattern editors display the cells in either a grid or radial displayParameters to define default groove spacing and number of radial groovesDefine how many times a pattern is repeated around the vesselVessel profile can be easily defined and range from vases to plattersA report is available for print-out that contains the details necessary for construction the vesselThe state of the program can be saved to a filePatterns can be exported to a file or imported from a fileProfiles can be exported to a file or imported from a filesProfiles can be imported from the SegTurn program
What's new
Significant changes were made to expand the design possibilities available by not being restricted to continuous radial lines in platters or vertical lines in vessels and by changing the spacing of the turned grooves.
Consecutive cells in a row can be merged to appear as a single cell.
The number of cells in a particular row can be changed.
The groove spacing for a particular row can be changed.
The number of radial or vertical lines was increased to 720.
A new output report is available listing the spacing, number of cells and merged cells for each row.
Additional Information
- Developed by AW Deley
- Version 2024.01.13
-
Requires
Available on: PC
OS: Windows 10 version 17763.0 or higher
Keyboard: Not specified
Mouse: Not specified
DirectX: Not specified
Memory: Not specified
- Published 2021-01-07
- Size 123.82 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
- Microsoft Store ID 9n35wg5hd30k
