Overview
JT2Go Desktop is now available for install as a Windows 10 app. It provides users with a comprehensive no cost solution for viewing and interrogating JT data. JT2Go Desktop shares the innovative ribbon interface found in Siemens PLM’s Teamcenter Visualization product. The Desktop application comes with a rich set of features including cross section and measure as well as the ability to view PDF documents. JT files attached to PDF files will automatically load in JT2Go when the PDF file is opened. Use JT2Go Desktop with your Windows 10, Intel based 64 bit hardware.
JT is the world’s most widely used 3D format and is an ISO standard for collaboration and visualization. It is referred to as industries common language for Product Lifecycle Management.
Features

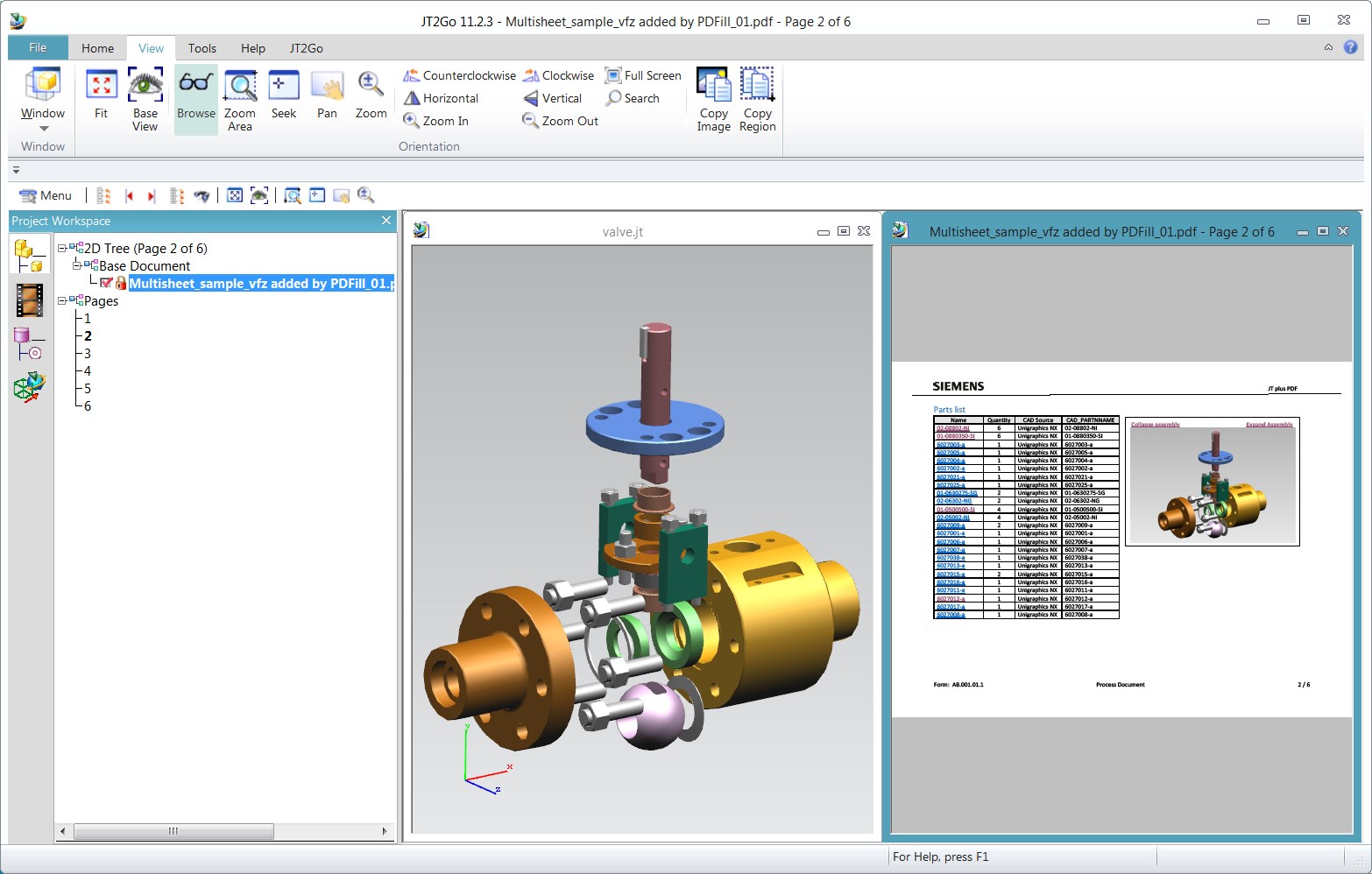

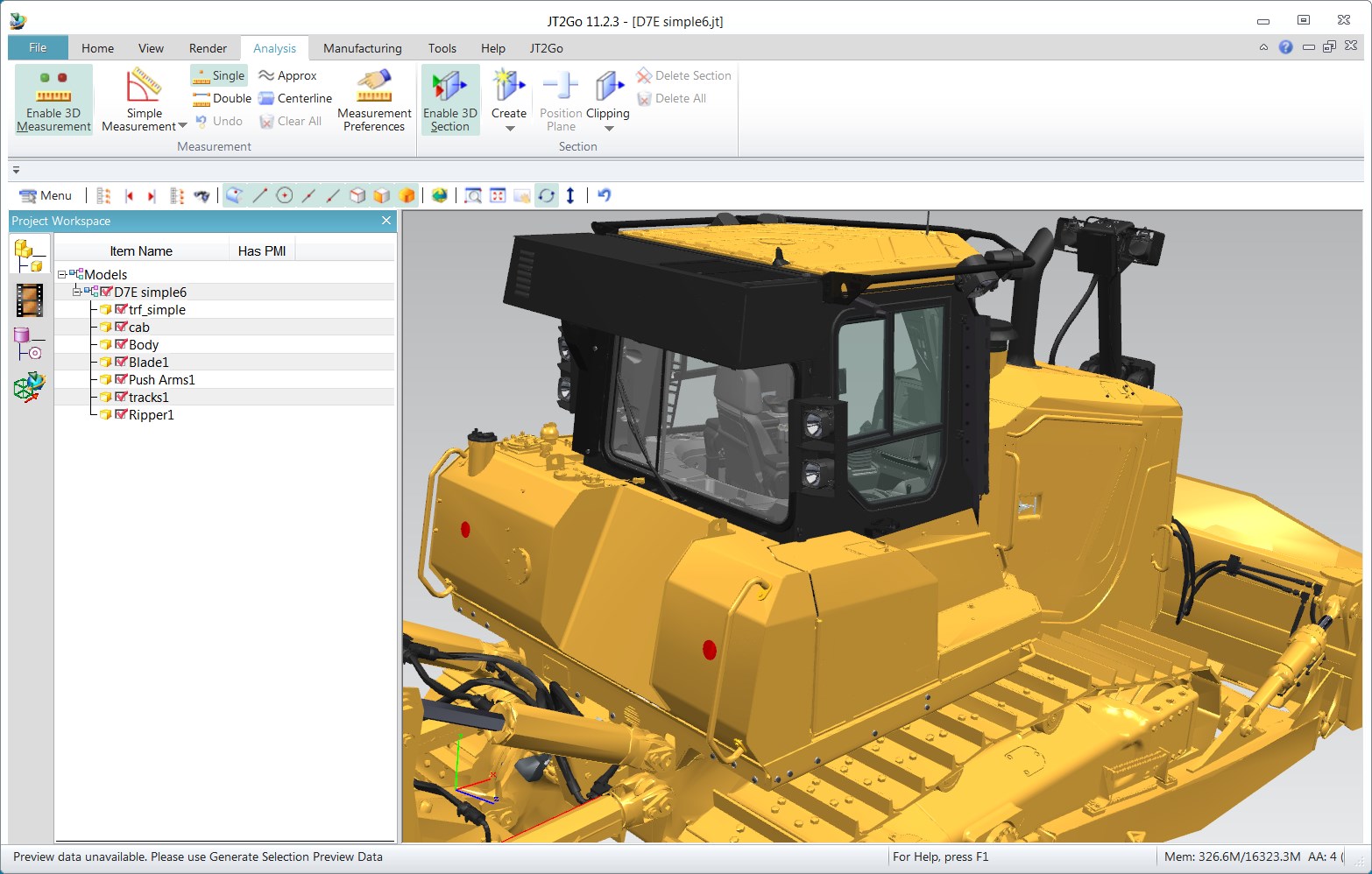

JT2Go is a no cost personal viewing tool to allow users to view JT, PDF, PLM XML with available JT, VFZ, CGM, and TIF dataAble to load PDF in the native 2D viewer. For PDF with attached JT, loads PDF in the 2D viewer and the attached JT data in the 3D viewerAttach JT files to existing PDF filesStandard features include Zoom, Pan, Rotate, Seek, Zoom Area, Fit All, Product Structure Trees, Attributes and Standard ViewsBasic Measurement using facets in JT files without B-repPrecise measurement in JT files that have B-repGeometry selection filters for measurement functionsBasic Cross-Section on FacetsPMI viewing with full data management tree display2D Viewing (PDF, CGM, TIF) , Zoom, Pan, Seek, Zoom Area, Fit All2D PrintAble to load monolithic JT files from a URLMerge PLM XML snapshotsCreate/View snapshots during sessionUltra Lightweight Precise (ULP) representation display supportPrint individual Model Views
What's new
In this update (v15.1.2):
Anti-aliasing support changes
In earlier releases of Teamcenter lifecycle visualization, end users could use either software or hardware for anti-aliasing. Because software-supported anti-aliasing was slower and was replaced by hardware anti-aliasing, beginning in this release anti-aliasing is supported only by the end user\'s hardware. If the end user was using a software anti-aliasing setting in a previous release and has that setting stored to the registry, Lifecycle Visualization now converts the software setting to a hardware setting and changes the number of samples to a value that is one step lower than the value in the registry.
Define the location of SVM files
In previous releases of JT2Go, JT files that contained SVM (Siemens Visual Material) materials did not render the models as defined, as there was no way to identify the location of the SVM files in JT2Go. Beginning in this release, users can define the location of the SVM database files using the TCVIS_SVM_LOCATION user environment variable.

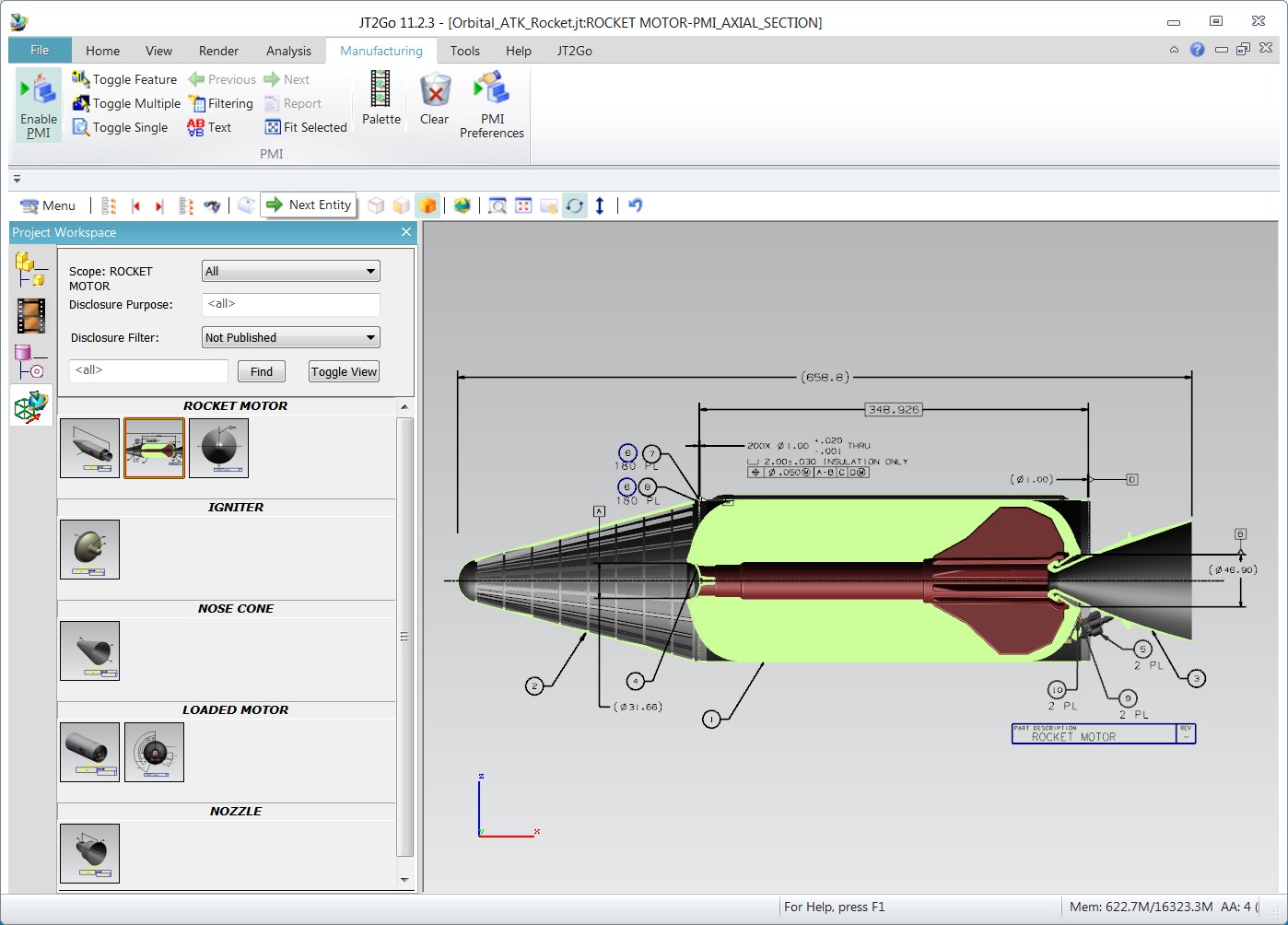

Automatically populate the PMI tree
For greater convenience when viewing PMI, you can Automatically populate the PMI tree on the PMI page on the Project Workspace. This is done by specifying a preference on the PMI Preferences dialog box.
Additional Information
- Developed by Siemens Digital Industries Software (PLM)
- Version 2024.09.26
-
Requires
Available on: PC
OS: Windows 10 version 14393.576 or higher
Memory: Not specified
- Published 2017-01-05
- Size 349.66 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
- Microsoft Store ID 9nkl7whvx9r4
Advertisement
How to download and install JT2Go Desktop from the Microsoft
Method 1: Download and Install via the Microsoft Store
This is the most straightforward and secure way to get JT2Go Desktop.Step 1: Open the Microsoft Store
Step 2: Search for JT2Go Desktop
Step 3: Download and Install
Step 4: Access the App
Method 2: Download from the Official Microsoft Website
If you prefer downloading directly from the web, you can use the official Microsoft website.Step 1: Visit the JT2Go Desktop Page
Step 2: Download the App
Step 3: Install JT2Go Desktop
Step 4: Use JT2Go Desktop
Tips for a Smooth Installation
Conclusion:
Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install JT2Go Desktop.JT2Go Desktop FAQs
