Overview
A teach-in application that gives a CNC controlled (conventional) lathe the ability to perform CNC tasks without CNC programming or the need for a CAD or CAM program. CNCL makes it easy to precisely turn a radius or a taper, grind drills and mills, drill (pattern) or tap a hole, broach a gear, knurl (cut) a shaft, engrave a dial, do any pitch (high precision) multi start (spindle sync pulse) threading, turn a spur gear, pulley or radius cutter, mill a helical gear, simply by setting a few parameters. No complex calculations needed, all you need are the dimensions of the part to turn. The build-in tool change and tool library let you select a tool and continue without the need for adjusting positions. Change from Metric to Inches by a click on a button. Backlash compensation is implemented, no need to fit ball screws. For repetitive tasks, a record and play-back function is available. The recorded Gcodes can be saved for use on other types of controllers. A manual is built-in and can be printed.

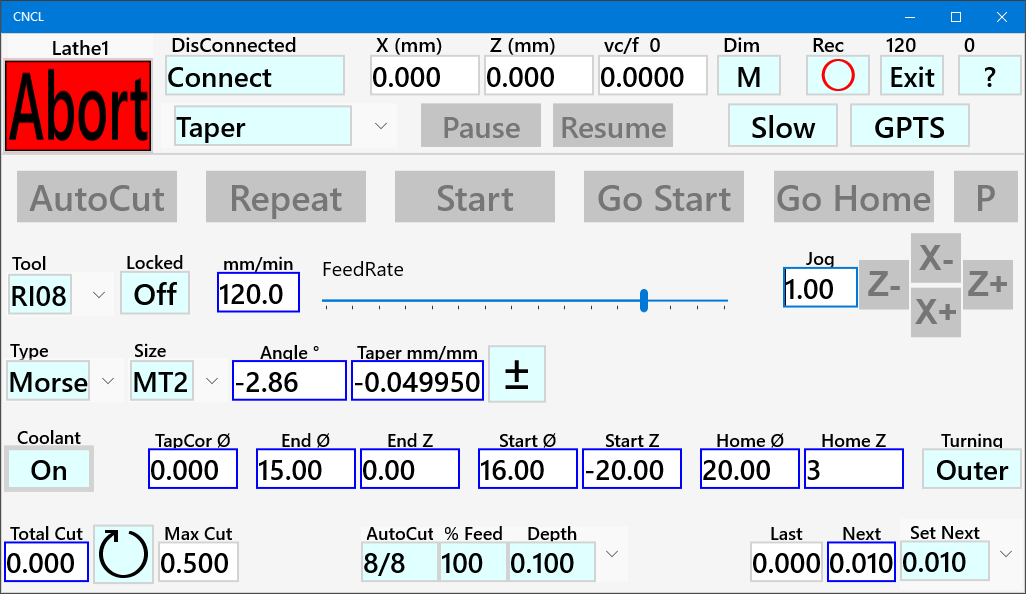

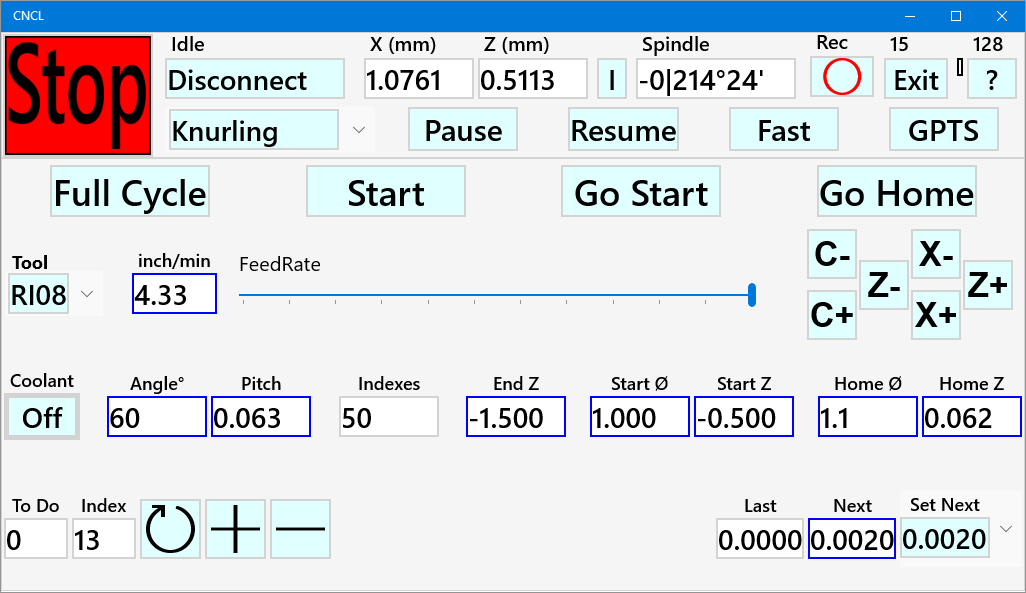

CNCL is optimized to run on a small 7" touchscreen. The supported controllers are GRBL, grblHAL, Grbl_ESP32, or compatibles, free open source controllers based on affordable (Arduino) hardware. Check the hardware compatibility list in the app for more information.
If you ever wanted to start with CNC, this is the easy and affordable way to do it. Thinking about to CNC your rotary table, checkout CNCR available in the Microsoft store
Trial version: (Free)
CNCL is provided as a 30 days trial version. The trial version is a full version without any limitations. After expiration of the trial version you can buy the app.
App: (€12.99)
To use CNCL after the trial period you can buy the app. This entitles you to use the CNCL app and all new releases without limitations for the lifetime of the app.
Features

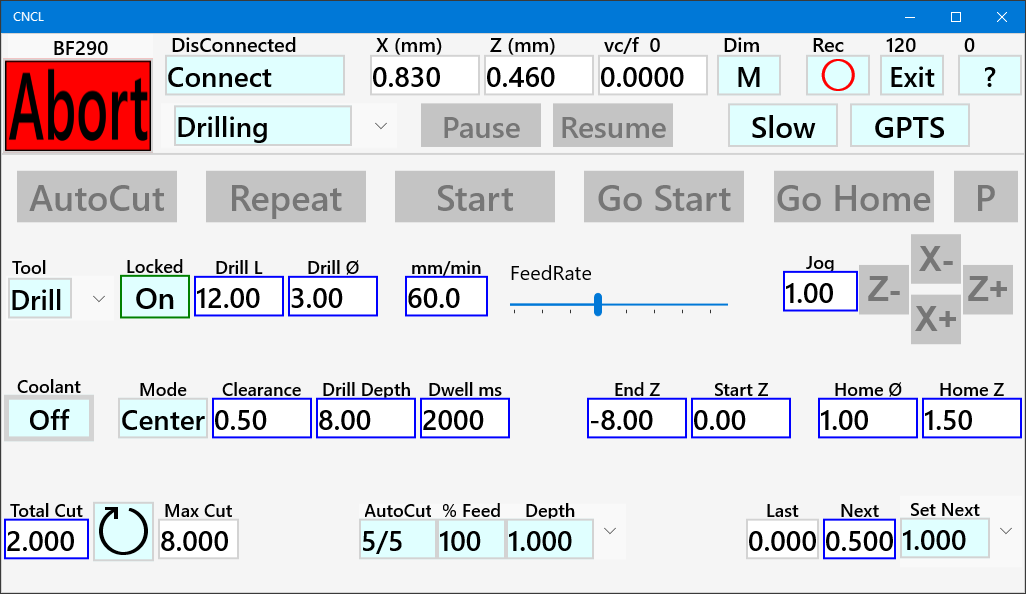

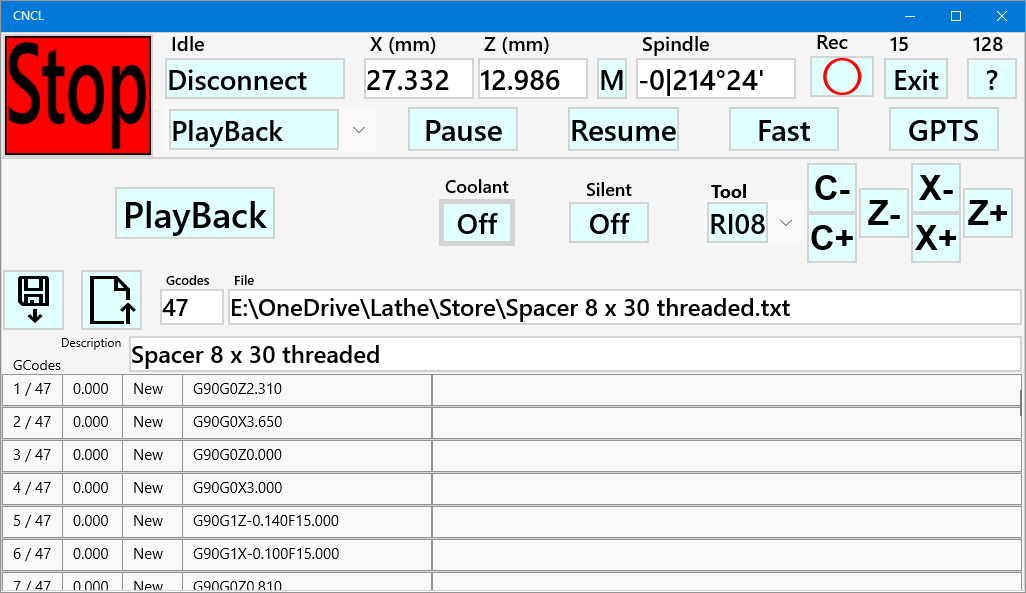

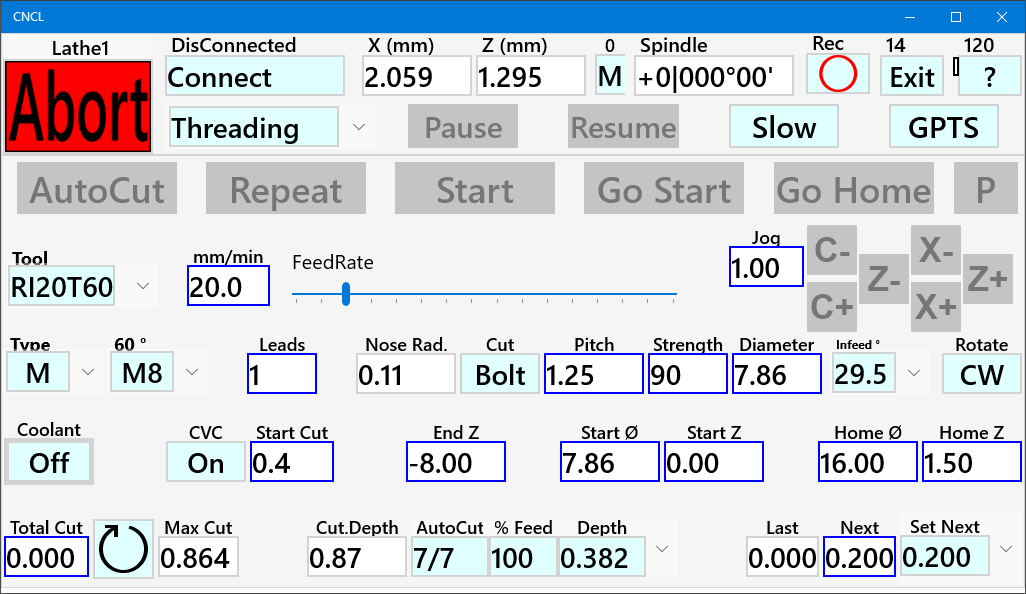

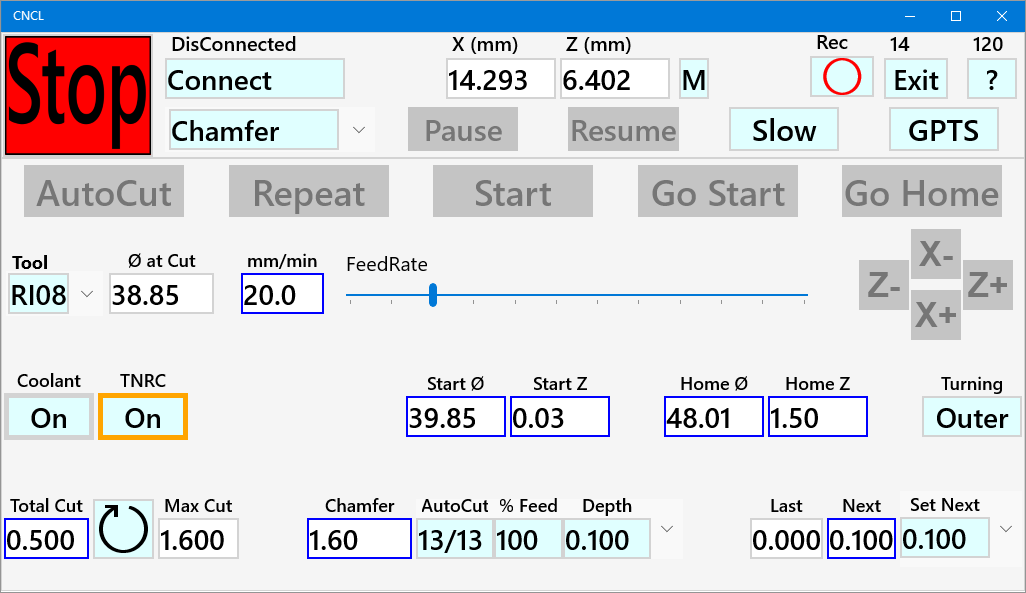

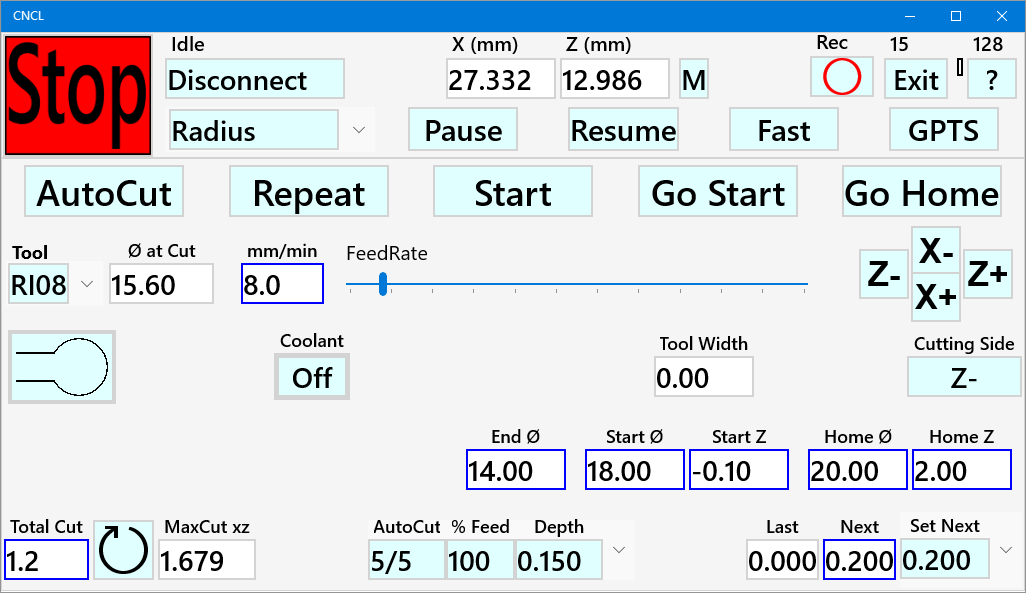

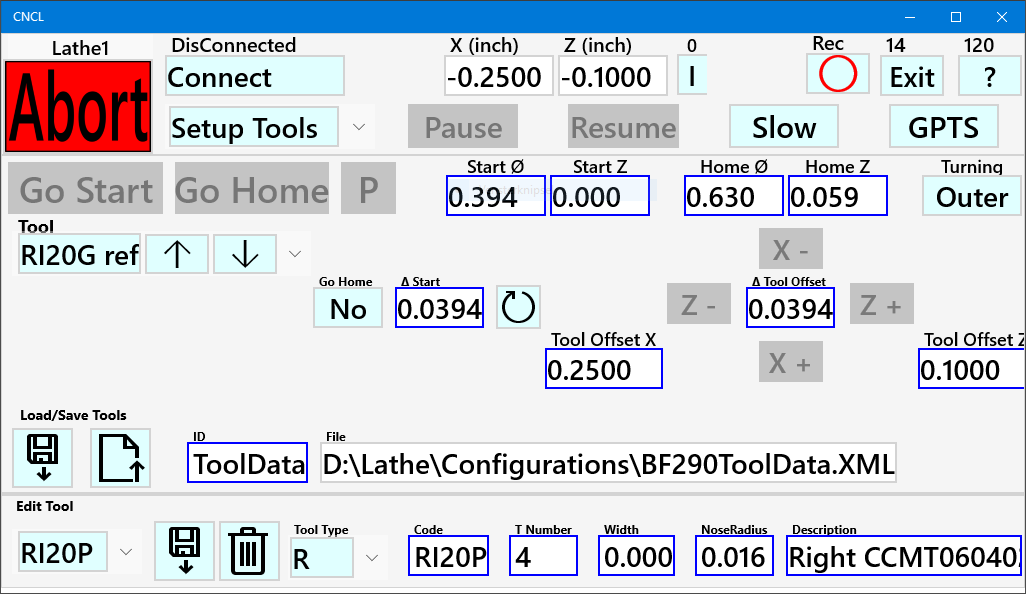

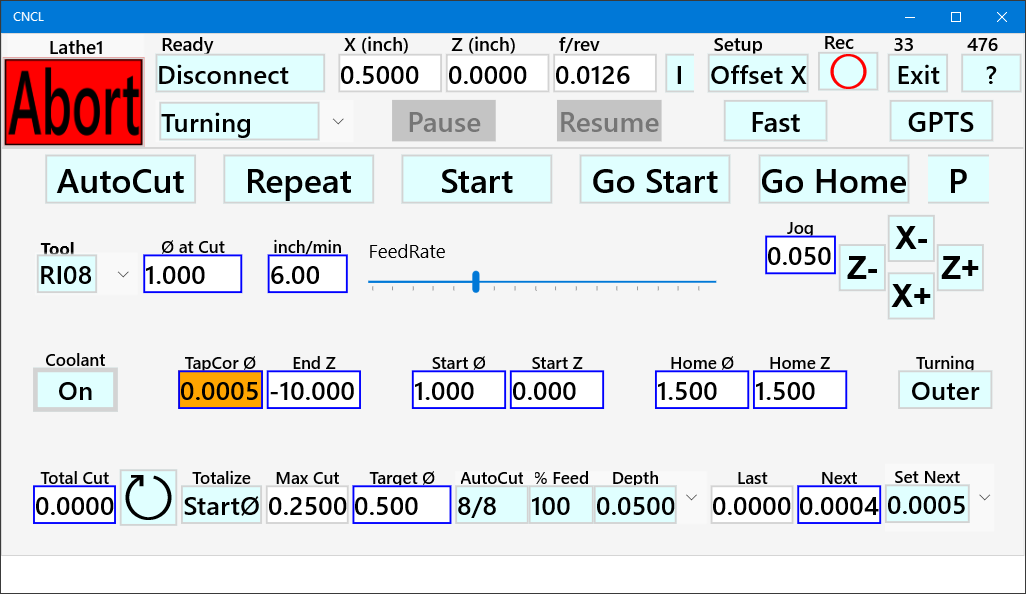

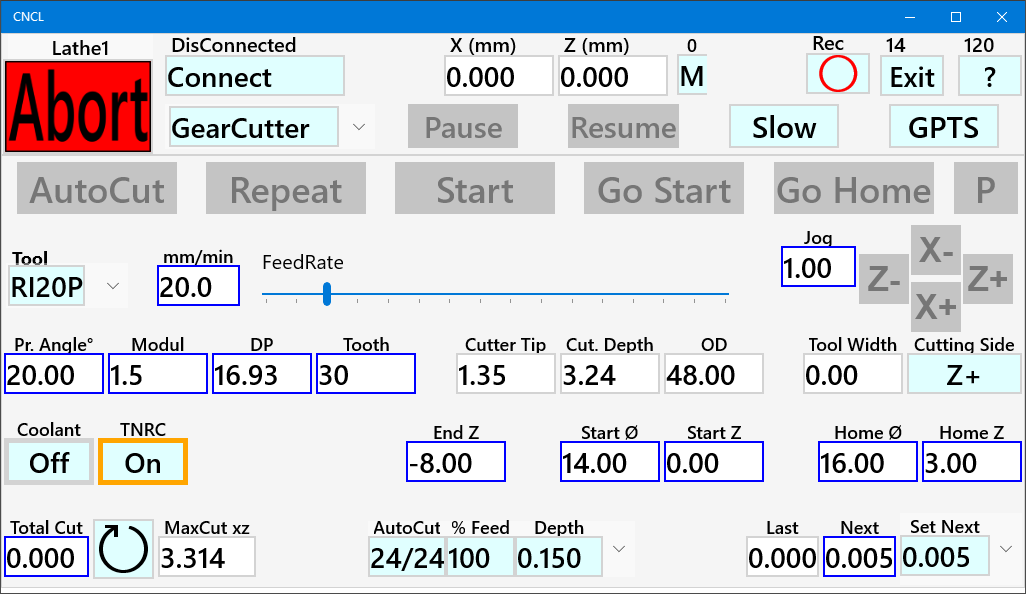

Lathe CNC Teach-in application with backlash compensation for GRBL (compatible) controllersFacing, Turning and Chamfer without tool changeHigh precision (multi start) threading using preset or user defined thread types Turning a radius, fillet or sphereTurning a taper using preset or user defined tapersTurning a Flexshaft for stepper couplingBroaching a gear or keywayKnurling using a cutting toolTurning a spur gear, timing belt or radius cutterRecording and playback CNC tasks, import or export GCodesTool libraryConnection using USB, Bluetooth, or Network (Wi-Fi)Engraving dialsMetric to Inch conversion by the click on a buttonTool nose radius compensationTurning a tapDrilling using different modes like peck drillingDril a holeTap (rigid) a threadMill a helical gear
What's new
Added CCE (Constant Cutting Edge) threading infeed option for low load coarse threading on lightweigth lathes.
Additional Information
- Developed by MetalWorkerTools
- Version 2025.03.05
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 16299.0 or higher
- Published 2017-10-18
- Size 13.57 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Access your home or work networks
Access your Internet connection
Use data stored on an external storage device
Communicate with already paired Bluetooth devices
- Microsoft Store ID 9p42tb5t697h
Advertisement
How to download and install CNCL from the Microsoft
Method 1: Download and Install via the Microsoft Store
This is the most straightforward and secure way to get CNCL.Step 1: Open the Microsoft Store
Step 2: Search for CNCL
Step 3: Download and Install
Step 4: Access the App
Method 2: Download from the Official Microsoft Website
If you prefer downloading directly from the web, you can use the official Microsoft website.Step 1: Visit the CNCL Page
Step 2: Download the App
Step 3: Install CNCL
Step 4: Use CNCL
Tips for a Smooth Installation
Conclusion:
Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install CNCL.CNCL FAQs
