Overview
This app is aimed to facilitate the data capturing from multiple TI SensorTag CC2650 modules. IMU (Accelerometer, angular velocity, magnetic field), Luxmeter, Humidity, Barometer, IR Temperature sensor can be activated and stored individually.
Hardware requirement:
- Texas Instrument SensorTag CC2650
The application is tested on Window 10 Desktop and Windows IoT 10.0.17134.48 (DragonBoard).
Please note that Windows 10 Creator updates are not supported.
Supported Windows 10 Versions
Version CodeName Name Build
1507 Threshold1 10240
1511 Threshold2 November Update 10586
1607 Redstone1 Anniversary Update 14393
1803 Redstone4 April 2018 Update 17134
Please don't hesitate to contact me if further details are required.
Email: [email protected]
Features

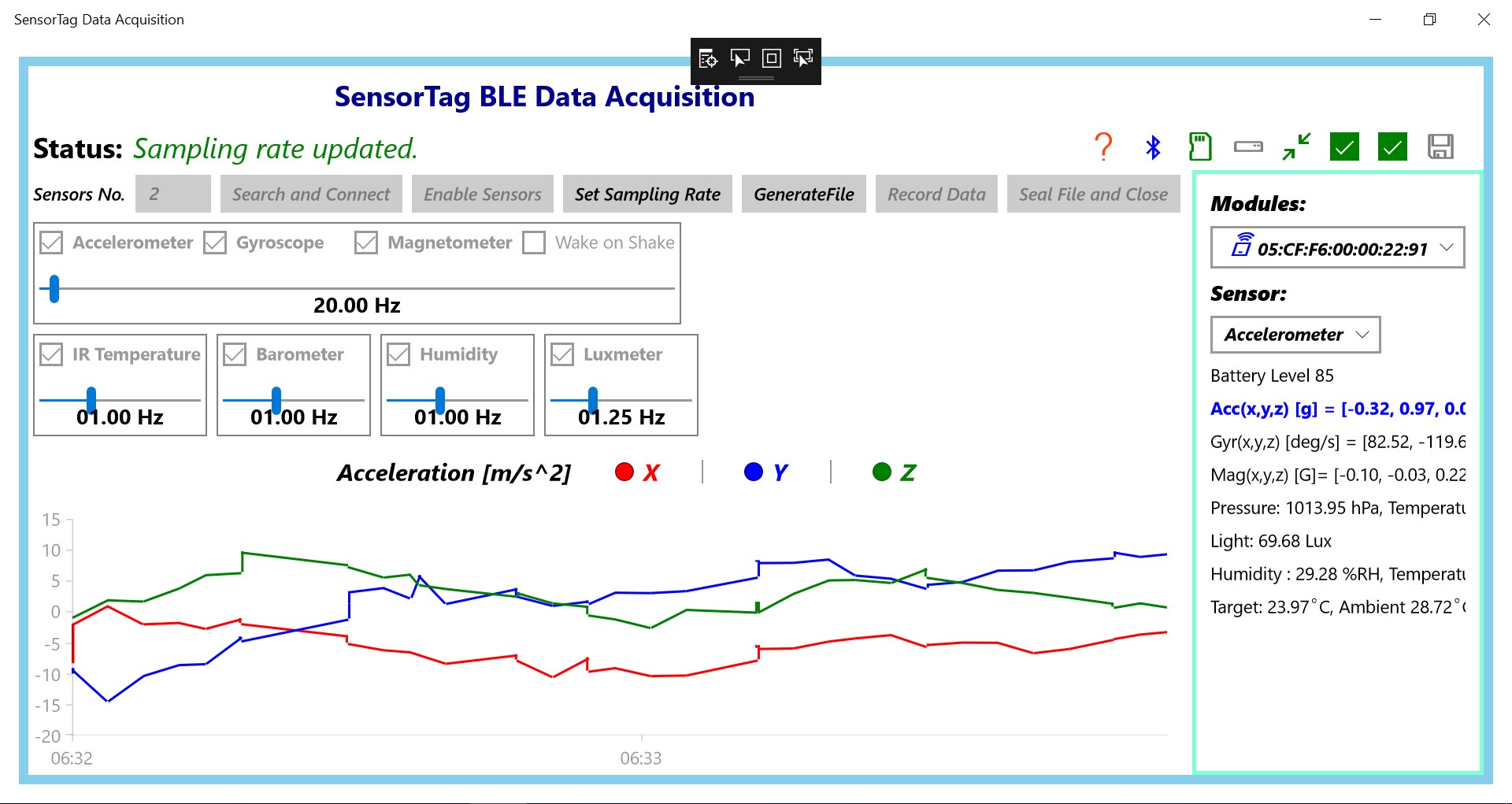

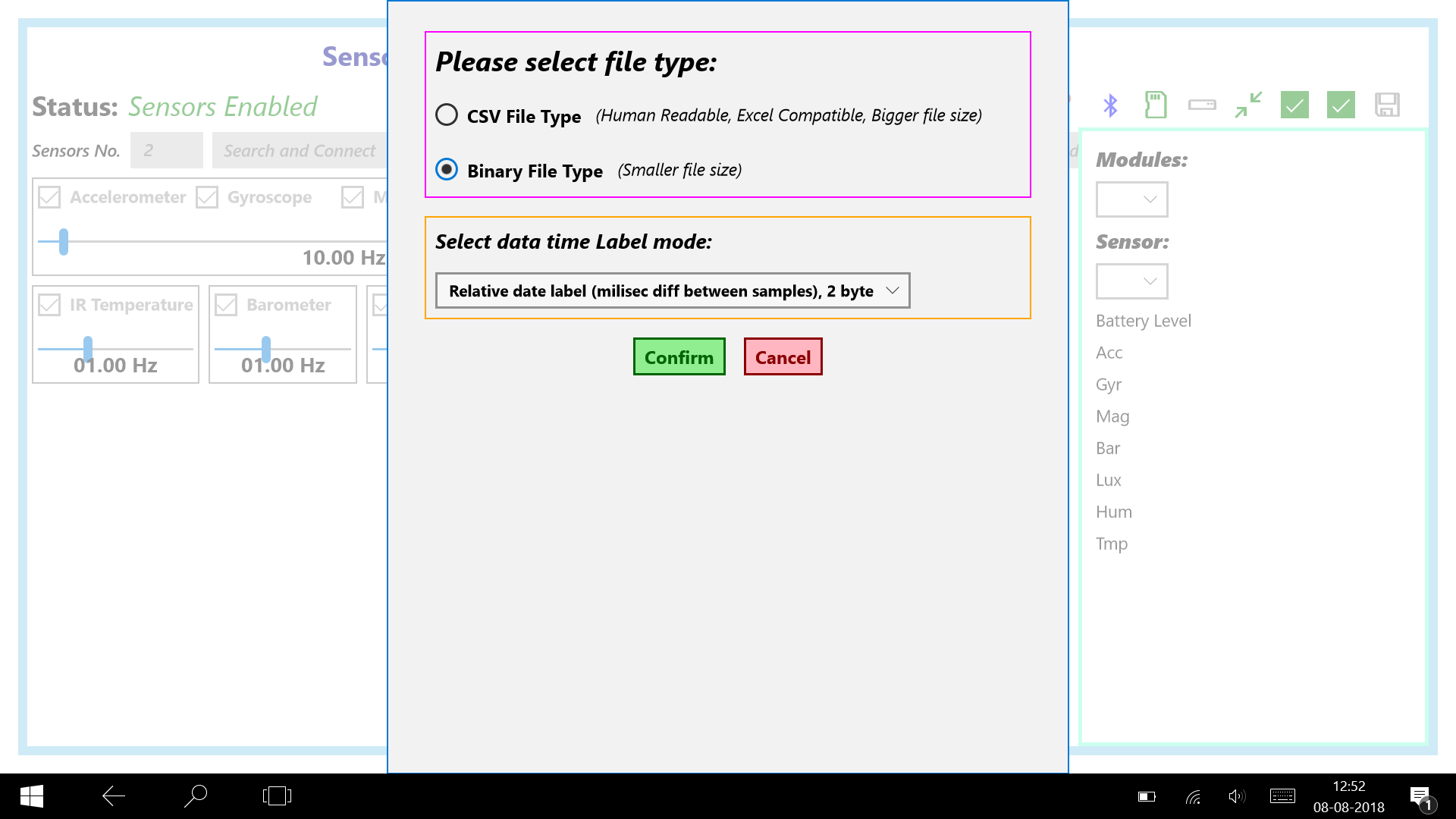

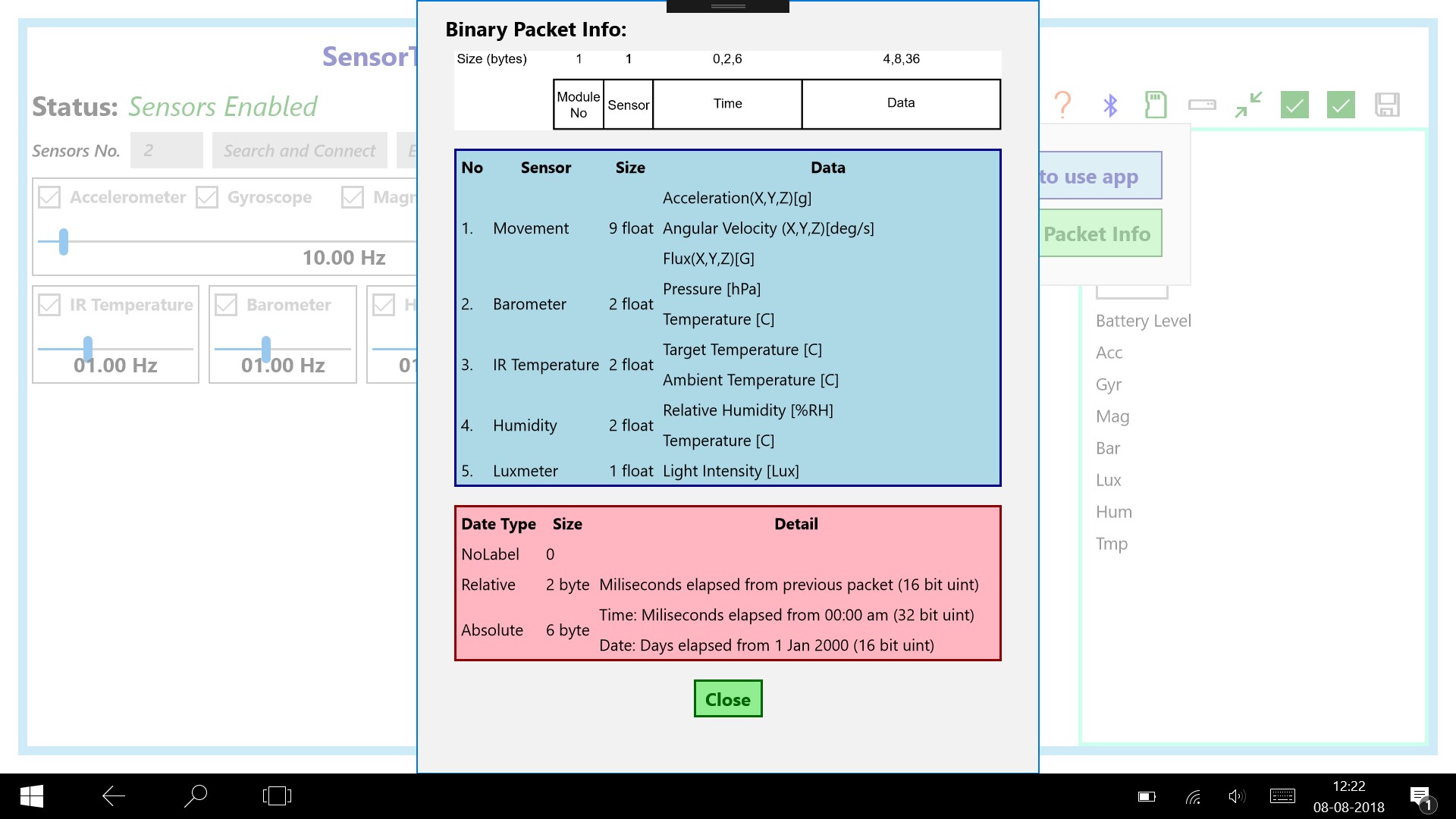

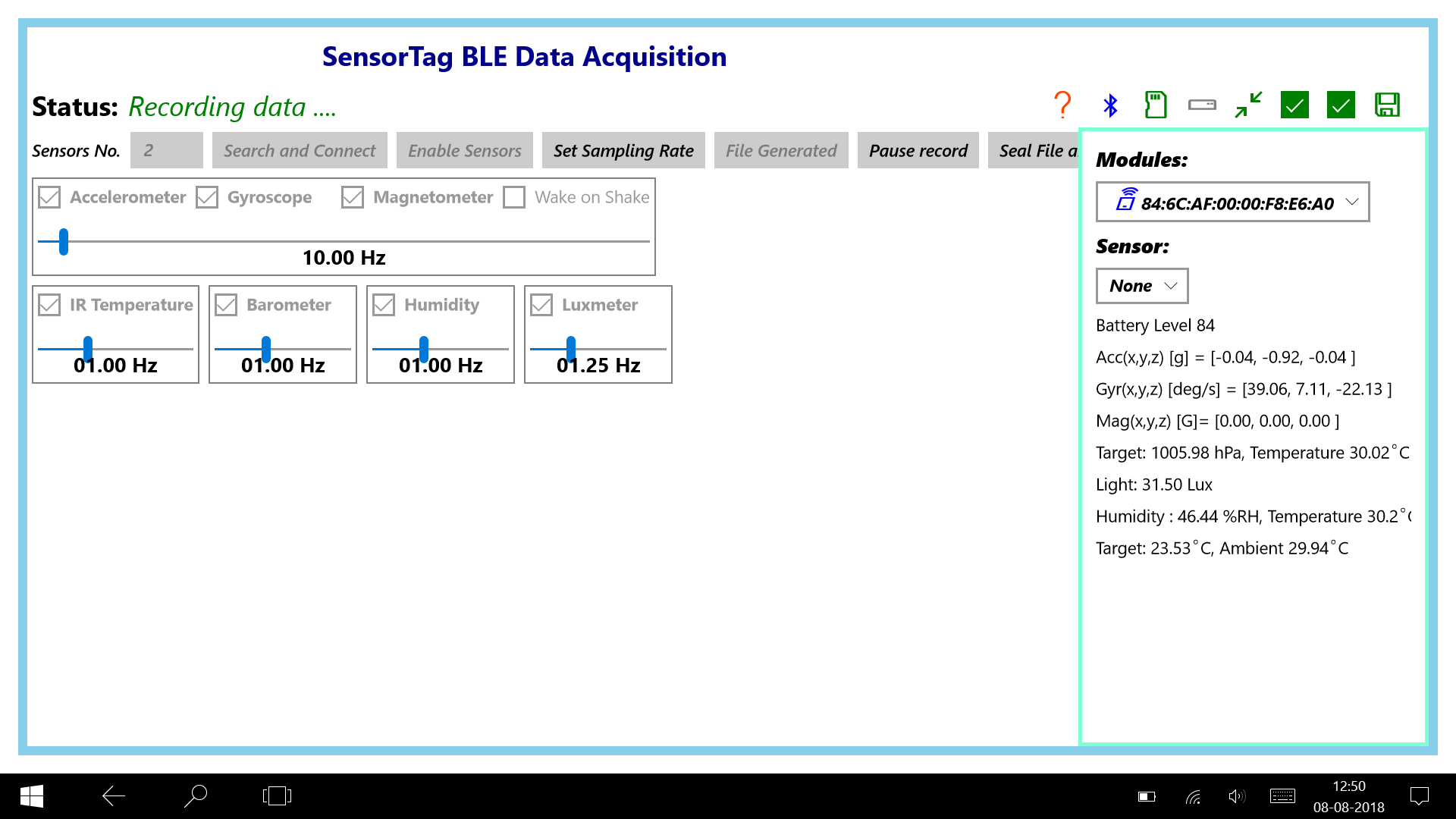

Connecting to multiple SensorTag CC2650 modulesSaving data in binary and CSV formatsEnabling each sensor individuallyReading and setting sampling frequencies for each sensor individuallyCapturing data in real-time via BLE v4.0Simple visualization of the collected dataLabeling captured packages with relative and absolute timesPloting the sensors data in realtimeLogging files
What's new
- Logging files are being automatically generated
Additional Information
- Developed by MReza Naeemabadi
- Version 2022.03.13
-
Requires
Available on: PC, Surface Hub
OS: Windows 10 version 10240.0 or higher
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
Bluetooth: Not specified
Memory: 2 GB
Touch: Integrated Touch
- Published 2018-08-09
- Size 23.33 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Use data stored on an external storage device
Use your music library
Communicate with already paired Bluetooth devices
Scan and connect to WiFi networks
Bluetooth smart device
- Microsoft Store ID 9pmm6vshw32g
Advertisement
How to download and install SensorTag Data Acquisition from the Microsoft
Method 1: Download and Install via the Microsoft Store
This is the most straightforward and secure way to get SensorTag Data Acquisition.Step 1: Open the Microsoft Store
Step 2: Search for SensorTag Data Acquisition
Step 3: Download and Install
Step 4: Access the App
Method 2: Download from the Official Microsoft Website
If you prefer downloading directly from the web, you can use the official Microsoft website.Step 1: Visit the SensorTag Data Acquisition Page
Step 2: Download the App
Step 3: Install SensorTag Data Acquisition
Step 4: Use SensorTag Data Acquisition
Tips for a Smooth Installation
Conclusion:
Both methods ultimately utilize the Microsoft Store, ensuring the app's safety and reliability. Whether you prefer browsing within the Store or starting via the website, both approaches lead you to successfully download and install SensorTag Data Acquisition.SensorTag Data Acquisition FAQs
