Overview

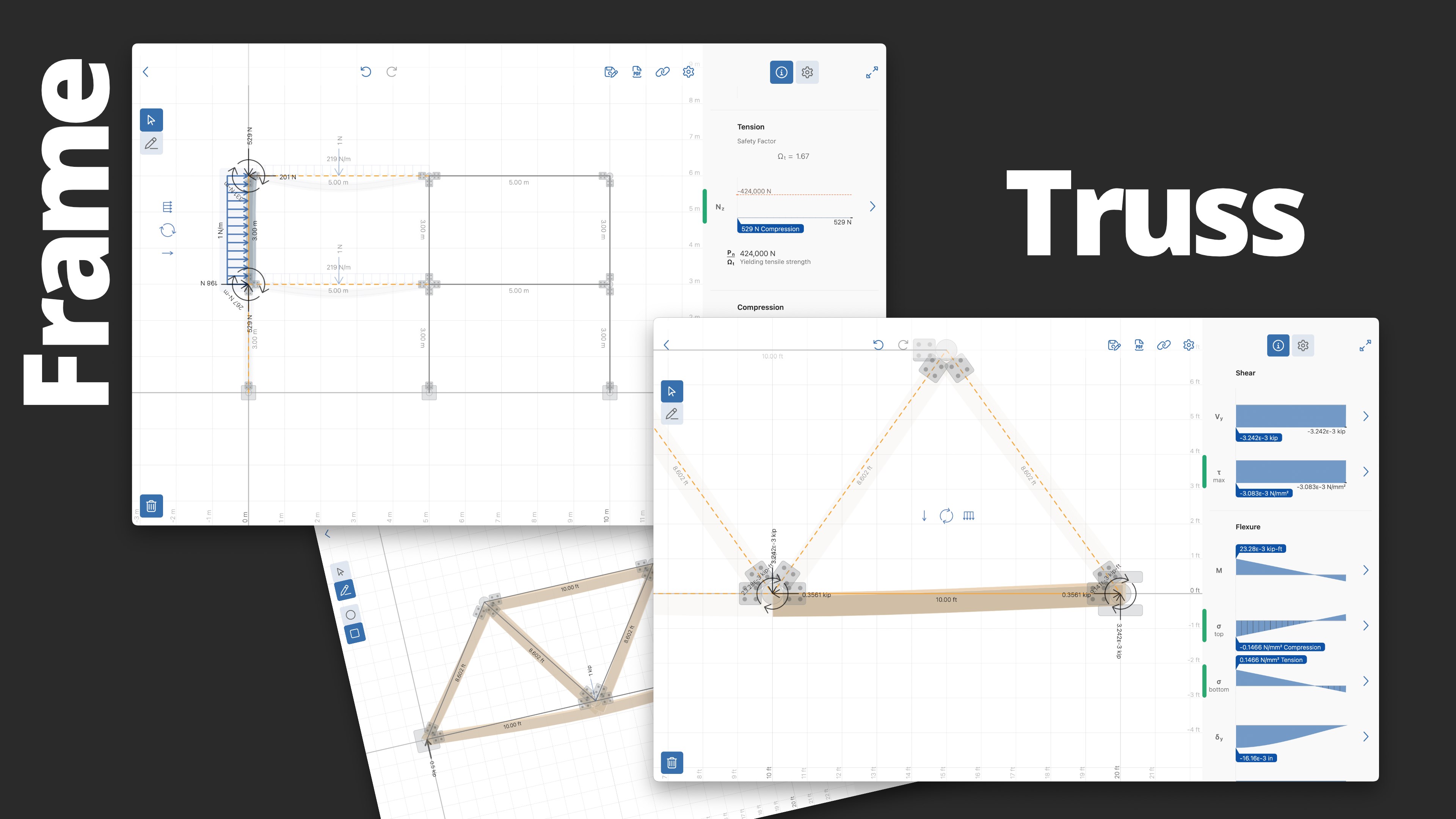

Deflection Pro is an advanced structural analysis calculator for beam, truss, and frame design. The software is designed to be simple, intuitive, and useful for structural engineers worldwide. Like our other apps, it is designed to run on all your devices.
LOAD COMBINATIONS
Deflection Pro generates common load combinations based on American and European standards. Simply select a desired design method in the settings page and assign a category to each load. The results are seamlessly aggregated and integrated into the same charts and interface as if you were designing a simple beam case.
BEAM COLUMN CAPACITY CHECKS

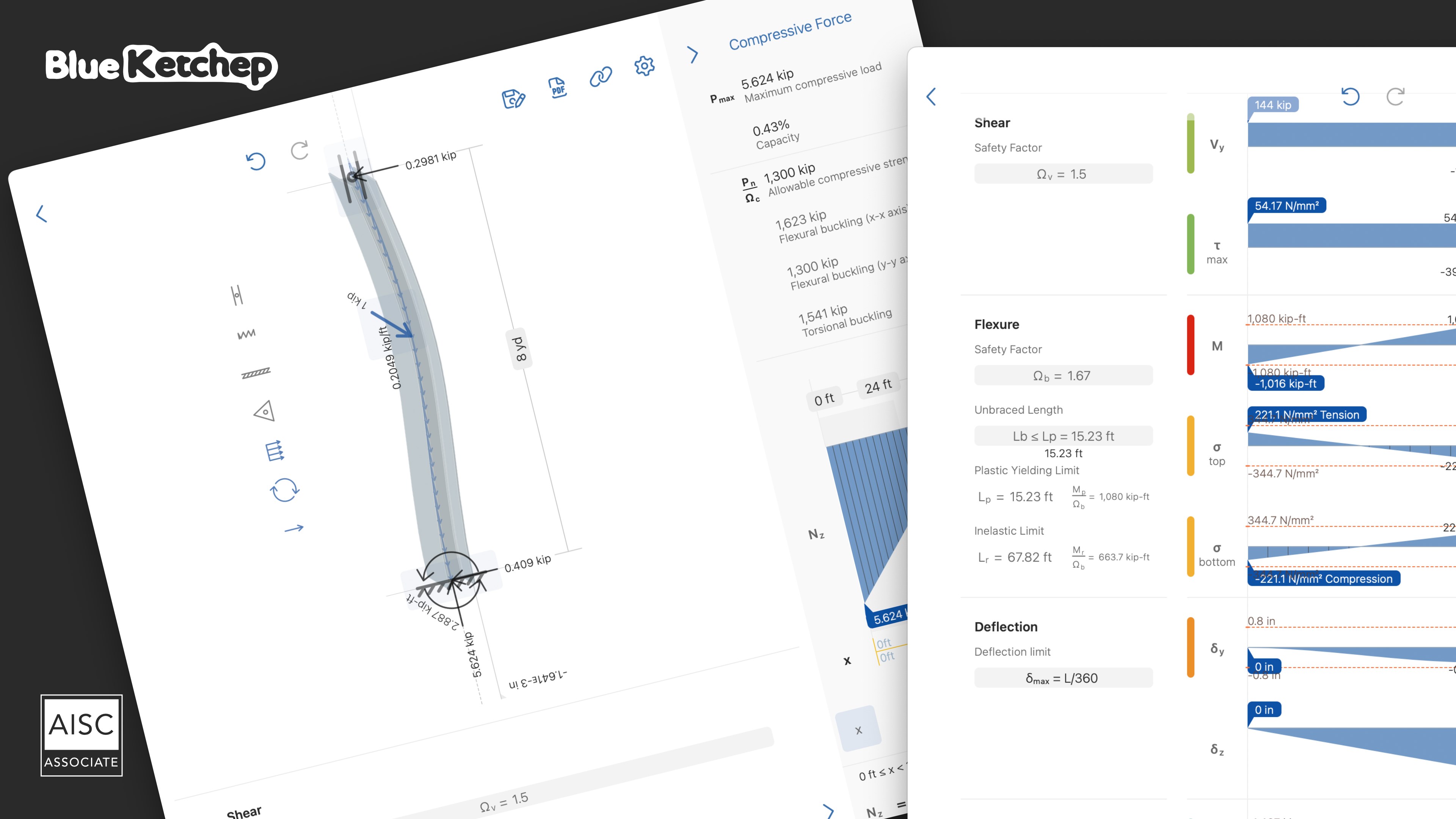

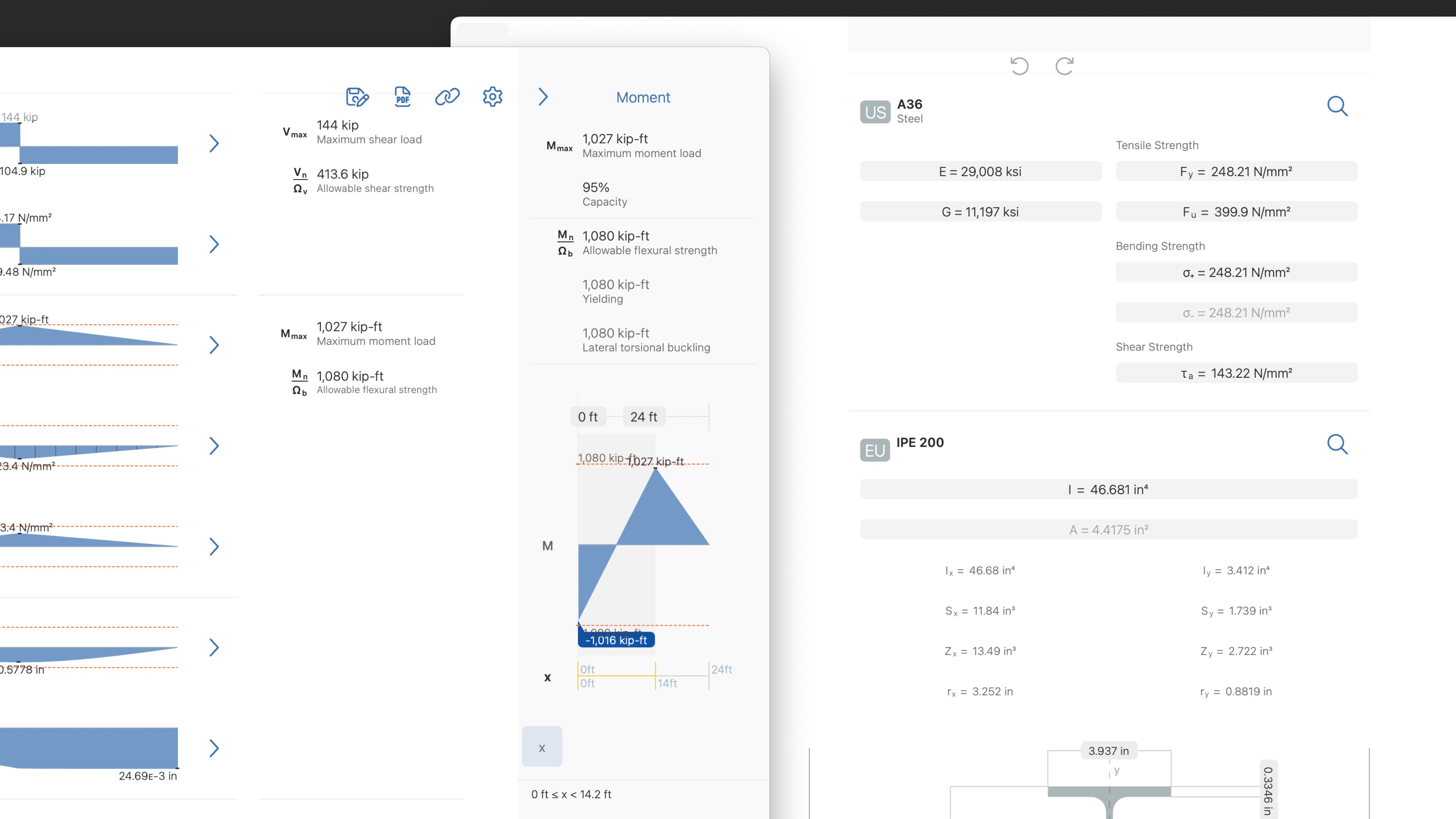

Deflection Pro calculates beam column strength capacity for flexure, shear, tension, and compression based on the AISC specification. The software accurately reproduces tabulated values in steel construction manuals.

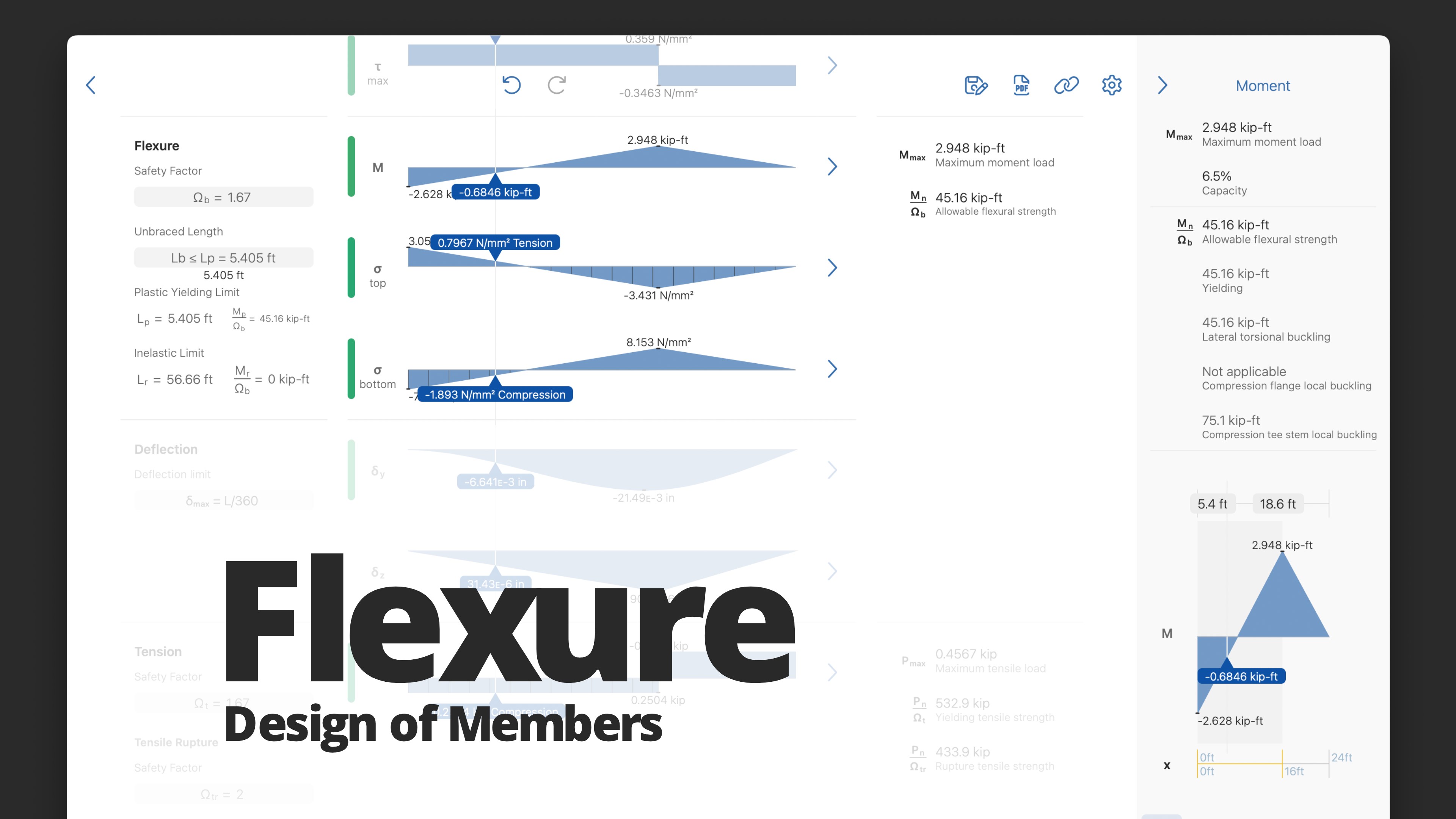

Flexure Design
• Yielding
• Lateral torsional buckling
• Local buckling
• Flange local buckling
• Compression flange local buckling
• Web local buckling
• Compression tee stem local buckling

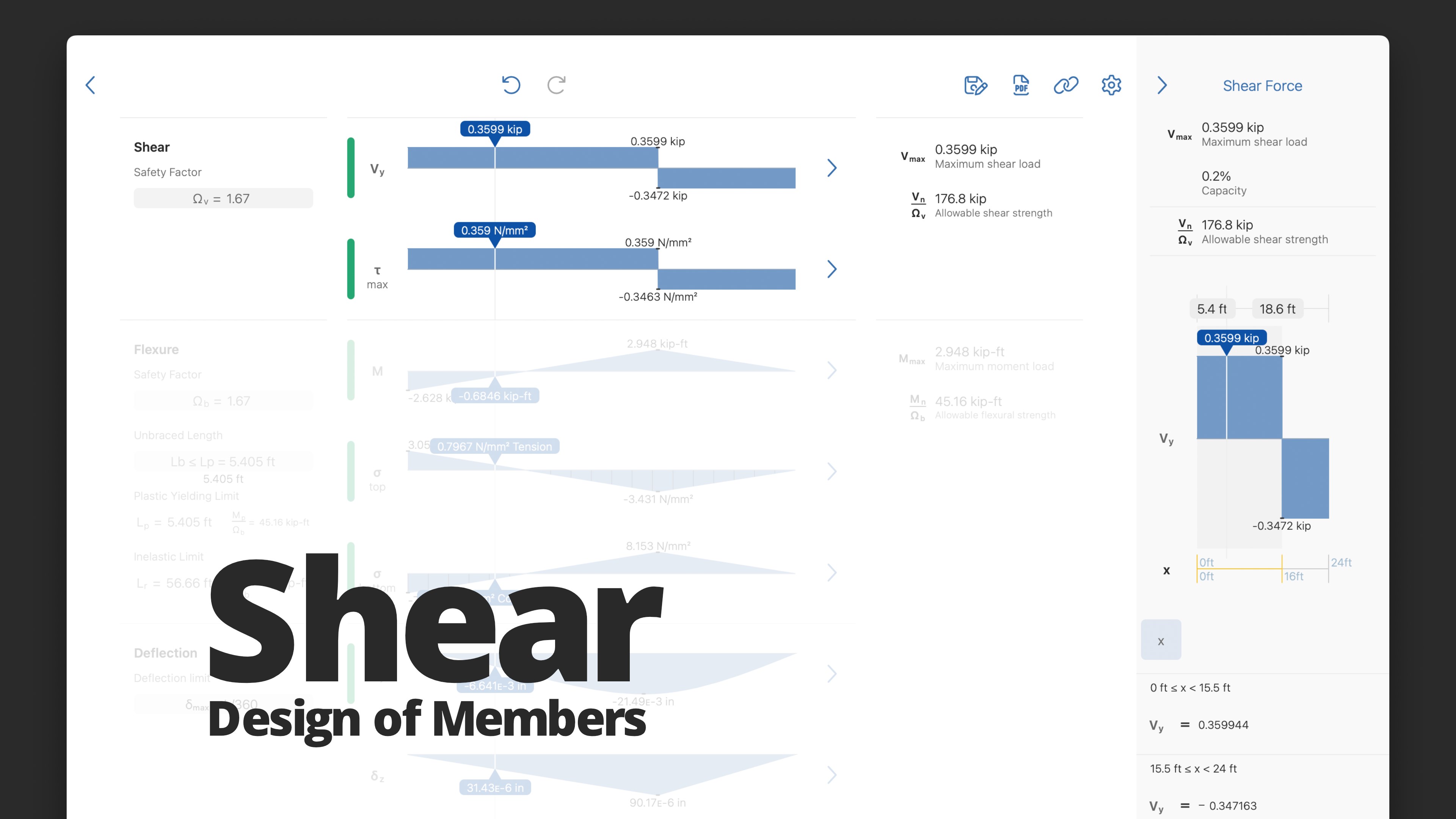

Shear Design
• Web shear strength
• Web shear strength, considering field action

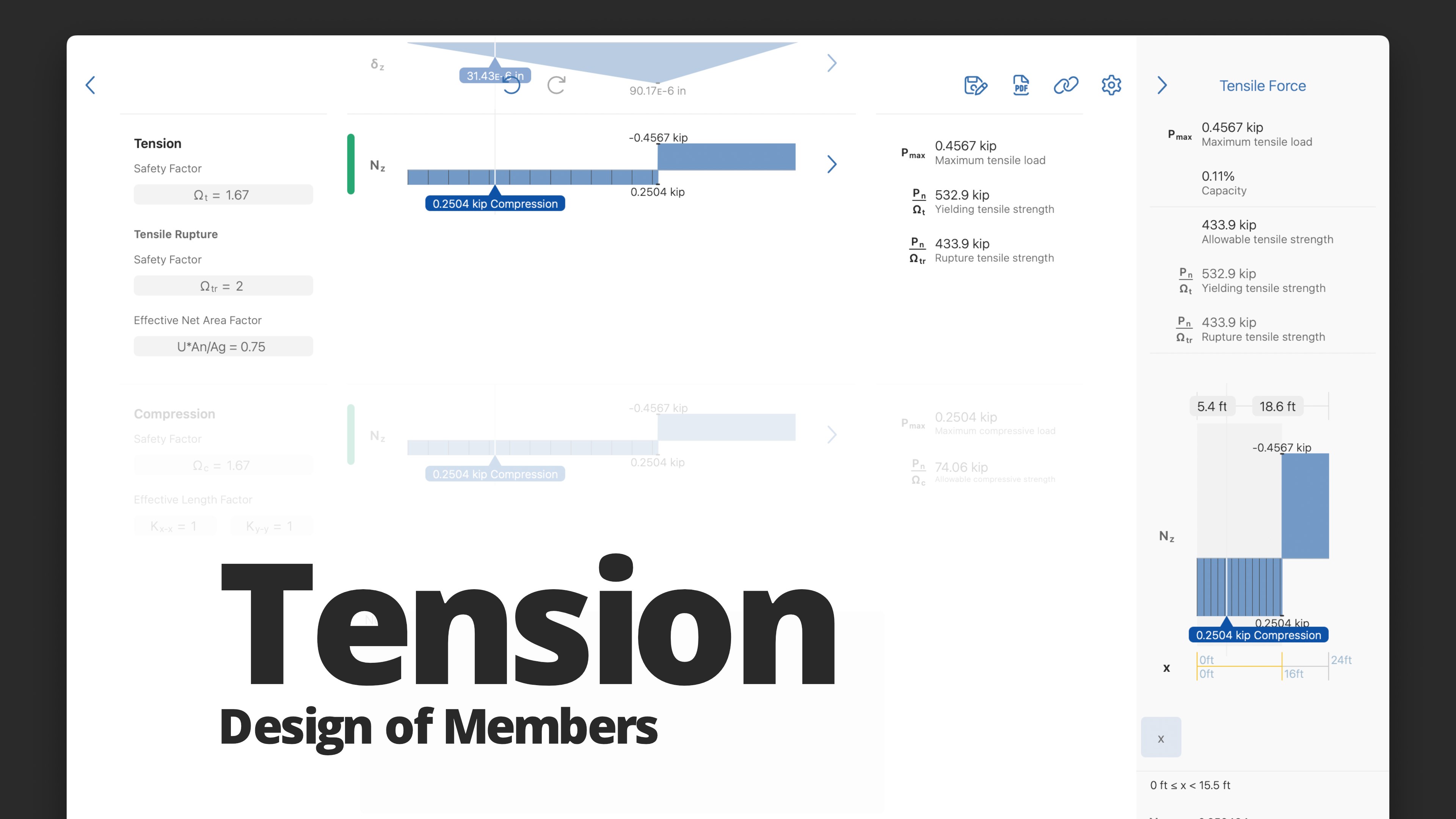

Tension Design
• Yielding tensile strength
• Rupture tensile strength

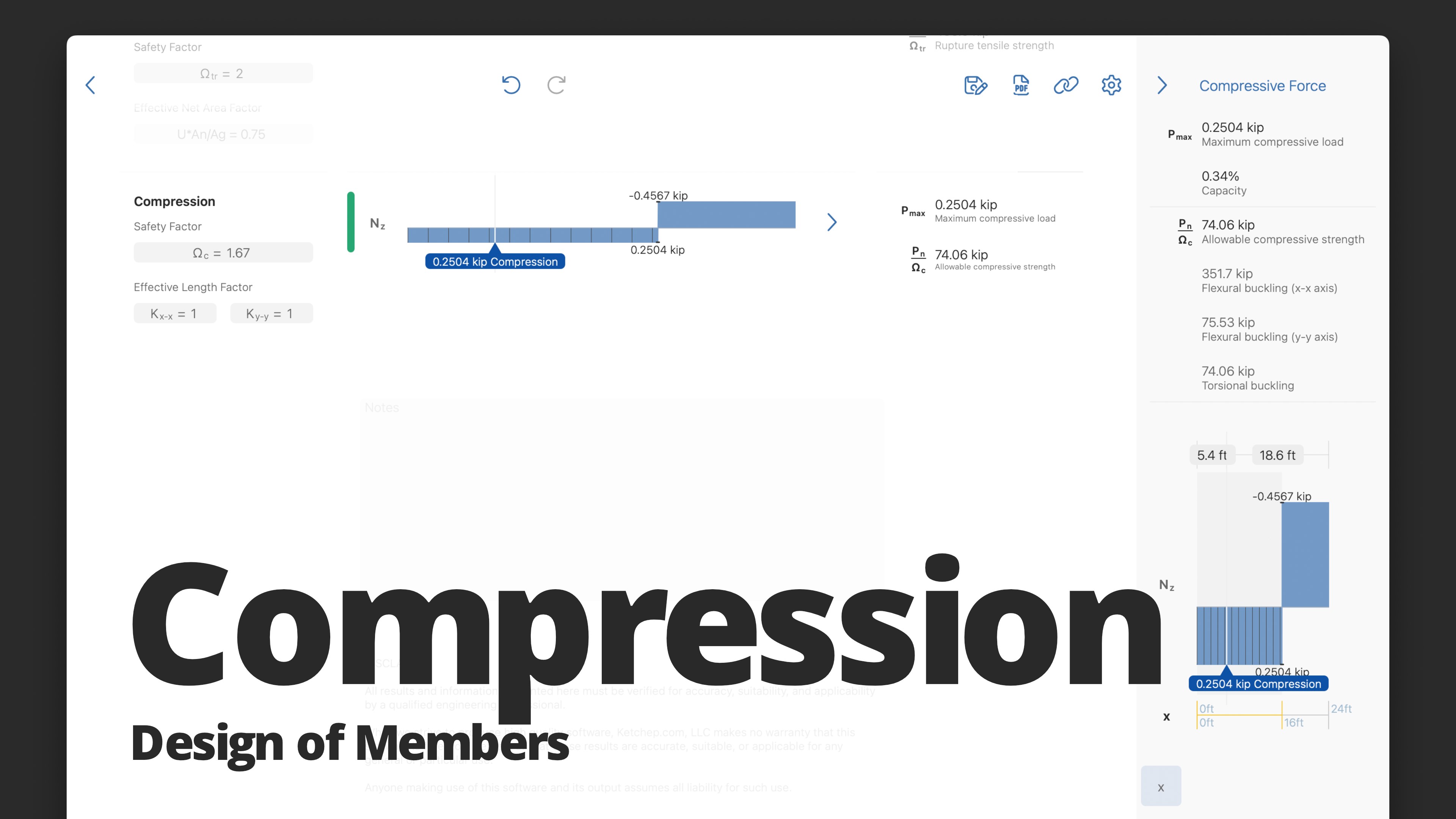

Compression Design
• Flexural buckling
• Torsional buckling
OTHER FEATURES
Since this is our latest and greatest structural analysis app, we are actively improving it and adding new functionality. It receives more frequent updates than other tiers of our software.

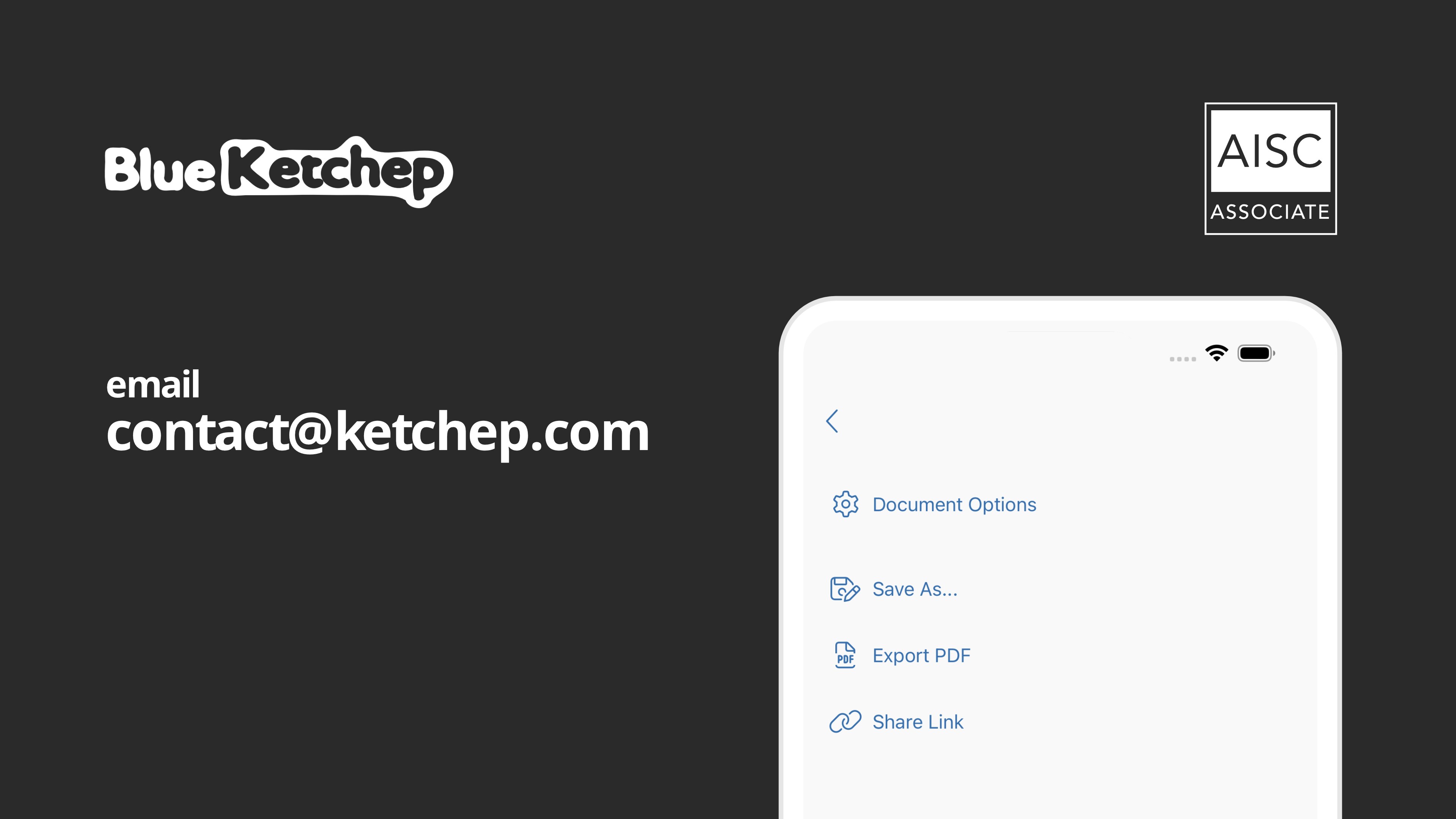

Other advanced functionality include the ability to directly export to PDF and to save to an external file for backup and sharing.
CONTACT
We like to hear from you! Please email [email protected] if you have any issues, questions, or comments.
What's new
• NEW: Torsional analysis based on AISC Design Guide 9, Torsional Analysis of Structural Steel Members.
• NEW: Apply out-of-plane loads.
• NEW: Examples gallery in the home screen.

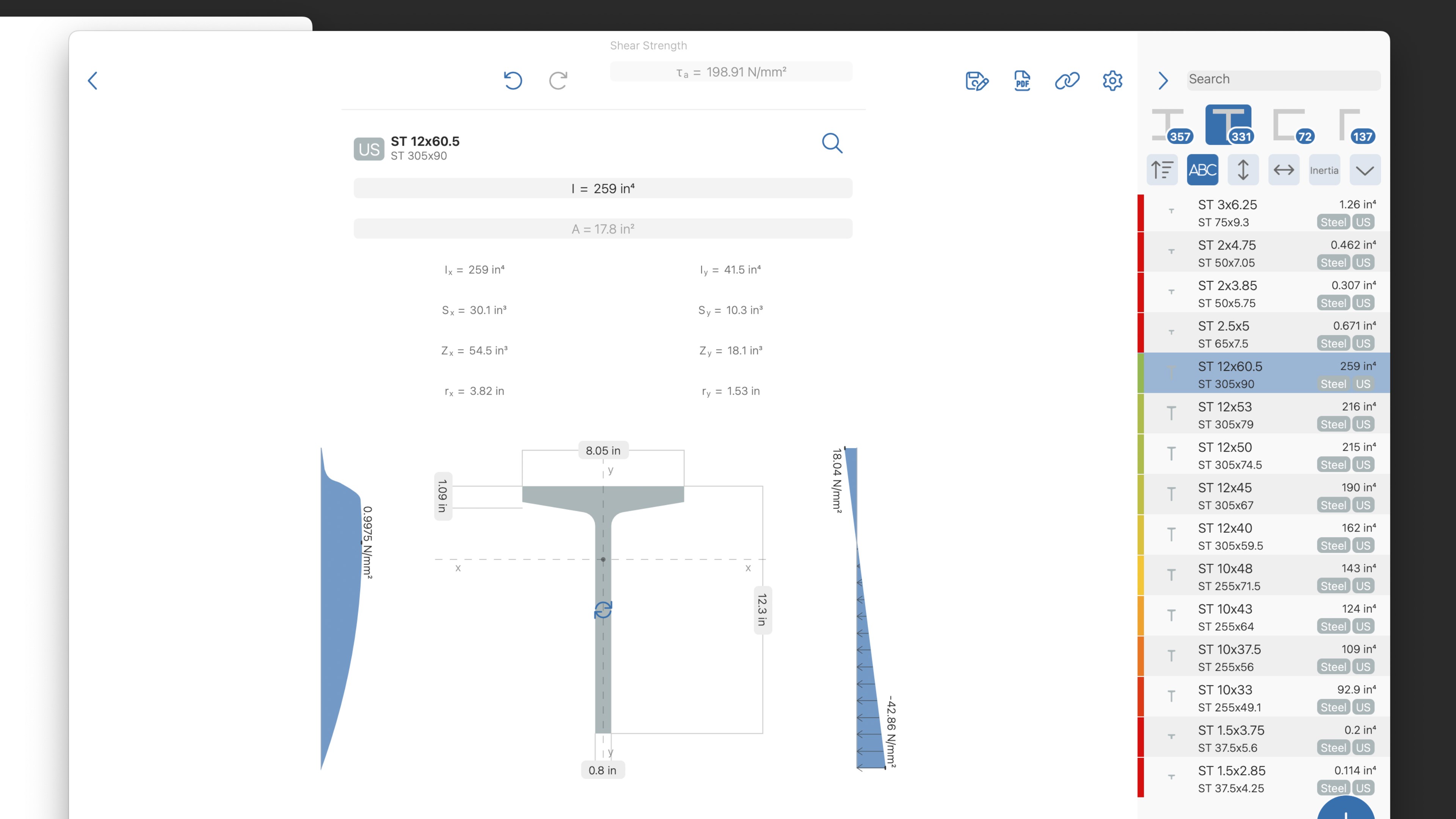

• NEW: Cross section properties screen.
• FIXED: Cross section stress analysis for angles and zees is now performed along their principal axes rather than geometric axes.
• FIXED: Added missing or improved flexure strength calculations for angles, some custom I beam sections, and tees.
• IMPROVED: Numerous performance, accuracy, usability, and styling improvements across entire app.
Thank you for your continued support and positive feedback! We can always be reached at [email protected] for any questions or comments.
Additional Information
- Developed by Blue Ketchep
- Version 2024.11.18
-
Requires
Available on: PC
OS: Windows 10 version 18362.0 or higher
DirectX: Not specified
Memory: Not specified
Touch: Integrated Touch
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
- Published 2020-02-14
- Size 185.05 MB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9mwdxj34s5n5
