Overview

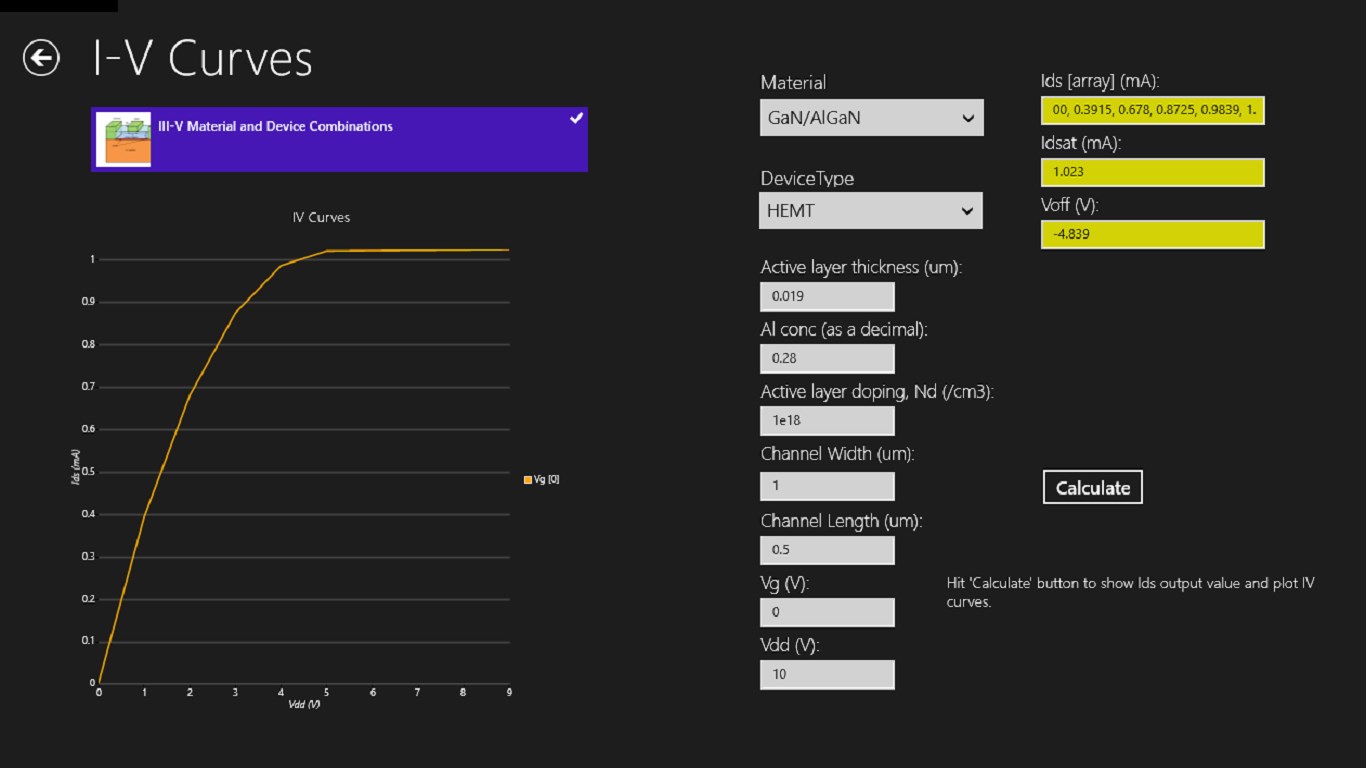

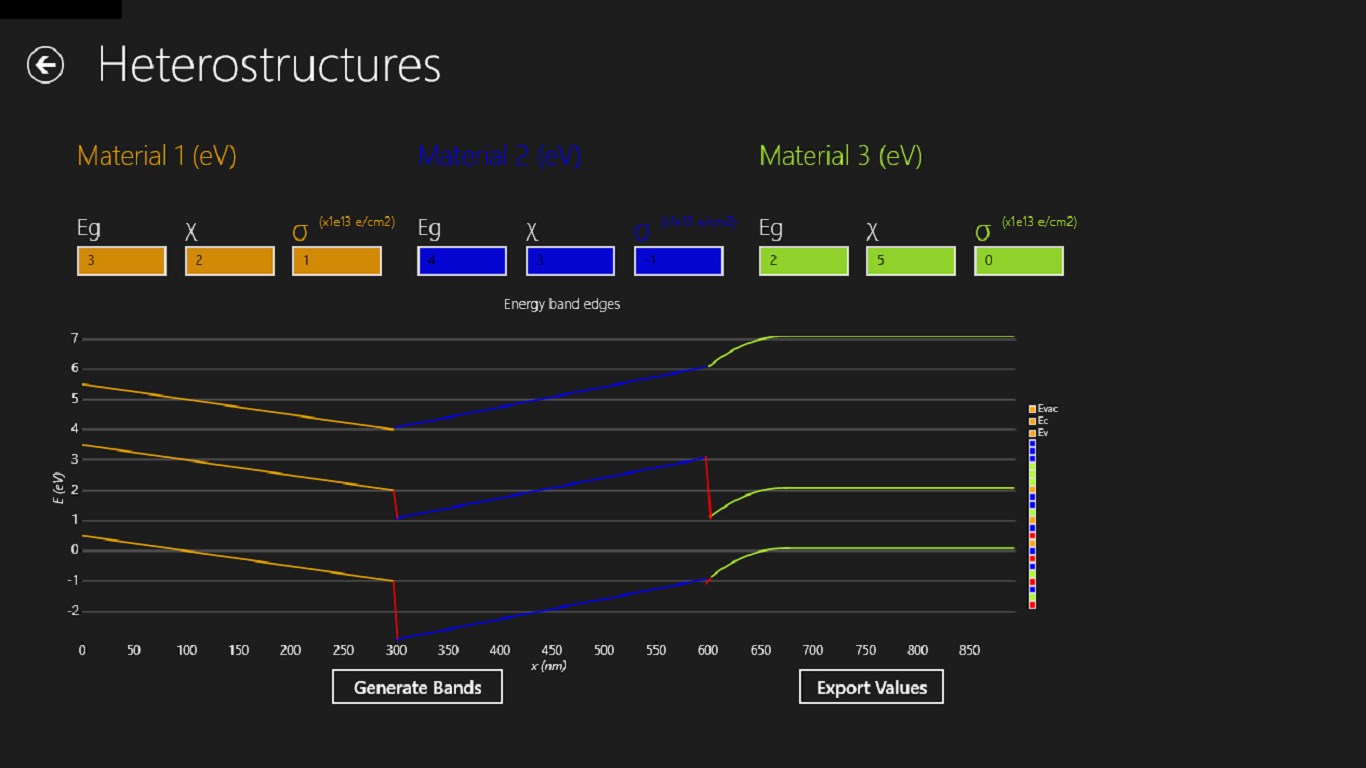

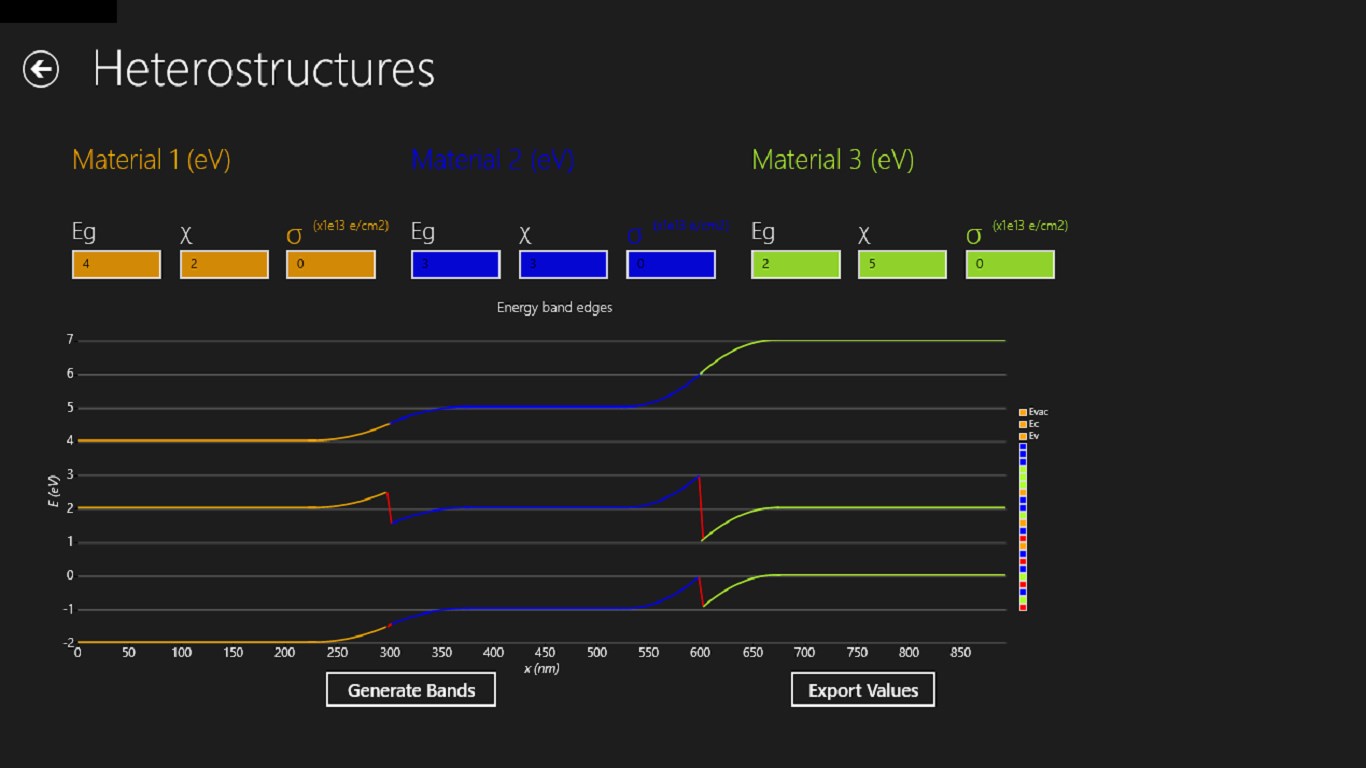

The first block of this app generates IV curves for a number of user-defined combinations of III-V materials and devices. The points of the IV curve can be copied and re-plotted if needed. The second block of the app generates energy band diagrams for user-defined three layer heterostructures. The band diagrams can also be exported and saved as a number of points, which can then be re-plotted.
Features

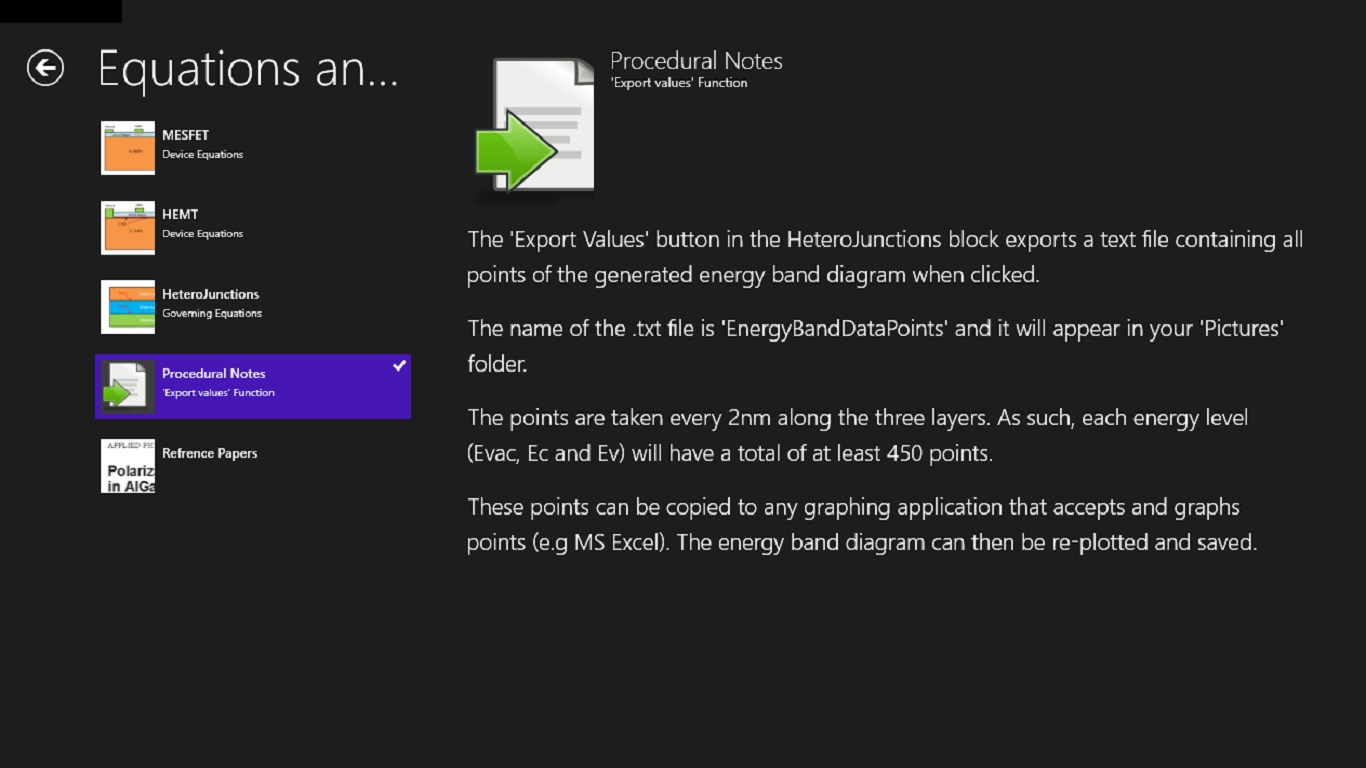

IV curve generation, Energy band Diagram generation, Export capability
Additional Information
- Developed by David C. Horton
- Version 2020.10.19
-
Requires
Available on: PC
OS: Windows 8.1 or higher
Touch: Integrated Touch
Keyboard: Integrated Keyboard
Mouse: Integrated Mouse
Notes: Keyboard, mouse
- Published 2016-12-22
- Size 841.01 KB
- File Type appx/msix
-
Language
English (United States)
-
Permissions
Access your Internet connection
Use your pictures library
- Microsoft Store ID 9n0tmlcbk93m
