Overview
Set of three simple modules that visually describe the process of coding binary numbers for the following formats:

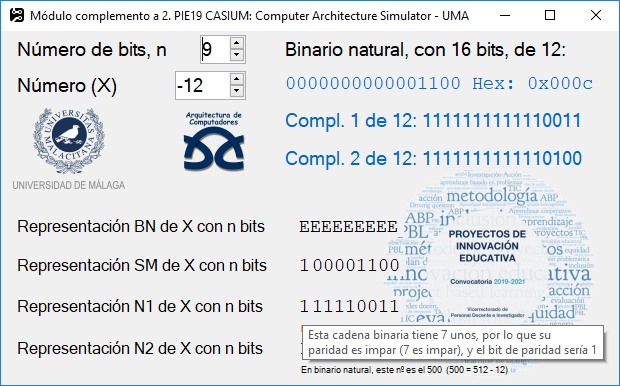

Natural binary (complementa.exe app)
One's complement for negatives (complementa.exe app)
Two's complement for negatives (complementa.exe app)
Parity bit (complementa.exe app, by using the tooltip over any binary string)

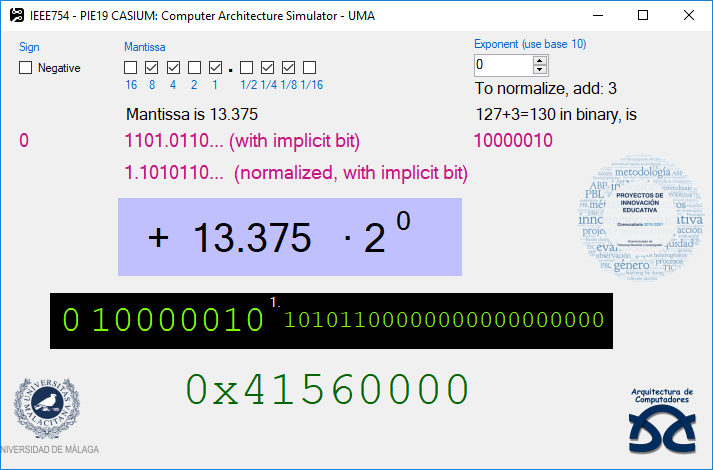

IEEE754 format of floating point numbers (IEEE754.exe app)

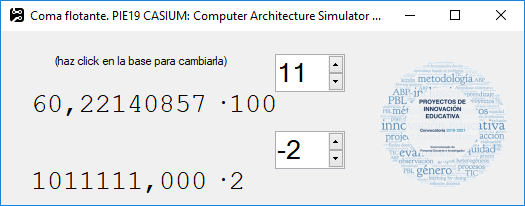

The comaflotante.exe app visualizes the concept of "floating the decimal point" accross the mantissa, and the relationship it has with the base (decimal poin floats an integer number of steps when it's represented using the same base or any multiple of it)
Features
Two\'s complement representationOne\'s complement representationParity bit explanationFloating point concept explanationIEEE754 encoding procedure
Additional Information
- Developed by Luis F. Romero, Pilar M. Ortigosa, Eva M. Ortigosa and Gerardo Bandera
- Version 2022.03.12
-
Requires
Available on: PC, Mobile, Surface Hub, HoloLens
OS: Windows 10 version 14393.0 or higher
Keyboard: Not specified
Mouse: Not specified
- Published 2020-02-06
- Size 7.18 MB
- File Type appx/msix
-
Language
Spanish (Spain)
-
Permissions
Uses all system resources
- Microsoft Store ID 9n16msncdwft
