Overview

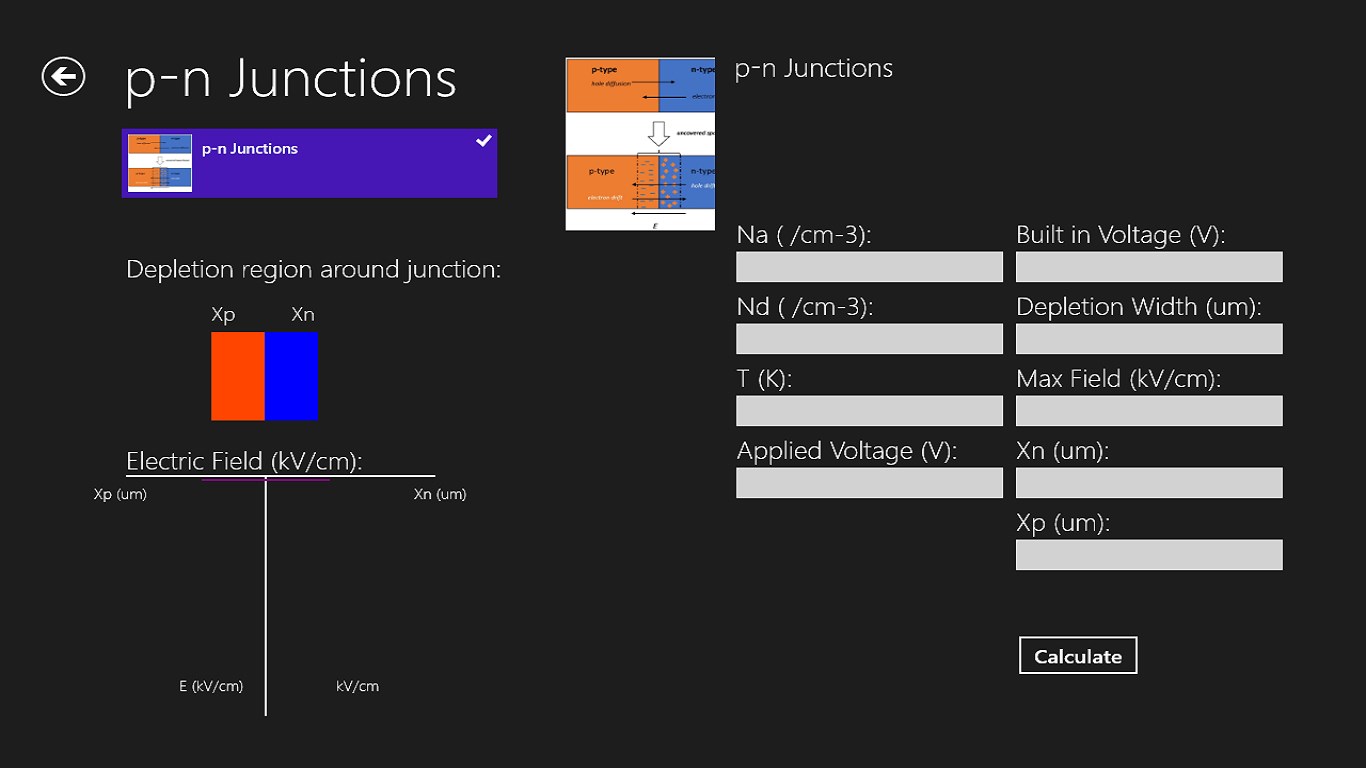

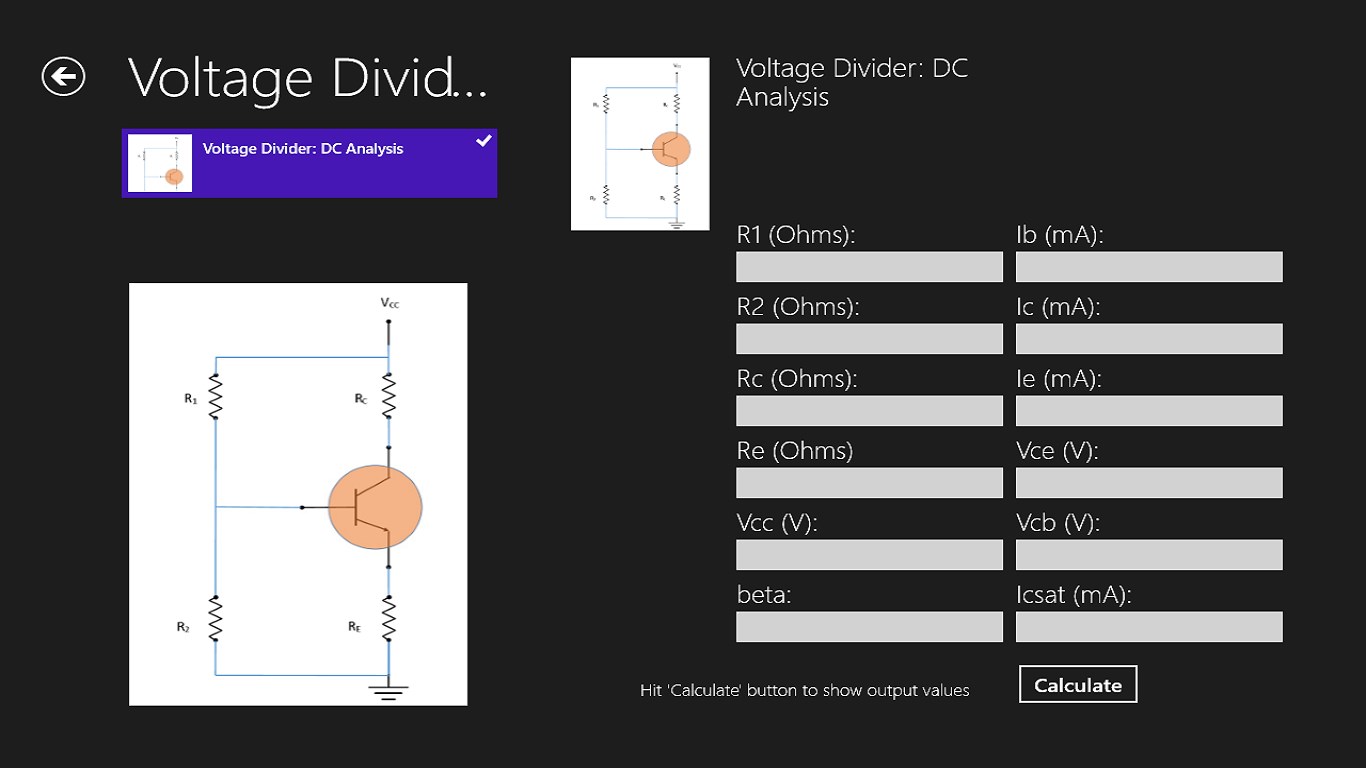

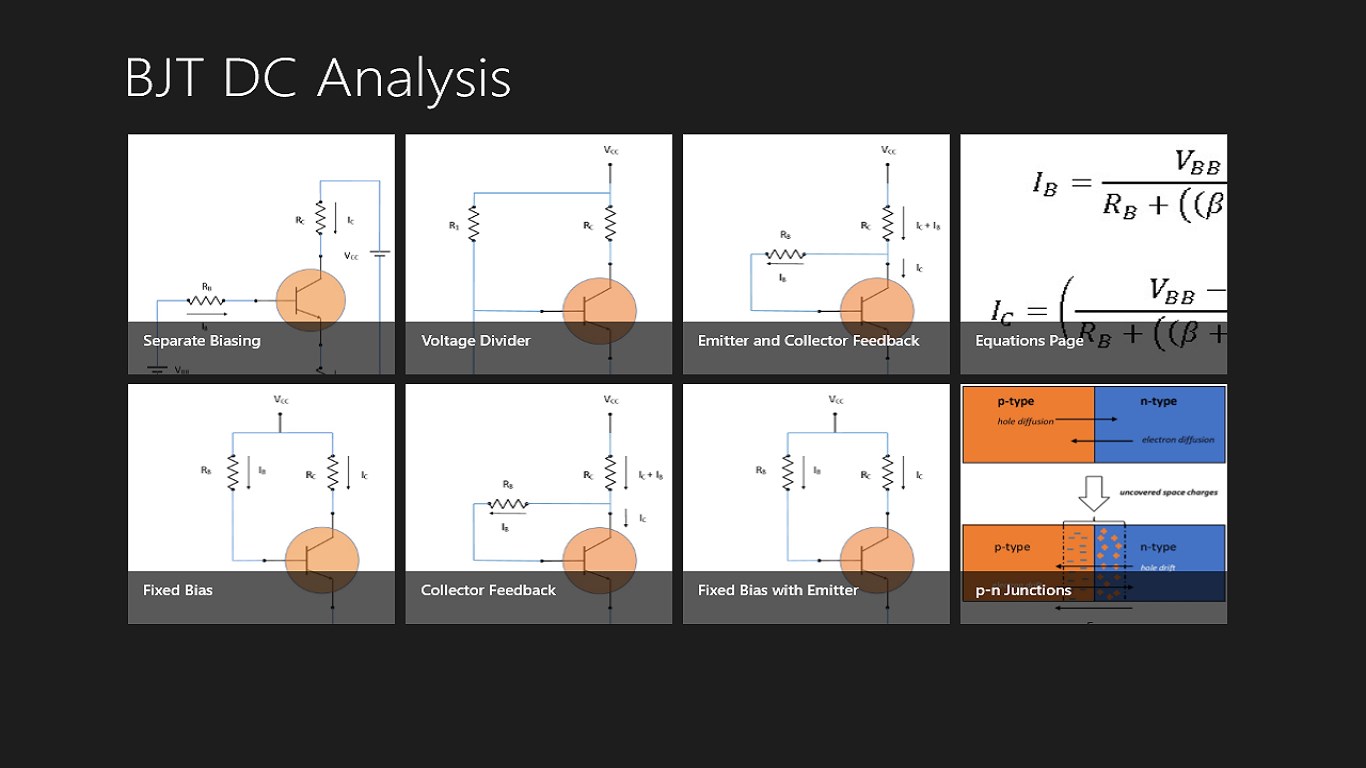

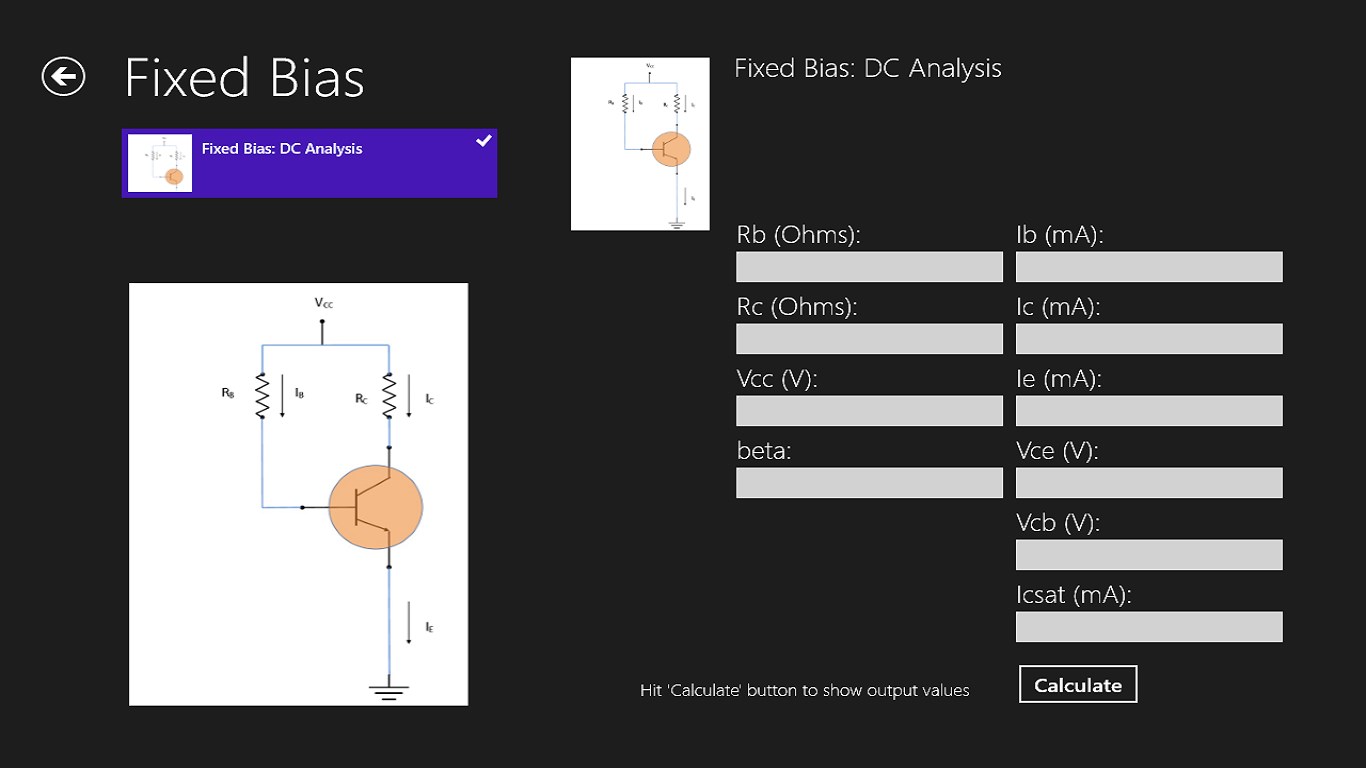

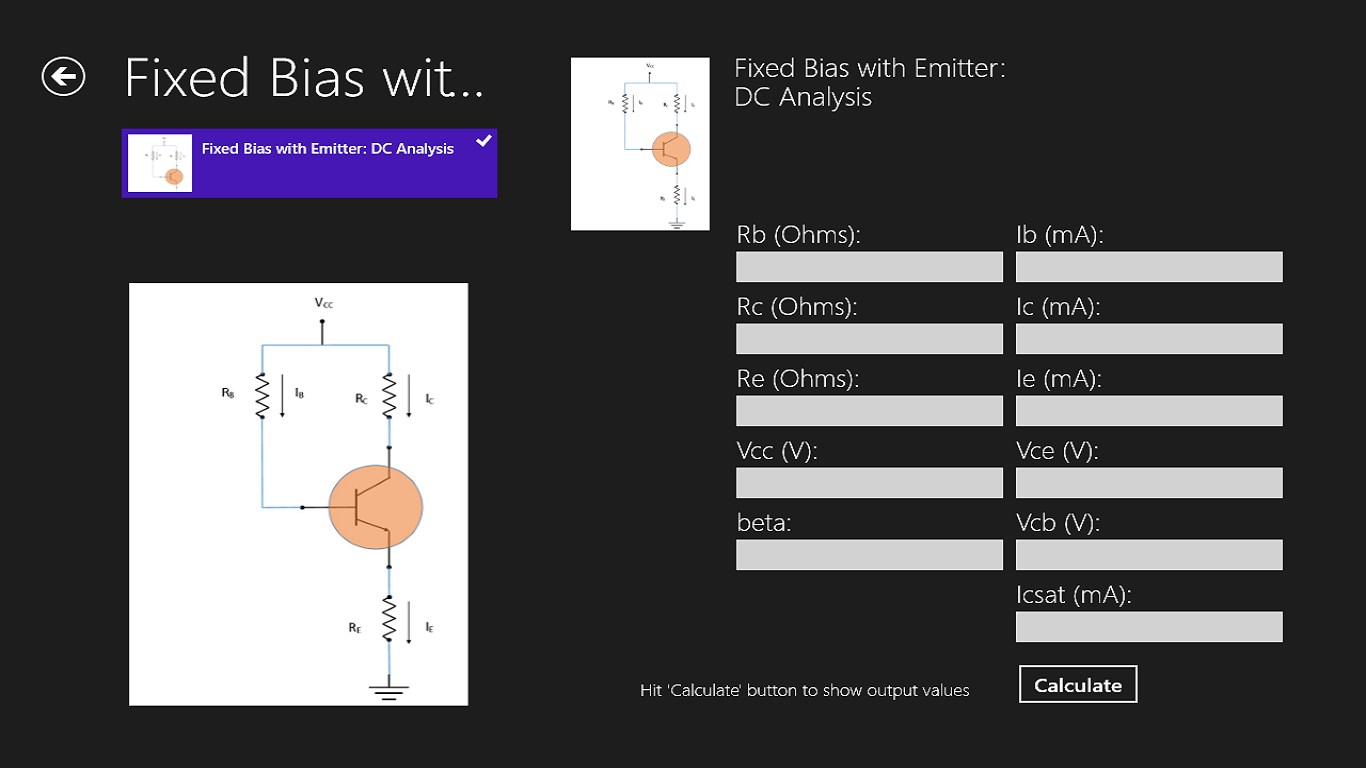

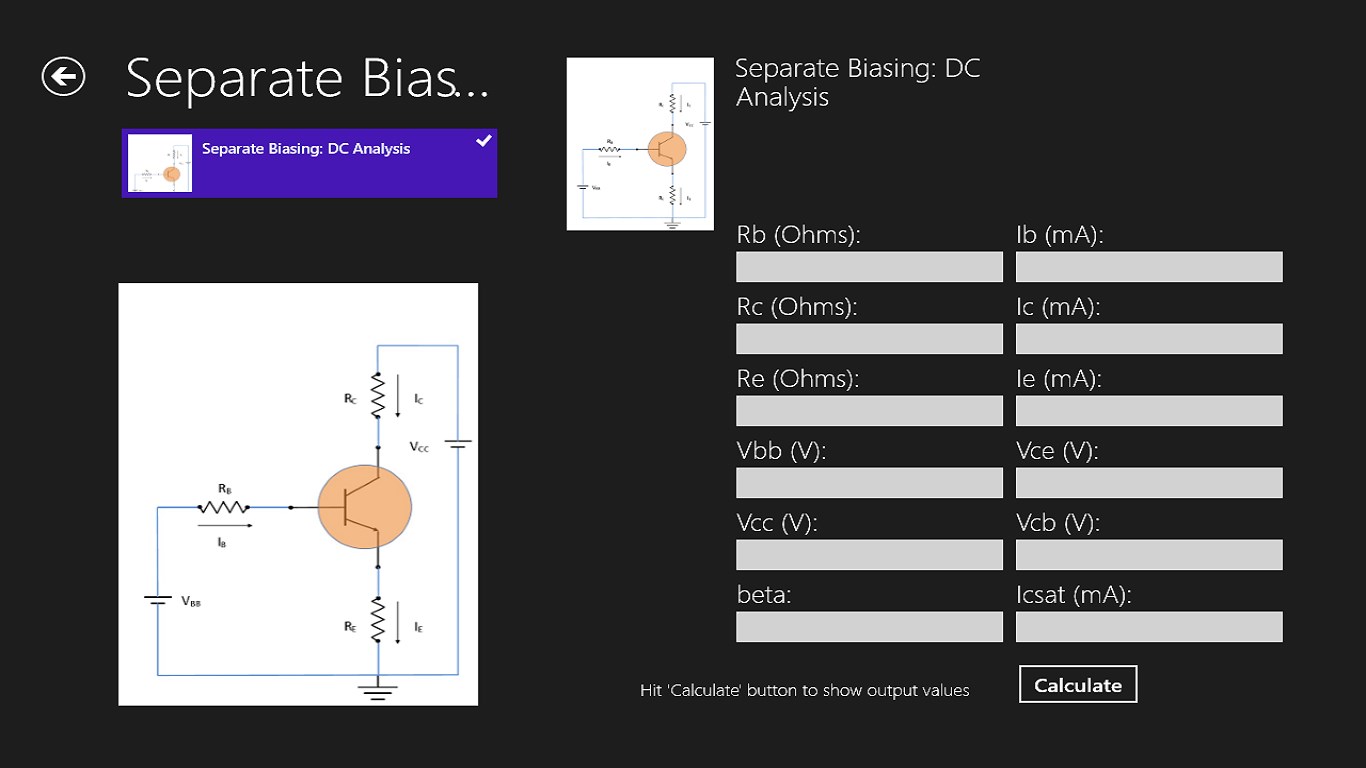

This application performs a DC analysis (currents and voltages) on a number of common Bipolar Junction Transistor circuit configurations including: Separate Bias, Fixed Bias, Voltage Divider Bias, Collector Feedback and Collector and Emitter Feedback. It also includes an basic p-n junction analysis with animation.
Features

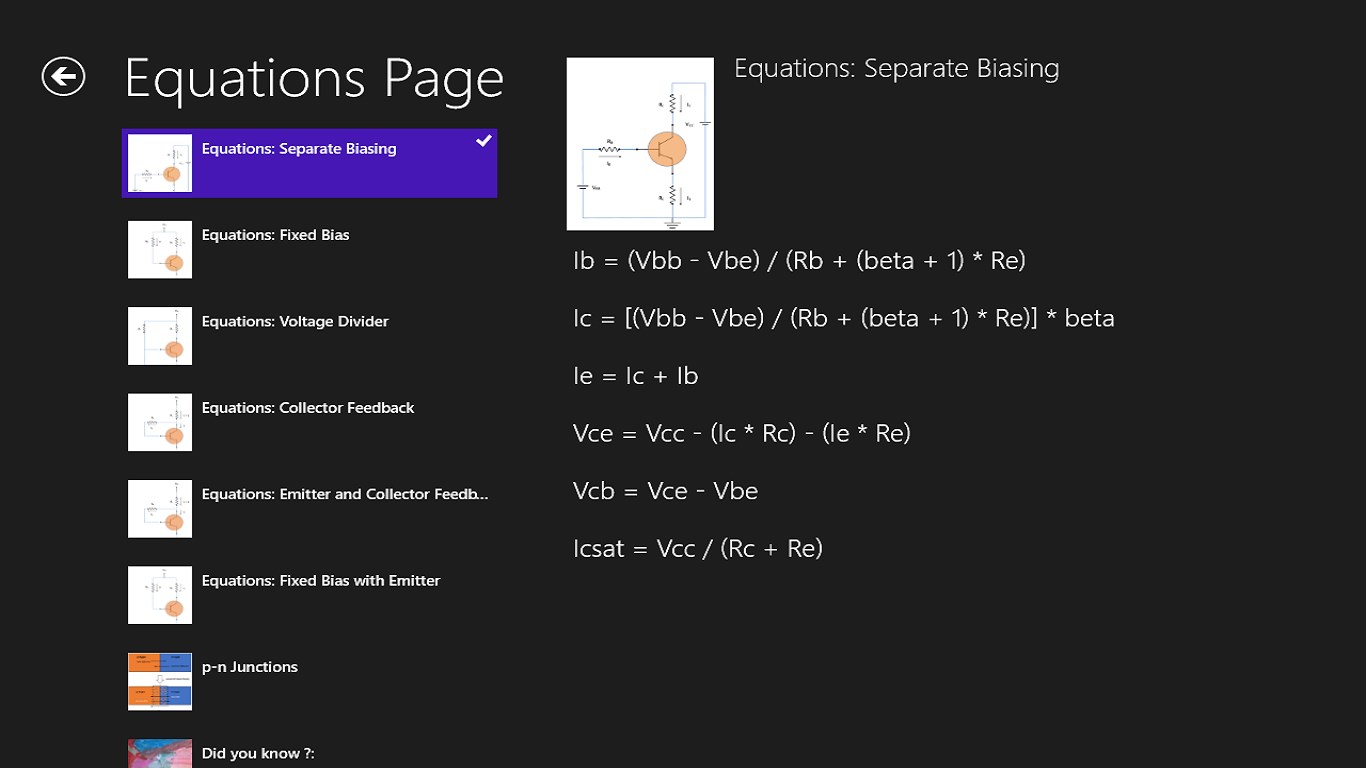

6 common BJT circuit typesp-n Junction analysis with animationEquations Page
Additional Information
