Overview

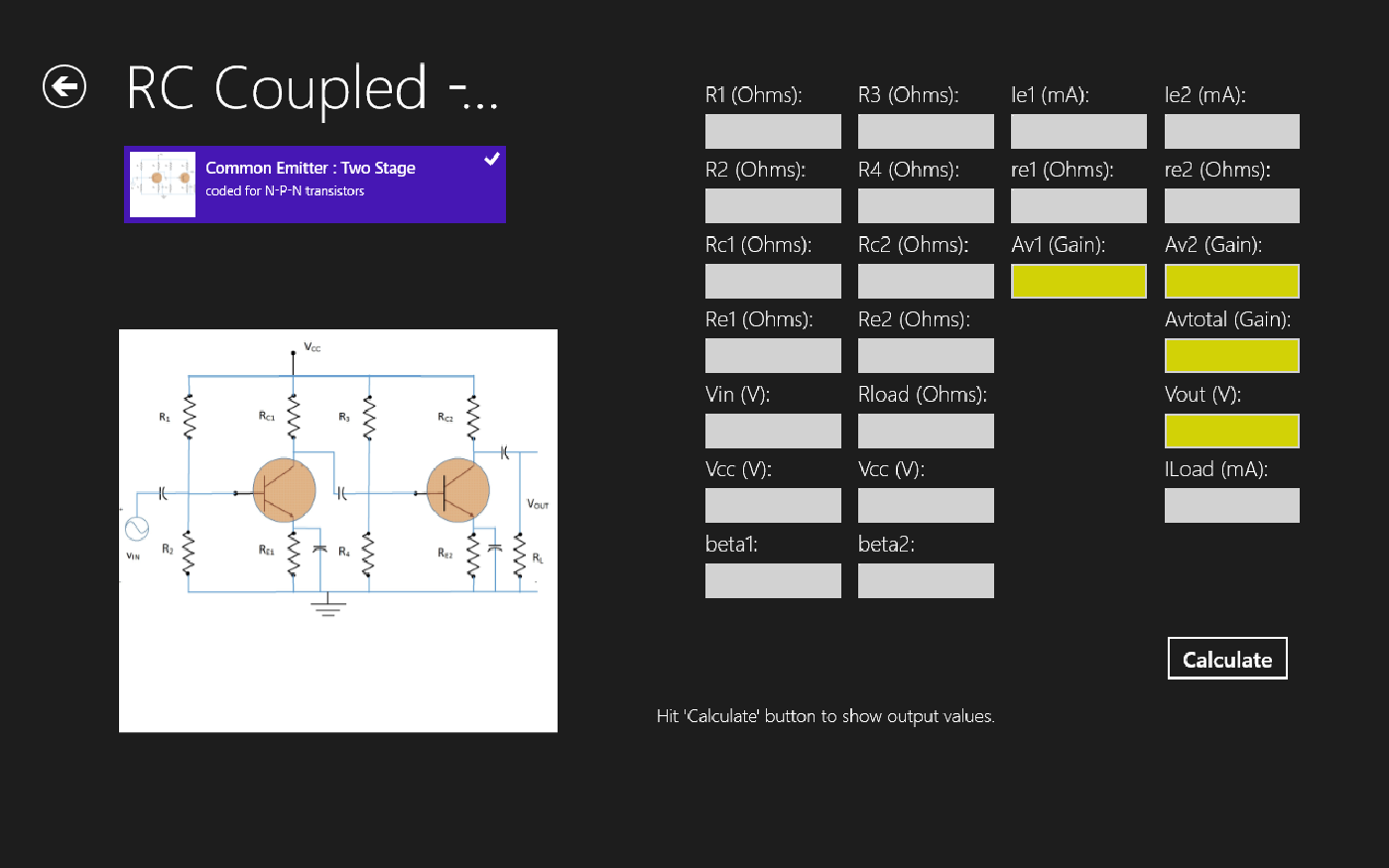

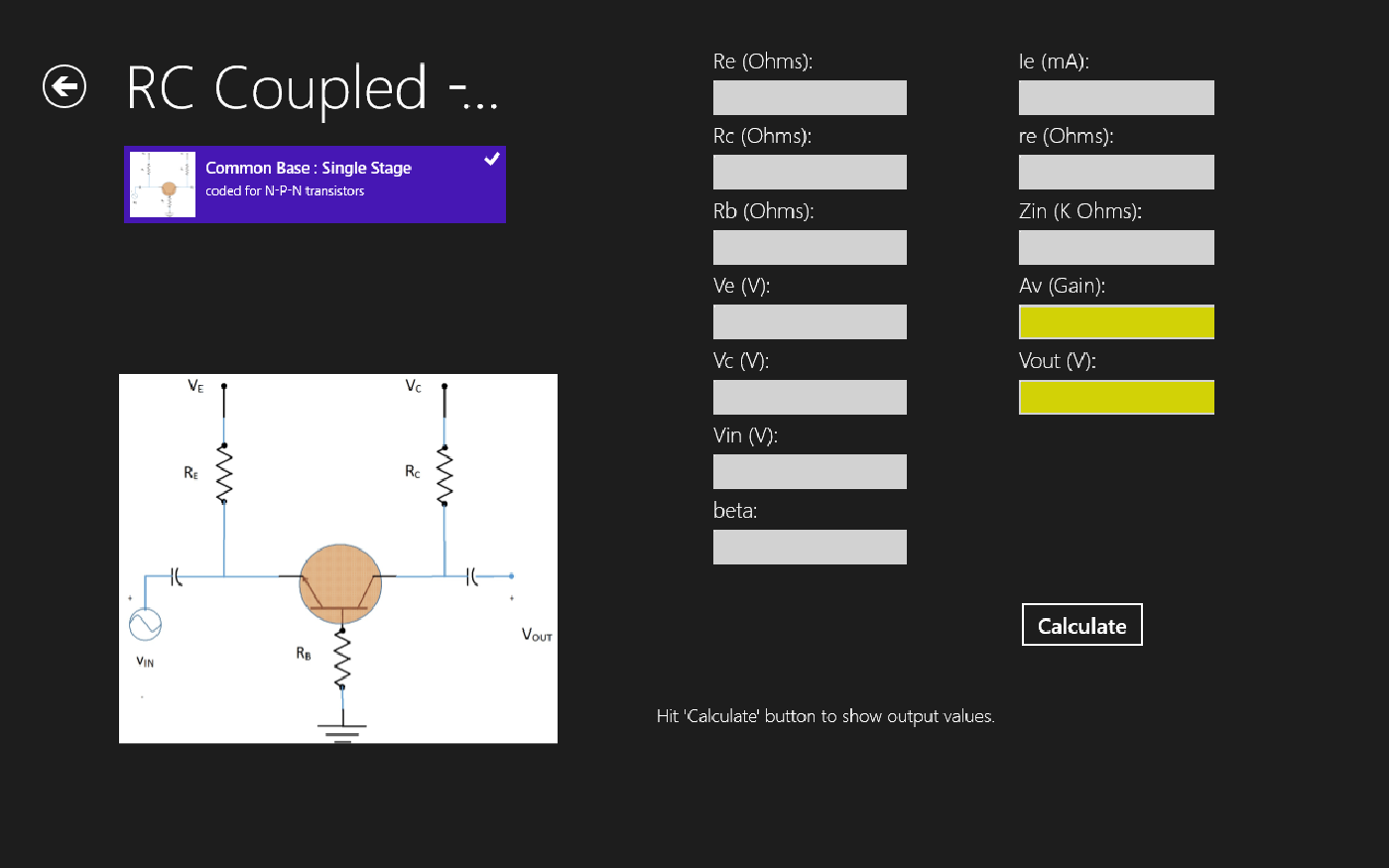

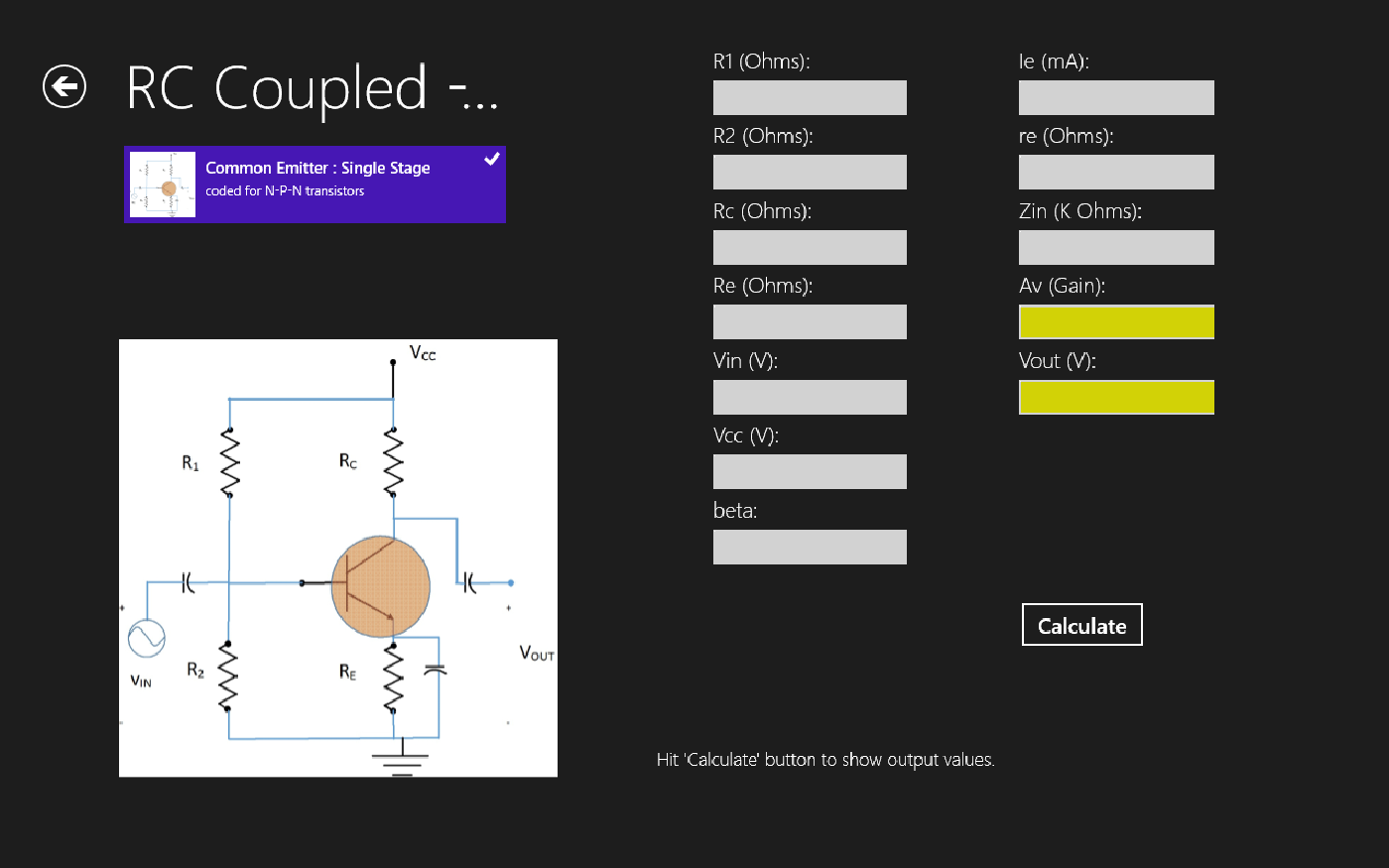

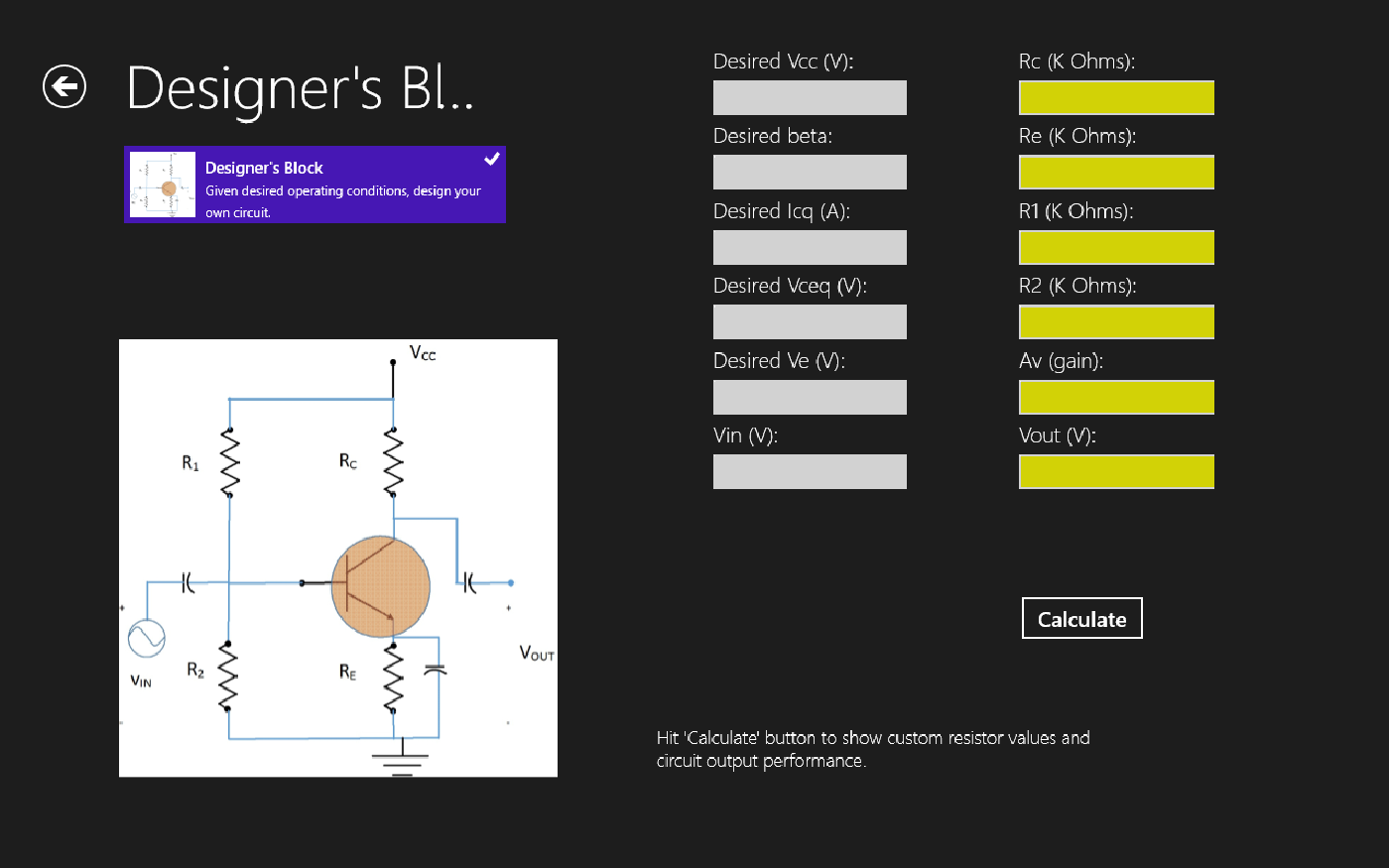

This application performs an AC analysis (voltage gains and re values) on a number of common Bipolar Junction Transistor circuit configurations including: RC Coupled Single Stage, RC Coupled Two Stage(cascaded) and RC Coupled Common Base configurations. It also includes a 'Designer's Block' enabling design of voltage-divider type circuits. Finally, it includes a simple Long Channel MOSFET simulator with automatic IV curve generation.

Features

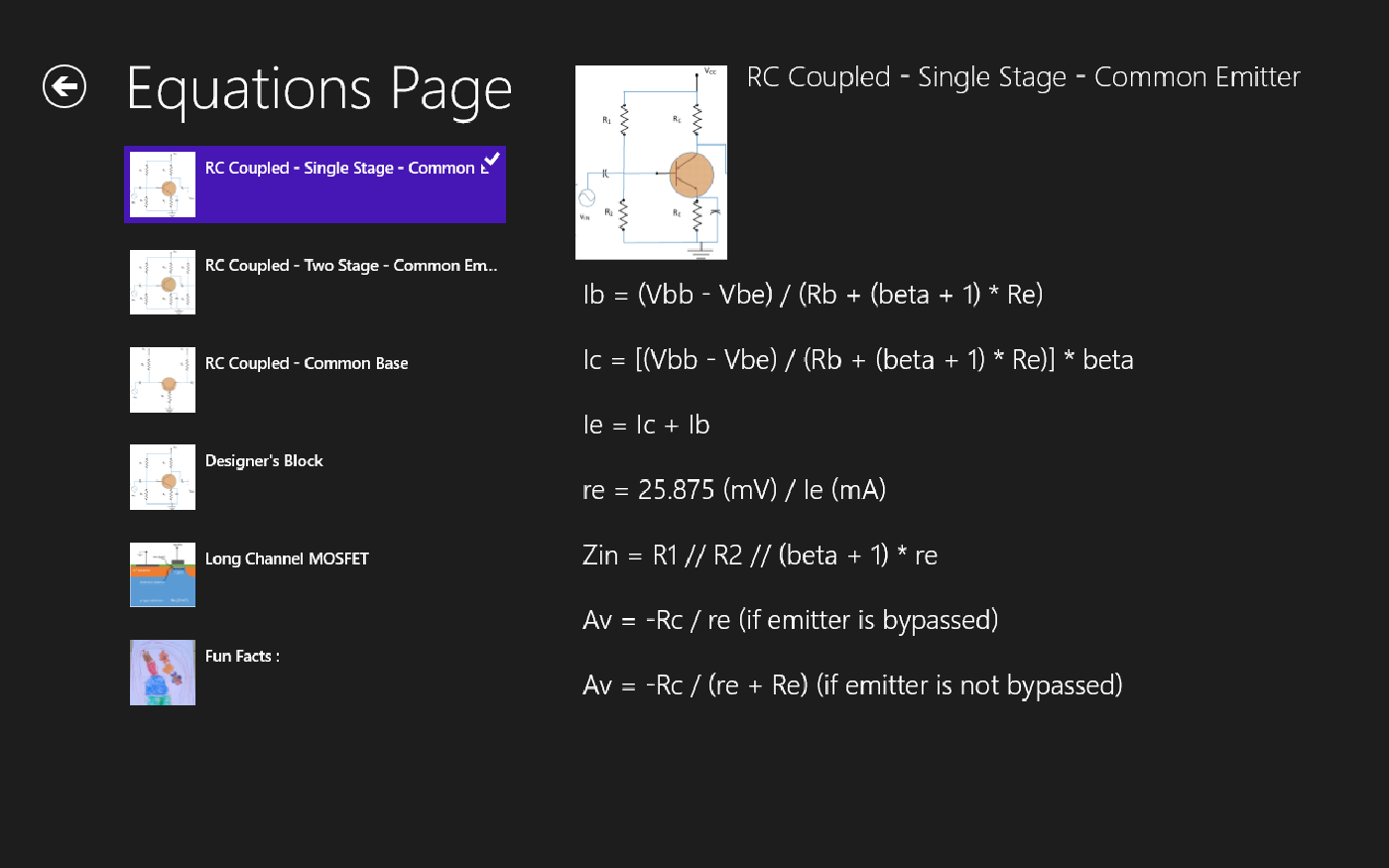

3 common BJT amplifier circuit typesCircuit Design blockMOSFET simulation with IV curve generationEquations Page

What's new

To meet app speed requirements, Vg is capped at 10V and Vdd is capped at 20V. This is also noted within the app as well, on the Equations Page

Additional Information

  • Developed by David C. Horton
  • Version 2020.10.19
  • Requires

    Available on: PC

    OS: Windows 8.1 or higher

  • Published 2015-05-12
  • Size 3.77 MB
  • File Type appx/msix
  • Language
    English (United States)
  • Permissions

    Access your Internet connection

  • Microsoft Store ID 9nblggh2vzhd
