Overview
Simulator of a subtractor/adder (heart of the arithmetic-logical unit, ALU) of a computer.
You can display the value of the signals for operations, as well as the logic gates, for operands between 4 and 8 bits.

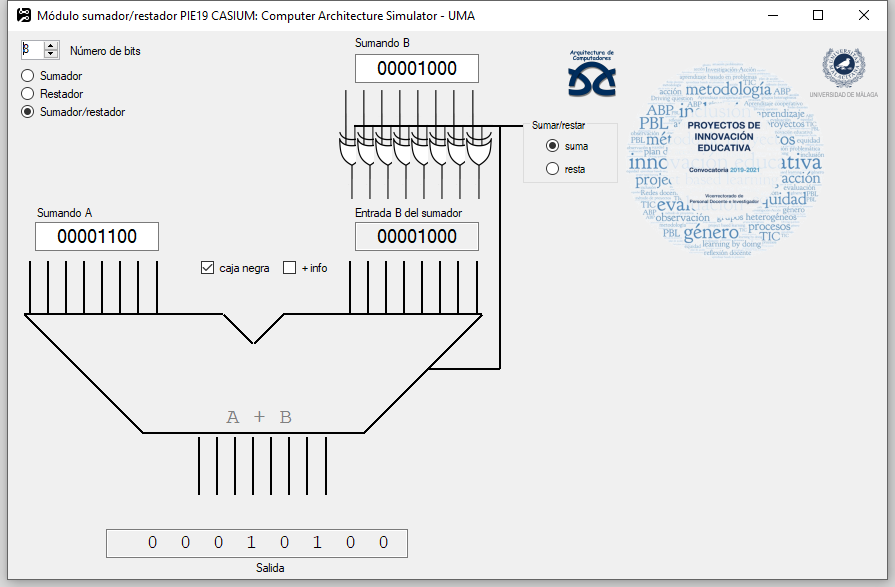

In black box mode, it only does the operations, but it can also visualize the decimal translation of operators and results.

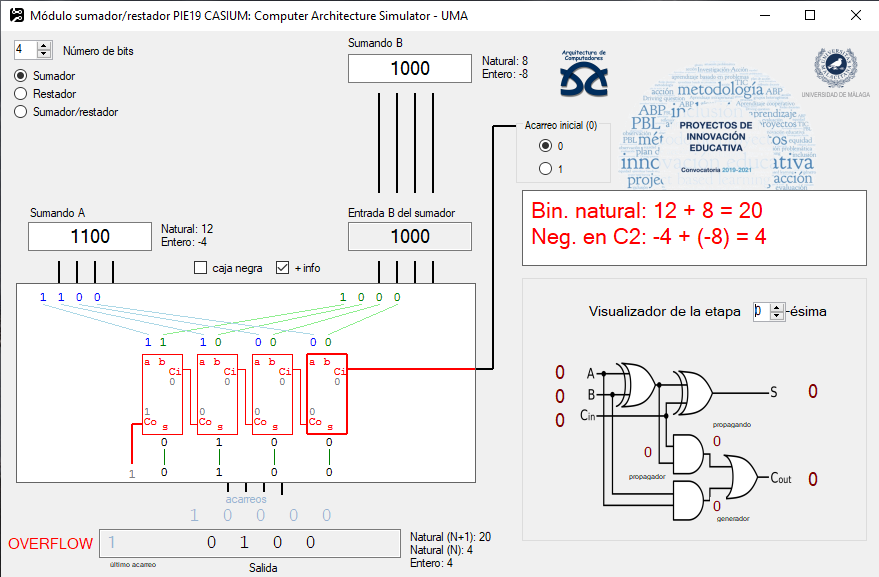

When the black box tick is deactivated, it displays the value of the signals, as well as the complete full adder circuits.
Additional Information
- Developed by Luis F. Romero, Pilar M. Ortigosa, Eva M. Ortigosa and Gerardo Bandera
- Version 2022.03.12
-
Requires
Available on: PC, Mobile
OS: Windows 10 version 14393.0 or higher
Keyboard: Not specified
Mouse: Not specified
Memory: Not specified
- Published 2019-12-24
- Size 3.6 MB
- File Type appx/msix
-
Language
Spanish (Spain)
-
Permissions
Uses all system resources
Access your Internet connection
- Microsoft Store ID 9p7bg1vt65z6
